PTR-5000CS
八达
Product Description

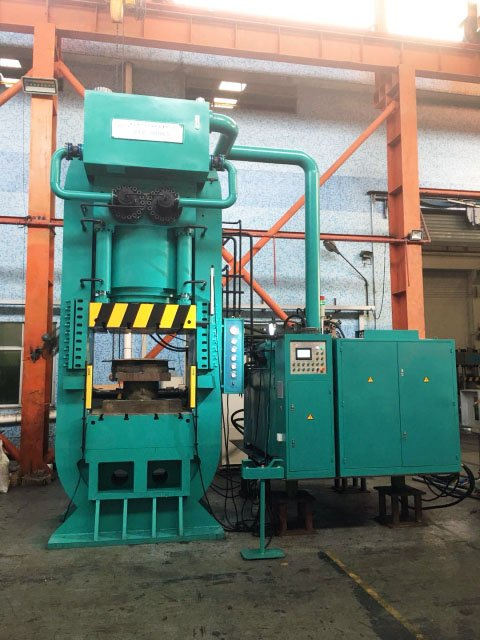

| PTR-5000CS ultra-high pressure servo CNC hydraulic press (precision hot and cold forging extrusion molding) | |||
| project | unit | numerical value | |
| Nominal force | KN | 50000 (adjustable) | |
| Hydraulic working pressure | MPa | 94/25 | |
| Slider stroke | mm | 300 (adjustable) | |
| Opening height | mm | 1100 | |
| Effective dimensions of work surface | about | mm | 1260 |
| before and after | mm | 1300 | |
| Loading cylinder pressure | KN | 300 (adjustable) | |
| Maximum stroke of loading cylinder | mm | 60 (adjustable) | |
| Unloading cylinder pressure | KN | 1000 (adjustable) | |
| Maximum stroke of unloading cylinder | mm | 60 (adjustable) | |
| Slider speed | Get off quickly | mm/s | 160 (adjustable) |
| slow down | mm/s | 10 (adjustable) | |
| Work progresses | mm/s | 3 (adjustable) | |
| Return trip | mm/s | 160 (adjustable) | |
| Servo motor power | KW | 60×3 | |
