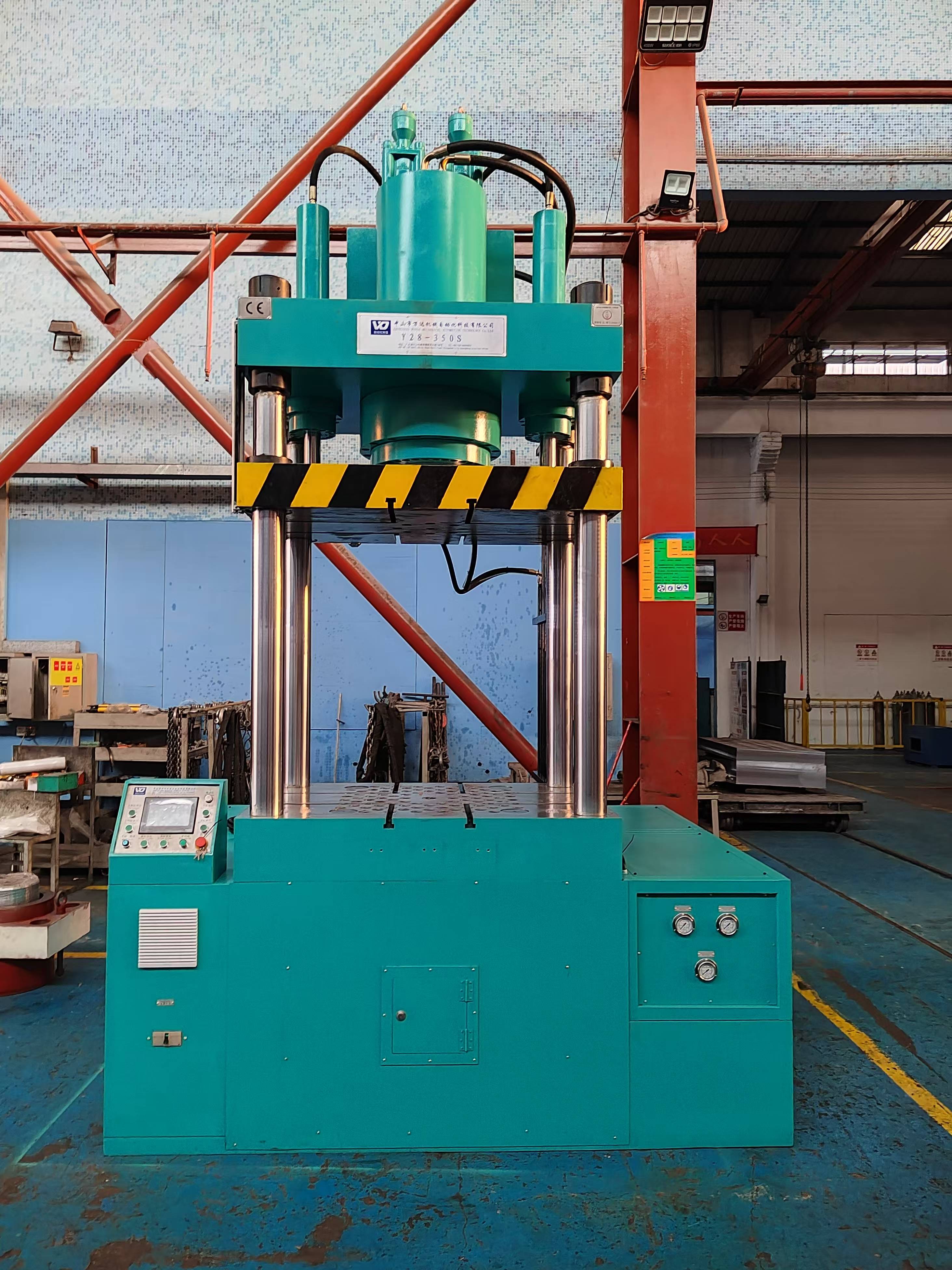

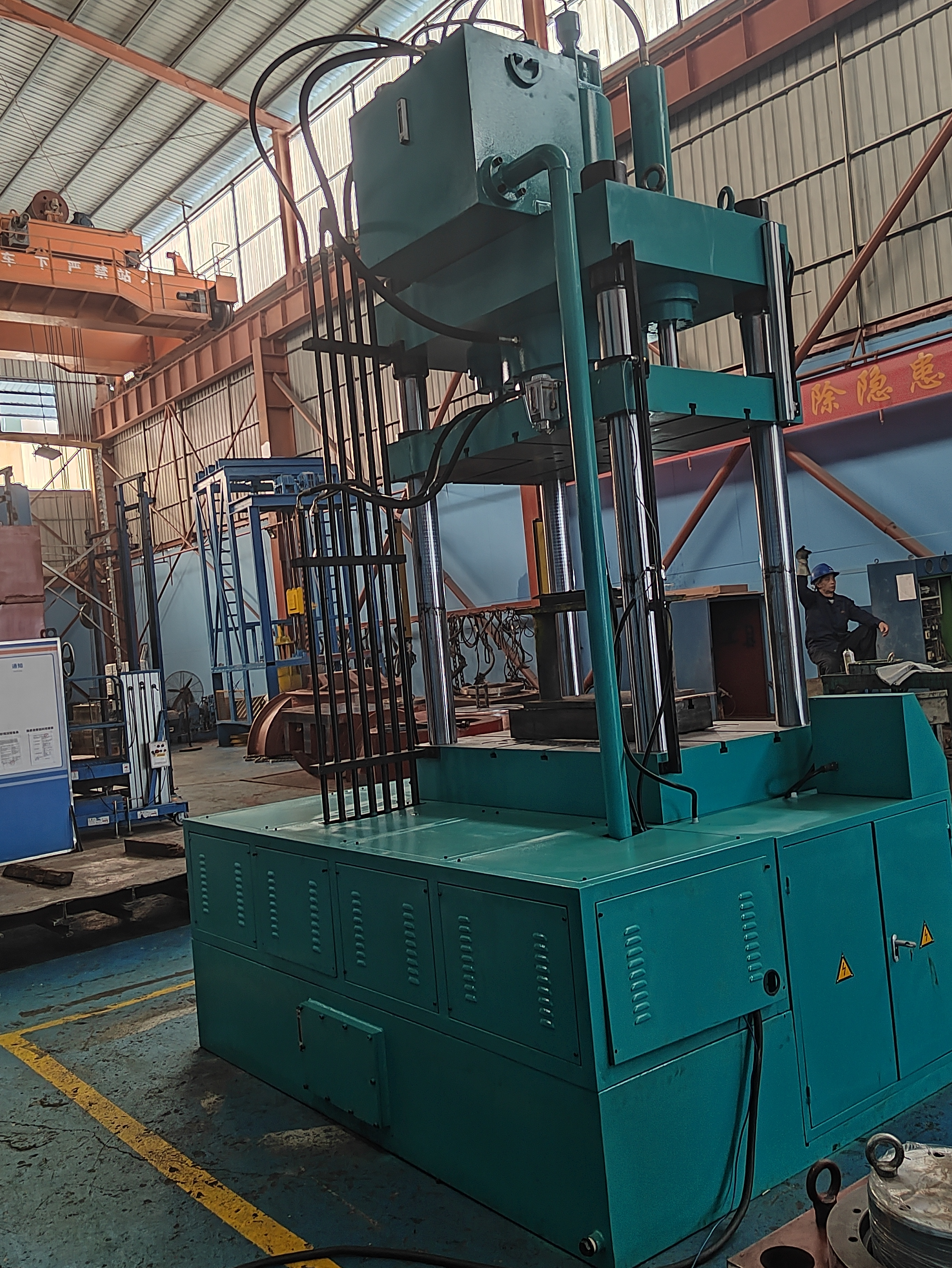

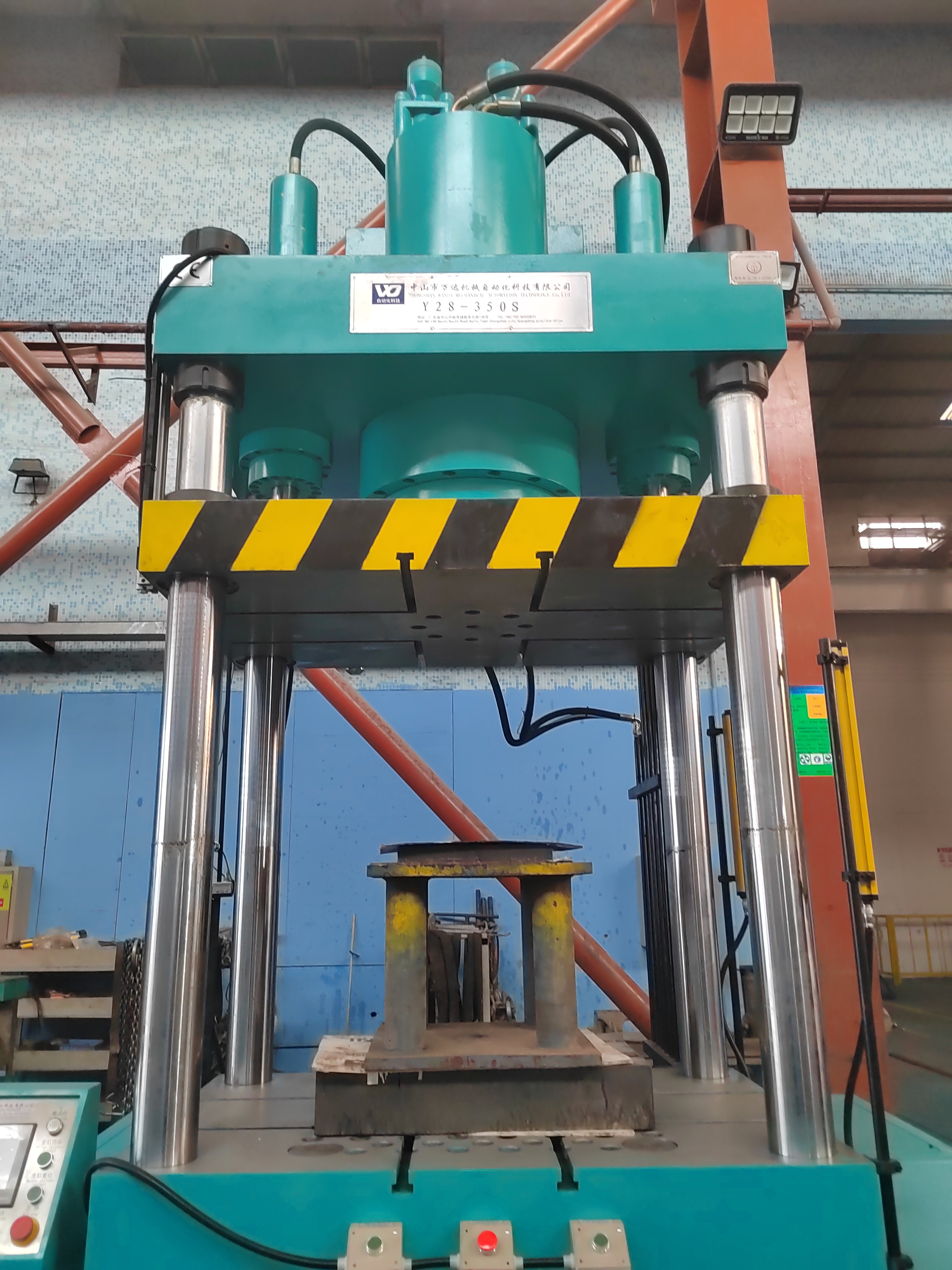

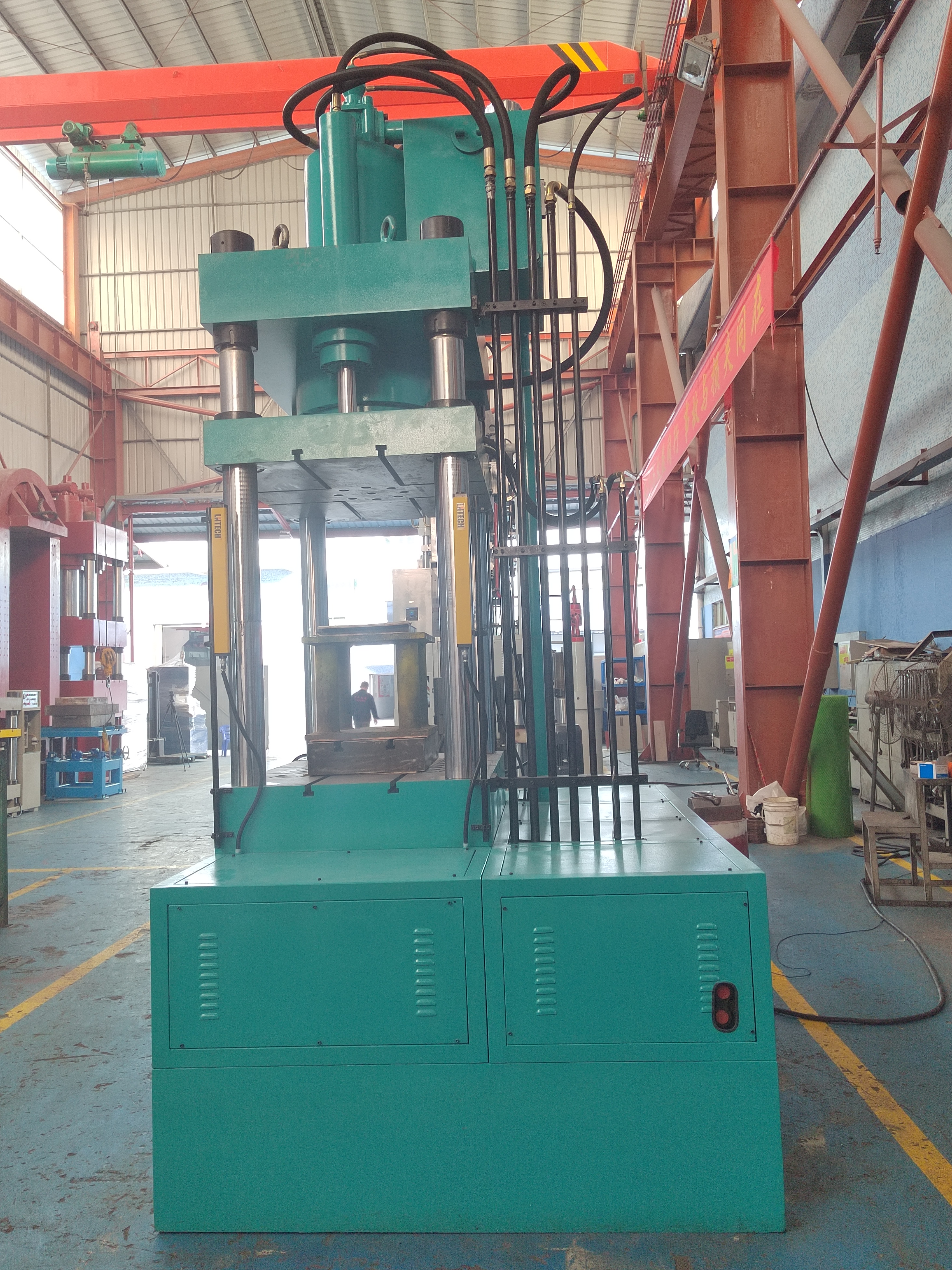

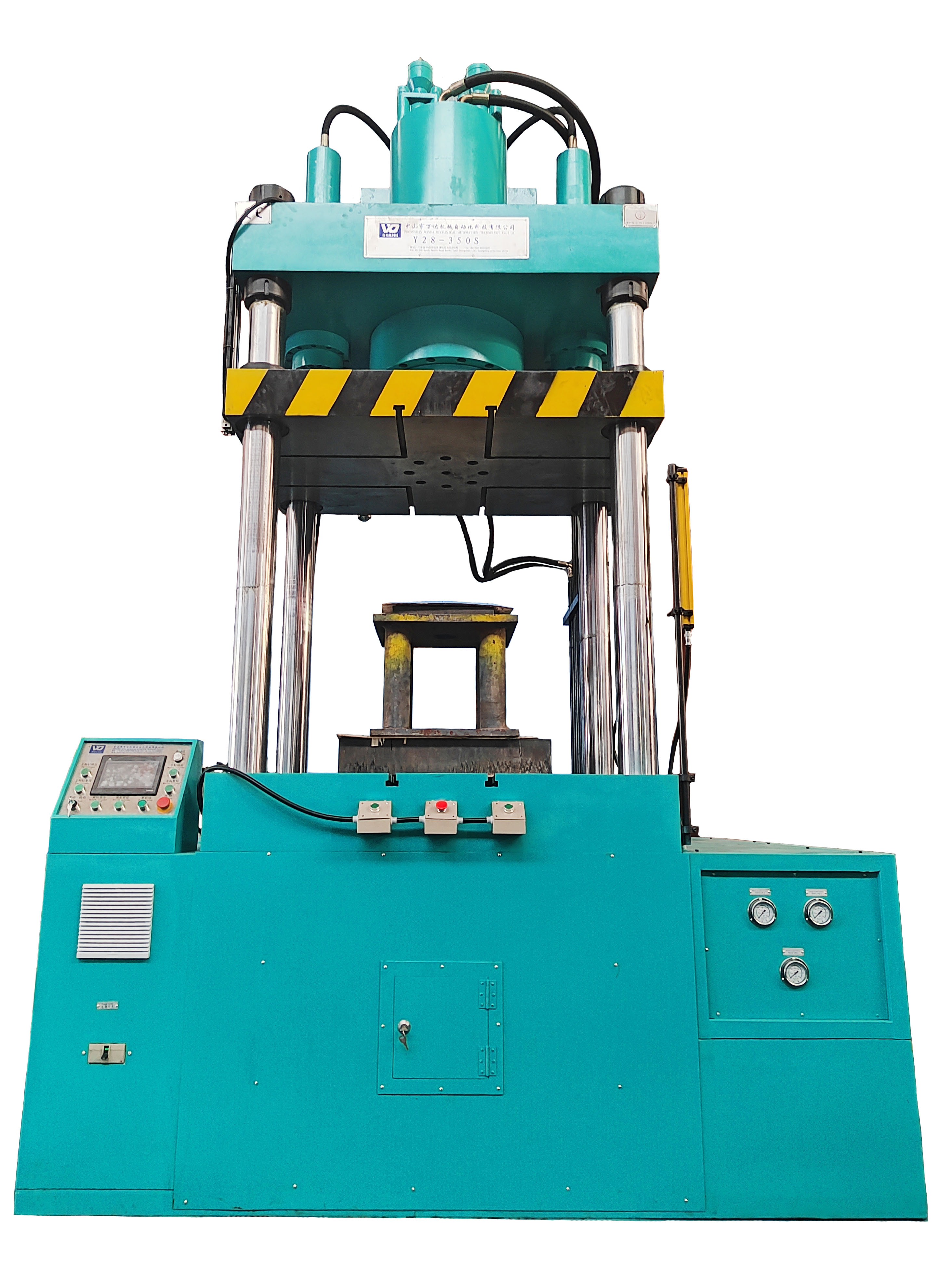

Y28-350S
万达
Product Description
Technical parameters Main technical:
Serial number NO. | Project Item | Unit | Value Spec. | |
1 | Nominal force | KN | 3500 | |
2 | Main cylinder force | KN | 2500 (adjustable) | |
3 | Bottom cylinder force | KN | 1000 (adjustable) | |
4 | Top material cylinder force | KN | 150 (adjustable) | |
5 | Slider stroke Maximum stroke of slider | mm | 600 (adjustable) | |
6 | Maximum stroke of bottom cylinder | mm | 200 (adjustable) | |
7 | Threading cylinder stroke Maximum stroke of top material cylinder | mm | 200 | |
8 | Workspace opening height Maximum opening height in the workspace | mm | 1150 | |
9 | Working slider speed Working slider speed | No load down No-load down | Mm/S | 220 (adjustable) |
Stretch | Mm/S | 16-30 (adjustable) | ||
Return | Mm/S | 220 (adjustable) | ||
10 | Workbench effective size Effective size of table | Left and right LR | mm | 1100 (Inside the column) |
Front and rear FB | mm | 650 (Inside the column) | ||
11 | Hydraulic system pressure | MPa | 25 | |
12 | Motor Power | KW | 39.7 | |
