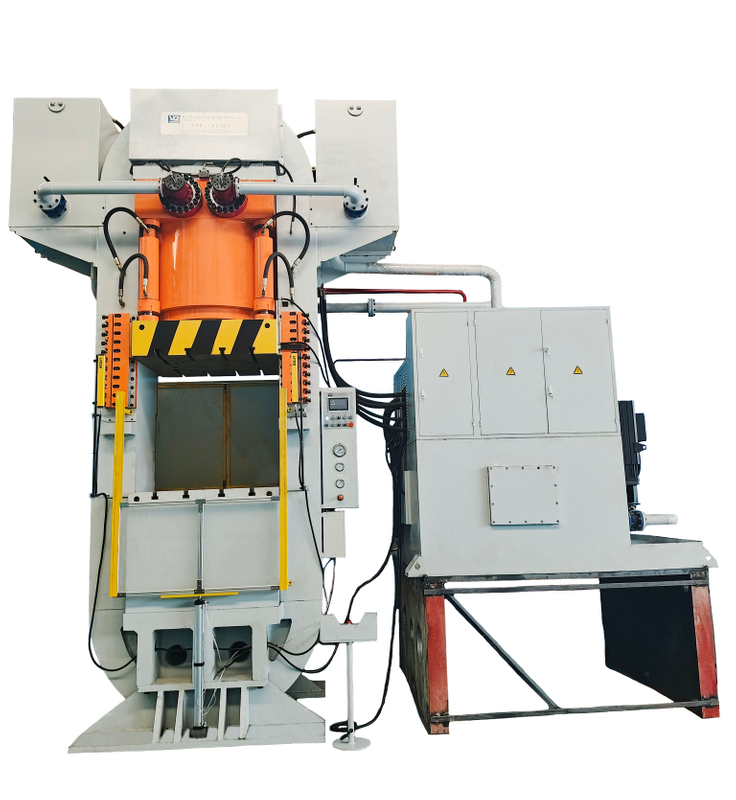

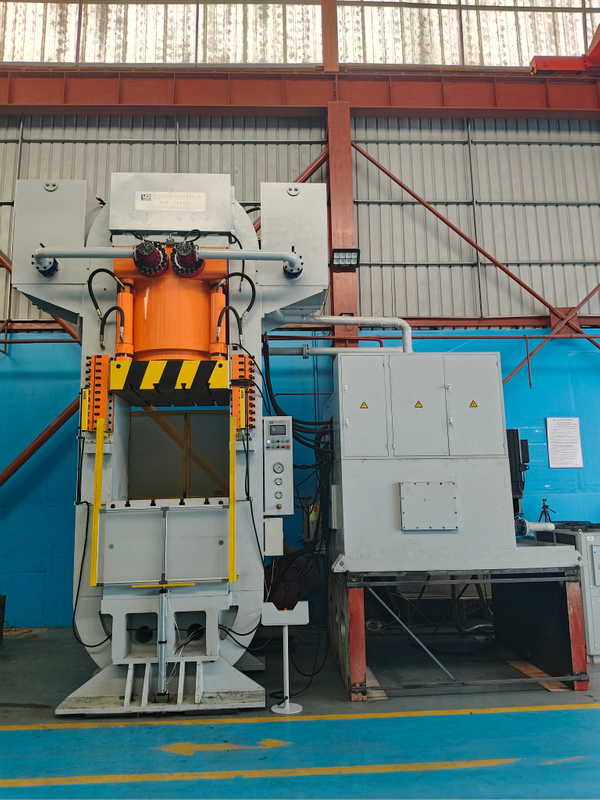

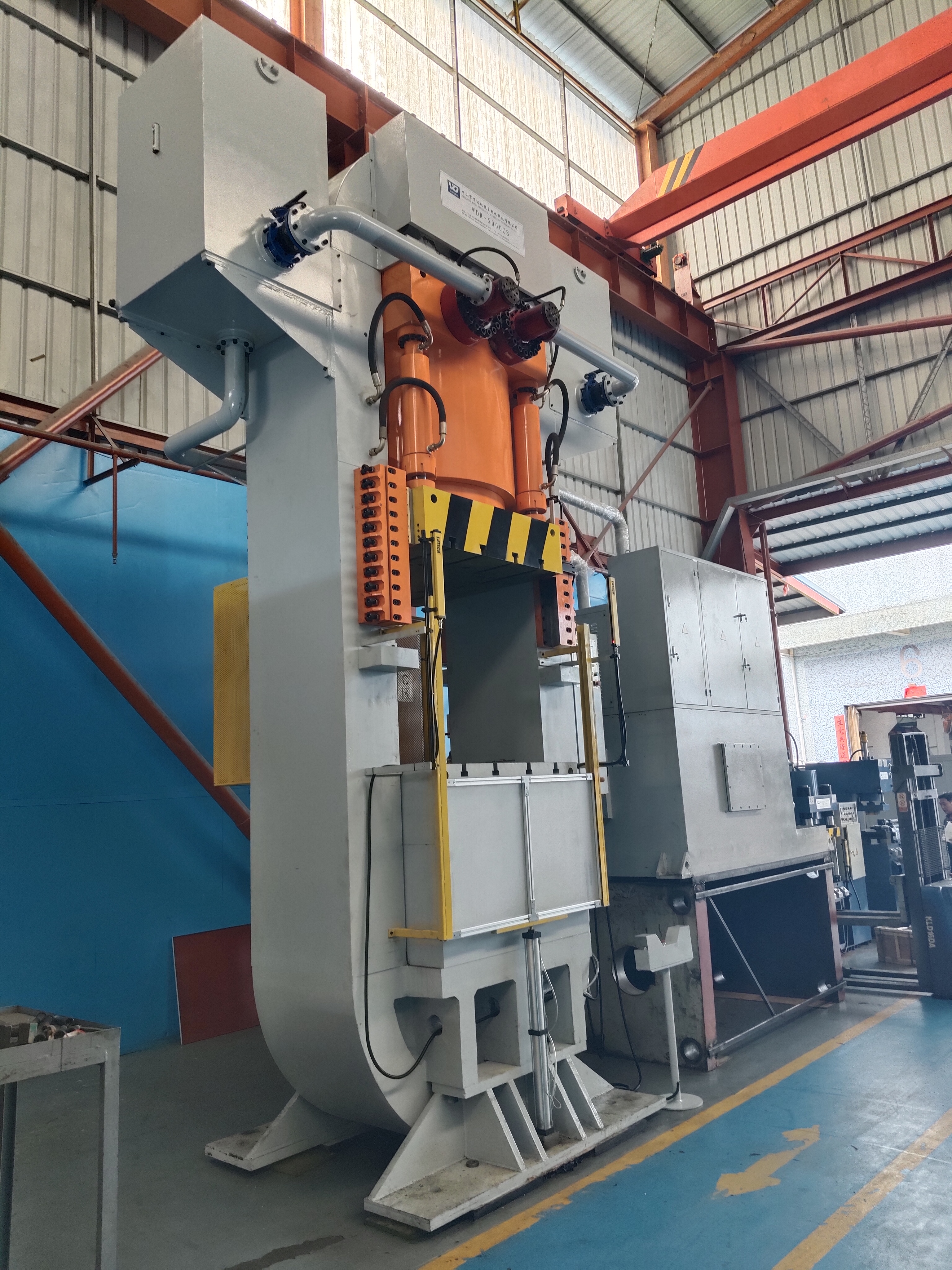

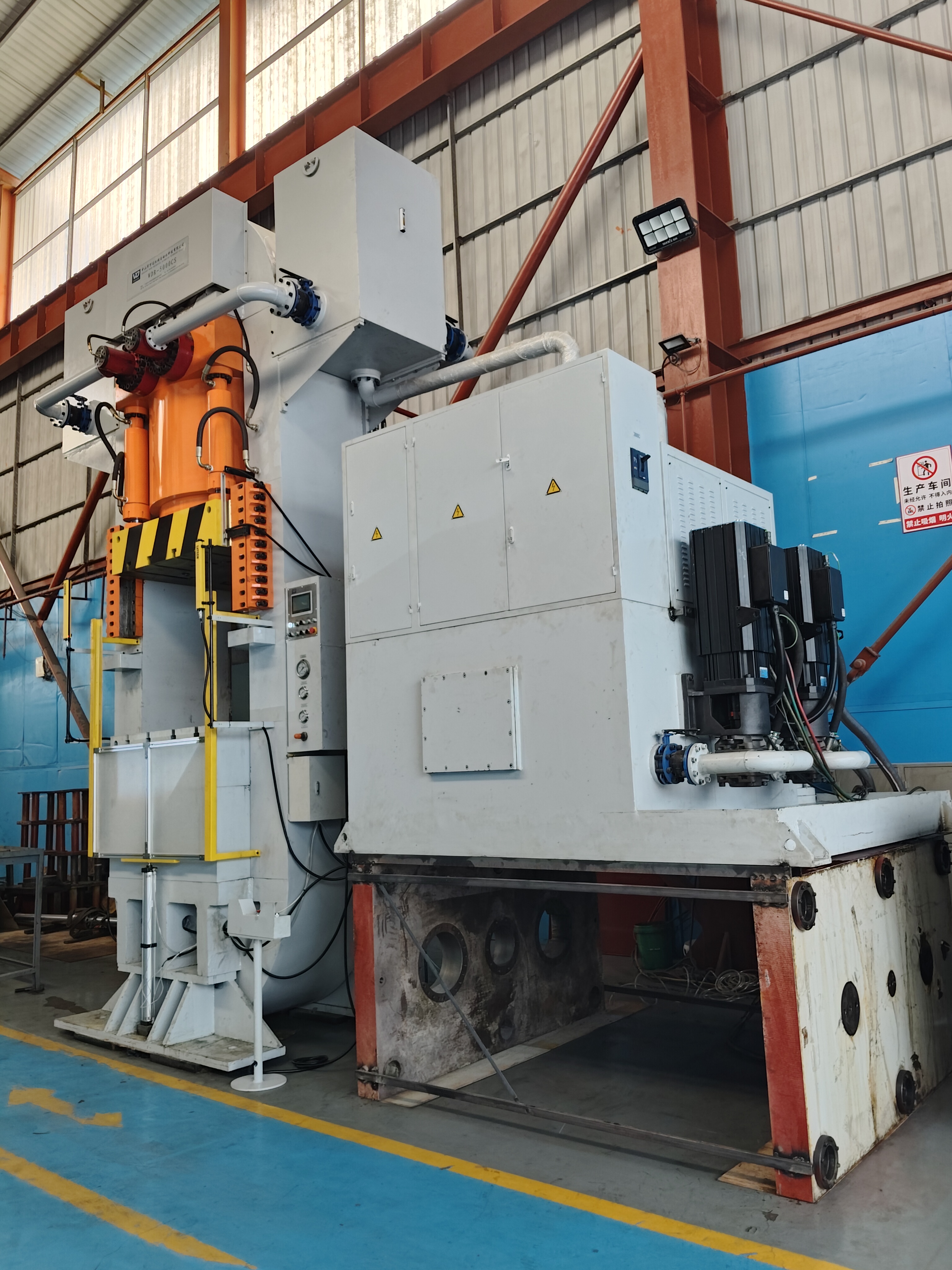

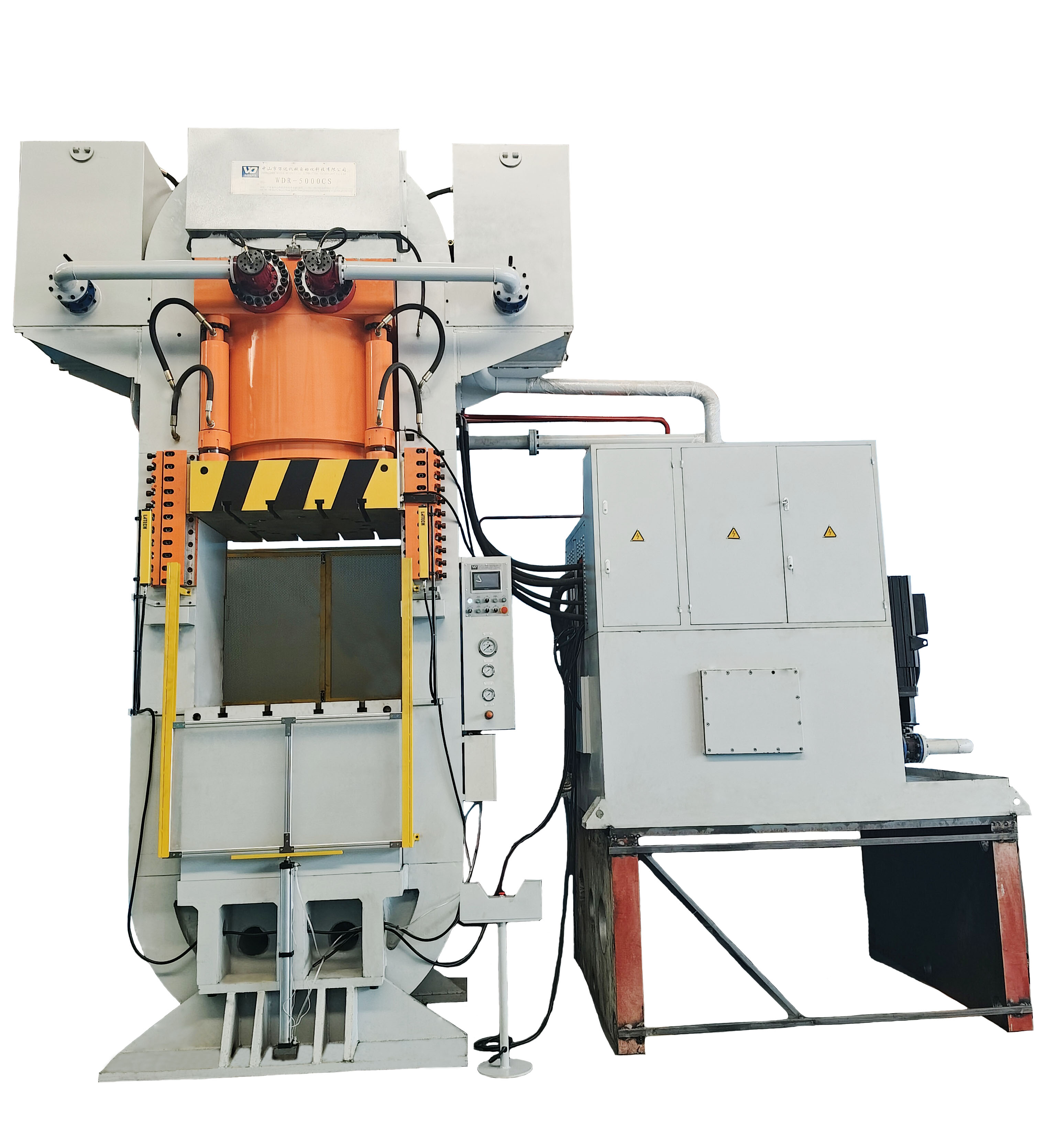

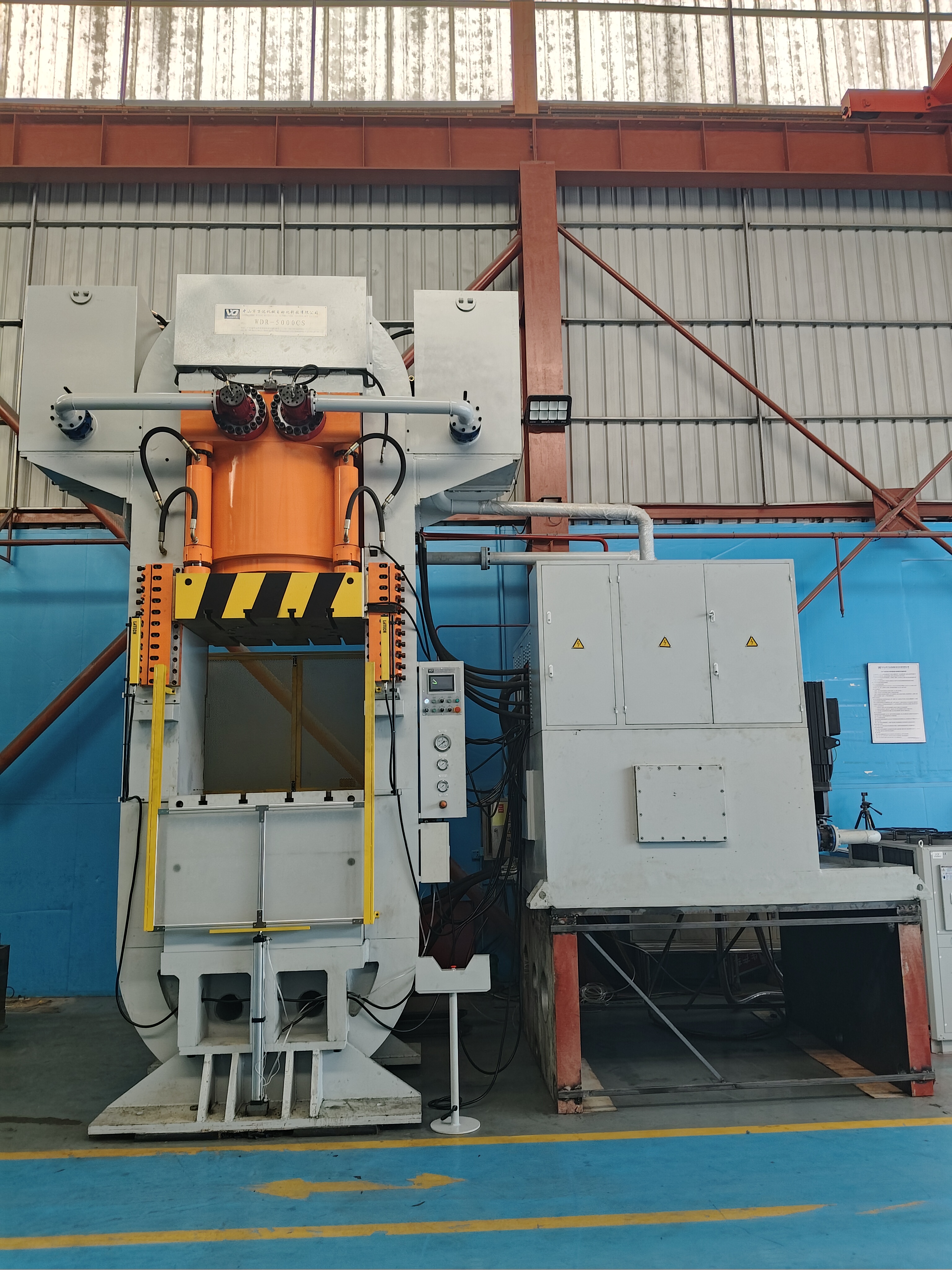

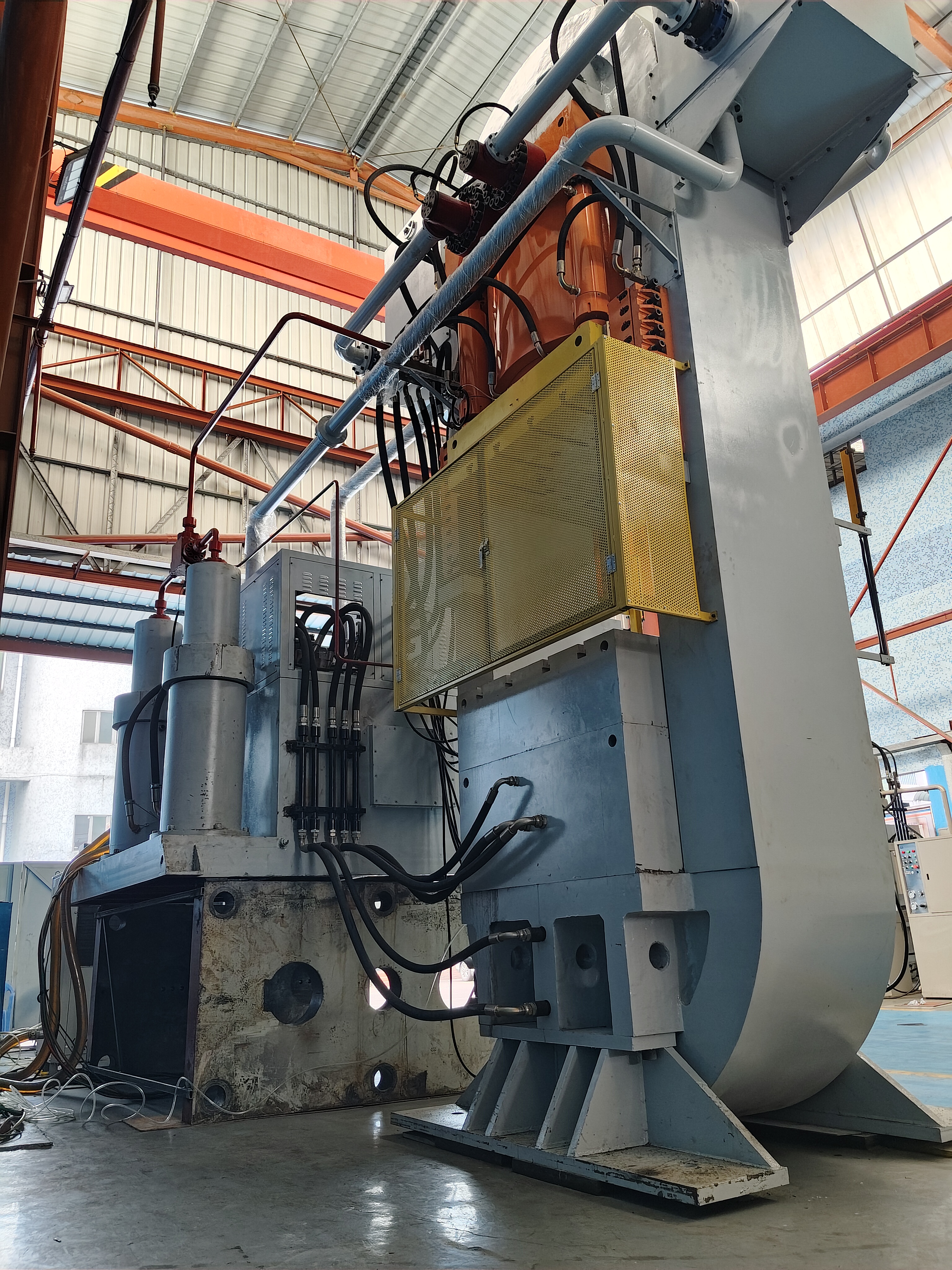

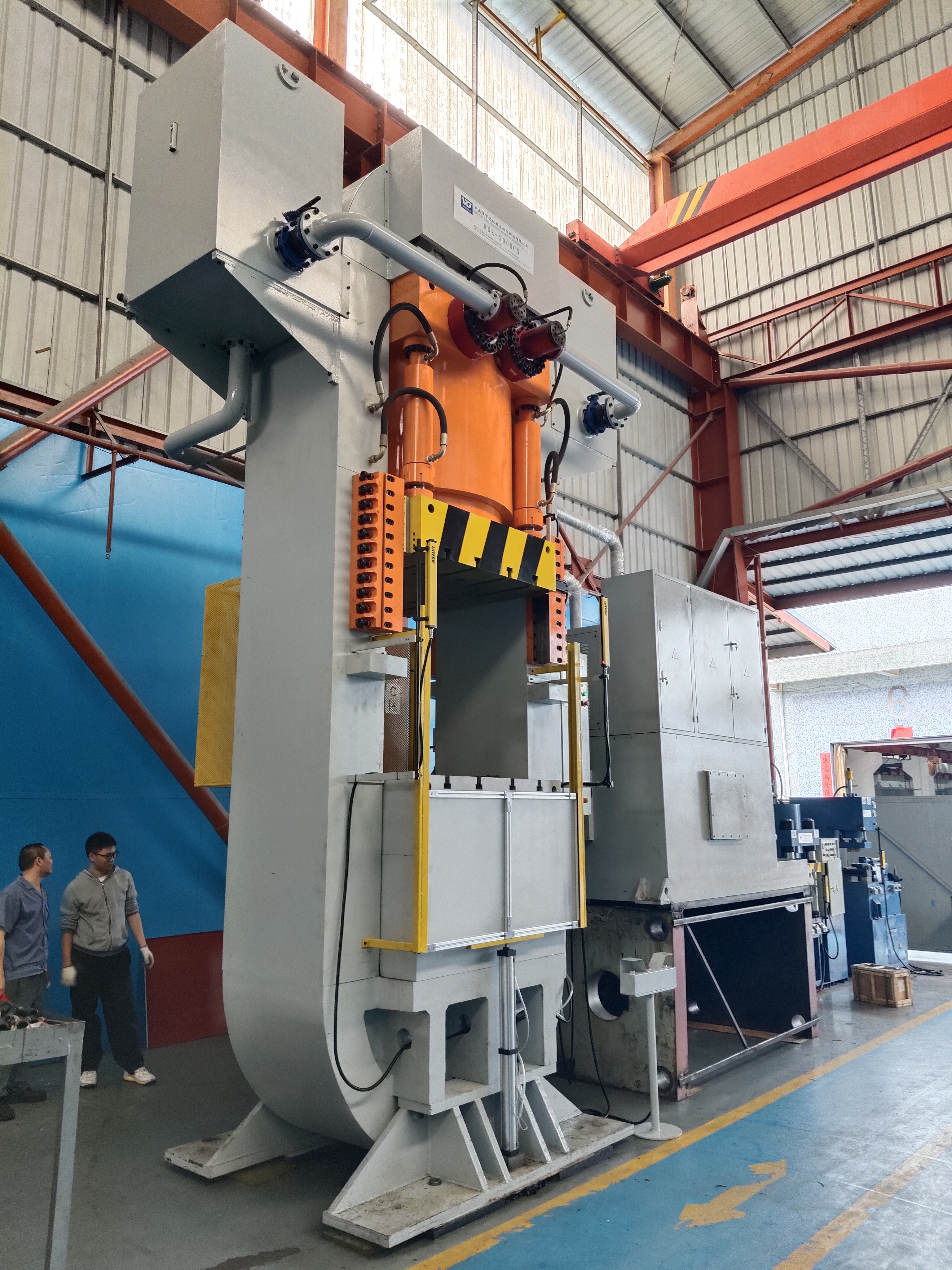

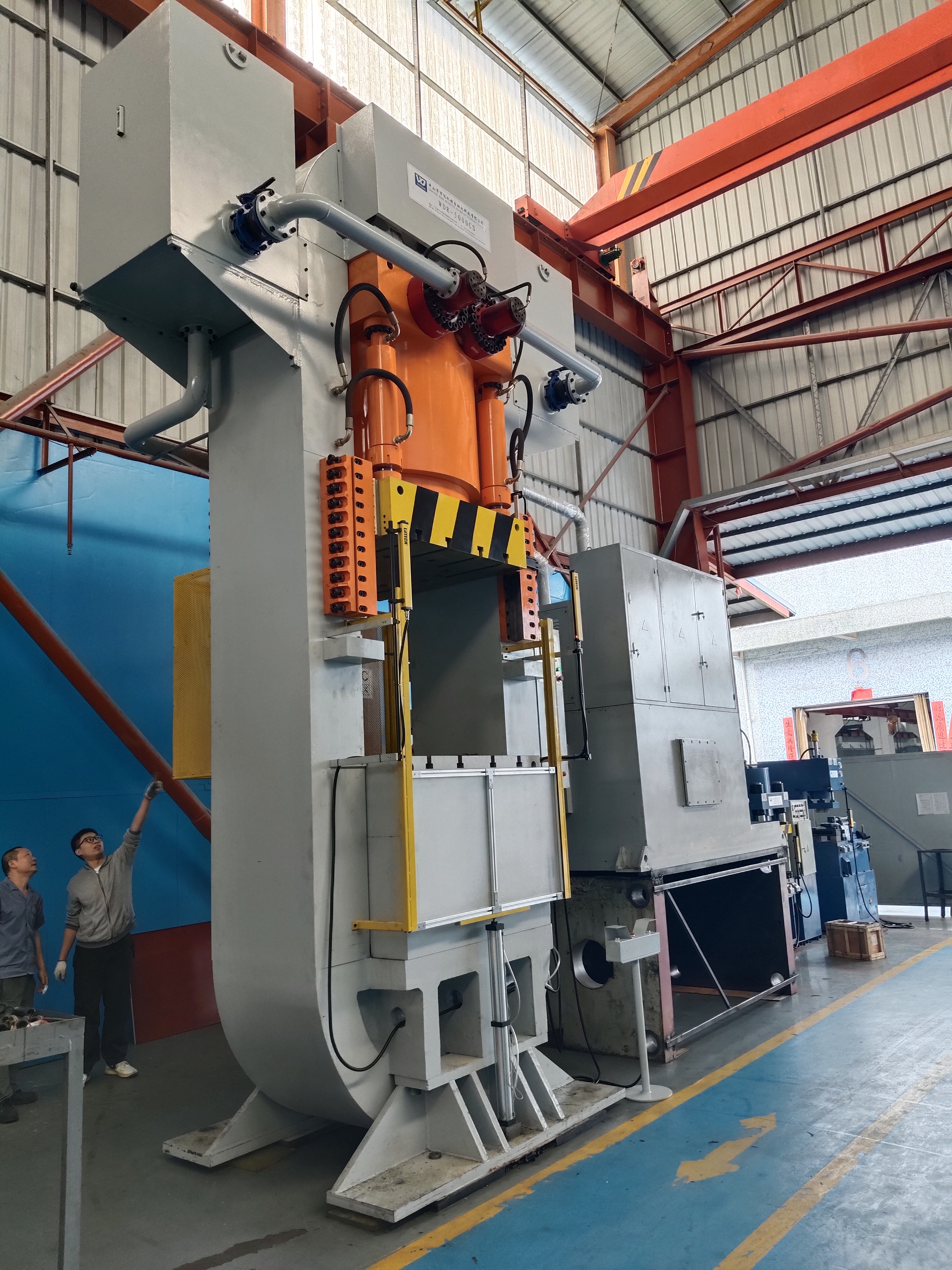

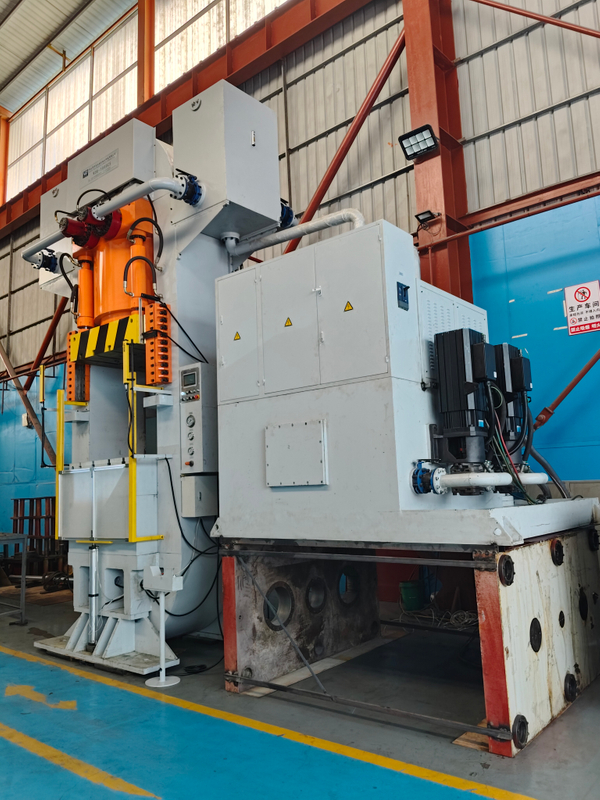

WDR-5000CS
万达
Product Description
1.3. Machine usage conditions:
1.3.1. Working environment temperature: 0-55℃
1.3.2. Relative humidity: no more than 85%
1.3.3. Power supply voltage: 380V±5%50HZ
1.3.4. Altitude: no more than 1500m
1.3.5. The medium used in the hydraulic system: 68# anti-wear hydraulic oil.
1.4. The semi-automatic actions of the machine are as follows:
The semi-automatic action of the machine is as follows: (the blanking cylinder is at the lower limit) the blank holder cylinder pushes up (time signal) → the slider goes down quickly (stroke signal) → the slider presses slowly (pressure signal, stroke detection) → maintains pressure (time signal) → pressure relief (pressure signal) → slider returns (stroke signal) → slider stops (stroke signal) → the blank holder cylinder pushes up (time signal) → The blank holder cylinder returns (time signal is sent) → the blanking cylinder lifts (time signal is sent) → the blanking cylinder returns → stops (taking the workpiece).
The machine is fully automated as follows: Equipped with a robot hand to replace labor and achieve fully automated production
2. Main technical parameters:
Serial number | project | unit | WDR- 5000CS | |
1 | Master cylinder force | KN | 50000(adjustable) | |
2 | Liquid working pressure | Mpa | 80/20(adjustable) | |
3 | Maximum stroke of master cylinder | mm | 0-400(adjustable) | |
5 | Maximum opening height | mm | 1200 | |
6 | Minimum mold height | mm | 800 | |
7 | Master cylinder boost effective stroke | mm | 30 (one rod pressurizes to 80MPa pressing force stroke) | |
8 | Workbench and floor height | mm | 800 (need to do foundation) | |
9 |
Master cylinder speed | fast | mm/S | 0-150(adjustable) |
preload | mm/S | 0-13(adjustable) | ||
Supercharge | mm/S | 0-3.1(adjustable) | ||
Return | mm/S | 0-150(adjustable) | ||
10 |
Eject the cylinder from the bottom | Nominal power | KN | 1200 (adjustable) |
journey | mm | 150(adjustable) | ||
Straight diameter of ejector pin | mm | 25 | ||
11 | Ejection speed of lower ejection cylinder | mm/S | 150 (adjustable) | |
12 | Lower ejection cylinder return stroke speed | mm/S | 100 (adjustable) | |
13 | Blanking cylinder | Nominal power | KN | 3000(adjustable) |
journey | mm | 100(adjustable) | ||
Straight diameter of ejector pin | mm | 62 x 8 pieces | ||
14 | Ejection speed of blank holder cylinder | mm/S | 65(adjustable) | |
15 | Blanking cylinder return speed | mm/S | 60 (adjustable) | |
16 | Workbench Face size | about | mm | 1260 |
Before and after | mm | 1300 | ||
17 | Motor power | KW | 78.3*2 | |
18 | Fuel tank capacity | 桶 | 15-18 barrels (200 liters/barrel) (68# hydraulic oil must be prepared by the buyer) | |
19 | Oil cooler | Kcal | 30000 | |
20 | The supercharger uses one rod to supercharge to 80Mpa (the supercharging process from 20Mpa to 80Mp does not stop) | |||
21 | The main frame is placed in the pit, and the hydraulic station is placed on the right side of the main frame. An oil buoy induction alarm system is installed in the pit oil collection tank. If there is oil accumulation, the system will alarm and shut down for inspection. | |||
