Baking tray production line (120 tons, 200 tons, 350 tons CNC double-action stretching machine)

Baking tray production line
Availability:
Quantity:
Baking tray production line (120 tons, 200 tons, 350 tons CNC double-action stretching machine)
Baking tray production line (120 tons, 200 tons, 350 tons CNC double-action stretching machine)
Baking tray production line (120 tons, 200 tons, 350 tons CNC double-action stretching machine)
Baking tray production line (120 tons, 200 tons, 350 tons CNC double-action stretching machine)
Baking tray production line (120 tons, 200 tons, 350 tons CNC double-action stretching machine)
Baking tray production line (120 tons, 200 tons, 350 tons CNC double-action stretching machine)
  • Baking tray production line

  • 万达

Product Description

Picture 2

Baking tray

Picture 1

Baking tray

Baking tray production line (4) Baking tray production line (8)

Baking tray production line (3)

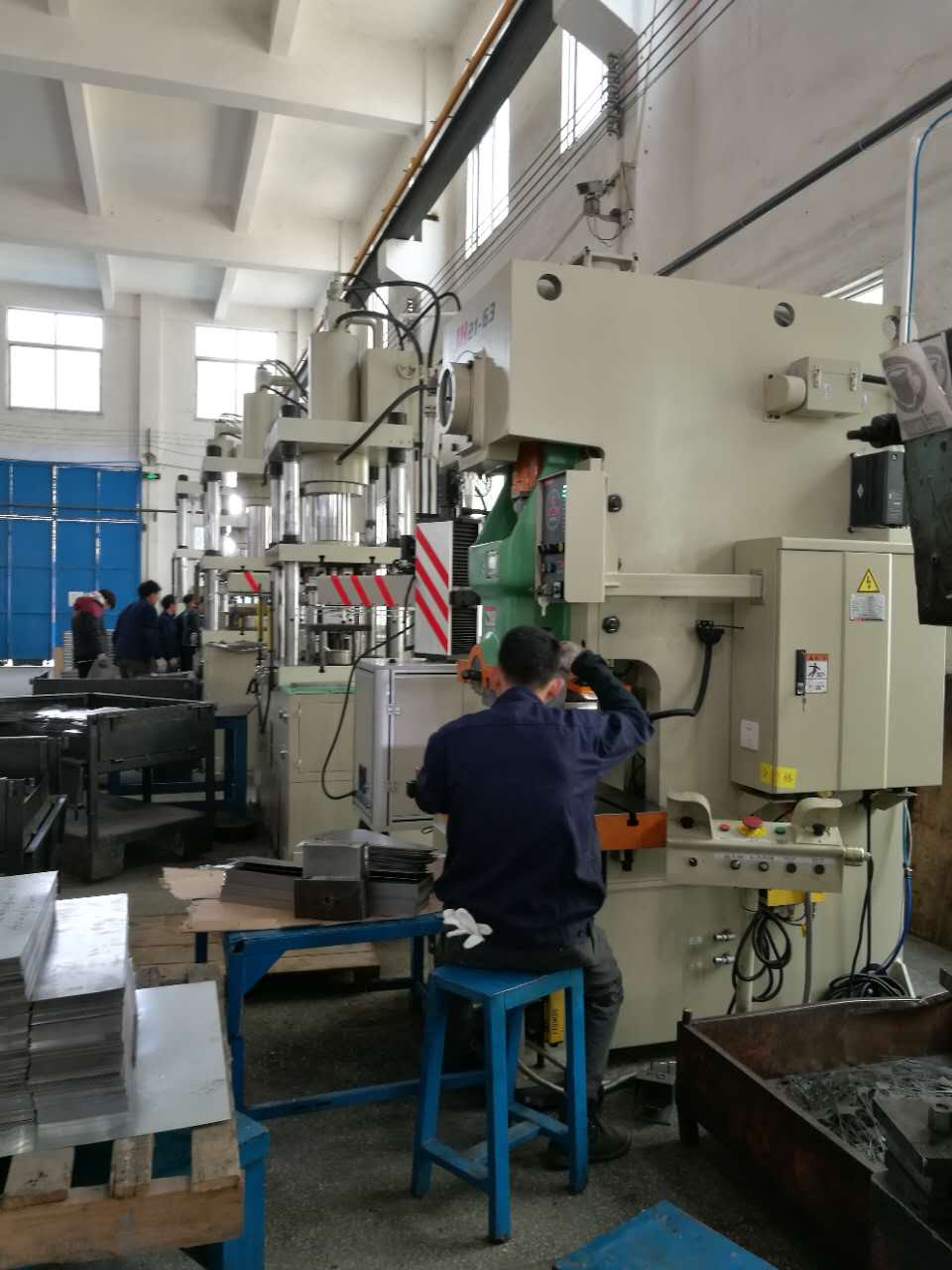

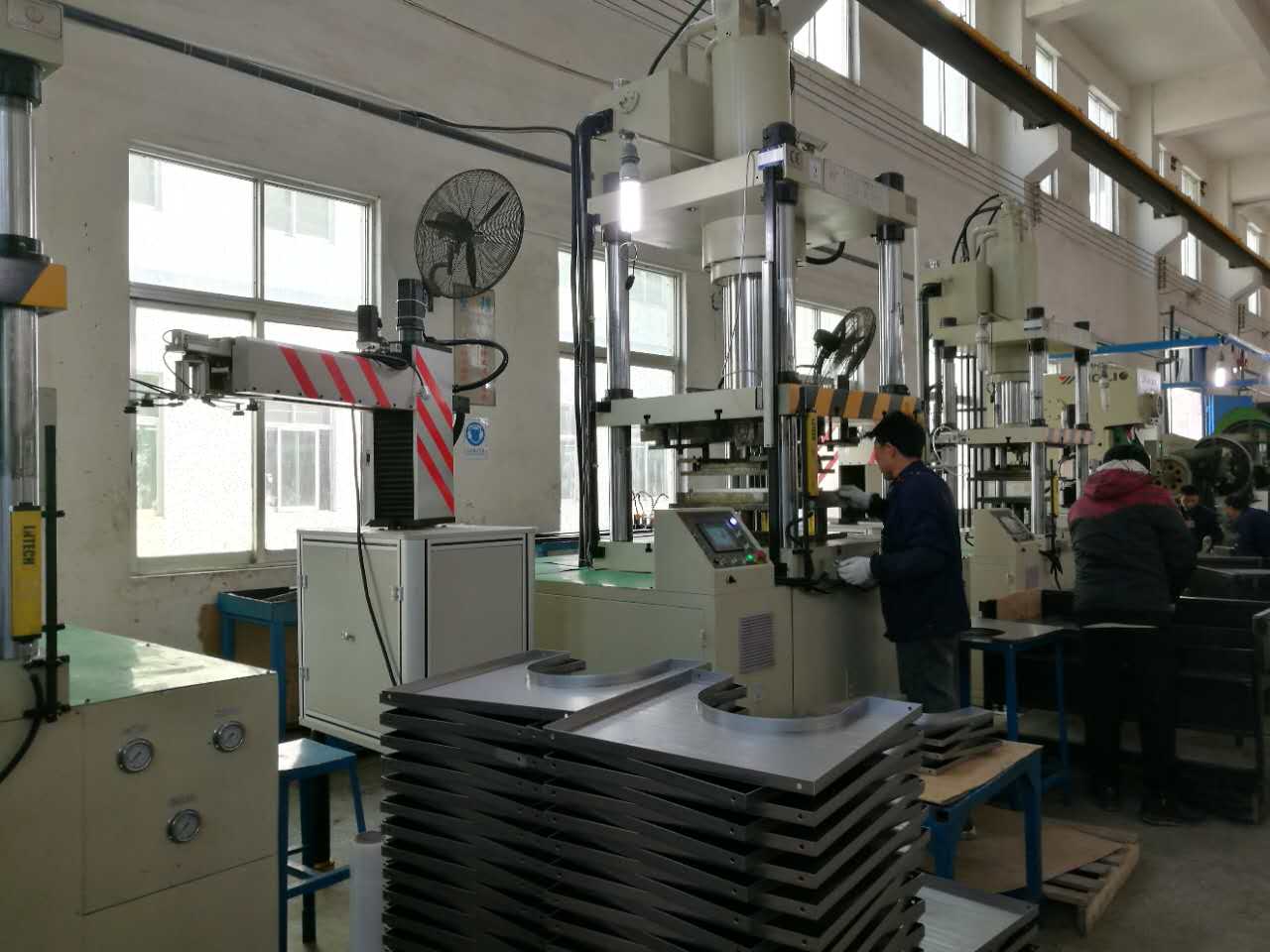

Customer site

Baking tray production line (2)

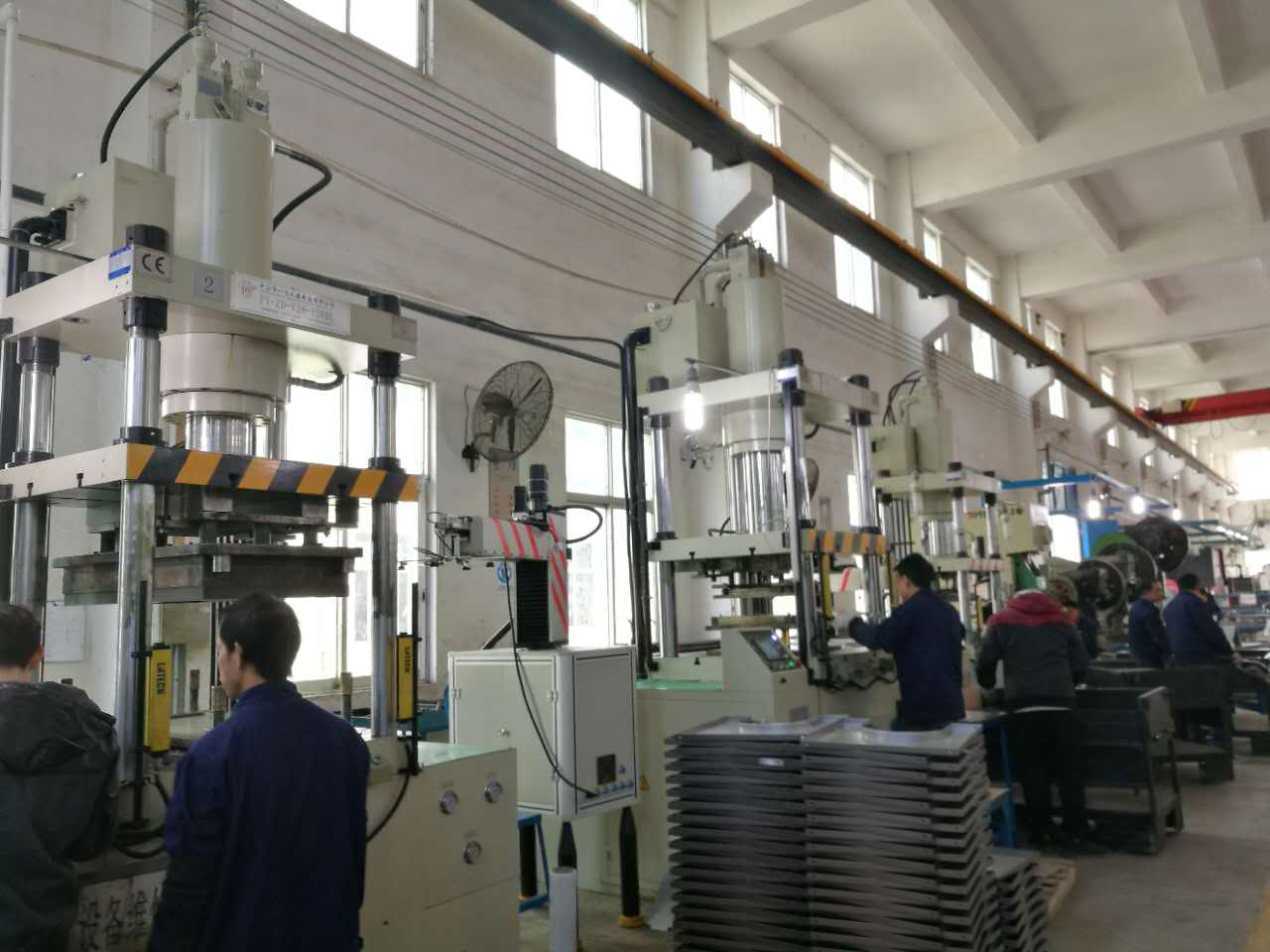

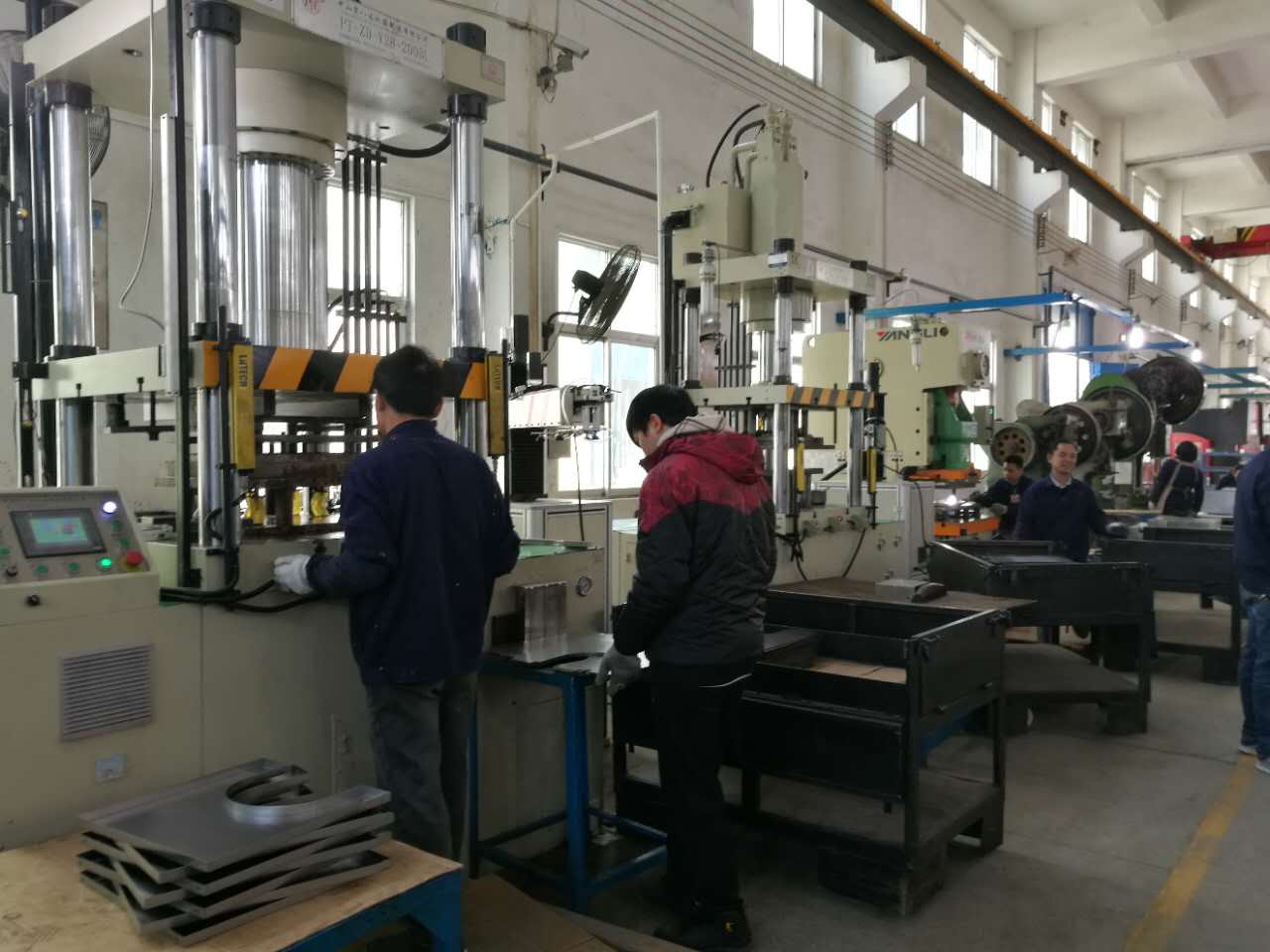

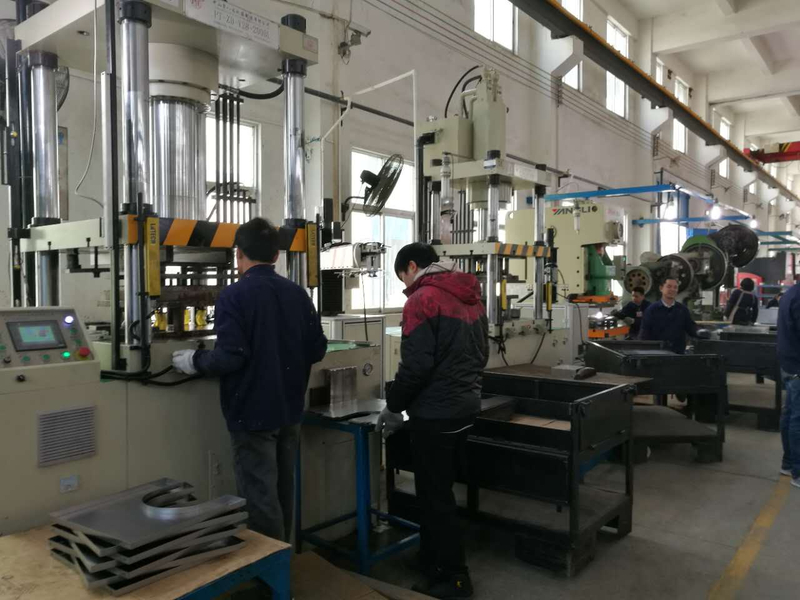

Customer site

Baking tray production line (9) Baking tray production line (7)

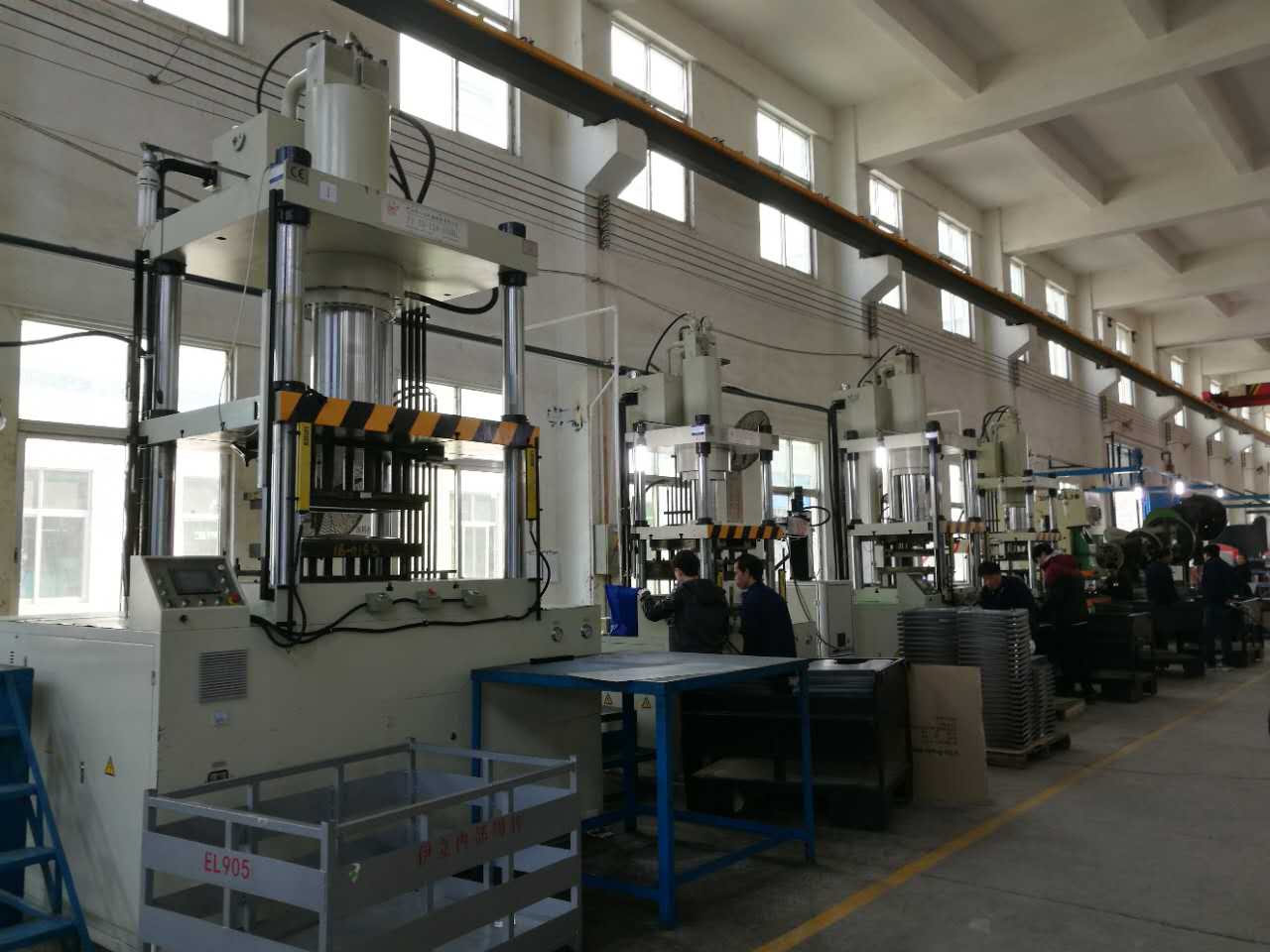

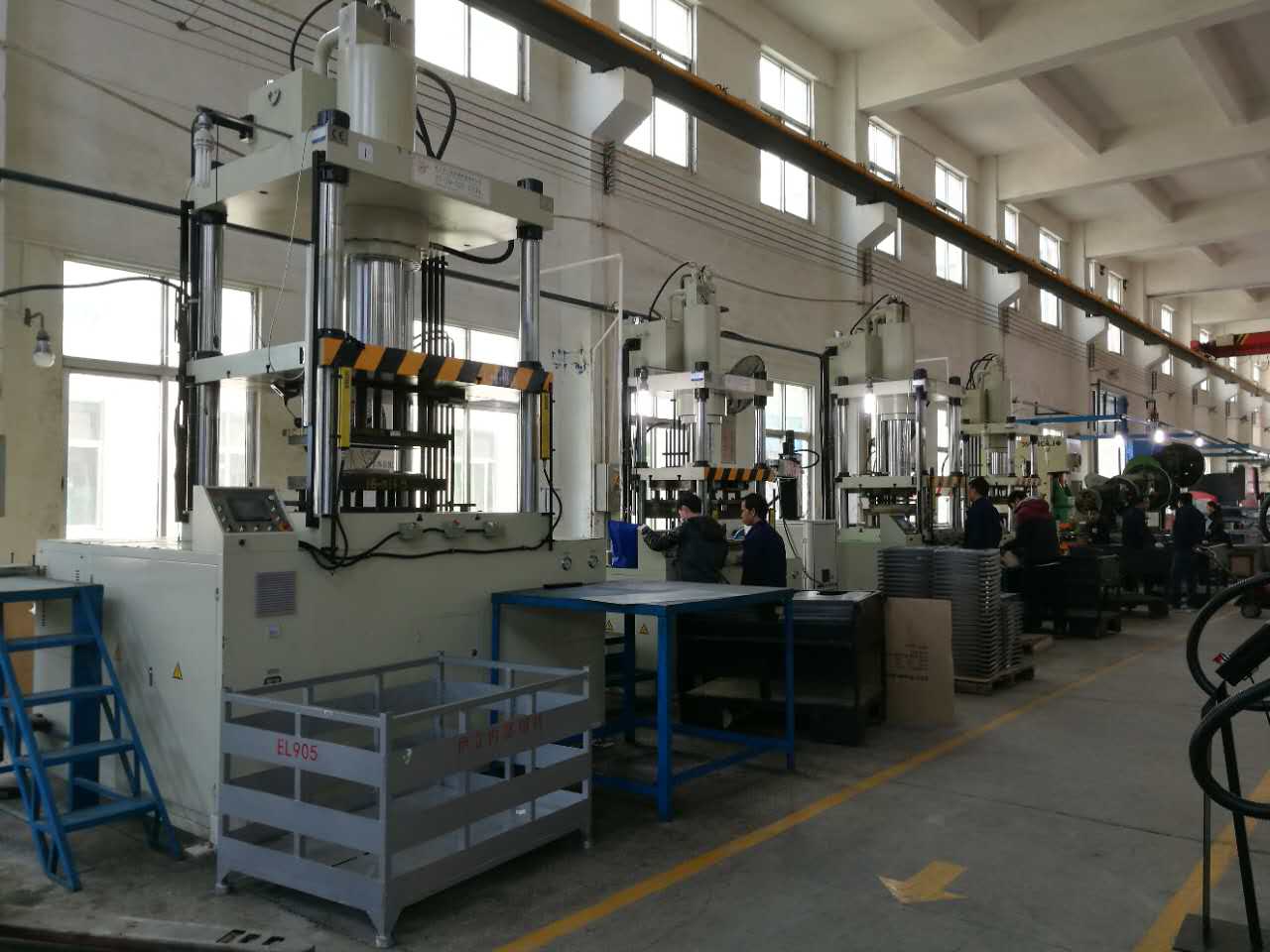

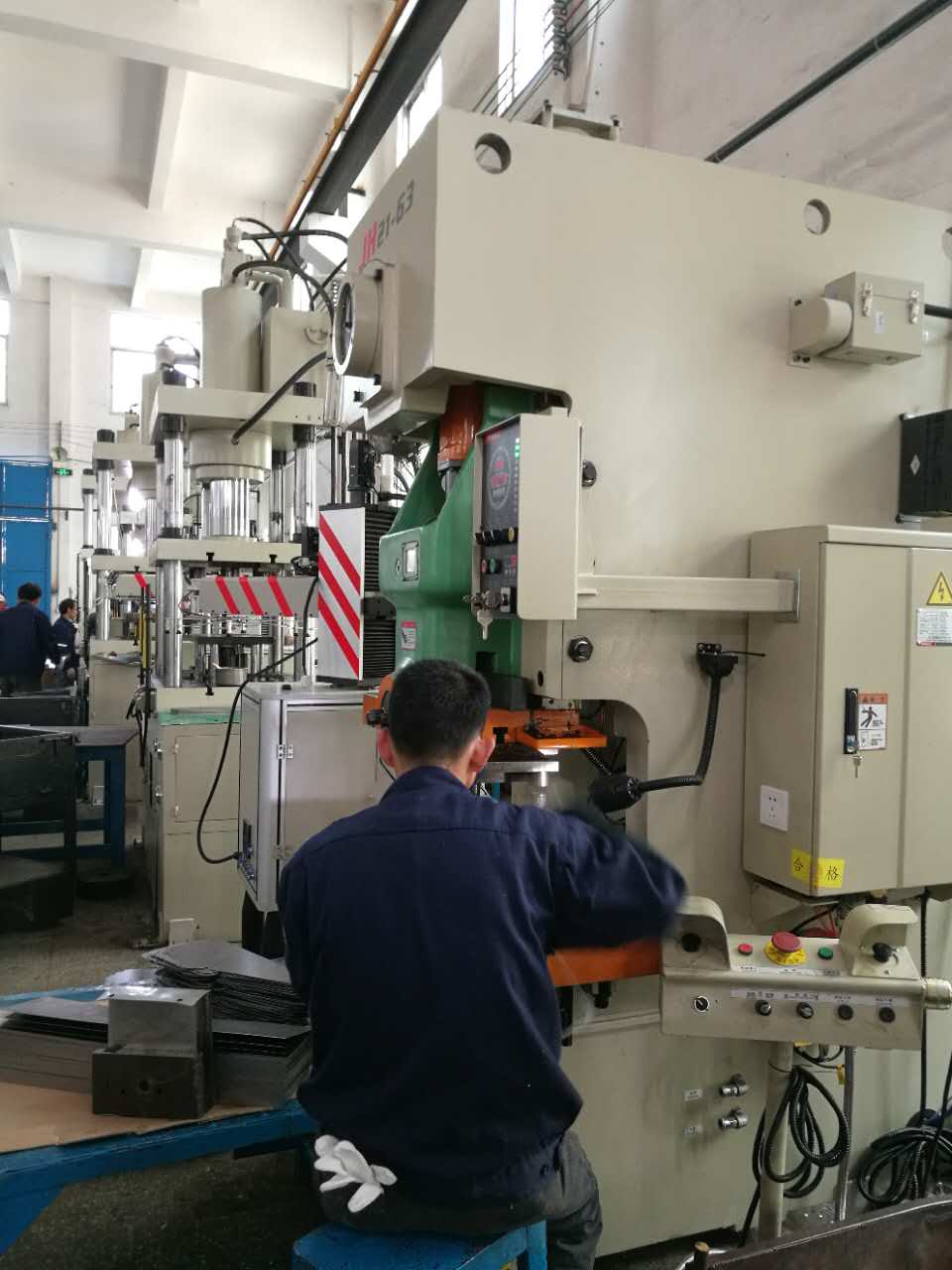

Customer site

project

unit

Y28-120BL

Y28-200BL

Y28-350BL

Nominal power

KN

1200(Adjustable)

2000(Adjustable)

3500(Adjustable)

Master cylinder force

KN

800(Adjustable)

1300(Adjustable)

2300(Adjustable)

Bottom cylinder force

KN

400(Adjustable)

700(Adjustable)

1200(Adjustable)

Maximum stroke of master cylinder

mm

480(Adjustable)

550(Adjustable)

680(Adjustable)

Maximum stroke of bottom cylinder

mm

240(Adjustable)

280(Adjustable)

360(Adjustable)

Maximum opening height of the work area

mm

830

950

1160

Measuring cylinder force

KW

50

100

200

Maximum stroke of the material cylinder

mm

180

200

250

Work slider

speed

Get off quickly

mm/S

220(Adjustable)

200(Adjustable)

220(Adjustable)

Working in

mm/S

20(Adjustable)

10-25 (adjustable)

12-30 (adjustable)

Return

mm/S

220(Adjustable)

200(Adjustable)

200(Adjustable)

Effective size of work surface

about

mm

800

800

1250

Before and after

mm

800

800

1400

Bottom cylinder rise speed

mm/S

70

70

60

Hydraulic system pressure

Mpa

21

21

21

Motor power

KW

15

22

37

The weight of the whole machine

KG

About 5,000

About 7000

About 20,000
