Four-column hydraulic press (small size 10-100T)

Product Overview
1. Adopt a built-in fast cylinder, fast empty stroke speed and high production efficiency;
2. The four-column is made of high-strength alloy steel, with hard chromium coating on the surface, and good wear resistance;
3. The movable workbench has high parallel and vertical accuracy, good rigidity, and strong anti-proportion load capacity;
4. The pressure, fast forward, process and pressurization time can be adjusted according to process needs;
5. The machine can be optionally configured: cooler, pressure holding, slow mode adjustment, multiple boosting, automatic lubrication pump, air blowing, lighting, touch screen, electronic ruler, pressure sensor, etc.

1.Built-in fast cylinder, fast empty stroke speed, high production efficiency;
2. The four columns are made of high-strength alloy steel with hard chromium plated surface and good wear resistance;
3.The activity workbench has high parallel and vertical accuracy, good rigidity, and strong resistance to eccentric load;
4. Pressure, fast forward, work progress, and pressureization time can be adjusted according to process requirements;
5.Optional machine configurations: cooler, pressure holding, slow mold adjustment, multiple pressure, automatic lubrication pump, air blowing, lighting, touch screen, electronic ruler, pressure sensor, etc

Availability:

Quantity:



Inquire Add to Basket

Model:
YSK-C(10-100T)
Brand:
万达

Product Description

Product Description

Main technical parameters

Model model		unit	YSK -10C	YSK -15C	YSK -20C	YSK -25C	YSK -30C	YSK -50C	YSK -60C	YSK -80C	YSK -100C
Nominalforce		KN	100	150	200	250	300	500	600	800	1000
Max stroke		mm	300	300	300	300	300	300	300	400	400
Opening height		mm	450	450	500	500	500	500	550	600	600
Workbench Working table area	Inside left and right columns LR(inside the column)	mm	500	500	600	600	600	600	600	600	600
Workbench Working table area	Front and back edge FB( edge)	mm	400	400	400	400	500	500	550	600	600
Master cylinder speed Cylinder speed	fast forward Fast forward	mm/s	200	200	200	180	180	180	160	160	160
	Working in Work in	mm/s	20	20	20	20	20	20	20	15	15
	Return hiking	mm/s	200	200	200	180	180	180	160	160	160
Power		VAC	380	380	380	380	380	380	380	380	380
Motor power motor power		KW	3.7	3.7	3.7	3.7	3.7	5.5	5.5	5.5	5.5
Weight (approximately) Weight (approx)		kg	1000	1100	1300	1400	1500	1700	1900	2200	2500

Note: The above parameters are for reference only, and the order shall prevail by the contract. Remarks: Subject to final contract.

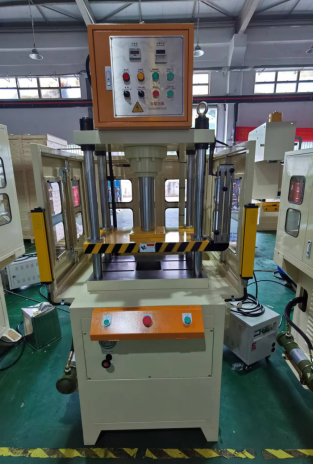

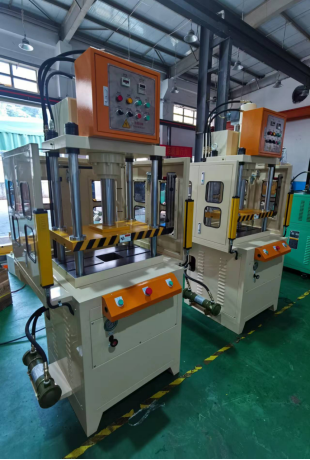

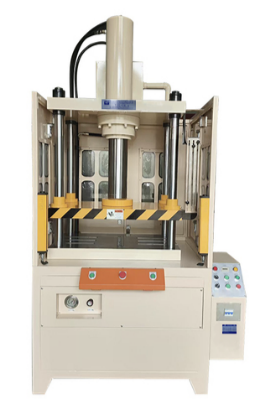

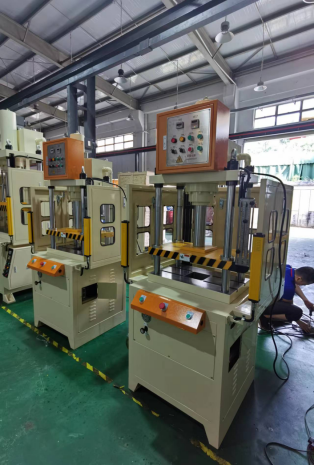

Machine equipment photos Machine photo
