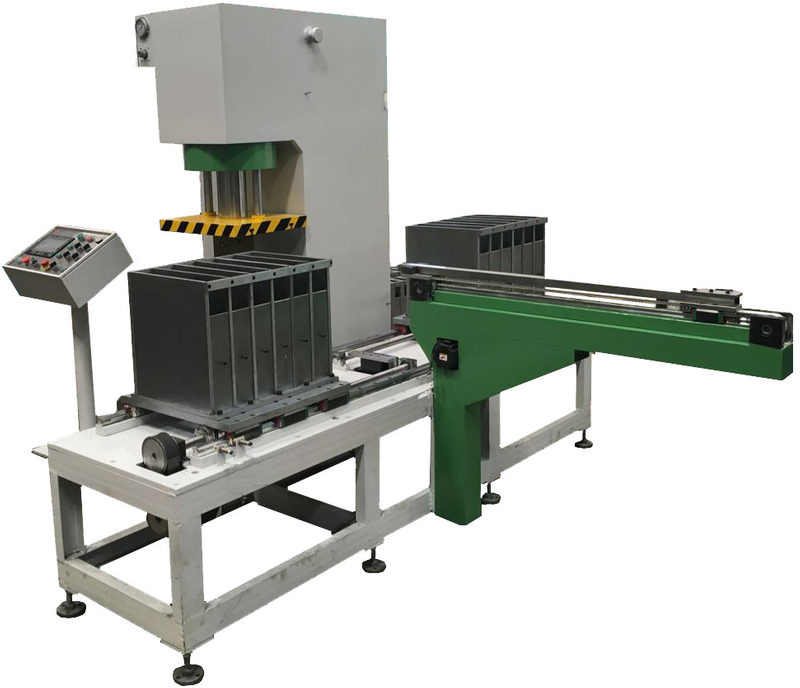

HSP-20SF gold automatic cutting machine fully automatic production line
Wanda
Product Description
Some finished products of this production line of gold automatic cutting machine
This line contains the following devicesContain Devices as below
No. | Device | Quantity |
1 | HSP-20 Fast speed hydraulic press | 1 set |
2 | Servo feeding device | 1 set |
3 | Servo movable sliding table | 1 set |
4 | Servo lifting device | 1 set |
5 | Discharge box | 5 pcs each for 1KG and 3KG, 10 pcs in total |
6 | Precision adjustable guide chute | 1 set |
7 | Precision positioning stopper device | 1 set |
8 | Oddments box | 1 item |
9 | Finished product box | 1 item |
10 | Fine blanking and cutting die | 1 set |
Main Technical Specification
serial number | Project | unit | HSP-20 | |
1 | Nominal Force | KN | 200 | |
2 | Main Cylinder Force | KN | 200 | |
3 | Max.Stroke of Slider | mm | 200 | |
4 | Work area opening height | mm | 350 | |
5 | Effective size of workbench | Left-right | mm | 450 |
Front-back | mm | 400 | ||
6 | Hydraulic System Pressure | MPa | 20 | |
7 | Motor Power | KW | 5.5 | |
8 | Gold Bar Cutting Specification | mm | 322*71*7mm | |
mm | 115*52*10mm | |||
9 | Numbers of Boxpiece | piece | 2X2 | |
10 | Filling Capacity | 322*71*7mm | 6 rows x 5 layers = 30 strips | |
115*52*10mm | 8 rows | |||
11 | ProductionCapacity | pieces/hour | 700-800 pieces/hour |
