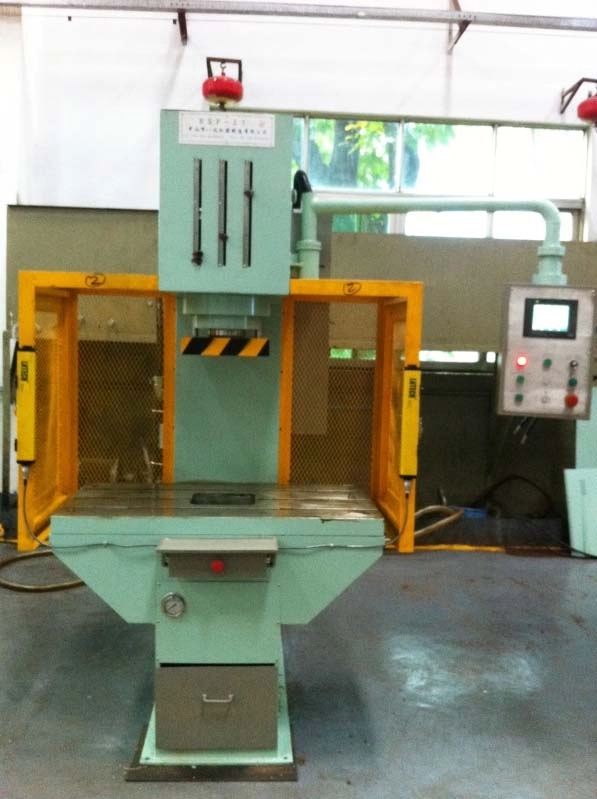

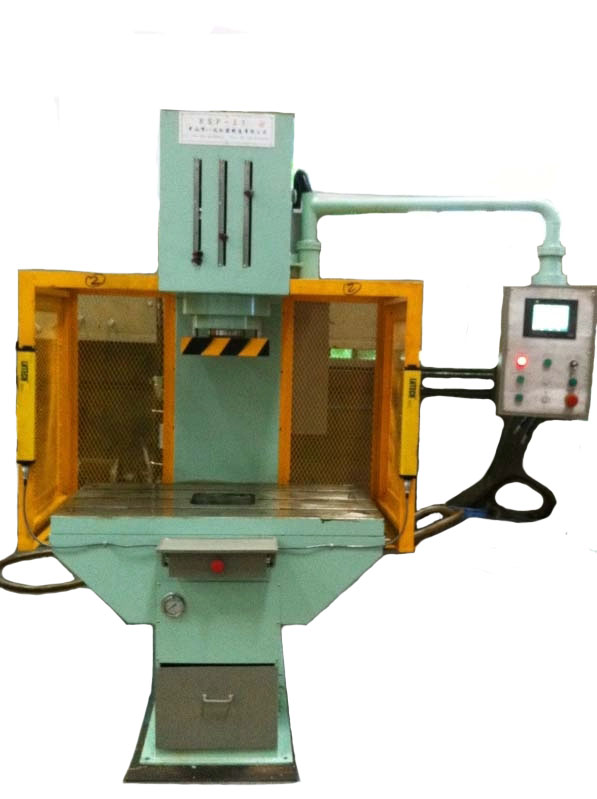

HSP-25

The HSP series products are suitable for calendering, imprinting, forming, bearing pressing and shallow stretching of plastic sheets.
Availability:
Quantity:
HSP-25
HSP-25
  • HSP-25

  • 八达

Product Description

HSP series hydraulic punching machine

Product Description

The HSP series products are suitable for calendering, imprinting, forming, bearing pressing and shallow stretching of plastic sheets.

This series of products has the characteristics of small size, large power, fast speed, high accuracy and easy operation. It is an ideal equipment for the watch, jewelry and hardware industries.

It is also possible to add a material withdrawal and automatic feeding device (manipulator) according to user requirements.


HSP  Series  Hydraulic  Punch  Press  Technical  Parameters  ​
Project  Item Units
Specification  ​
HSP-10 HSP-20 HSP-50 HSP-80 HSP-100
Nominal  Force  ​ Tonf 10 20 50 80 100
Work slider maximum stroke  Slider  Stroke mm 125 125 125 150 150
Worktable  Height  from  Ground  ​ mm 650 650 700 700 700
Workspace opening height  Opening  Height mm 280 280 320 400 400
Working
Slider  Speed
Fast forward  Fast  Downward mm/s 100 150 120 120 120
Pressing  ​ mm/s 40 20 10 6 5
Return  ​ mm/s 100 120 90 100 100
Worktable
Size  ​
Left and right  LR mm 400 450 520 600 600
Front and rear  FB mm 350 400 430 450 450
Hydraulic  System  Pressure Mpa 12 16 21 21 21
Motor  Power  ​   KW 3 3 5.5 5.5 5.5
Machine Dimension
Overall  Dimension
Left and right  LR mm 650 710 750 850 900
Front and rear  FB mm 800 950 1020 1020 1100
Height  ​ mm 1800 1950 2030 2100 2200
Machine  Weight Kg 1300 1600 2700 4000 5000
