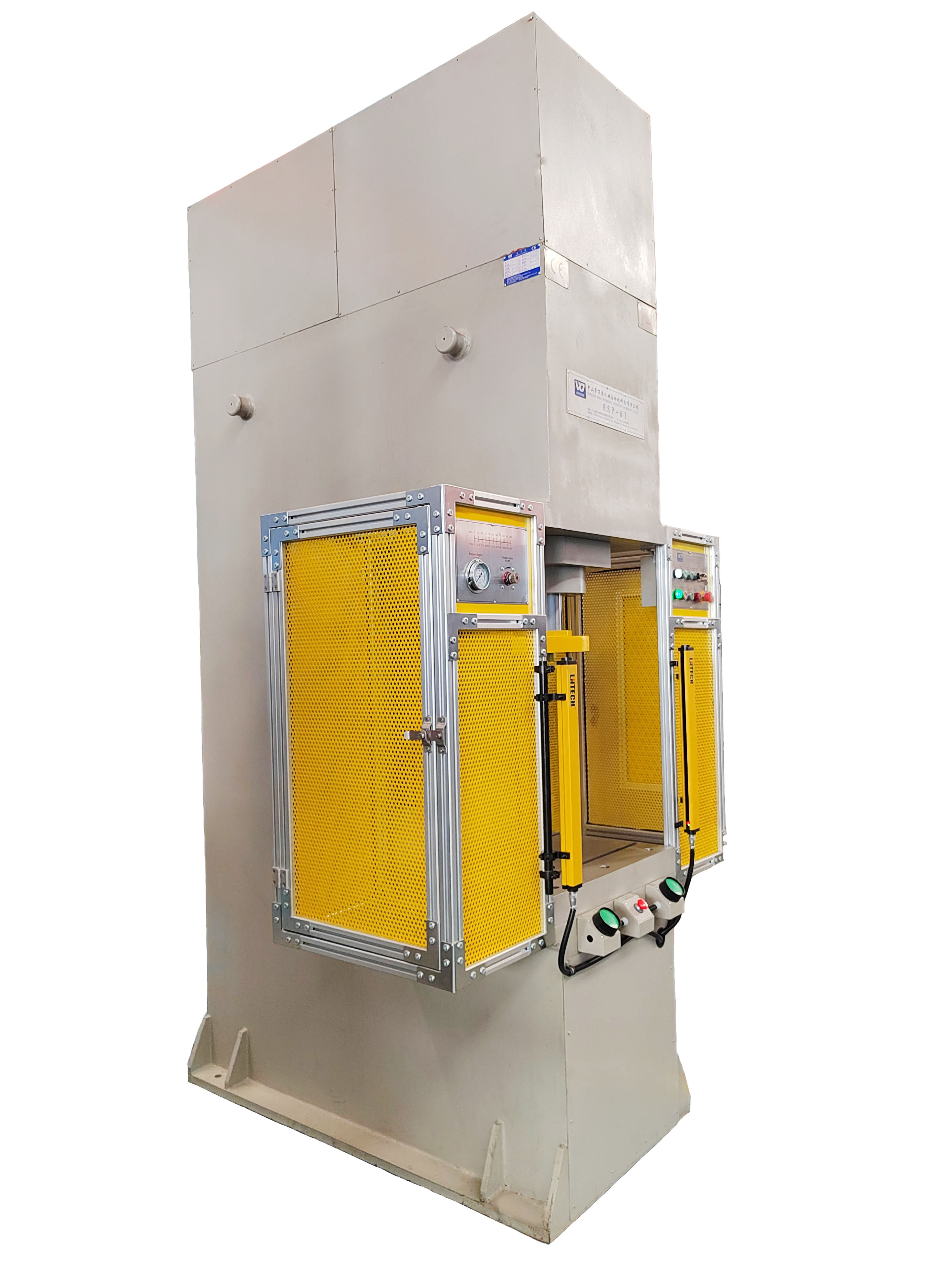

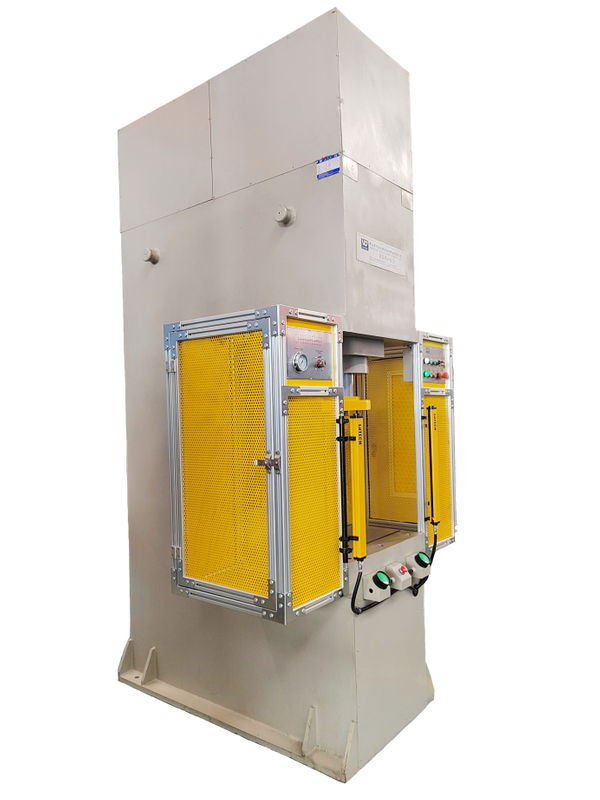

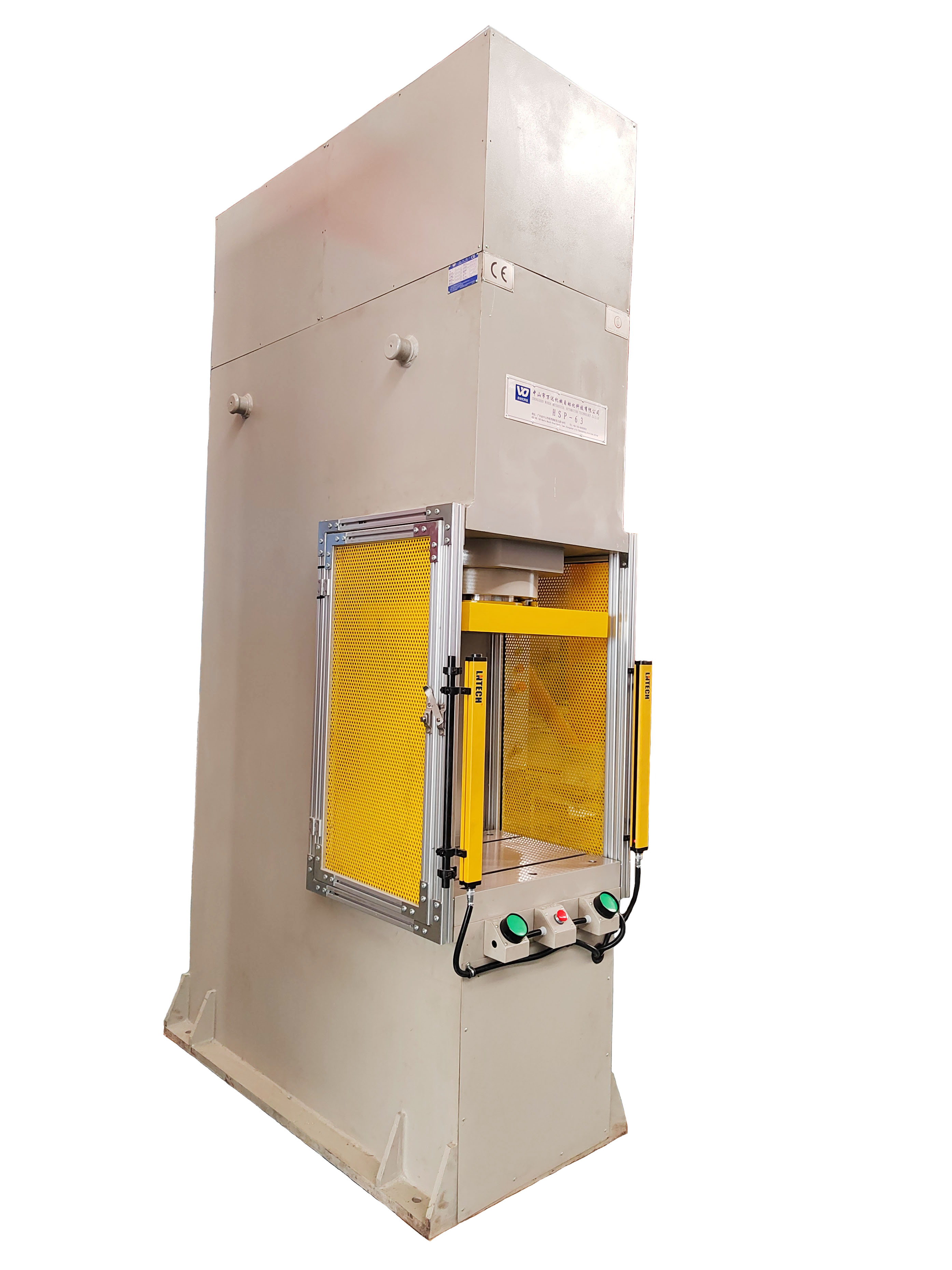

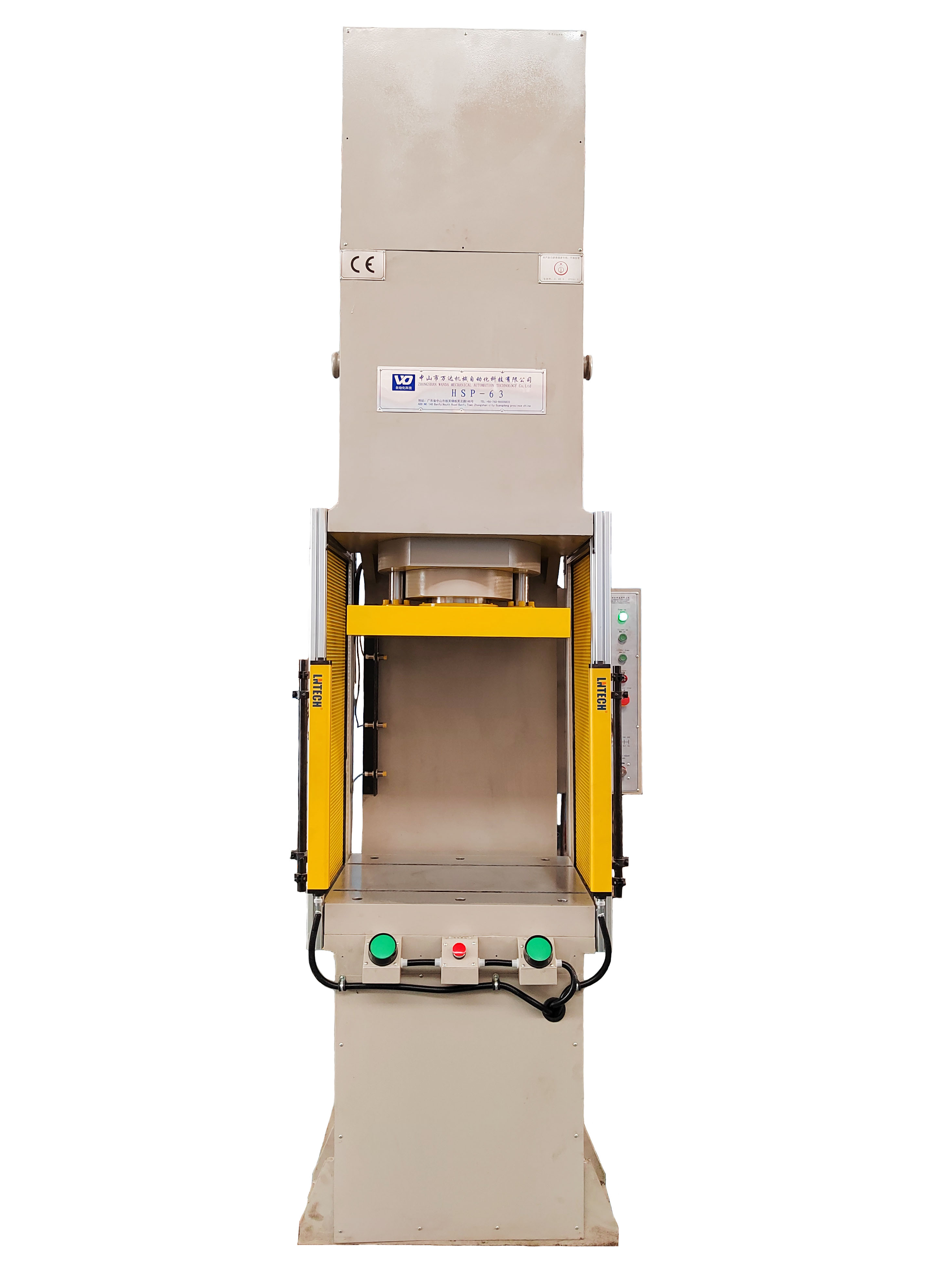

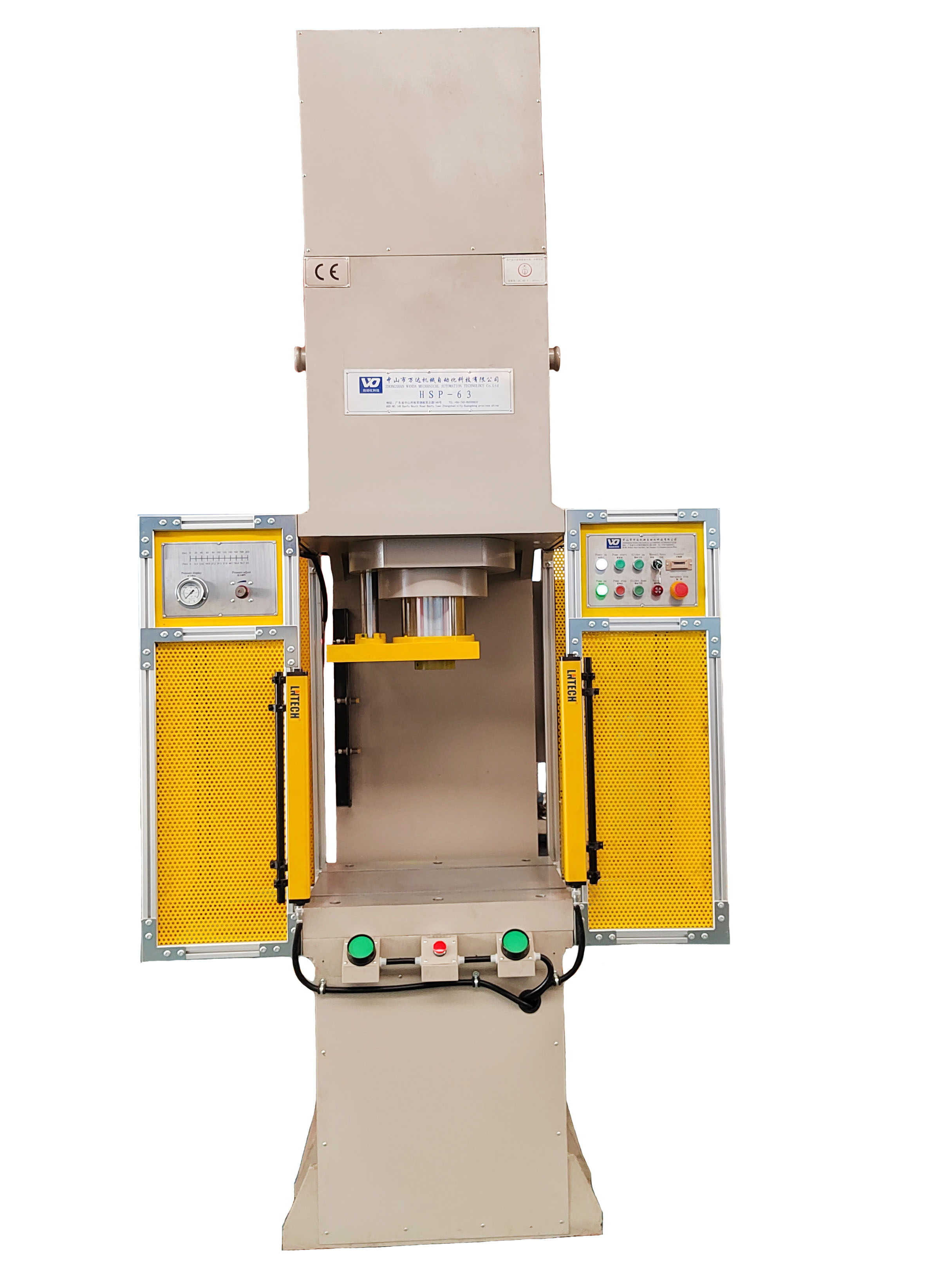

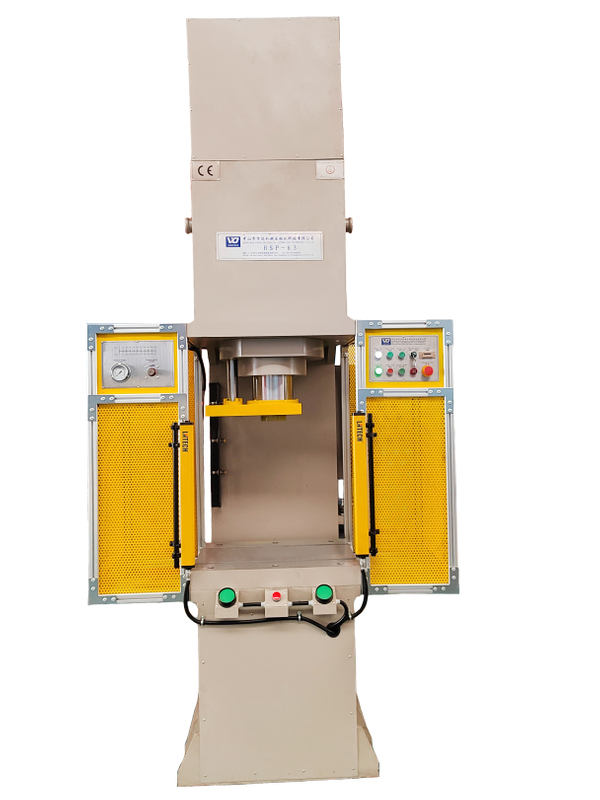

HSP-63

1. Machine usage, working conditions:

The HSP series hydraulic punching machine is suitable for calendering, imprinting, forming, bearing pressing and shallow stretching of plastic sheets. The machine has an independent hydraulic system and electrical system, and adopts centralized control of PLC. Combined with relevant electrical components, the pressure, displacement and other centralized control of the entire system is completed to ensure the reliability of the operation and the stability of the system. Two types of working methods can be adjusted and semi-automatic. Each working method can achieve two types of pressing methods: fixed pressure and fixed range.

The HSP series hydroulic punching machine is suitable for processes such as rolling, stamping, forming, bearing pressing, and shallow stretching of metal sheets. The machine has independent hydroulic and electrical systems, and adopts PLC centralized control. Combined with relevant electrical components, it completes centralized control of pressure, displacement, and other aspects of the entire system to ensure the reliability of the action and the stability of the system. It can achieve two working modes: adjustment and semi-automatic, and each working mode can achieve two pressing modes: constant pressure and fixed range.

Availability:

Quantity:



Inquire Add to Basket

Model:
HSP-63
Brand:
万达

Product Description

Product Description

Technical parameters Main technical:

Project Item		Unit	Specifications of No. 1 HSP-63 No. 1 HSP-63 Spec.	Specifications of No. 2 HSP-63 No. 2 HSP-63 Spec.
Nominal force of the master cylinder Nominal force of master cylinder		KN	630	630
Liquid working pressure Maximum working pressure of liquid		Mpa	20.3	20.3
Slider stroke Maximum stroke of the slider		mm	500	500
Height from the ground Height of workbench from floor		mm	About 920	About 920
Opening height		mm	710	710
Throat depth		mm	320	320
Slider speed Slider speed	Get off quickly Quick down	mm/s	260	260
	Working in Work progress	mm/s	25	25
	Return Returning	mm/s	260	260
Fixed workbench size Fixed table size	Left and right LR	mm	710	710
Fixed workbench size Fixed table size	Front and rear FB	mm	560	560
Activation workbench size Movable table size	Left and right LR	mm	600	600
Activation workbench size Movable table size	Front and rear FB	mm	500	500
Motor power Motor power		KW	15	15
Weight weight		ton	About 6tons About 6 tons	About 6tons About 6 tons

Operating ambient temperature : 10-40℃；

Relative humidity: no more than 85%; Relative humidity: no more than 85%;
