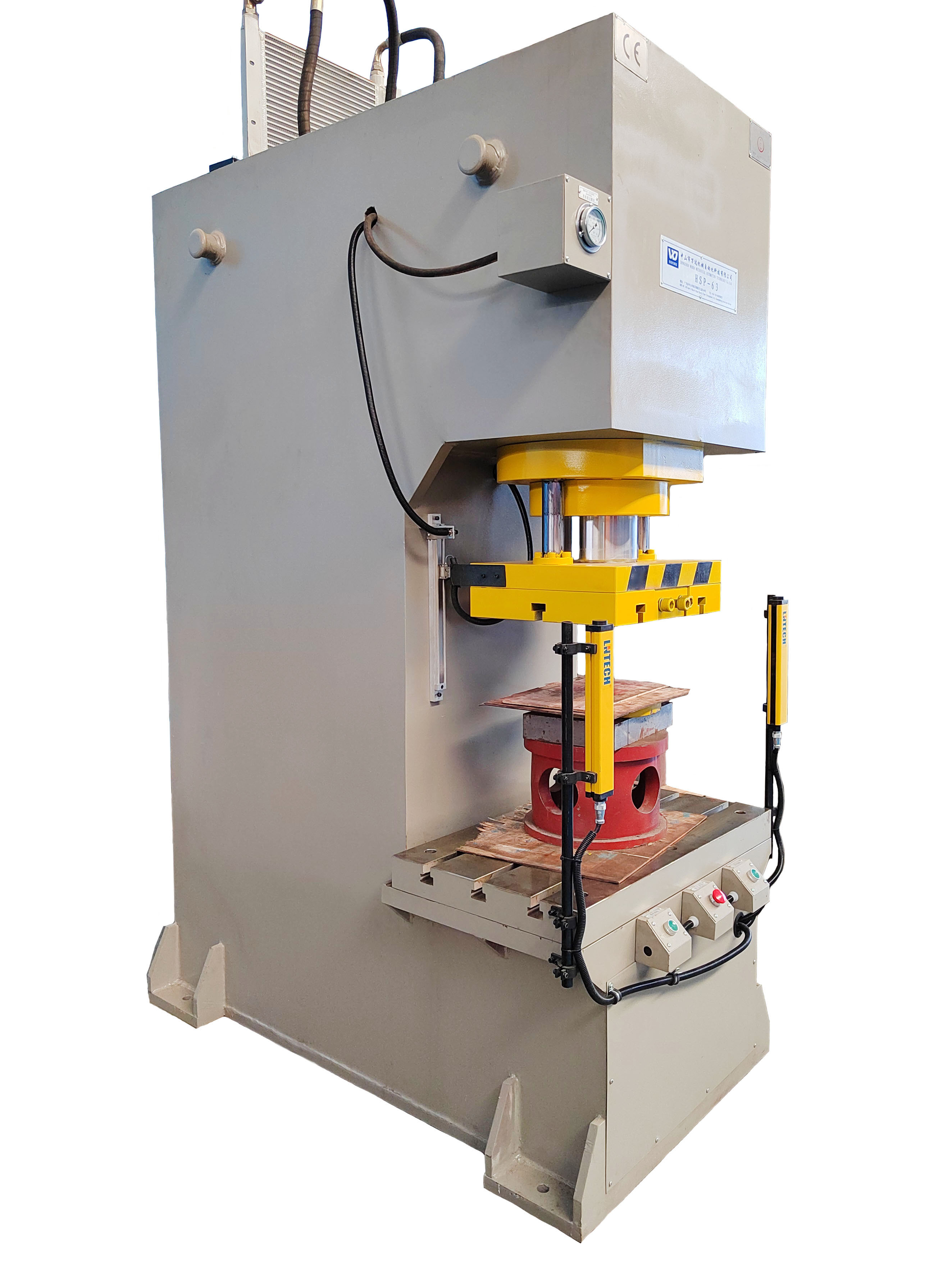

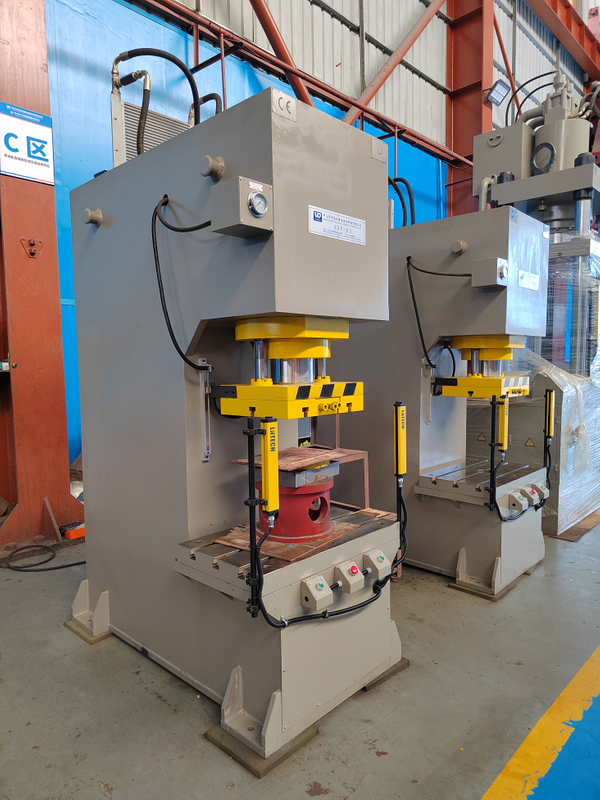

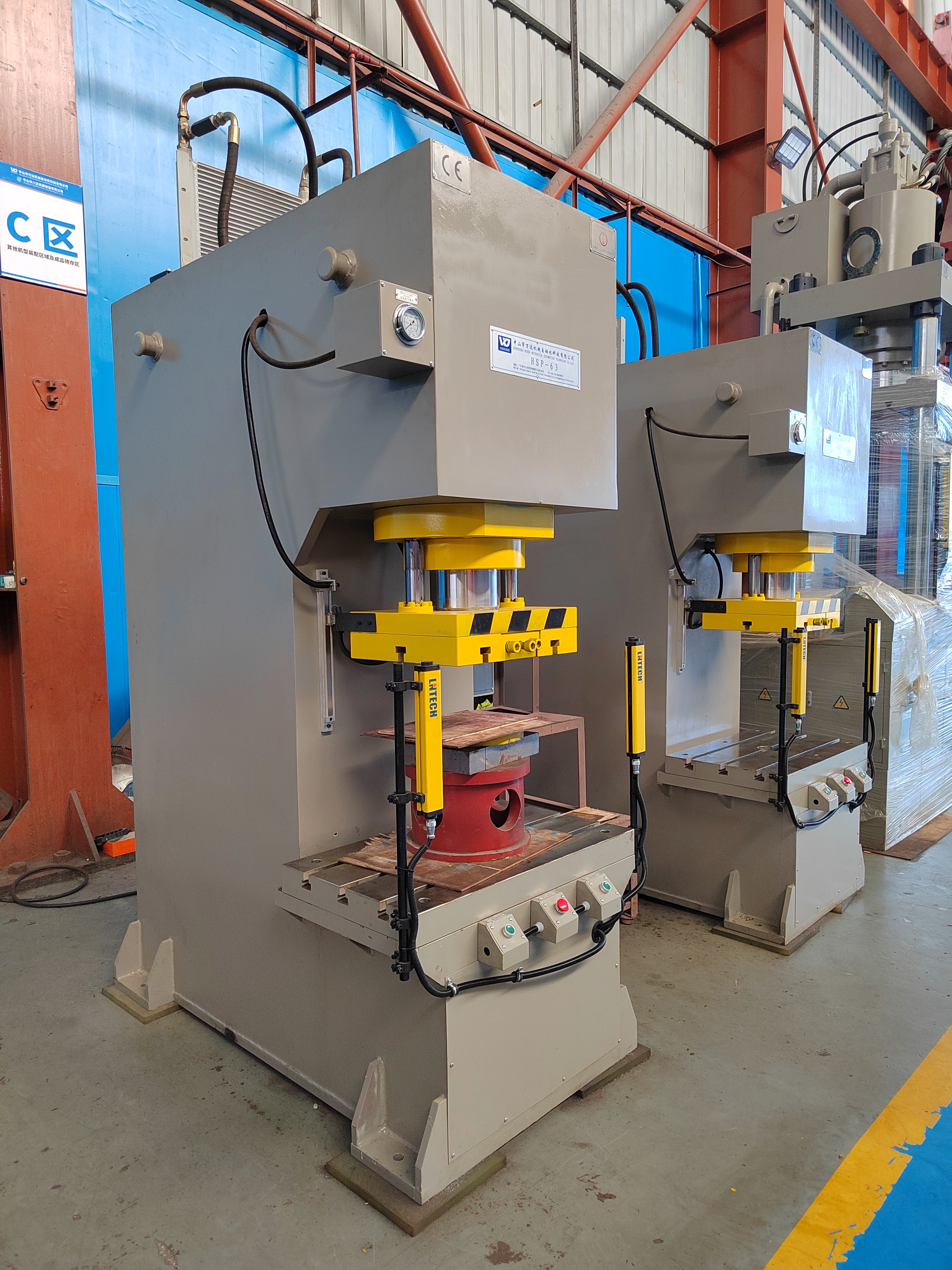

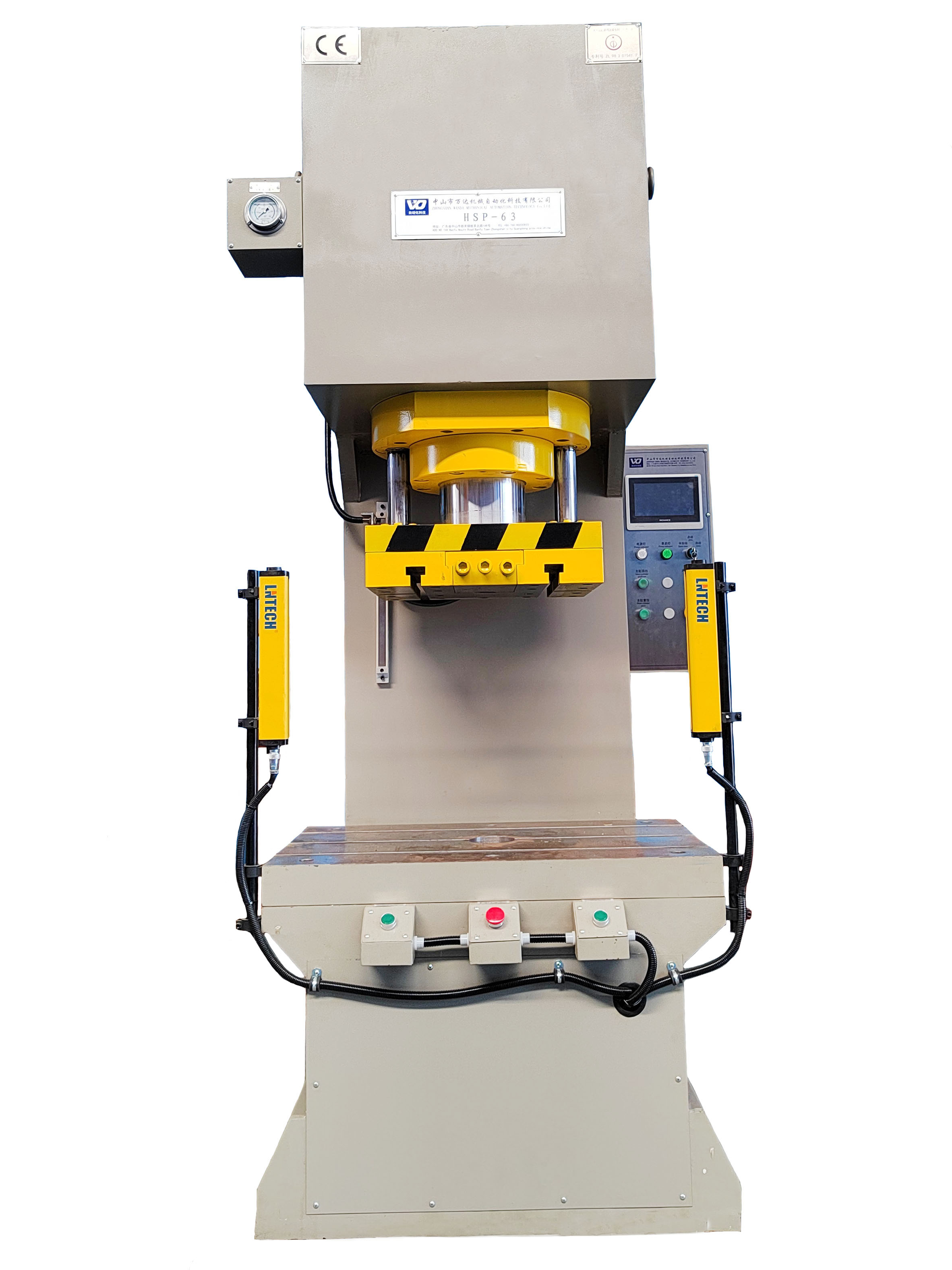

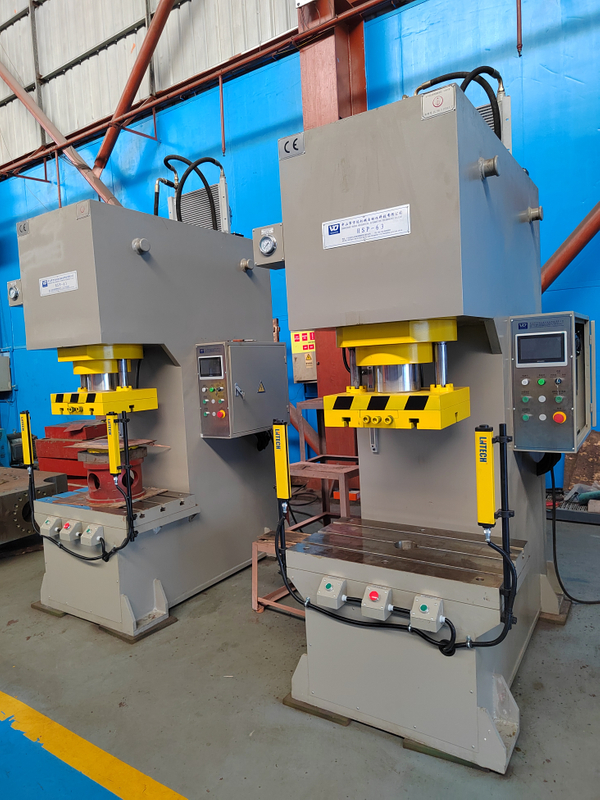

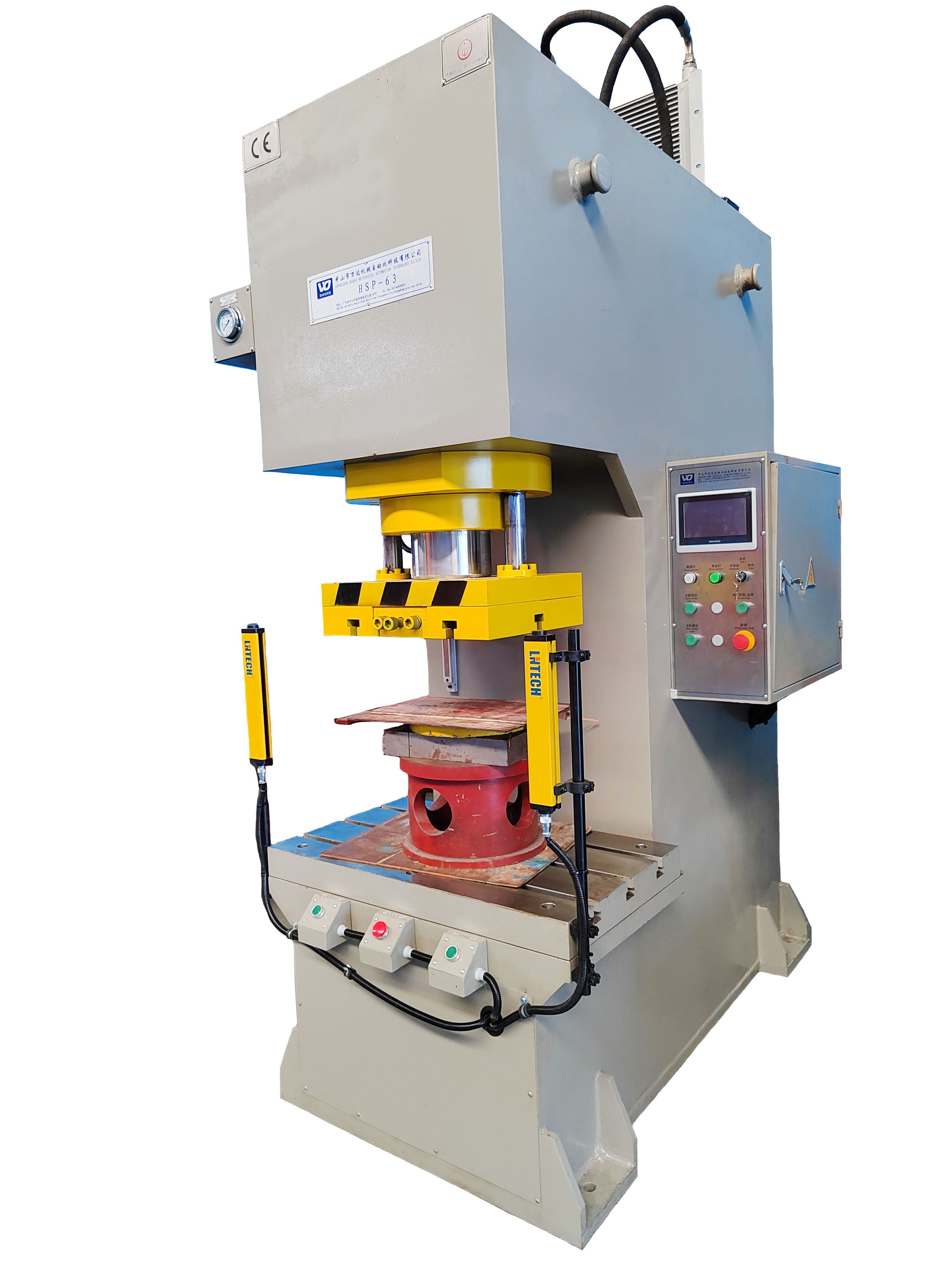

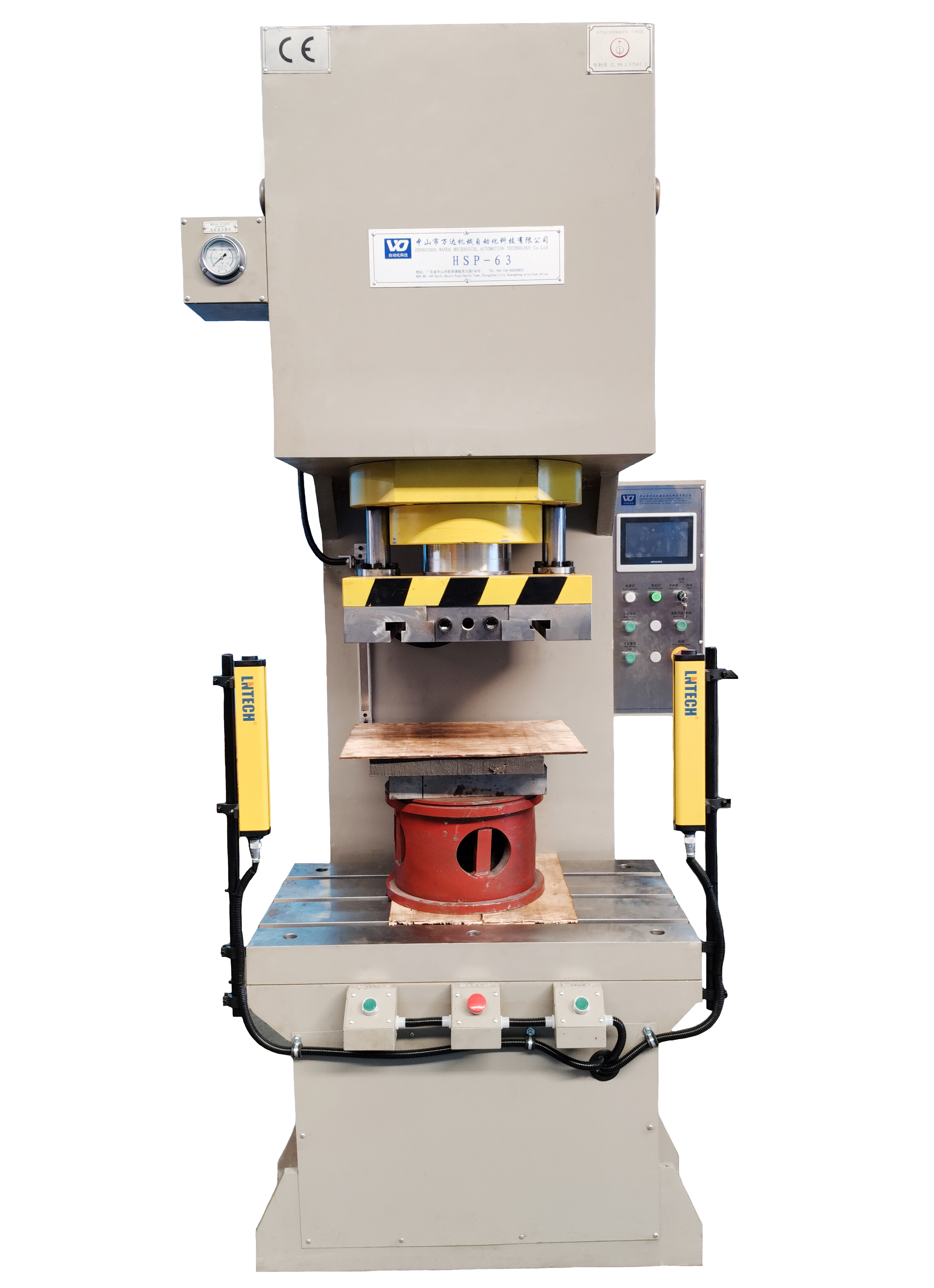

HSP-63 servo precision CNC hydraulic punch press

HSP series products are suitable for processes such as calendering, embossing, and forming of metal sheets, and pre-stretching of plastic sheets on bearing press machines.
This series of products has the characteristics of small size, high power, fast speed, high precision and easy operation. It is an ideal equipment for the gold watch, jewelry and hardware industries.
Availability:
Quantity:
Inquire Add to Basket

HSP-63 servo precision CNC hydraulic punch press
HSP-63 servo precision CNC hydraulic punch press
HSP-63 servo precision CNC hydraulic punch press
HSP-63 servo precision CNC hydraulic punch press
HSP-63 servo precision CNC hydraulic punch press
HSP-63 servo precision CNC hydraulic punch press

  • HSP-63

  • 万达

Product Description

Technical parameters

Serial number

project

unit

parameter

1

Master cylinder force

KN

630(adjustable)

2

Maximum working pressure of liquid

MPa

20.3

3

Maximum slider travel

mm

300 (adjustable)

4

Height from the ground

mm

700

5

Maximum opening height of the work area

mm

600

6

Throat depth

mm

300

7

Slider speed

Get off quickly

mm/s

300 (adjustable)

Return

mm/s

300 (adjustable)

8

Fixed table size

about

mm

870

Before and after

mm

520

9

Activation workbench size

about

mm

480

Before and after

mm

400

10

Servo motor power

KW

16.4
2


1


6


7
