HSP-80
八达
Product Description

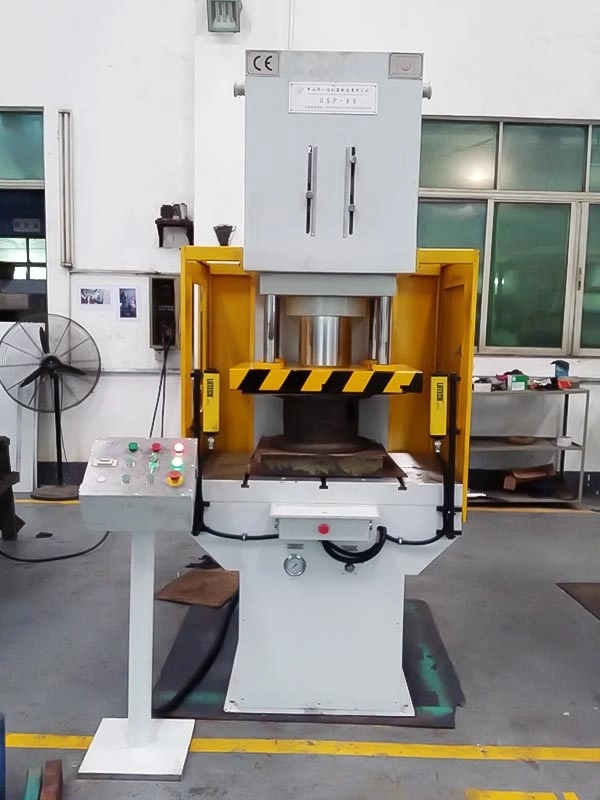

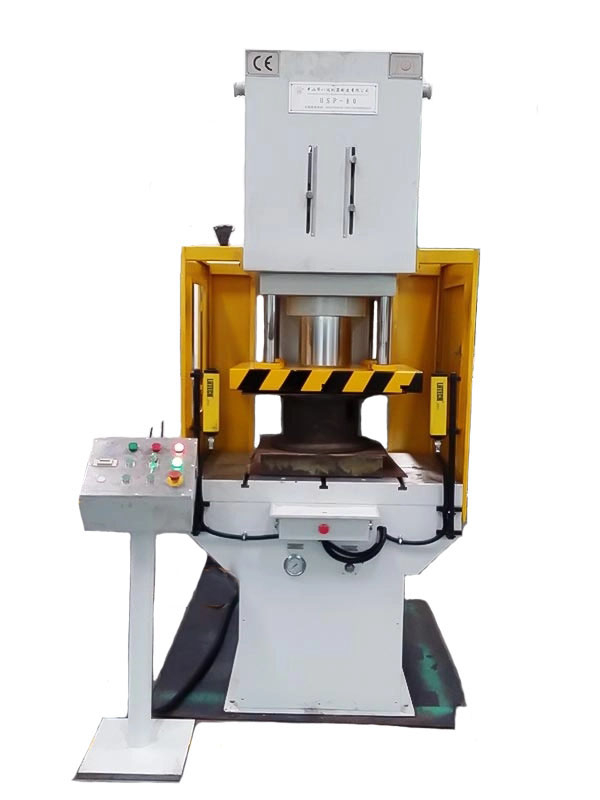

HSP series hydraulic punching machine
Product Description
The HSP series products are suitable for calendering, imprinting, forming, bearing pressing and shallow stretching of plastic sheets.
This series of products has the characteristics of small size, large power, fast speed, high accuracy and easy operation. It is an ideal equipment for the watch, jewelry and hardware industries.
It is also possible to add a material withdrawal and automatic feeding device (manipulator) according to user requirements.
| HSP Series Hydraulic Punch Press Technical Parameters | |||||||
| Project Item | Units | Specification | |||||
| HSP-10 | HSP-20 | HSP-50 | HSP-80 | HSP-100 | |||
| Nominal Force | Tonf | 10 | 20 | 50 | 80 | 100 | |
| Work slider maximum stroke Slider Stroke | mm | 125 | 125 | 125 | 150 | 150 | |
| Worktable Height from Ground | mm | 650 | 650 | 700 | 700 | 700 | |
| Workspace opening height Opening Height | mm | 280 | 280 | 320 | 400 | 400 | |
| Working Slider Speed | Fast forward Fast Downward | mm/s | 100 | 150 | 120 | 120 | 120 |
| Pressing | mm/s | 40 | 20 | 10 | 6 | 5 | |
| Return | mm/s | 100 | 120 | 90 | 100 | 100 | |
| Worktable Size | Left and right LR | mm | 400 | 450 | 520 | 600 | 600 |
| Front and rear FB | mm | 350 | 400 | 430 | 450 | 450 | |
| Hydraulic System Pressure | Mpa | 12 | 16 | 21 | 21 | 21 | |
| Motor Power | KW | 3 | 3 | 5.5 | 5.5 | 5.5 | |
| Machine Dimension Overall Dimension | Left and right LR | mm | 650 | 710 | 750 | 850 | 900 |
| Front and rear FB | mm | 800 | 950 | 1020 | 1020 | 1100 | |
| Height | mm | 1800 | 1950 | 2030 | 2100 | 2200 | |
| Machine Weight | Kg | 1300 | 1600 | 2700 | 4000 | 5000 | |
