Heating water tank stretch forming production line

'Automatic production line for heating expansion tanks Y28-350S, YSM-250CS, YSM-300CS, YSM-350CS', the production line is equipped with a three-in-one NC feeding device, intelligent feeding and feeding robot, servo precision CNC hydraulic press, servo precision angle indenter, precision side punching machine, riveting machine, precision air tight testing table, pressure test table, marking machine, code scanning machine, conveying table, material feeding machine, etc. Adopt advanced industrial automation + informatization + artificial intelligence highly integrated MES system. Realize automation, informatization and intelligent production, remote fault diagnosis and remote monitoring, greatly save labor costs, improve production efficiency, improve product quality, save energy, and reduce comprehensive production costs.
This heating expansion tank automatic production line is mainly equipped with our company. We adopt many well-known brands, such as: 'Huichuan', 'Xingchen', Japan'OMRON', France'Schneider', Italy'ATOS', Taiwan'DOFLUID', Beijing'HUADE', Shandong'Taifeng' and so on.
Availability:
Quantity:
Heating water tank stretch forming production line
Heating water tank stretch forming production line
Heating water tank stretch forming production line
Heating water tank stretch forming production line
Heating water tank stretch forming production line
Heating water tank stretch forming production line
  • Heating water tank stretch forming production line

  • 万达

Product Description

Heating expansion tank pressing product picture 2

Heating expansion tank

Product Picture


Heating expansion tank


Heating expansion tank
Expansion tank 2

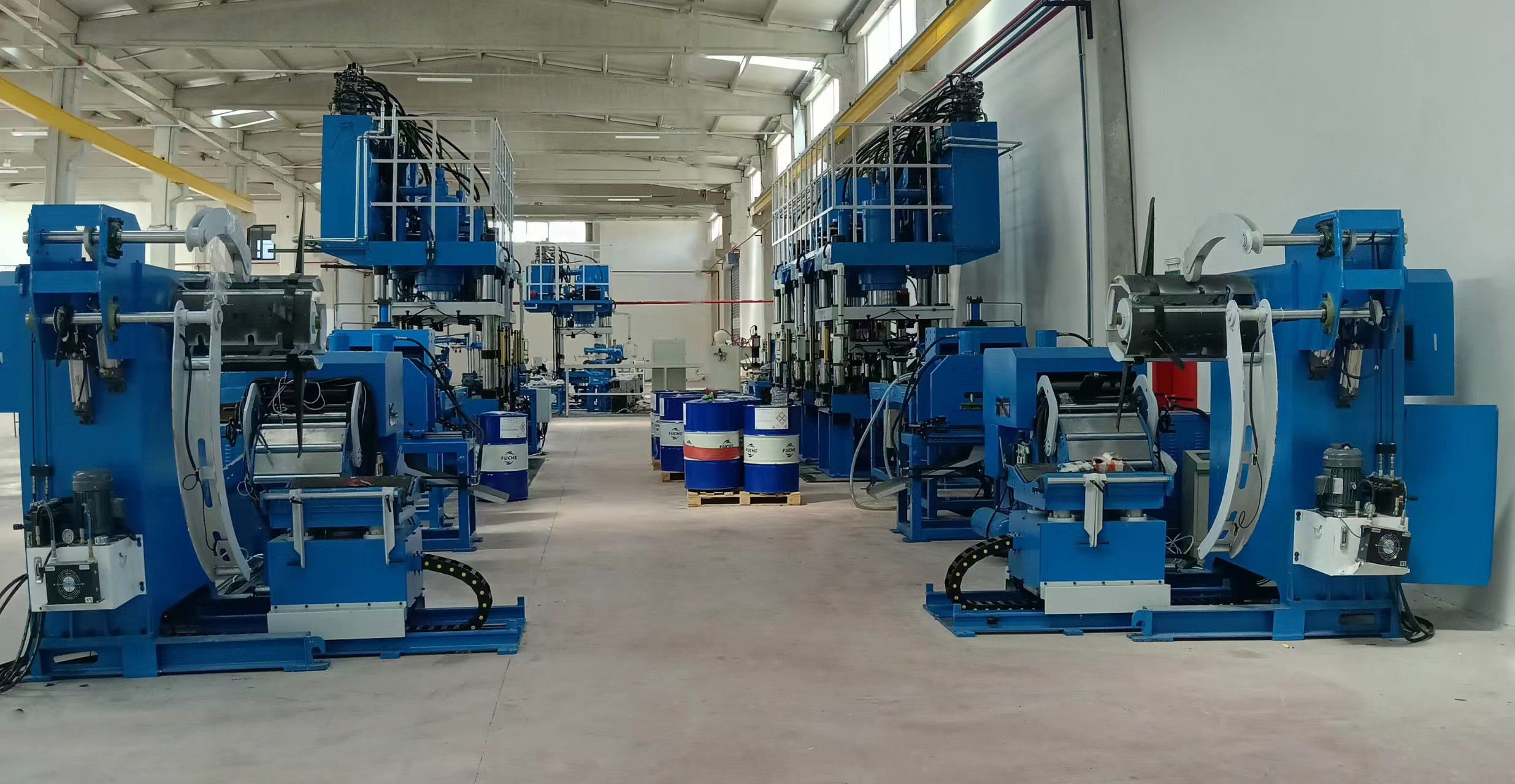

36-1

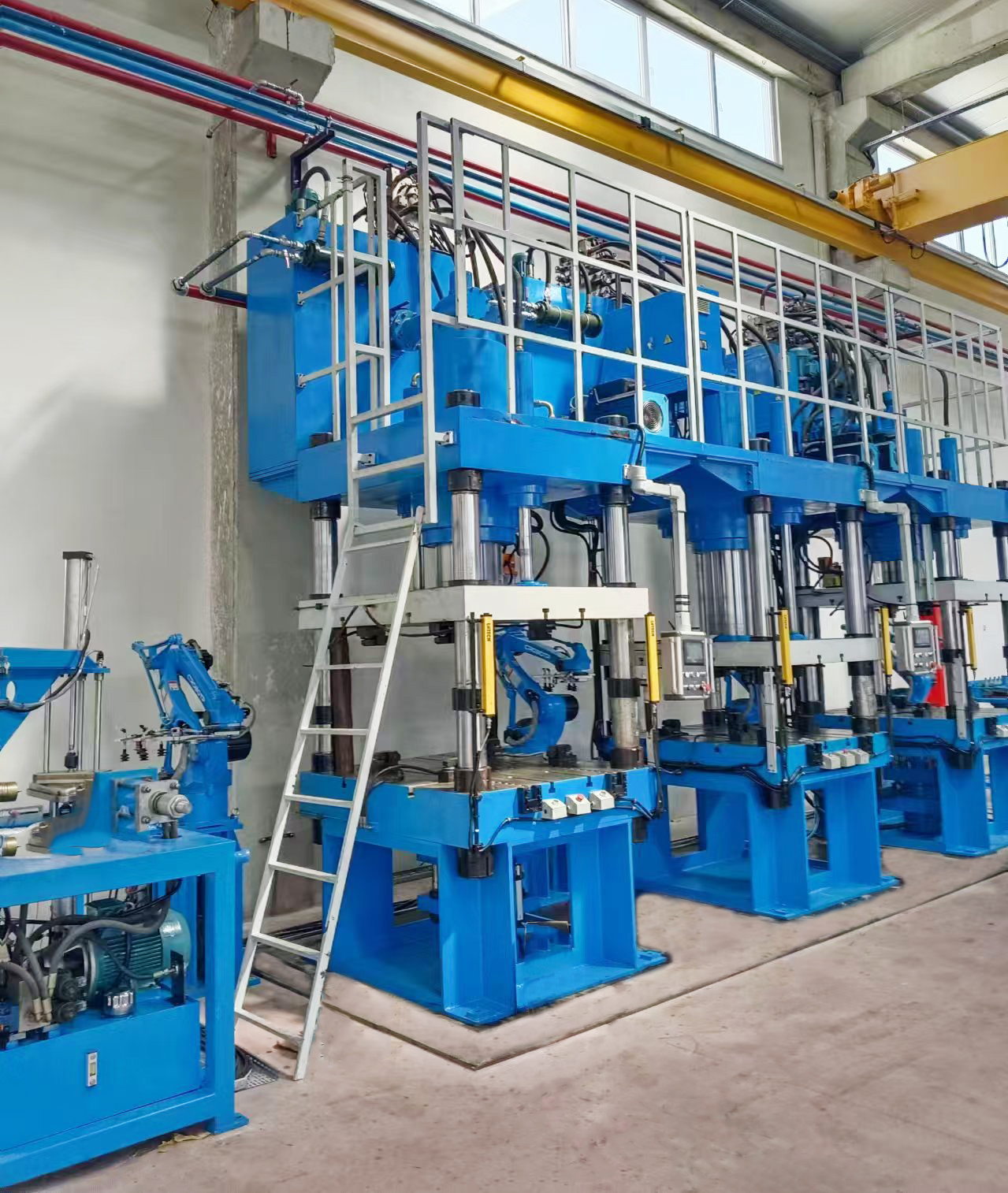

2

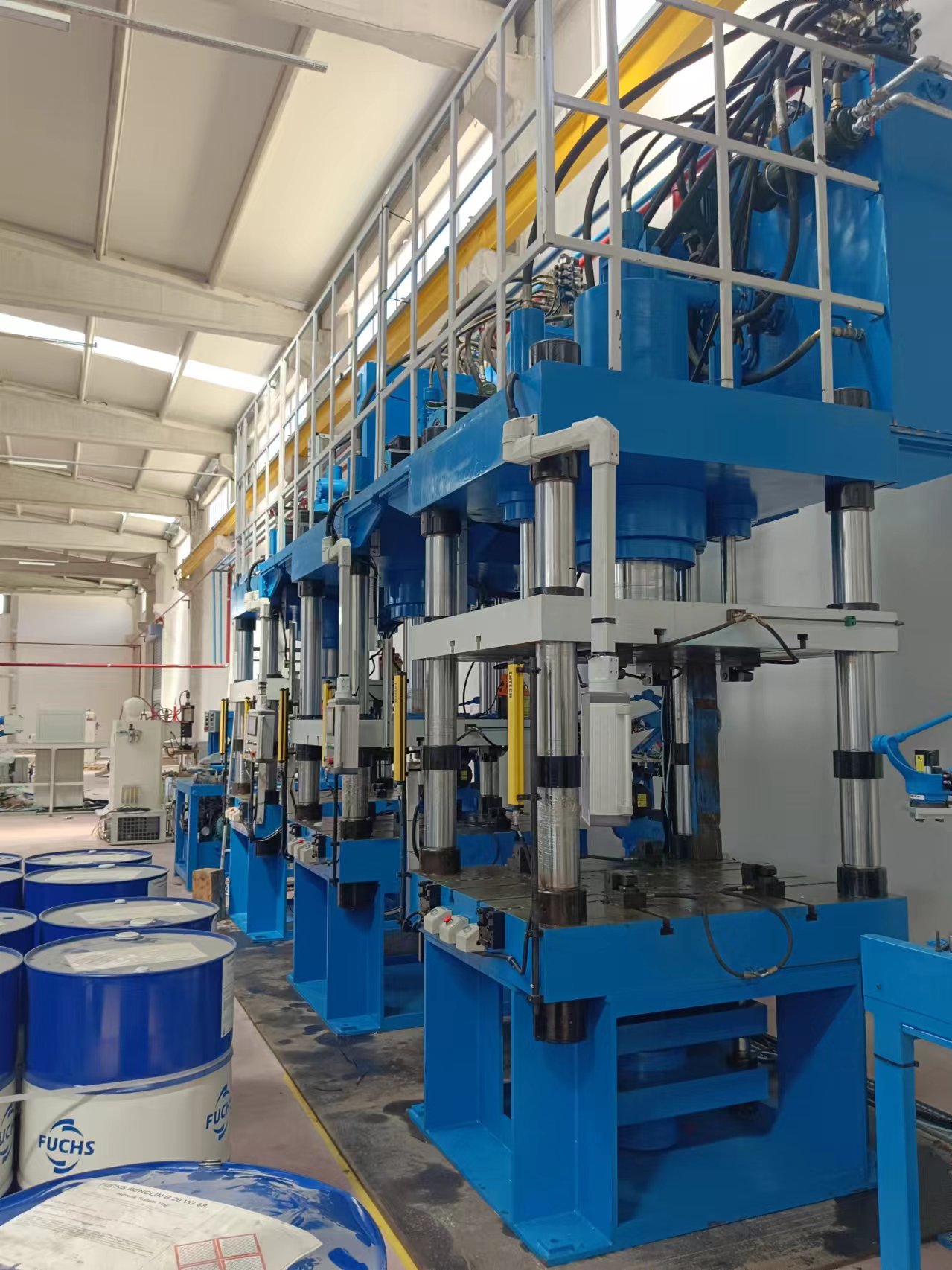

20

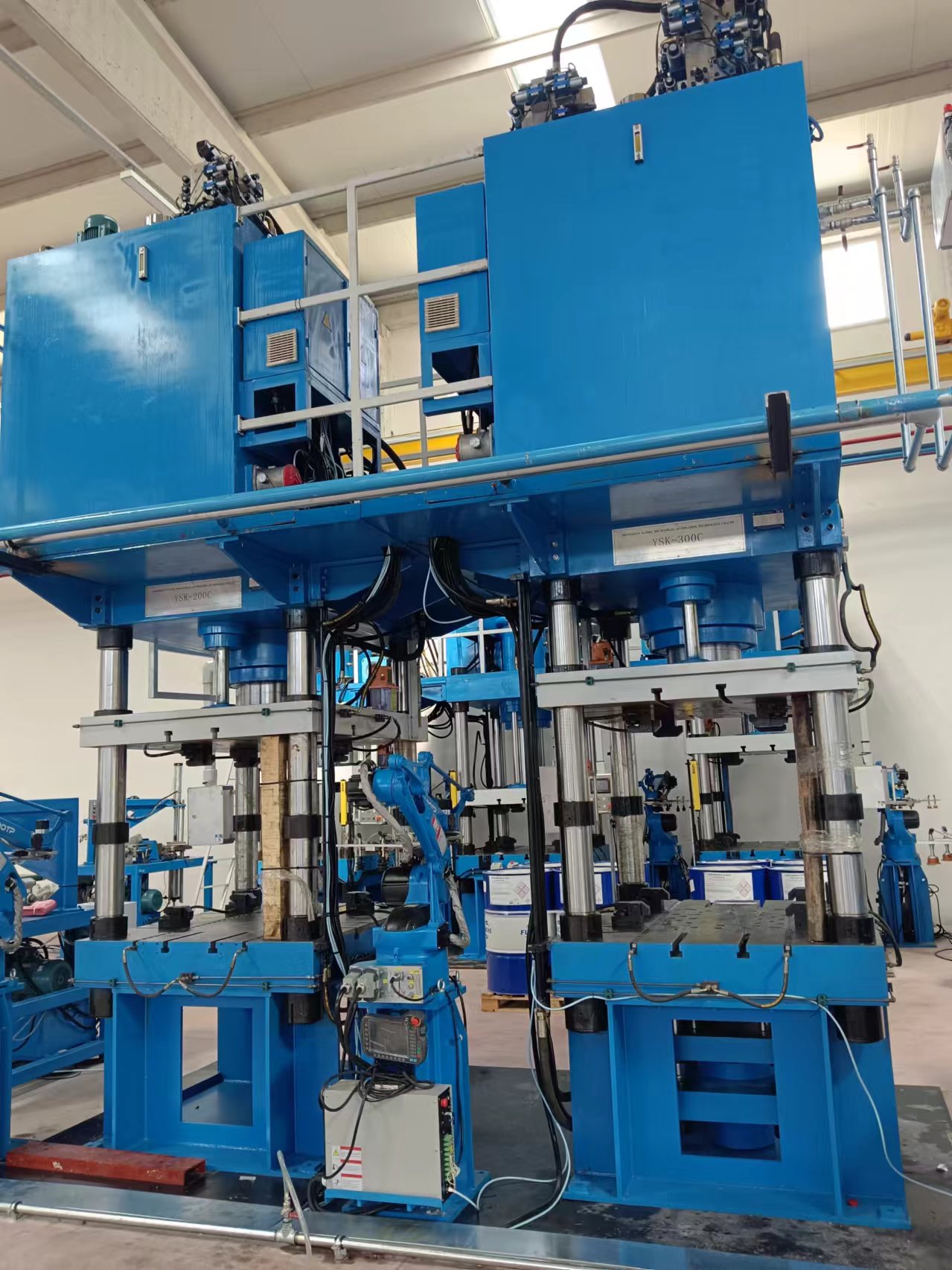

19


Main technical parameters:

1

project

unit

Y28-350S

YSM-250CS

YSM-300CS

YSM-350CS

2

Master cylinder force

KN

2500(Adjustable)

2500 (adjustable)

3000 (adjustable)

3000 (adjustable)

3

Hydraulic system pressure

Mpa

24.6

24.6

25.2

25.2

4

Master cylinder stroke

mm

500 (adjustable)

500 (adjustable)

500 (adjustable)

500 (adjustable)

5

Bottom cylinder force

KN

1000 (adjustable)

/

/

500 (adjustable)

6

Bottom cylinder stroke

mm

150 (adjustable)

/

/

150 (adjustable)

7

Feeding cylinder force

KN

100 (adjustable)

/

/

/

8

Feeding cylinder stroke

mm

100 (Time relay control)

/

/

/

9

Lower feed cylinder force

KN

/

/

200 (adjustable)

/

10

Lower feed cylinder stroke

mm

/

/

150 (adjustable)

/

11

Workspace opening height

mm

1000

1000

1000

1000

12

Master cylinder speed

No load down

mm/s

220 (adjustable)

220 (adjustable)

220 (adjustable)

220 (adjustable)

Stretch

mm/s

14~25 (adjustable)

14 (adjustable)

14 (adjustable)

14 (adjustable)

Return

mm/s

220 (adjustable)

220 (adjustable)

220 (adjustable)

220 (adjustable)

13

Bottom cylinder speed

Eject

mm/s

60

/

/

/

return

mm/s

Passive return

/

/

/

14

Workbench size

Left and right (inside the nut)

mm

1100

1100

1100

1100

Front and rear (inside the nut)

mm

900

900

900

900

15

Servo motor power

KW

26.7

26.7

30.2

30.2
