Refrigerator production line (YSK-200C four-column hydraulic press)

Refrigerator production line
Availability:
Quantity:
Refrigerator production line (YSK-200C four-column hydraulic press)
Refrigerator production line (YSK-200C four-column hydraulic press)
Refrigerator production line (YSK-200C four-column hydraulic press)
Refrigerator production line (YSK-200C four-column hydraulic press)
Refrigerator production line (YSK-200C four-column hydraulic press)
  • Refrigerator production line

  • 万达

Product Description

WeChat pictures_20240318165904

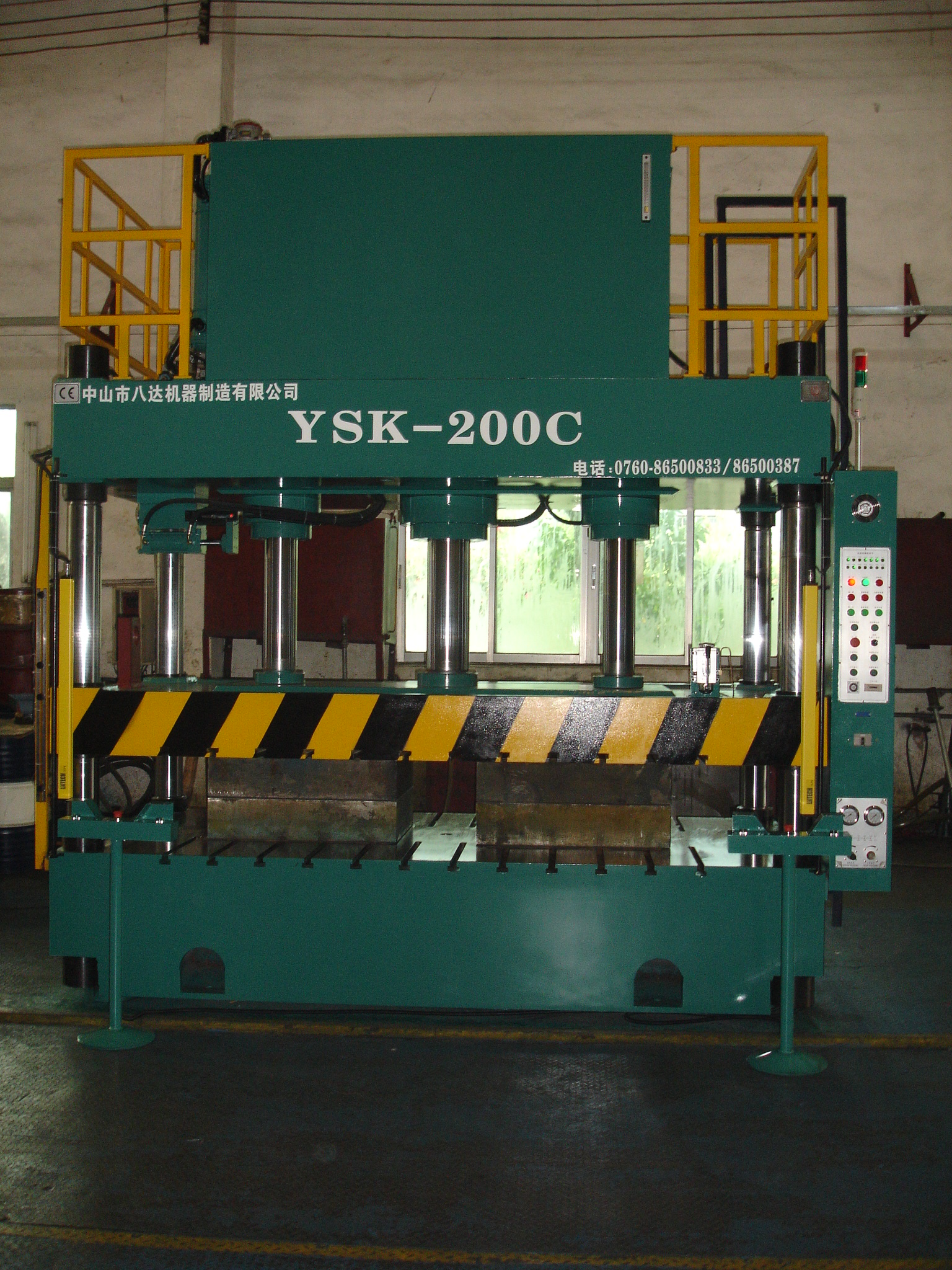

DSC06233

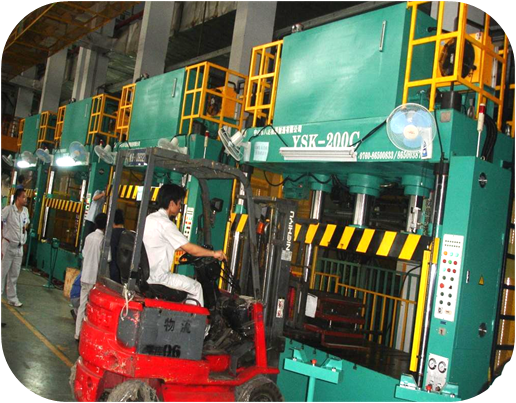

on site

Refrigerator pictures 3 Refrigerator pictures 2

Serial number

project

unit

YSK-200C

1

Master cylinder force

KN

2000

2

Maximum pressure of master cylinder

MPa

24

3

Maximum stroke of master cylinder

mm

710

4

Maximum opening height of workbench

mm

960

5

Master cylinder downstream speed

mm/s

200

6

Master cylinder work speed

mm/s

18-7

7

Master cylinder return speed

mm/s

70

8

Effective size of work surface

Left and right (inside the column)

mm

2800

Front and back (edge)

mm

1500

9

Motor power

KW

22

10

Machine weight (approximately)

KG

29000

11

Maximum power of cooling system

KW

1.5
