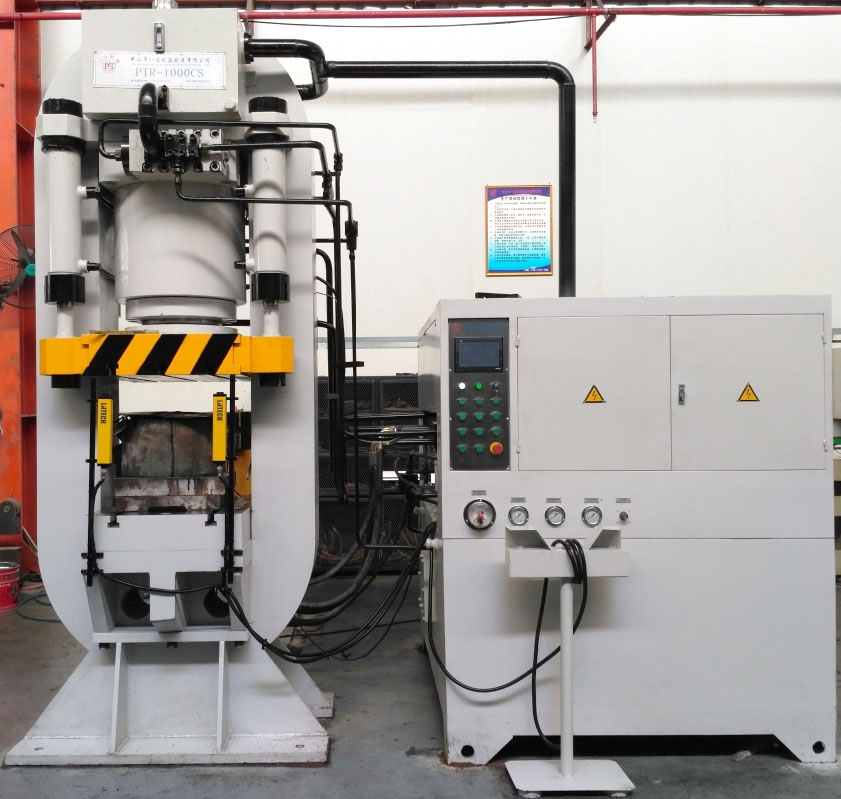

WDR-1000CS ultra-high pressure steel wire winding servo CNC hydraulic press |
Item
| Unit
| Numerical value |
| Nominal force | KN | 10000 (adjustable) |
| Hydraulic working pressure | MPa | 100/13.2 (adjustable) |
| Slide travel | mm | 200 (adjustable) |
Effective size of work surface | left-right | mm | 650 |
| front-back | mm | 900 |
Slider speed | fast downward | mm/s | 160 |
| Slow down | mm/s | 10 |
| Returning | mm/s | 160 |
Maximum containment height | mm | 600 |
The top output of a top cylinder | KN | 300 |
One cylinder ejection stroke | mm | 30 |
Top output of two top cylinders | KN | 100 |
Two top cylinder ejection stroke | mm | 30 |
| Motor power | KW | 44 |
