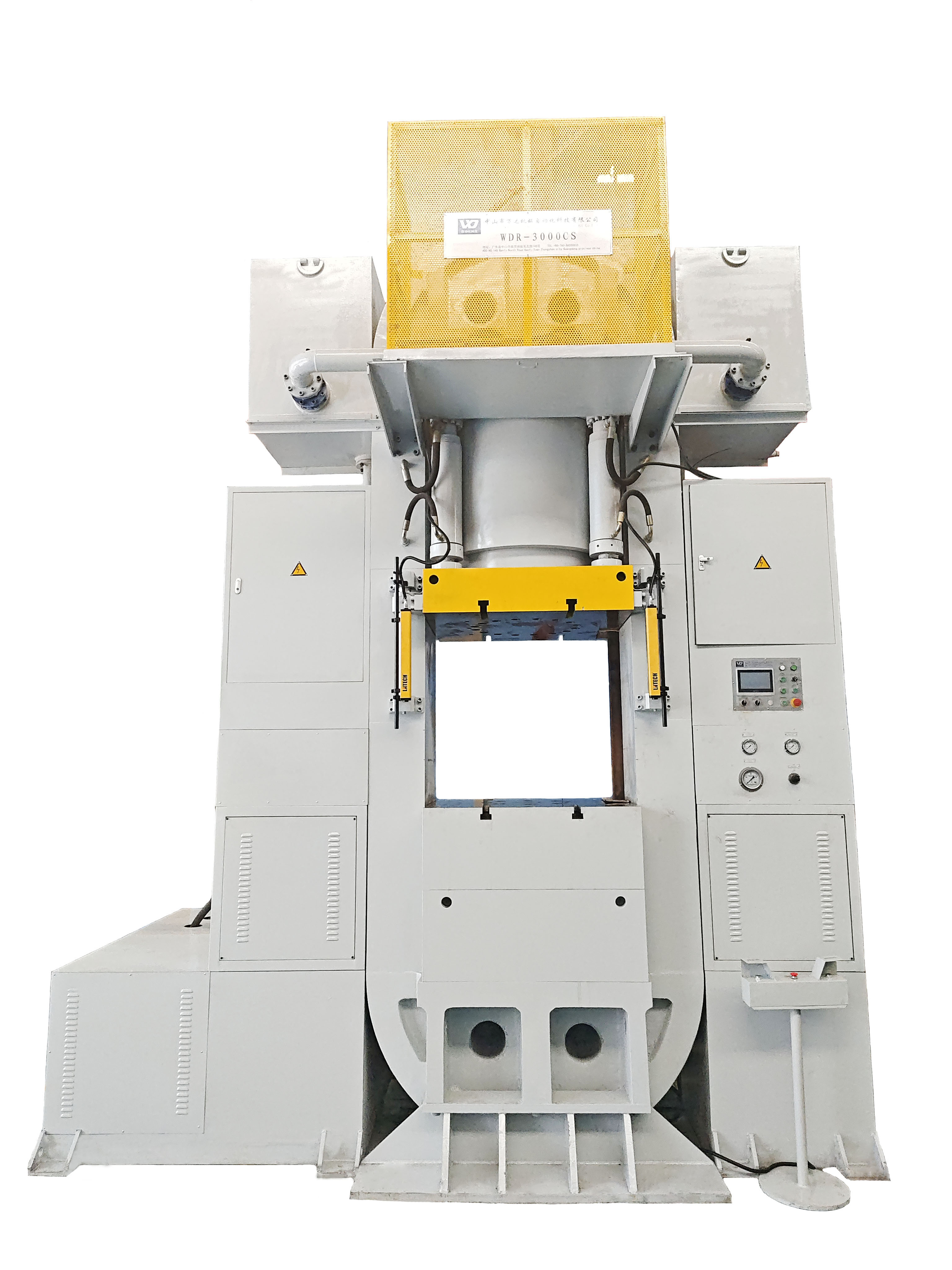

WDR-3000CS
万达
Product Description
Main technical parameters:
Serial number NO. | project item
| unit Unit | WDR-3000CS | WDR-3500CS | WDR-4000CS | WDR-5000CS | ||
1 | Master cylinder force Master cylinder force | KN | 30000 (adjustable) | 35000 (adjustable)
| 40000 (adjustable) | 50000 (adjustable) | ||
2 | Working liquid pressure | MPa | 80/20 | 80/20 | 80/20 | 80/20 | ||
3 | Master cylinder stroke Master cylinder stroke | mm | 300 (adjustable)
| 300 (adjustable)
| 350 (adjustable)
| 400 (adjustable)
| ||
4 | Maximum opening height Maximum opening height | mm | 1000 | 1000 | 1100 | 1200 | ||
5 | Master cylinder speed Master cylinder speed | No load down No-load down | mm/S | 260 (adjustable)
| 260 (adjustable)
| 260 (adjustable)
| 150 (adjustable)
| |
6 | suppress Pressing | mm/S | 16 (adjustable)
| 15 (adjustable)
| 13 (adjustable)
| 13 (adjustable)
| ||
7 | Return Returning | mm/S | 260 (adjustable)
| 260 (adjustable)
| 260 (adjustable)
| 150 (adjustable)
| ||
8 | Lower charging cylinder force | KN | 1000 (adjustable))
| 1000 (adjustable)
| 1000 (adjustable)
| 1200 (adjustable)
| ||
9 | Lower feed cylinder stroke Lower top cylinder stroke | mm | 70 (adjustable)
| 70 (adjustable)
| 70 (adjustable)
| 100 (adjustable)
| ||
10 | Blank cylinder force | KN | 1200 (adjustable)
| 1200 (adjustable)
| 1200 (adjustable)
| 3000 (adjustable)
| ||
11 | Stroke of edge cylinder Blank cylinder stroke | mm | 100 (adjustable)
| 100 (adjustable)
| 100 (adjustable)
| 150 (adjustable)
| ||
12 | Workbench size Table size | Left-right | mm | 900 | 1100 | 1250 | 1260 | |
13 | Before and after Front back | mm | 900 | 1100 | 1250 | 1300 | ||
14 | Servo electric power Servo motor power | KW | 78.3 | 78.3 | 78.3 | 78.3x2 | ||
15 | Maximum boost stroke of oil cylinder Maximum boost stroke of cylinder | mm | 22 | 22 | 22 | 30 | ||
16 | Cooling method Cooling mode | Oil cooler (optional) Oil cooler (optional) | Oil cooler (optional) Oil cooler (optional) | Oil cooler (optional) Oil cooler (optional) | Oil cooler (optional) Oil cooler (optional) | |||
