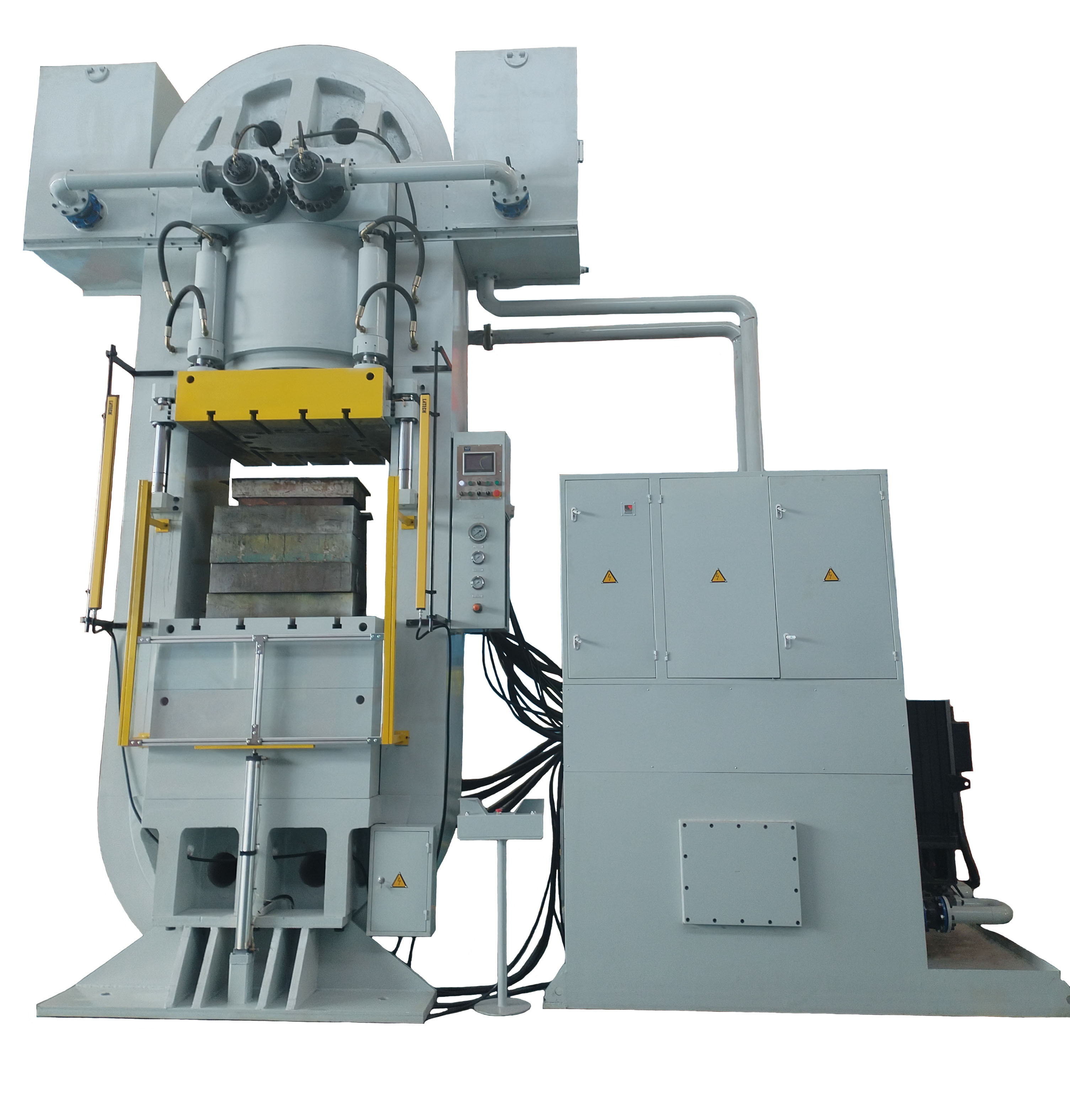

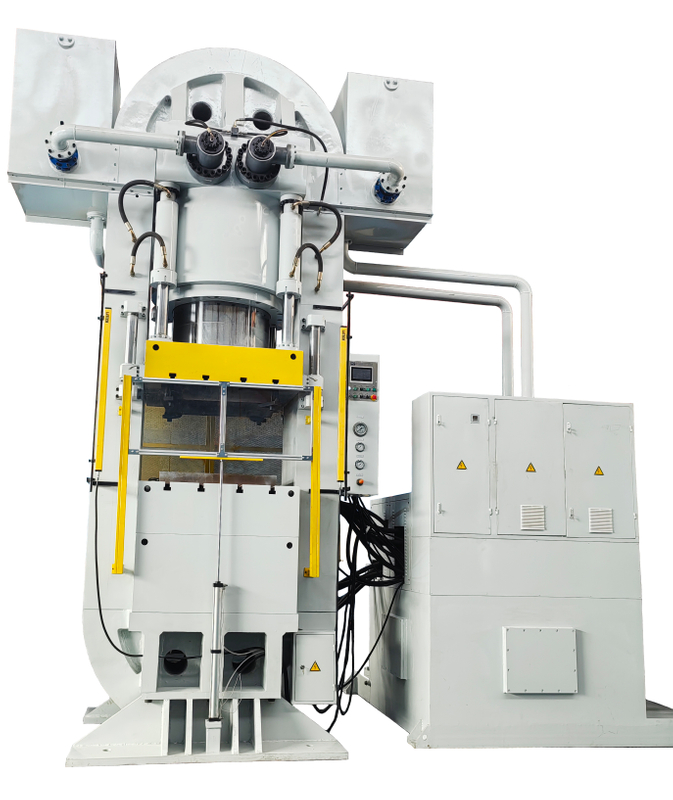

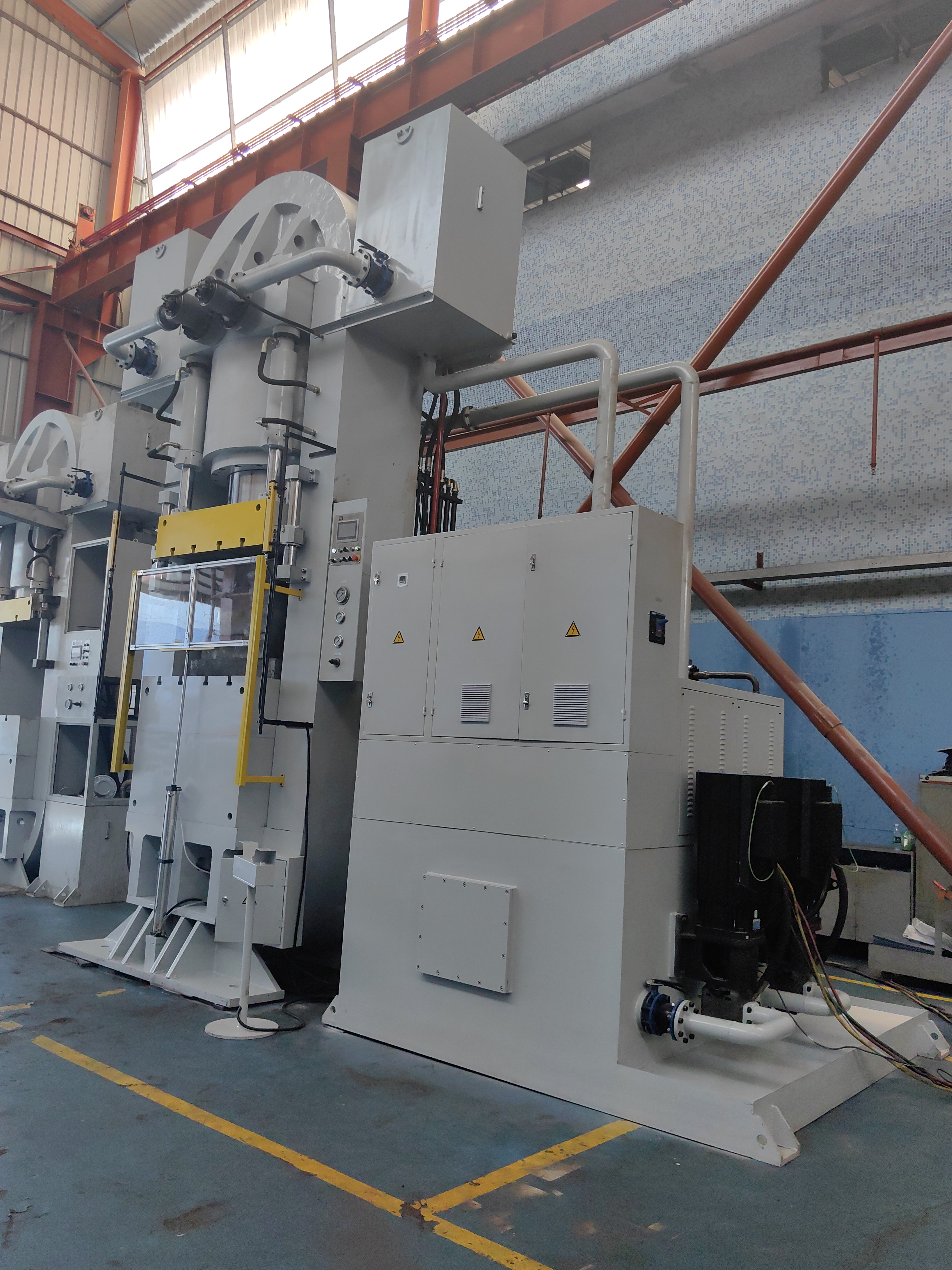

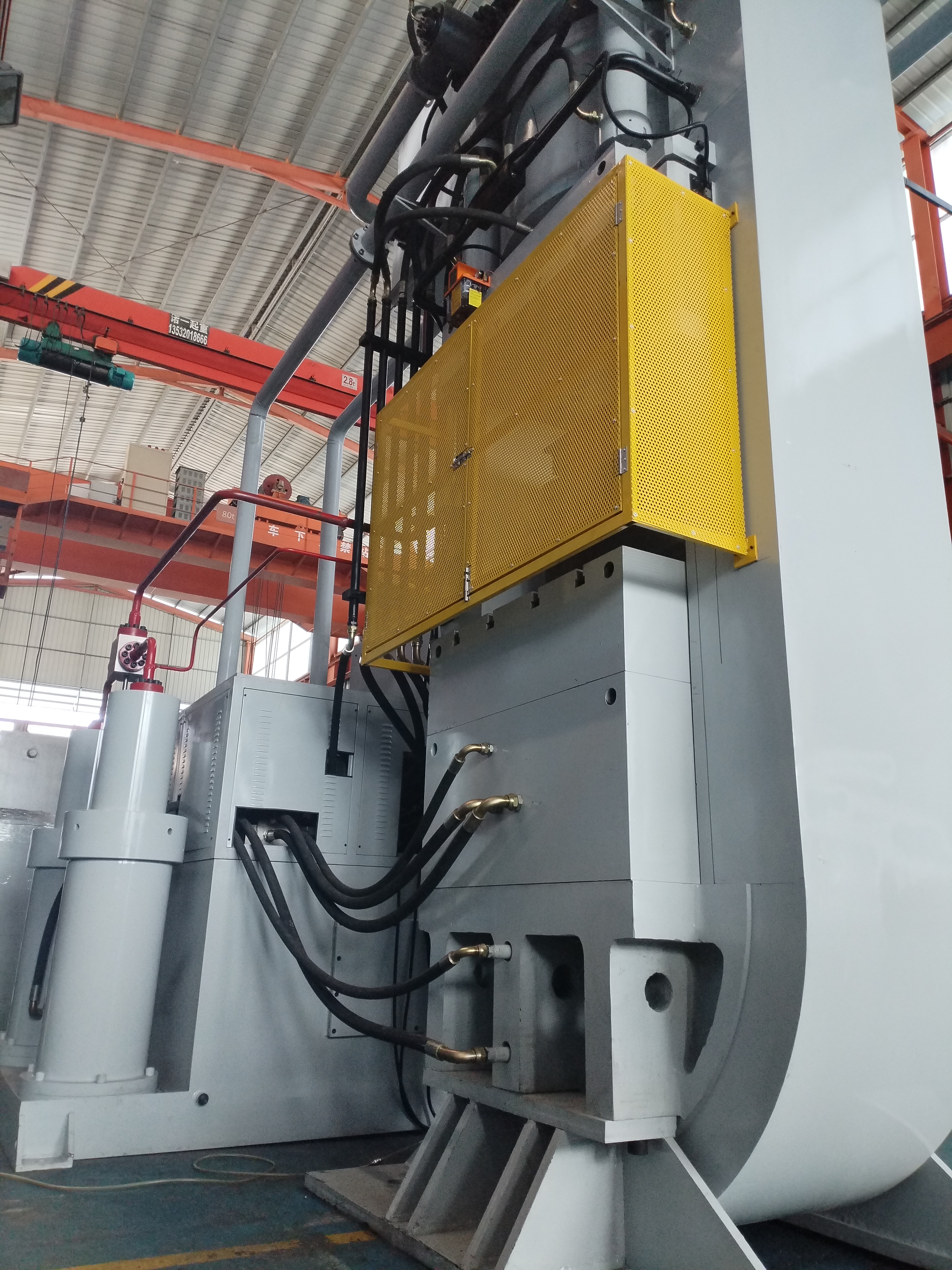

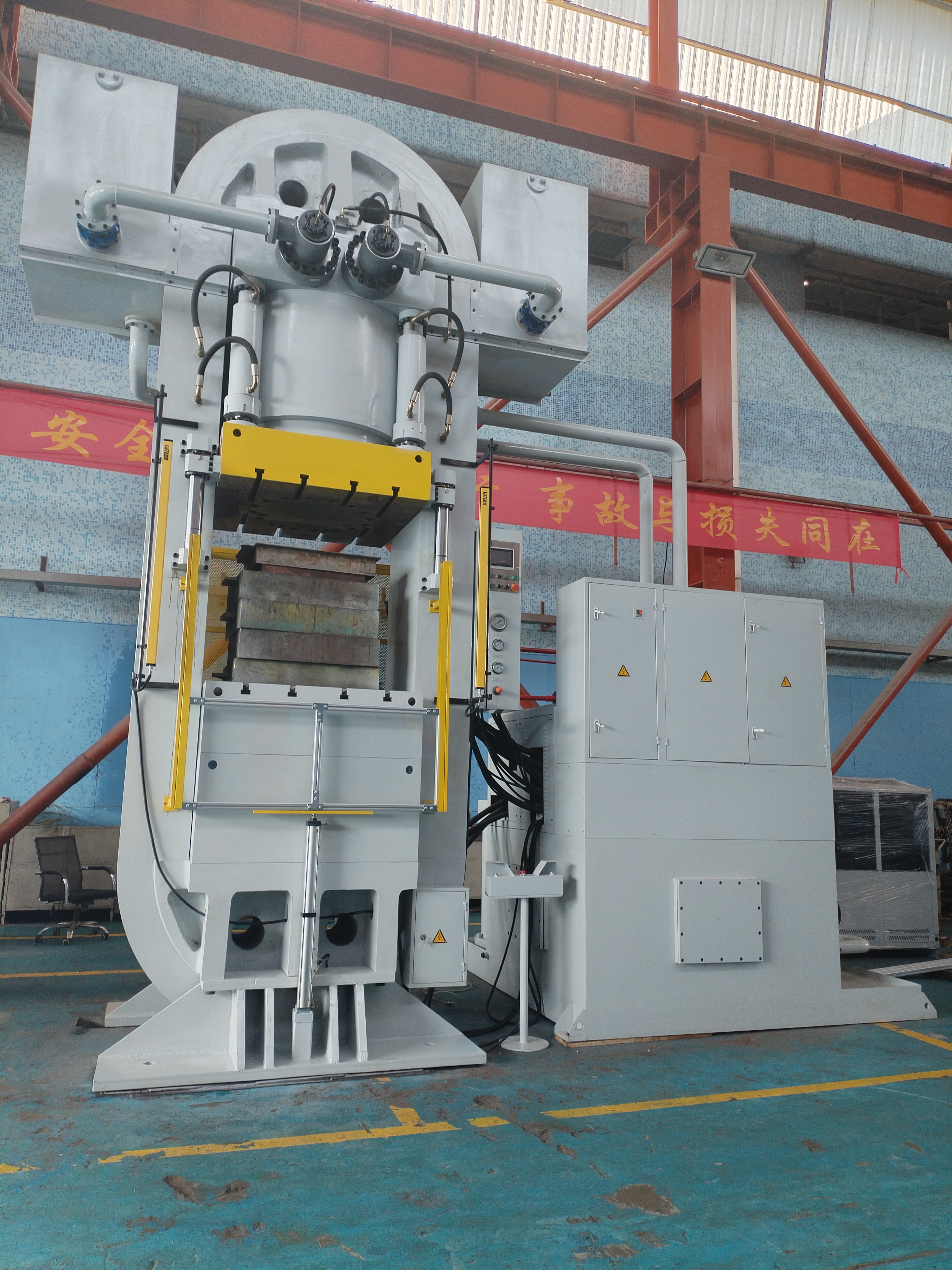

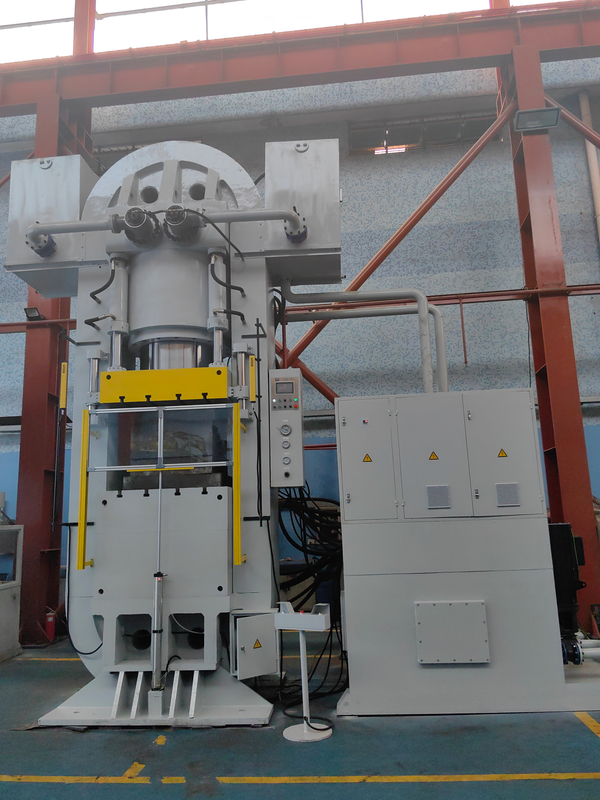

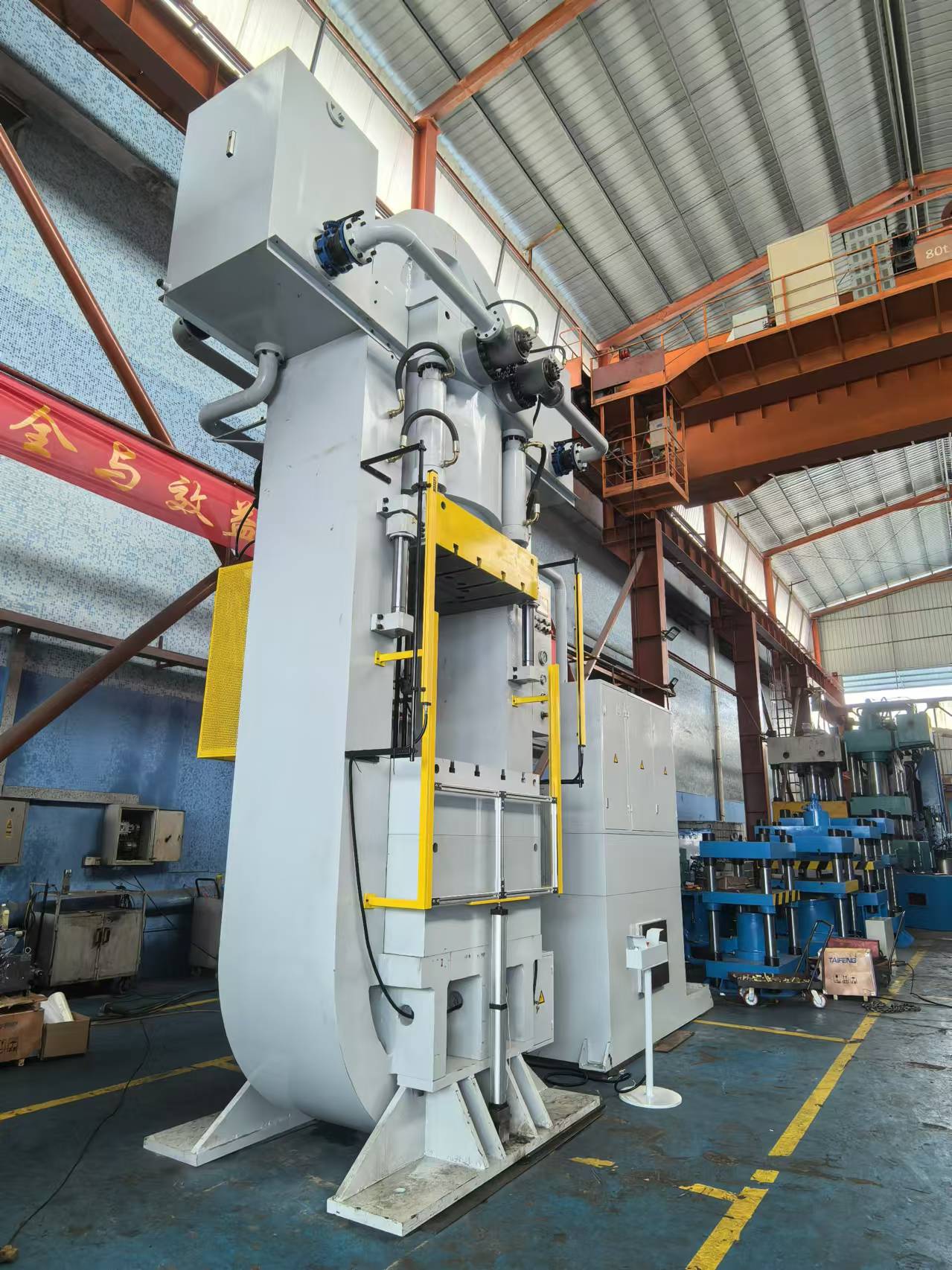

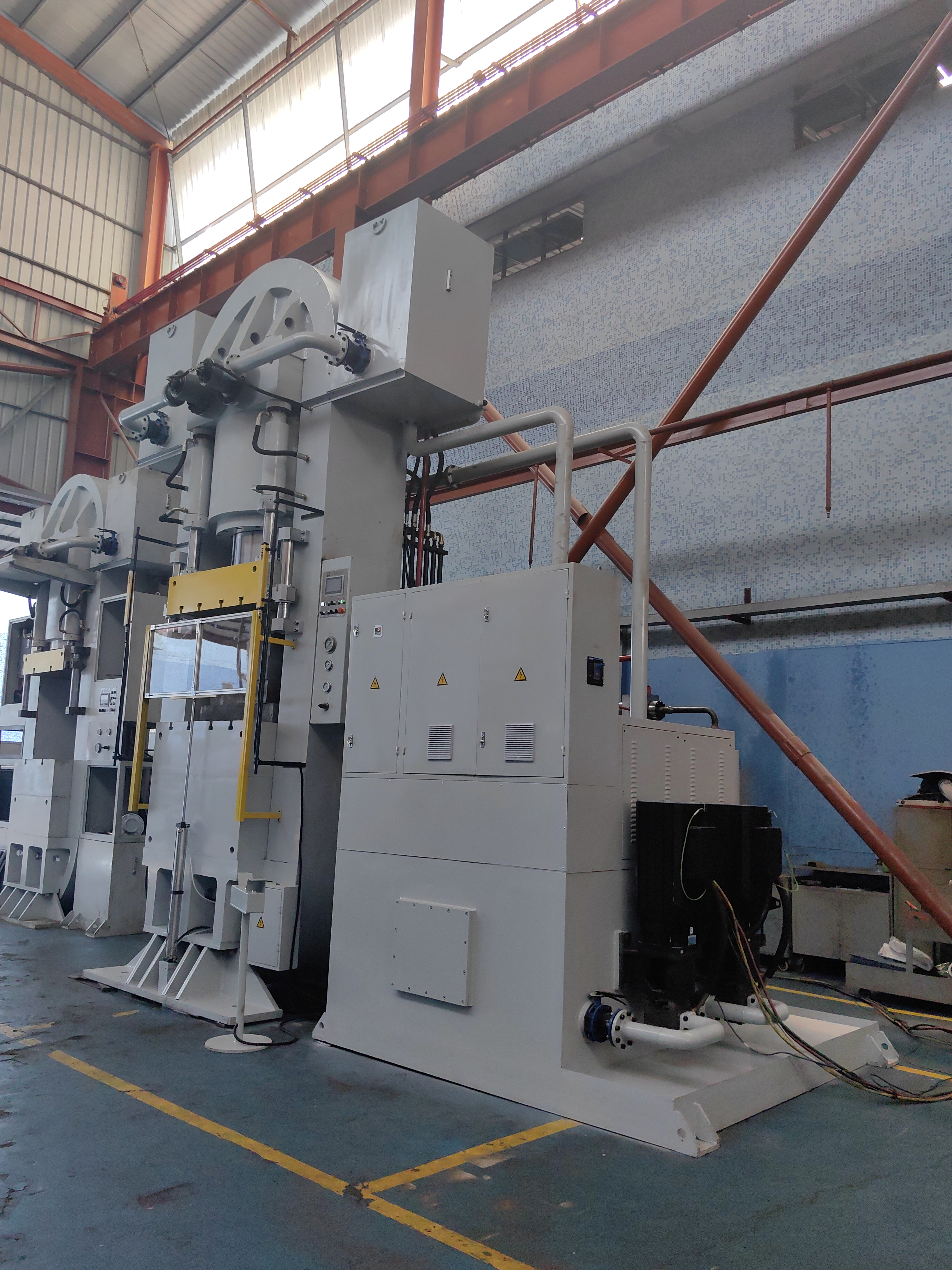

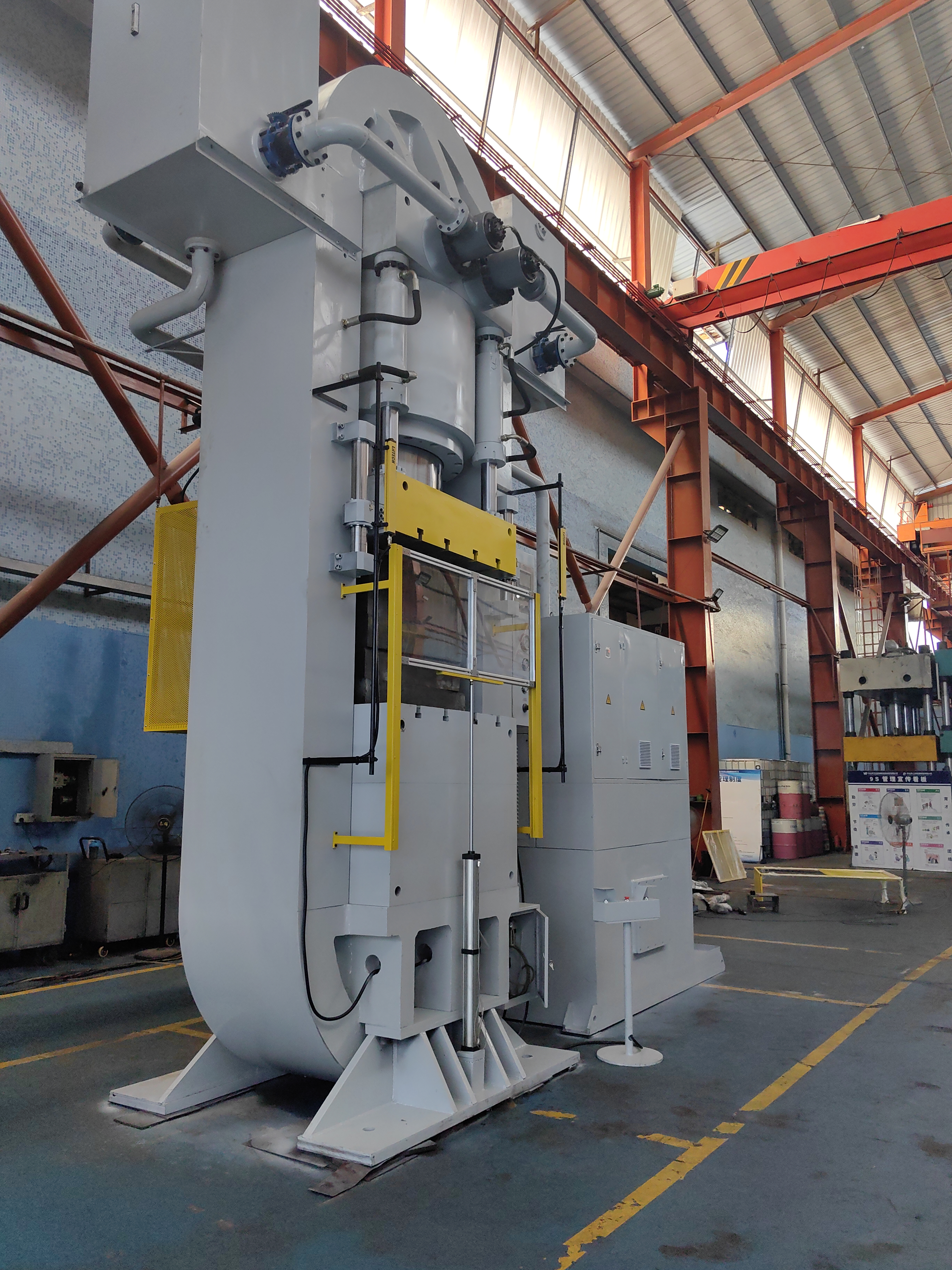

WDR-5000CS (IGBT copper-based radiator precision cold forging hydraulic press)

Description: WDR-5000CS large ultra-high pressure steel wire winding precision servo CNC hydraulic press, used for precision hot and cold forging and extrusion molding.
1. Use
It is widely used in precision cold (warm) forging and precision hot and cold extrusion forming of parts made of aluminum, copper and other alloy materials. Especially specialized and dedicated equipment for the new energy IGBT copper-based radiator, LED copper, and aluminum radiator industries.
2. Product Features
1. The equipment is small in size, takes up less area, is light in weight, has high pressure, is fast, has high operating precision, is environmentally friendly, energy-saving, and silent, which are the biggest advantages of this equipment.
2. Adopt a highly cost-effective precision servo power hydraulic system, using touch screen + PLC + pressure and displacement sensing system; equipped with double worktables with edge pressing and material withdrawal functions to achieve pressure, displacement and precise control, and the speed is steplessly adjustable, fully meeting the production process requirements of various types of products.
3. The equipment has reserved automation and information ports to meet customers' remote, intelligent, and information production requirements.


Availability:
Quantity:
WDR-5000CS (IGBT copper-based radiator precision cold forging hydraulic press)
WDR-5000CS (IGBT copper-based radiator precision cold forging hydraulic press)
WDR-5000CS (IGBT copper-based radiator precision cold forging hydraulic press)
WDR-5000CS (IGBT copper-based radiator precision cold forging hydraulic press)
WDR-5000CS (IGBT copper-based radiator precision cold forging hydraulic press)
WDR-5000CS (IGBT copper-based radiator precision cold forging hydraulic press)
  • WDR-5000CS

  • 万达

Product Description


Serial number NO.

Project item

Unit

Parameter value

1

Master cylinder force

Main cylinder force

KN

50000

2

Liquid working pressure

MPa

80/20

3

Master cylinder stroke

mm

400(adjustable)(Adjustable)

4

Maximum opening height

mm

1200

5

Master cylinder speed

No-load downlink

mm/s

150(adjustable)(Adjustable)

Suppressing pressing

mm/s

13(adjustable)(Adjustable)

Return

mm/s

150(adjustable)(Adjustable)

6

Ejector force

KN

1200(adjustable)(Adjustable)

7

ejector stroke

mm

150(adjustable)(Adjustable)

8

Blank cylinder force

KN

3000(adjustable)(Adjustable)

9

Blank cylinder stroke

mm

100 (Adjustable)

10

Servo motor power

KW

78.3*2

11

Table size

Left and right LR

mm

1260

Front and rear FB

mm

1300

12

Maximum boost stroke of cylinder

mm

30

13

Cooling modeCooling mode

Kcal/h

18000

14

One rod is pressurized to 80MPa (5000 tons), and the machine has reserved automated output and input ports to facilitate automated production connections and information-based digital collection. One rod is pressurized to 80MPa (5000 tons), and the machine reserves automatic output and input ports for automated production connections and digital data acquisition.


15

Install a mobile safety door with photoelectric protection device in front of the machine; Install a protective cover with lock closure at the rear
