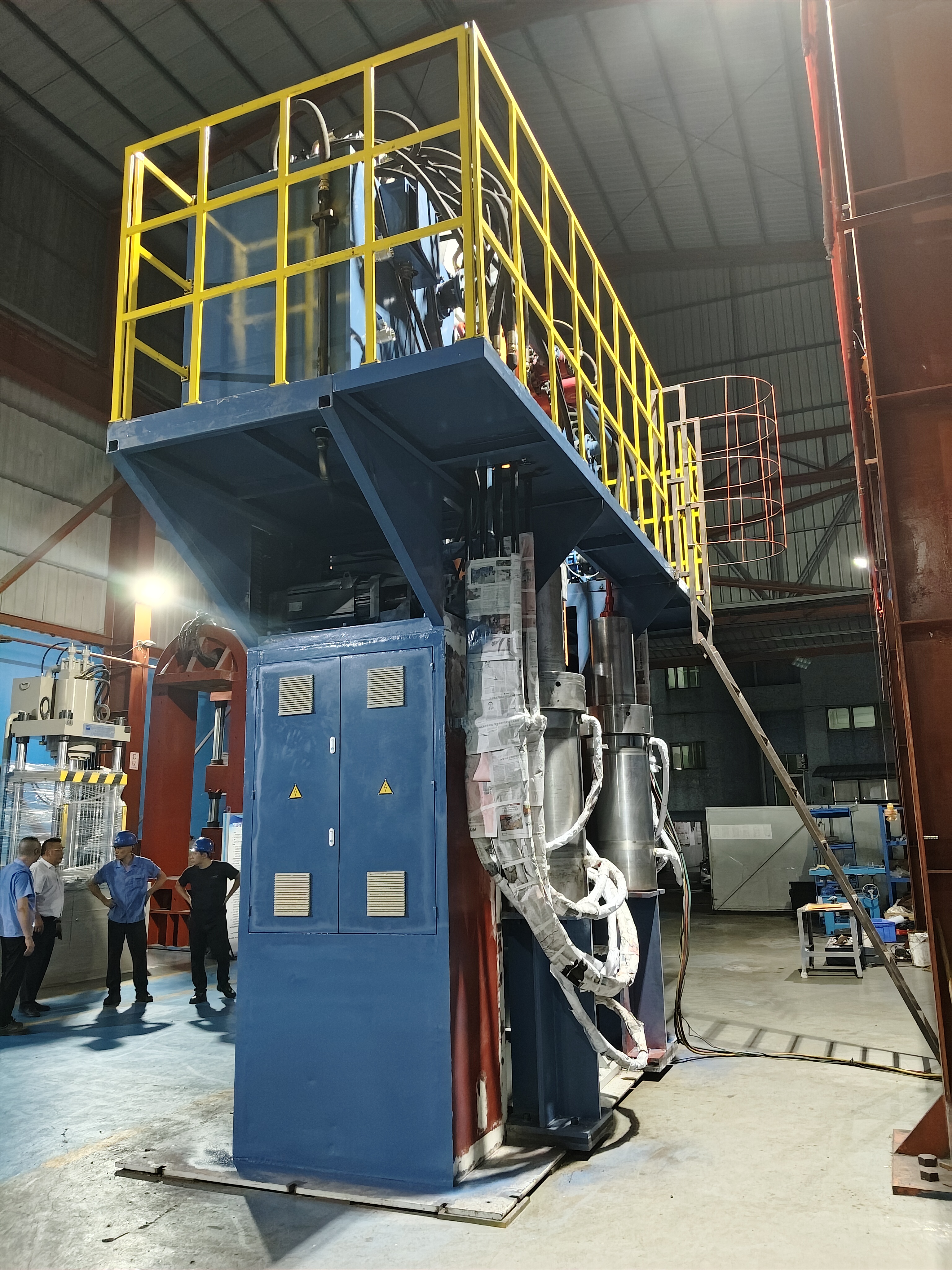

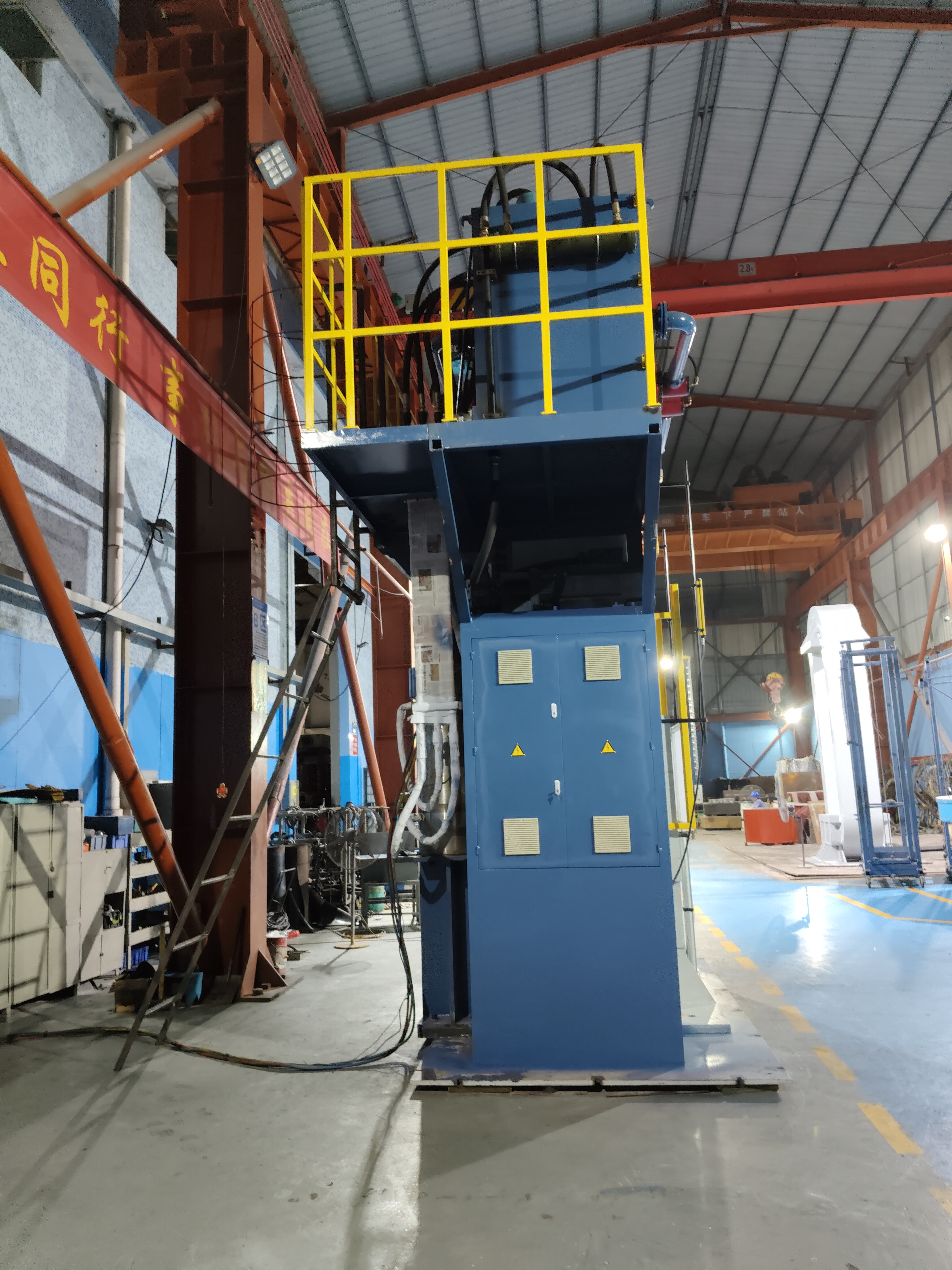

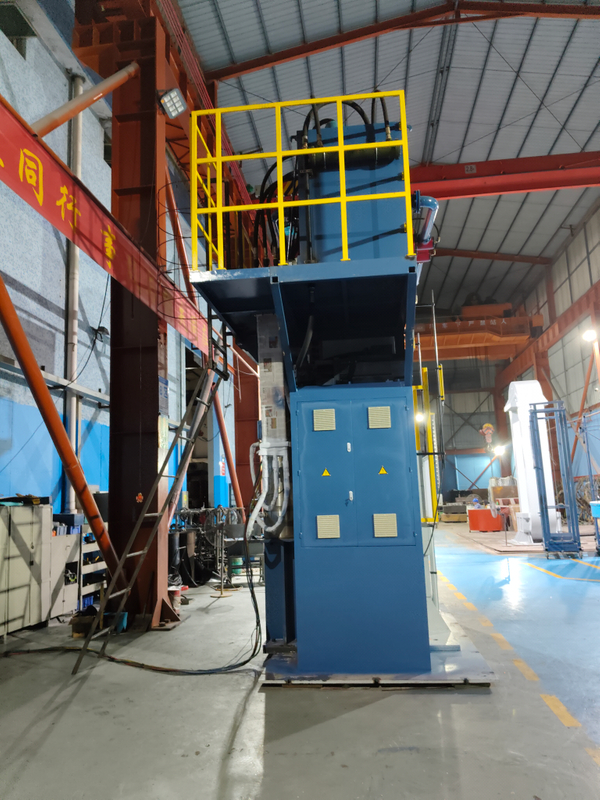

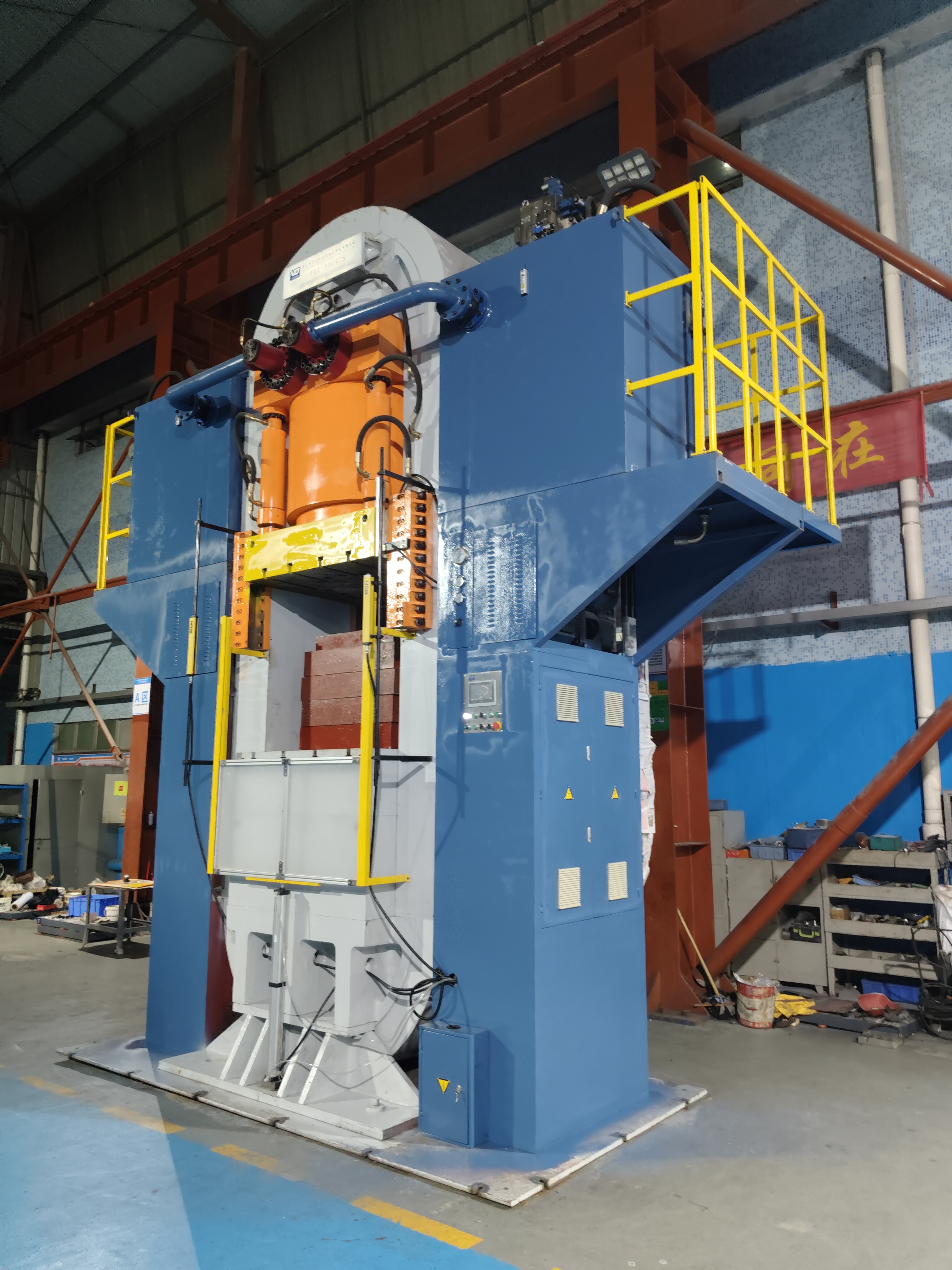

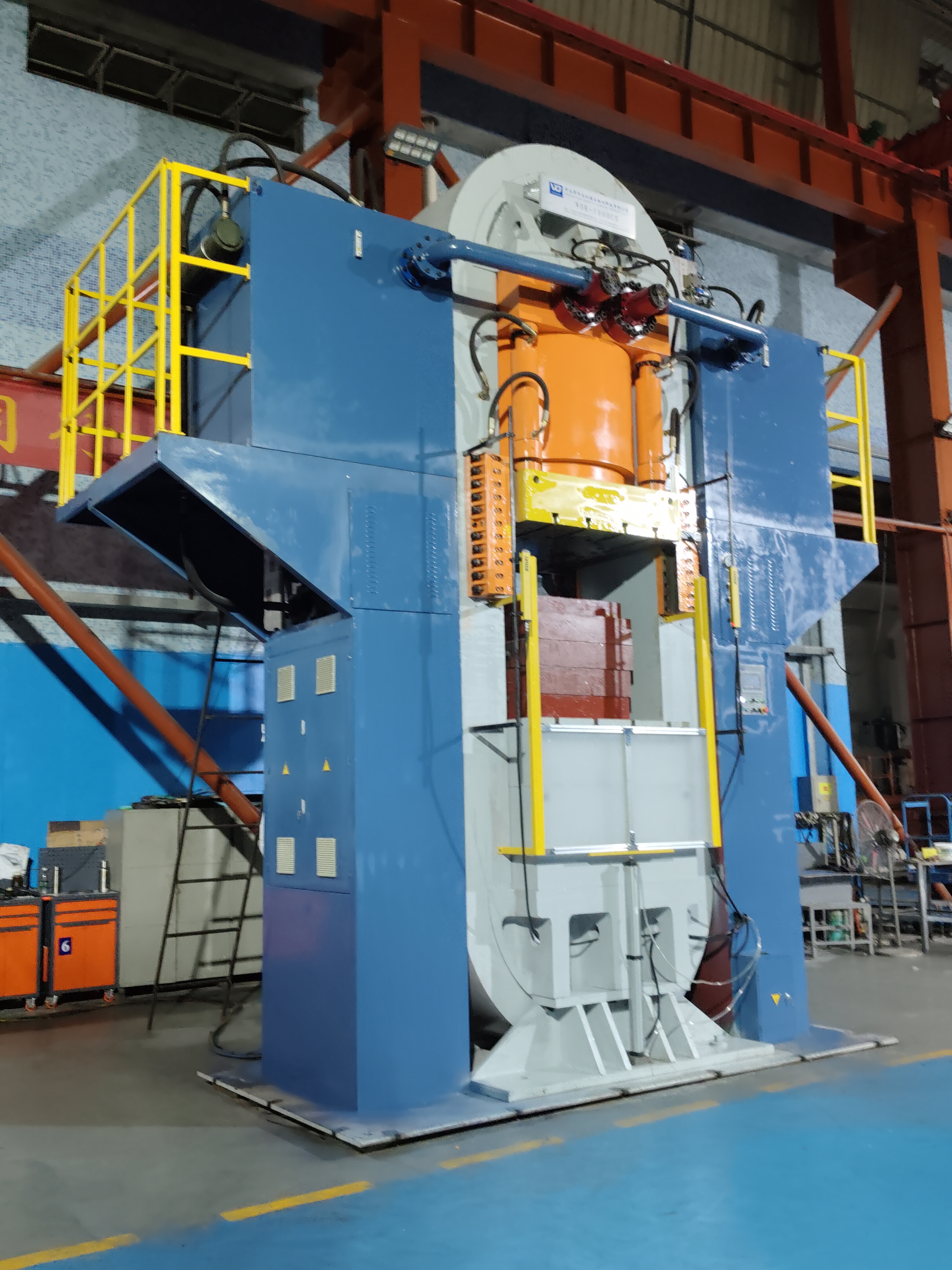

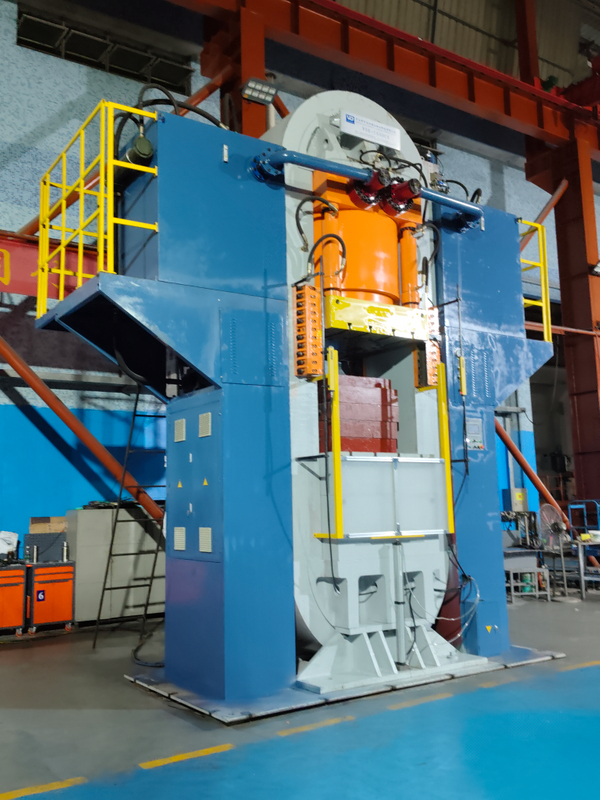

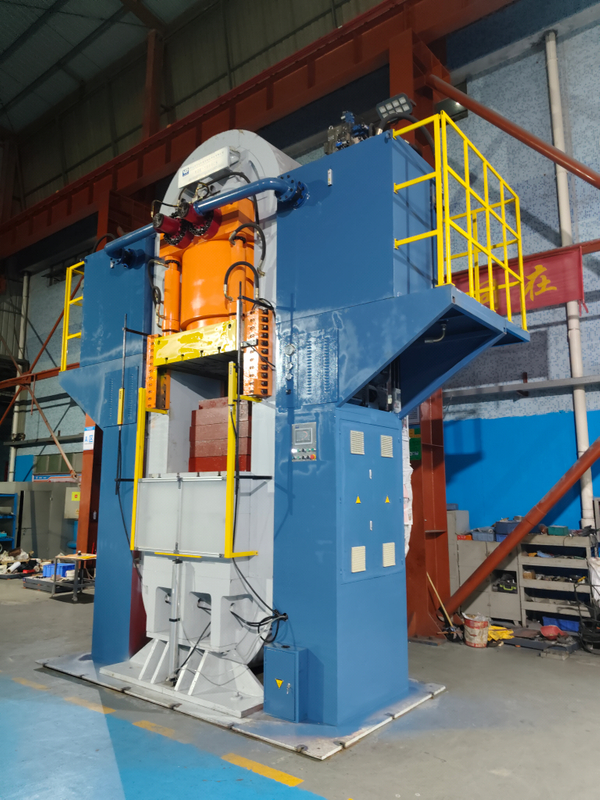

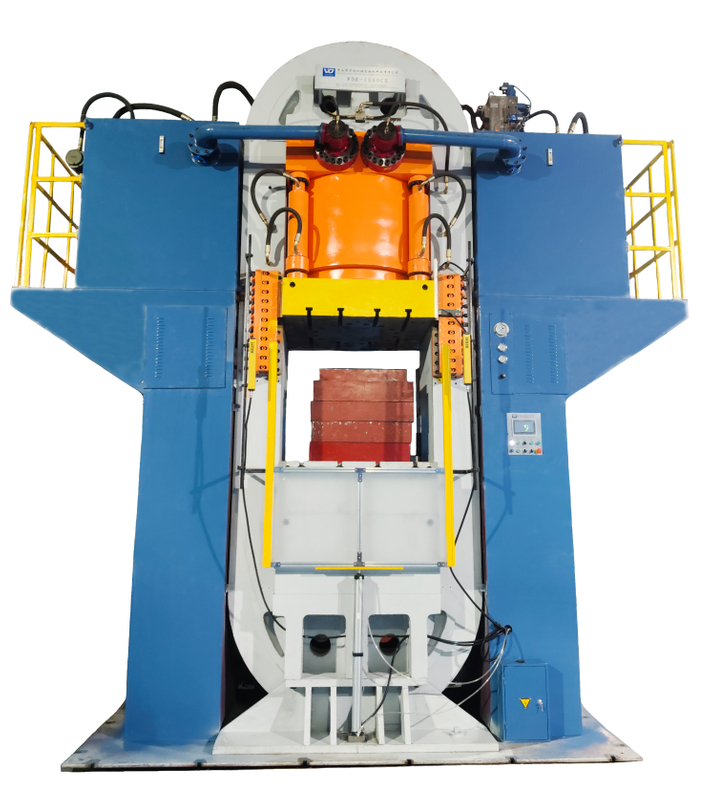

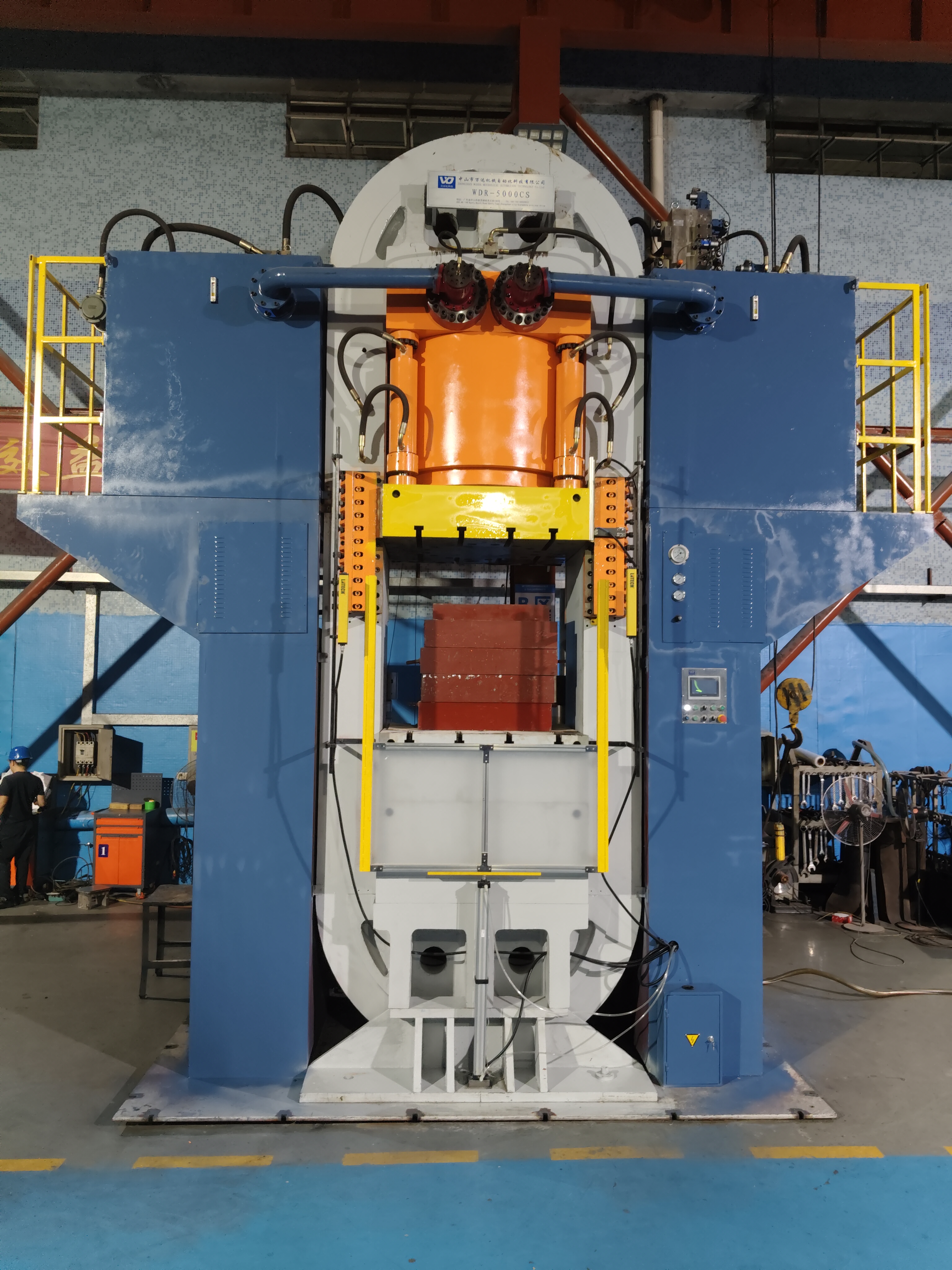

WDR-5000CS large ultra-high pressure wire winding hydraulic press (2)

1.2. Machine advantages (special) points:
1.2.1. The machine has an independent hydraulic system and an electrical control system, which can realize three working methods: manual adjustment and semi-automatic and automatic. Each working state can realize two types of pressing methods: accurate displacement schedule and precise fixed pressure.
1.2.2. The machine uses ultra-high pressure wire winding technology to greatly reduce its weight and volume, which saves costs and reduces operating area, and reduces transportation costs and installation costs.
1.2.3. The sealing of the main cylinder of the machine improves the sealing life due to the internationally advanced combined sealing or metal expansion ring sealing technology.
1.2.4. In order to improve their strength and rigidity, the machine's sliders and workbenches are thickened 45# or 50# forgings, and the sliders and workbenches have been tempered, thereby improving the anti-extrusion ability of the tabletop when pressing smaller workpieces and preventing them from deforming.
1.2.5. The machine quickly goes downward during work, using liquid filling technology, which improves production efficiency and saves energy.
1.2.6. The four-angle X-shaped four-sided guide rail is precision guided, with the angle of the inclined surface of the guide rail being 45°. The guide rail is embedded in the column as a whole to ensure the guide accuracy and anti-load capacity of the guide rail, and an automatic lubrication system is adopted.
1.2.7. The hydraulic system adopts a servo control system to greatly save energy and reduce machine noise.
1.2.8. High repeat positioning accuracy: the no-load repeat displacement accuracy can reach ±0.01mm.
1.2.9. Energy saving: Compared with traditional similar models, energy saving is 15%-30%. Especially under high power and long reactive power savings are more obvious, which can reach more than 50%.
1.2.10. Silence: 5-15Db lower than similar machines, and the noise during production is low, greatly reducing noise damage to the human ears.
1.2.11. Accurate pressure: The servo hydraulic system control can meet the requirements of speed and pressure changes in different processes. Under constant temperature, the pressure error is 0.2%-1%fs, and the movement is more stable.
