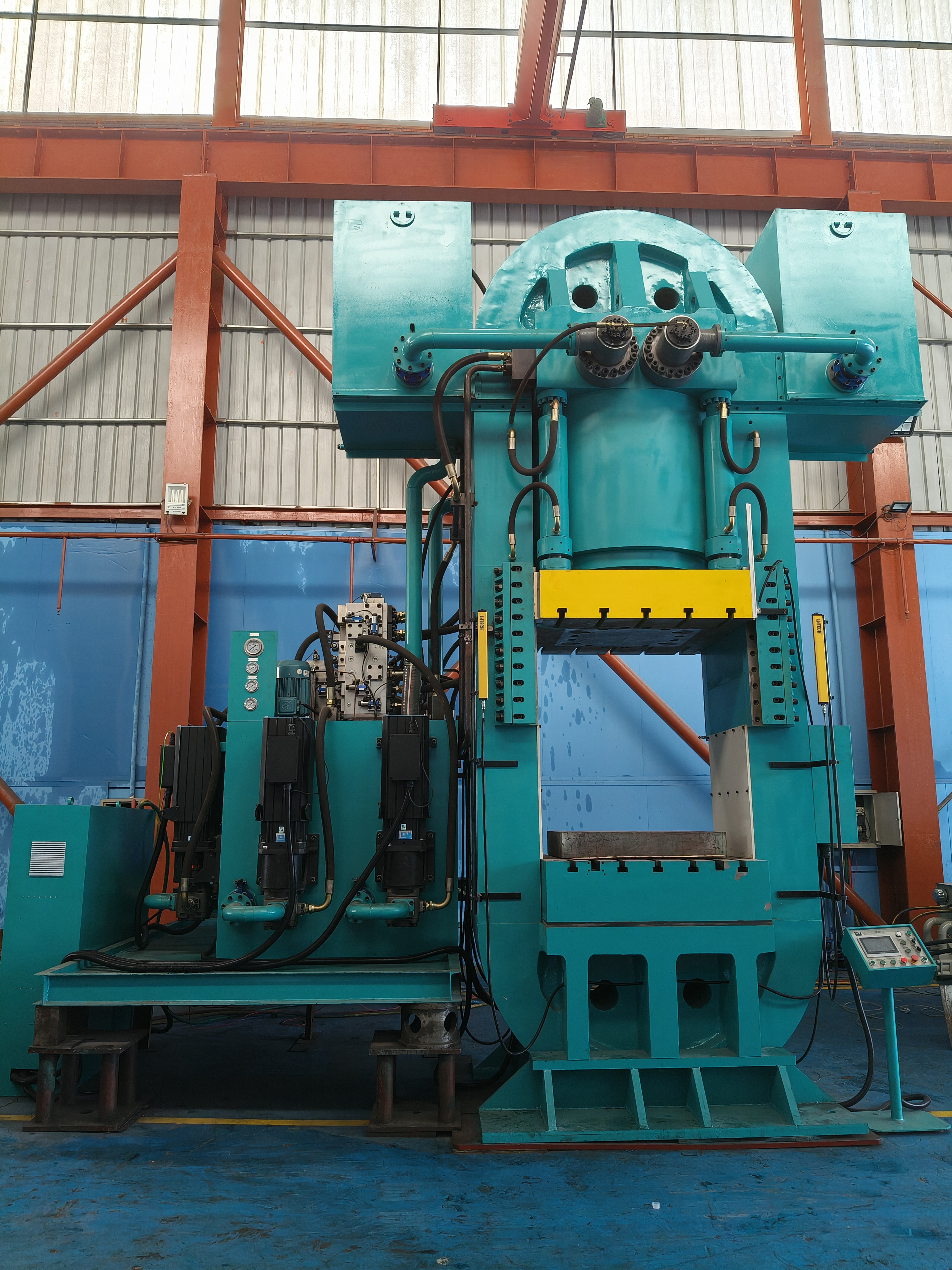

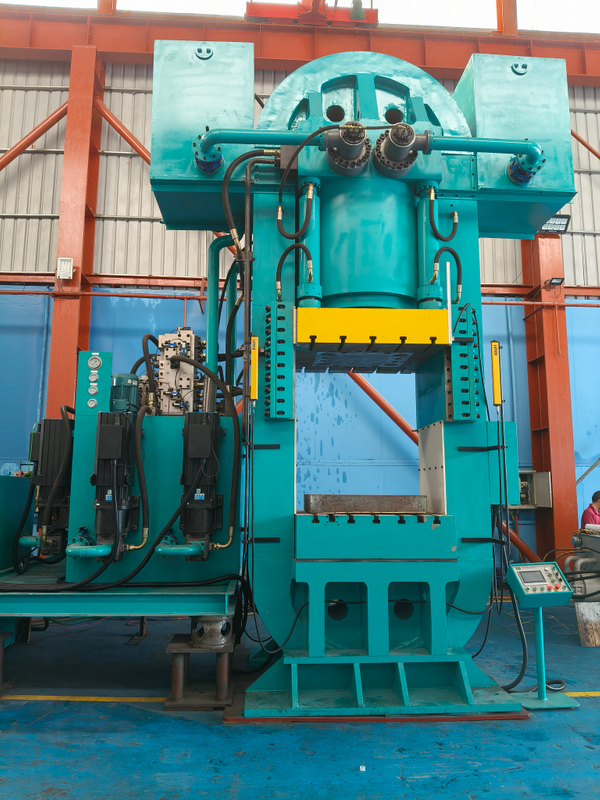

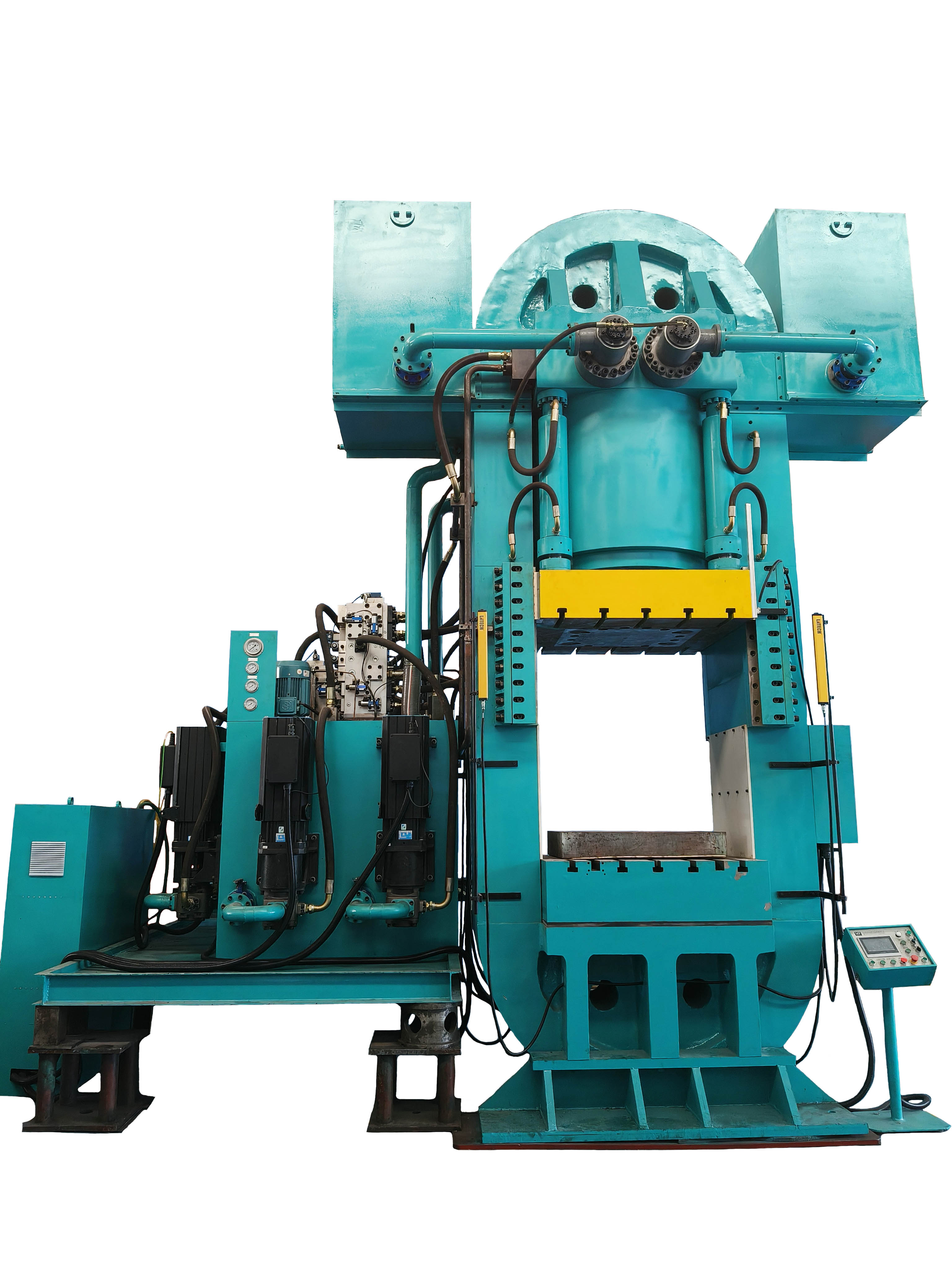

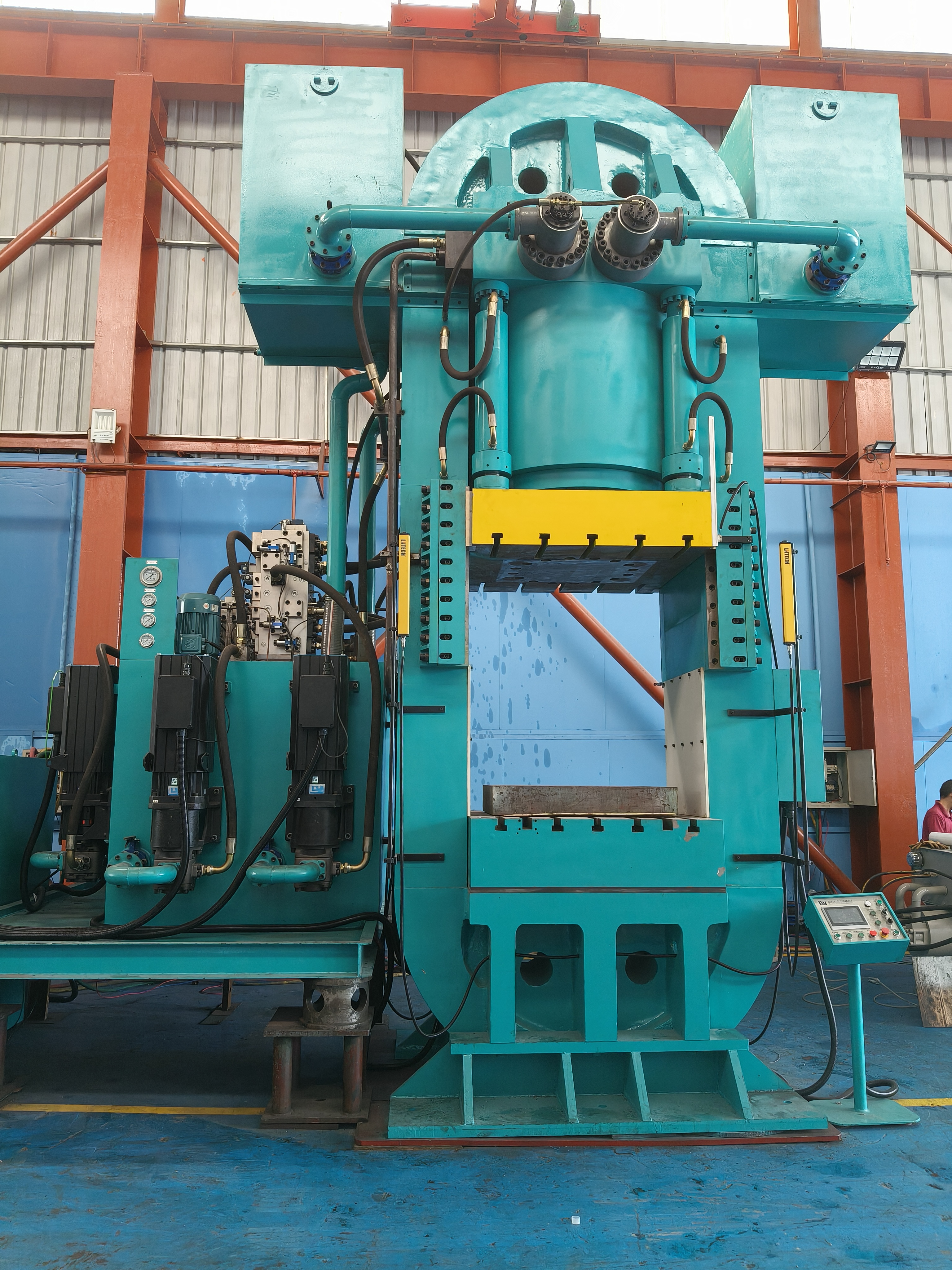

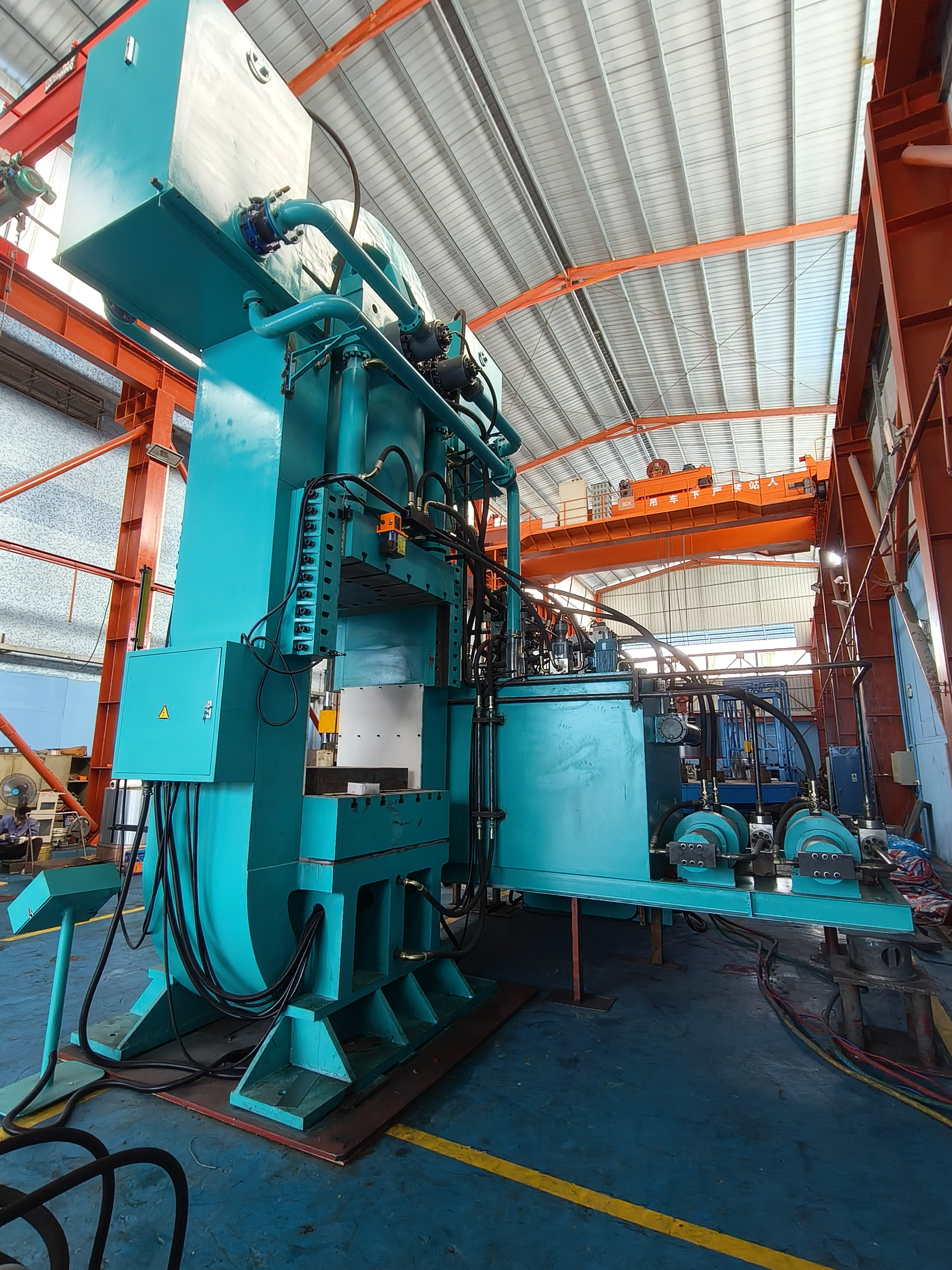

WDR-5000CS large ultra-high pressure wire winding hydraulic press

1

Nominal force of the main cylinder

Main cylinder force

KN

10000

25000

30000

40000

50000

60000

80000

100000

120000

2

Hydraulic working pressure

Hydraulic working pressure

MPa

98

90

90

95

94

94

92

96

98

3

Master cylinder stroke

Stroke of main cylinder

mm

200

300

300

350

350

350

350

350

350

4

Opening height

Daylight opening

mm

600

700

700

900

900

900

900

900

900

5

Workbench effective size

Worktable area

about

LR

mm

650

1000

1100

1200

1260

1300

1500

1650

1800

Before and after

FB

mm

900

1000

1100

1200

1300

1300

1500

1650

1800

6

Slider speed

Slider speed

Get off quickly

Fast downward

mm/s

245

245

245

245

180

180

160

100

100

Pressurized

mm/s

6-12

6-12

6-12

6-12

6-12

6-12

4-8

4-8

4-8

Returning

mm/s

245

245

245

245

180

180

160

80

80

7

Export force from the top of the material withdrawal cylinder

Upper ejector push-out force

KN

---

200

500

500

500

500

500

500

500

8

Stroke of the material withdrawal cylinder

Max. Stroke of upper ejector

mm

---

30

60

60

60

60

60

60

60

9

Export force from the lower material withdrawal cylinder

Lower ejector push-out force

KN

300

500

500

500

500

500

500

500

500

10

Stroke of the material withdrawal cylinder

Max. Stroke of lower ejector

mm

30

60

60

60

60

60

60

60

60

11

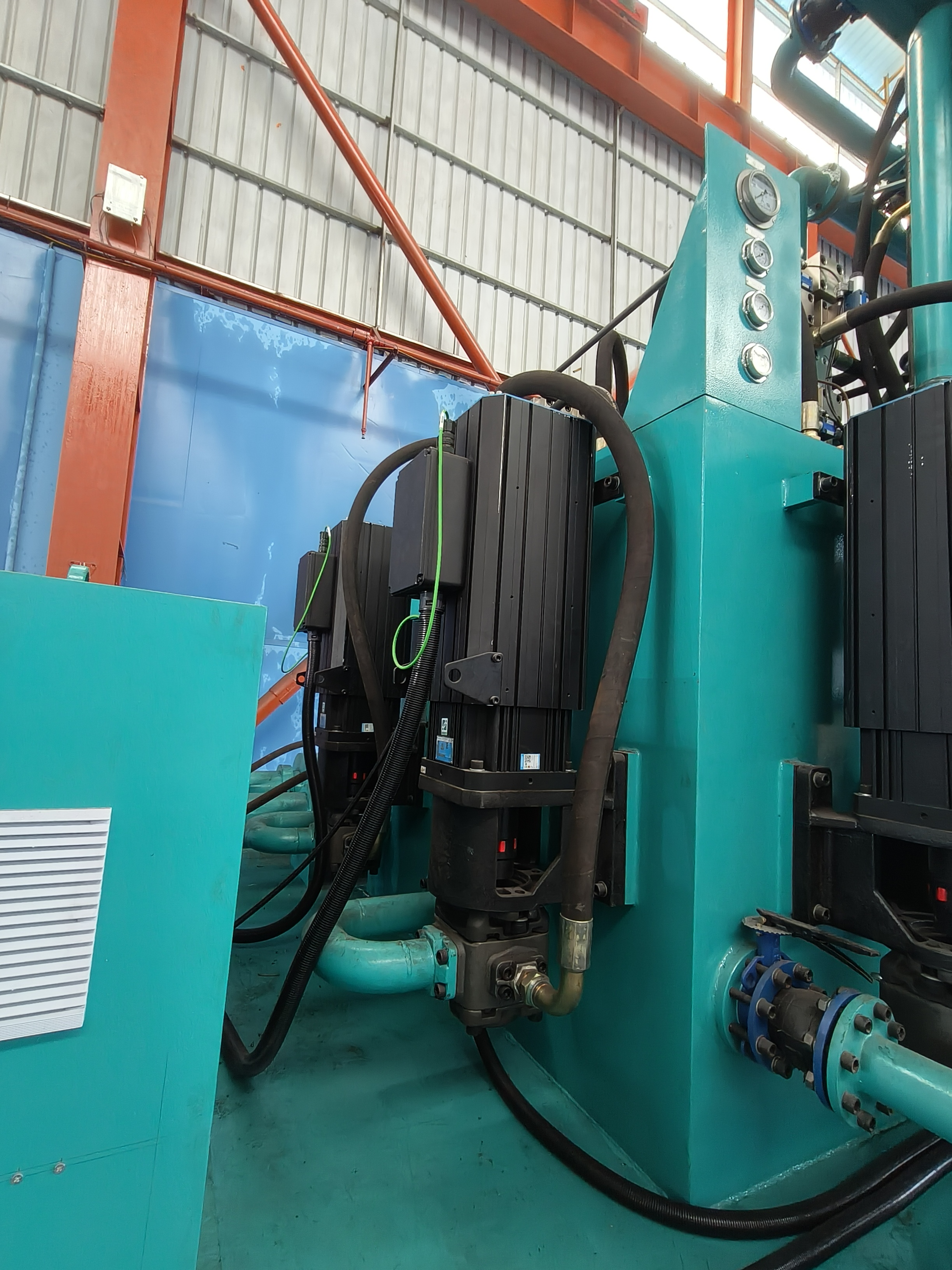

Motor power

KW

44

110

150

180

220

270

330

360

420

12

External dimensions

Overall dimension

Left and right LR

mm

4085

4225

4475

4665

4800

5000

6000

6900

8000

Front and rear FB

mm

1200

1250

1300

1500

1600

1600

1800

2200

2600

High Height

mm

2930

3750

3700

4250

4750

5000

5450

6000

7500
