WDR-CS series ultra-high pressure servo precision CNC hydraulic press

Photovoltaic, new energy, LED industry-specific, intelligent high-end precision equipment:

1. Use: Widely used for precision cold (temperature) forging and precision hot and cold extrusion forming of parts of aluminum, copper and other alloy materials. Especially specialized and dedicated equipment in the new energy IGBT copper-based radiator, LED copper and aluminum radiator industries.

2. Product Features : 1. The equipment is small in size, small in area, light in weight, high pressure, fast speed, high operating accuracy, environmental protection and energy saving. Silence is a significant advantage of this equipment. 2. It adopts a precision servo power hydraulic system with extremely cost-effectiveness, using a touch screen + PLC + pressure and displacement sensing system; it is equipped with a dual workbench with edge pressing and material removal functions, achieving pressure, displacement and precise control, stepless adjustable speed, fully meeting the production process requirements of various types of products. 3. The equipment reserves automated and informatized ports to meet customers' remote, intelligent and informatized production requirements.

Photovoltaic, new energy, LED industry dedicated, intelligent high-end precision equipment:
WDR-CS series ultra-high pressure servo precision CNC hydraulic press
1, Use: widely used in aluminum, copper and other alloy parts precision cold (warm) forgetting and precision hot and cold extrusion forming. In particular, the new energy IGBT copper-based radiator, LED copper, aluminum radiator industry specialized and special equipment.
2, Product features: 1, equipment small size, small footprint, light weight, large pressure, fast speed, high operating accuracy, environmental protection, energy saving, quiet is the significant advantages of the equipment. 2, the use of highly cost-effective precision servo power hydroulic system, using touch screen +PLC+ pressure, displacement sensing system; Equipped with double work table with blank pressing and material return function, to achieve pressure, displacement, accurate control, speed stepless adjustable, fully meet the production process requirements of various types of products. 3, equipment reservation automation, information port, to meet customer remote, intelligent, information production requirements.

Availability:

Quantity:



Inquire Add to Basket

Model:
WDR-CS series ultra-high pressure servo precision CNC hydraulic press
Brand:
万达

Product details

Product details

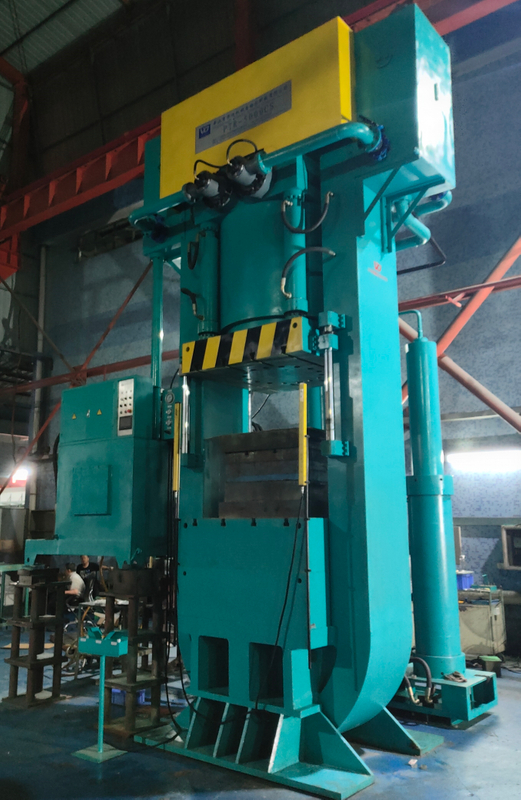

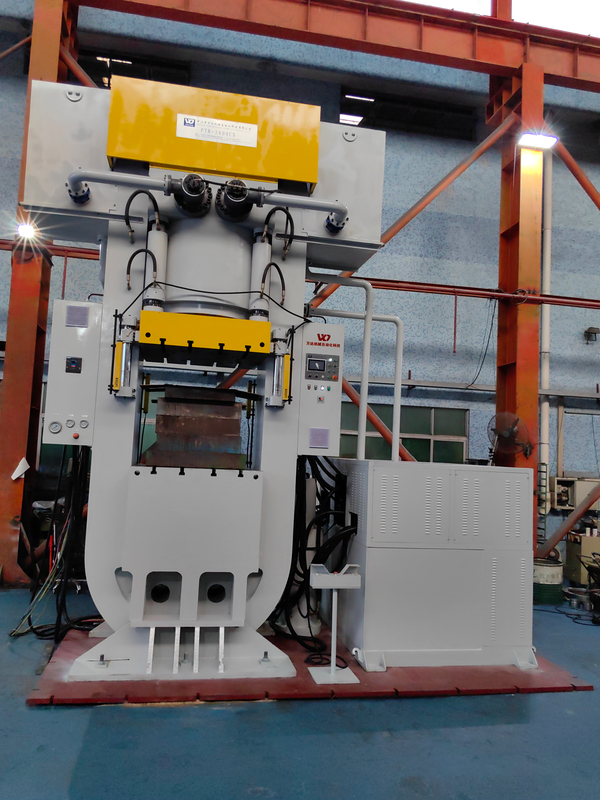

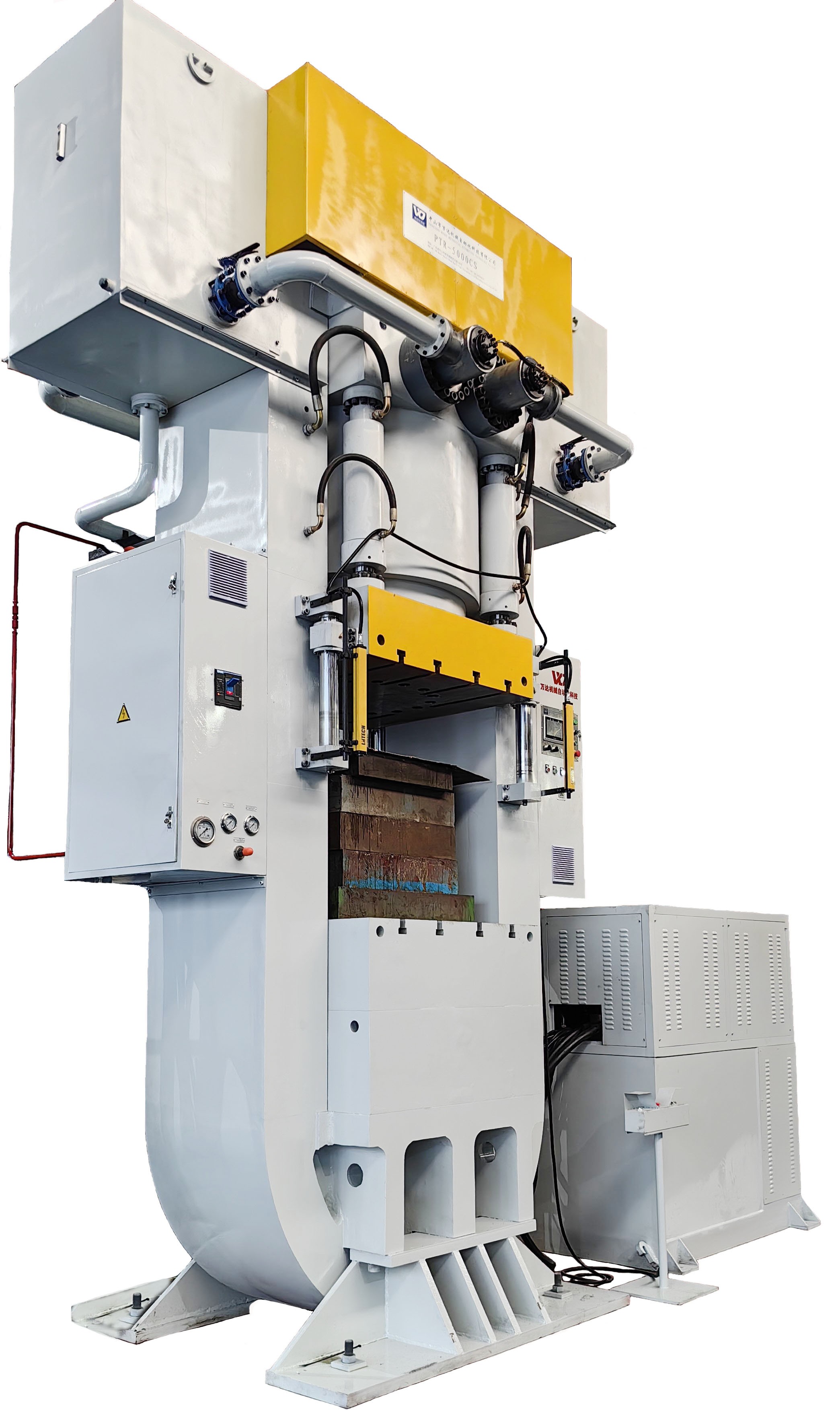

WDR-CS series ultra-high pressure servo precision CNC hydraulic press equipment field diagram:

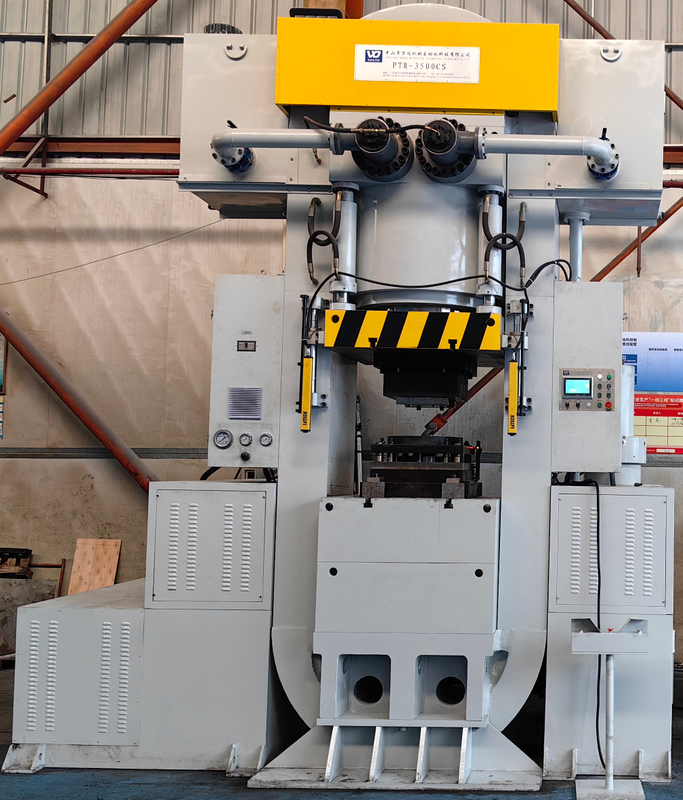

IGBT copper radiator special hydraulic press PTR-3500CS picture (2)

WDR-3500CS

WDR-5000CS

IGBT copper radiator special hydraulic press PTR-3500CS picture (1)

WDR-3500CS

WDR-4000CS

WDR-5000CS

WDR-CS series ultra-high pressure servo precision CNC hydraulic press pressing product picture:

WeChat picture_20231027113004

WDR-CS series ultra high pressure servo precision CNC hydraulic press technical parameters :

Serial number NO.	project item			unit Unit	WDR-3000CS	WDR-3500CS	WDR-4000CS	WDR-5000CS
1	Master cylinder force Master cylinder force			KN	30000 (adjustable)	35000 (adjustable) ( adjustable)	40000 (adjustable) ( adjustable)	50000 (adjustable) ( adjustable)
2	Liquid working pressure Working liquid pressure			MPa	80/20	80/20	80/20	80/20
3	Master cylinder stroke Master cylinder stroke			mm	300 (adjustable) ( adjustable)	300 (adjustable) ( adjustable)	350 (adjustable) ( adjustable)	400 (adjustable) ( adjustable)
4	Opening height Maximum opening height			mm	1000	1000	1100	1200
5	Master cylinder speed Master cylinder speed	No load down No-load down		mm/S	260 (adjustable) ( adjustable)	260 (adjustable) ( adjustable)	260 (adjustable) ( adjustable)	150 (adjustable) ( adjustable)
6		suppress Pressing		mm/S	16 (adjustable) ( adjustable)	15 (adjustable) (adjustable)	13 (adjustable) (adjustable)	13 (adjustable) (adjustable)
7		Return Returning		mm/S	260 (adjustable) ( adjustable)	260 (adjustable) (adjustable)	260 (adjustable) (adjustable)	150 (adjustable) (adjustable)
8	Lower feed cylinder force Lower charging cylinder force			KN	1000 (adjustable) ( adjustable)	1000 ( adjustable)	1000 (adjustable) ( adjustable)	1200 (adjustable) ( adjustable)
9	Lower feed cylinder stroke Lower top cylinder stroke			mm	70 (adjustable) ( adjustable)	70 (adjustable) ( adjustable)	70 (adjustable) ( adjustable)	100 (adjustable) ( adjustable)
10	Side pressing cylinder force Blank cylinder force			KN	1200 (adjustable) ( adjustable)	1200 (adjustable) ( adjustable)	1200 (adjustable) ( adjustable)	3000 (adjustable) ( adjustable)
11	Stroke of edge cylinder Blank cylinder stroke			mm	100 (adjustable) ( adjustable)	100 (adjustable) ( adjustable)	100 (adjustable) ( adjustable)	150 (adjustable) ( adjustable)
12	Workbench size Table size		about left-right	mm	900	1100	1250	1260
13	Workbench size Table size		Before and after Front- back	mm	900	1100	1250	1300
14	Servo electric power Servo motor power			KW	78.3	78.3	78.3	78.3x2
15	Cylinder boost stroke Maximum boost stroke of cylinder			mm	22	22	22	30
16	Cooling method Cooling mode				Oil cooler (optional) Oil cooler (optional)	Oil cooler (optional) Oil cooler (optional)	Oil cooler (optional) Oil cooler (optional)	Oil cooler (optional) Oil cooler (optional)
