WDR-CSF series ultra-high pressure servo precision CNC hydraulic press

Tableware, kitchenware industry compound pot, ideal equipment for potting

1. Applicable objects:
It is mainly used for lightweight aluminum frying pans, woks and oil pans.
2. Usage features
1. Install the lower top cylinder inside the lower half-circular beam, with beautiful structure, reasonable layout and easy to use.
2. The main frame and main oil cylinder adopt prestressed wire winding technology. Under high pressure conditions, the main machine has high strength and good rigidity, extremely high fatigue resistance, safe, efficient and long service life. Thoroughly solve the serious consequences of the fuselage, beams, slabs or columns easily breaking and the oil cylinders are extremely prone to burst under high pressure and rapid environments.
3. Adopt fast liquid filling and rapid pressure relief technology, reciprocating pressure or one rod boosting speed is fast, working pressing time is short, efficiency is high, and energy saving.
4. Servo precision CNC technology makes machine precision more accurate, faster, more energy-saving and lower noise, and is highly favored by the market.
5. Touch screen + PLC + wireless network card transmission makes the equipment have information, digital and intelligent levels, such as remote monitoring, fault alarm, remote maintenance functions; visual detection, material shortage, and false detection alarm functions; automatic storage and memory functions such as output, energy consumption, temperature, and analog.
Tableware, kitchenware industry covering pot, cooker special ideal equipment
1. Applicable objects:
Mainly used for light weight aluminum all kinds of frying pan, frying pan, oil pot in the bottom riveting (sticking) process.
2. the use of characteristics
1. The lower top cylinder is installed in the lower semicircular beam, which has beautiful structure, reasonable layout and easy use.
2. Pressed steel wire winding technology is adopted for the main frame and the main cylinder. Under high pressure conditions, the main engine has high strength, good rigidity, high fatigue resistance, safety, efficiency and long service life. Completely solve the serious consequences of the fuselage, beam plate or column of the conventional frame type and four-column hydroulic press under large pressure and rapid environment, and the cylinder is easy to burst.
3. Rapid liquid filling, rapid pressure relief technology, reciprocating pressure or a bar pressure speed, short working pressing time, high efficiency, energy saving.
4. Servo precision CNC technology makes the machine precision more accurate, faster, more energy saving, lower noise, favored by the market.
5. Touch screen +PLC+ wireless network card transmission, so that the equipment has information, digital, intelligent level, such as remote monitoring, fault alarm, remote maintenance functions; Visual detection, lack of materials, idle materials detection alarm function; Output, energy consumption, temperature, modulus and other automatic storage memory functions.

Availability:

Quantity:



Inquire Add to Basket

Model:
WDR-CSF series ultra-high pressure servo precision CNC hydraulic press
Brand:
万达

Product details

Product details

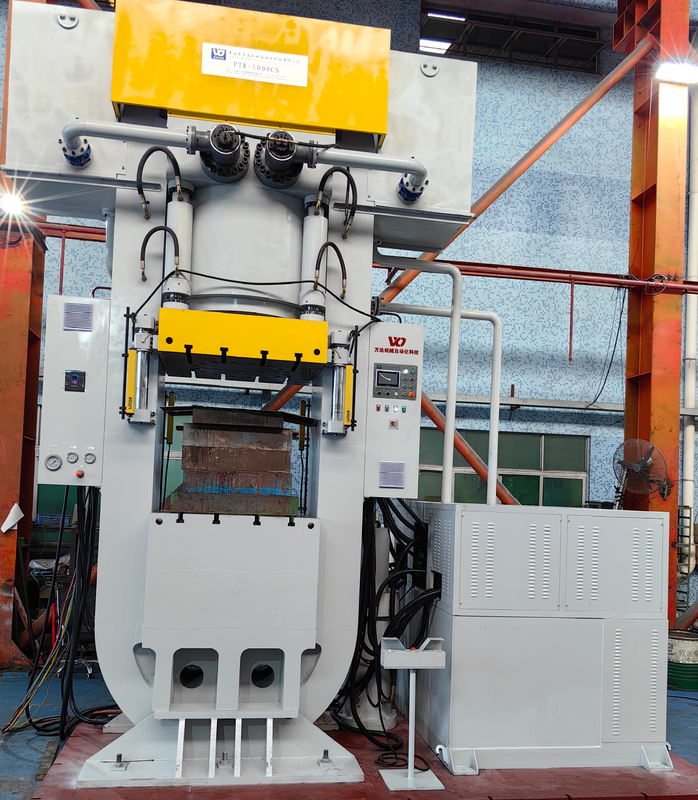

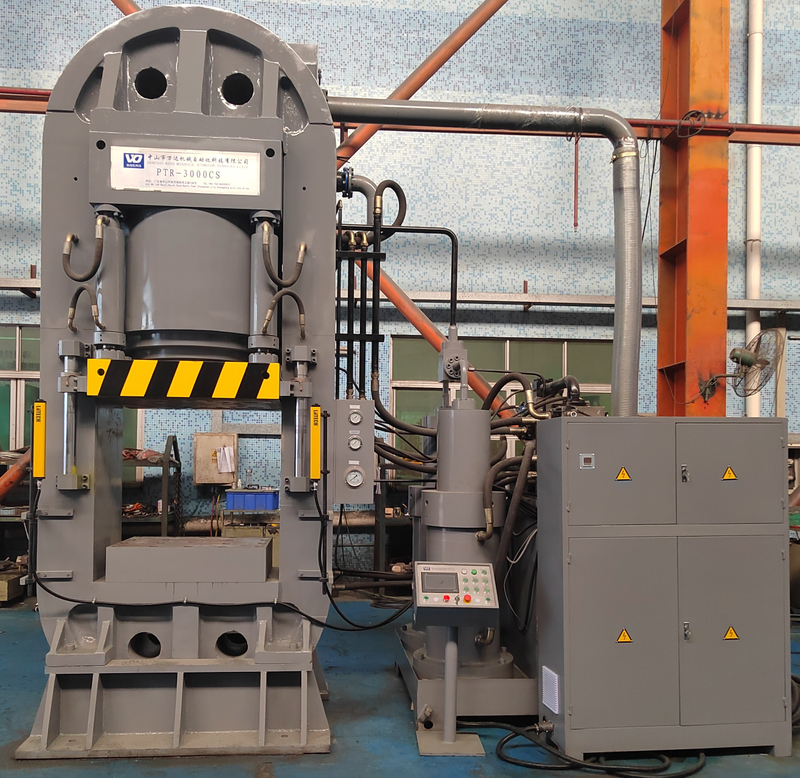

WDR-CSF series ultra-high pressure servo precision CNC hydraulic press equipment site diagram:

Figure 7 is the on-site picture of the Wellcome WDR-2000CS_1505_1280

WDR-2000CSF

Figure 2: On-site image of the current customer of WDR-3000CS Kunshan Weilijia WDR-3000CSF

Figure 6 is the live picture of the Wellcome WDR-2000CS

WDR-2000CSF

Picture 4 WDR -2000CS Wuxi Shuangjia Live Picture

WDR-2000CSF

WDR-2000CSF

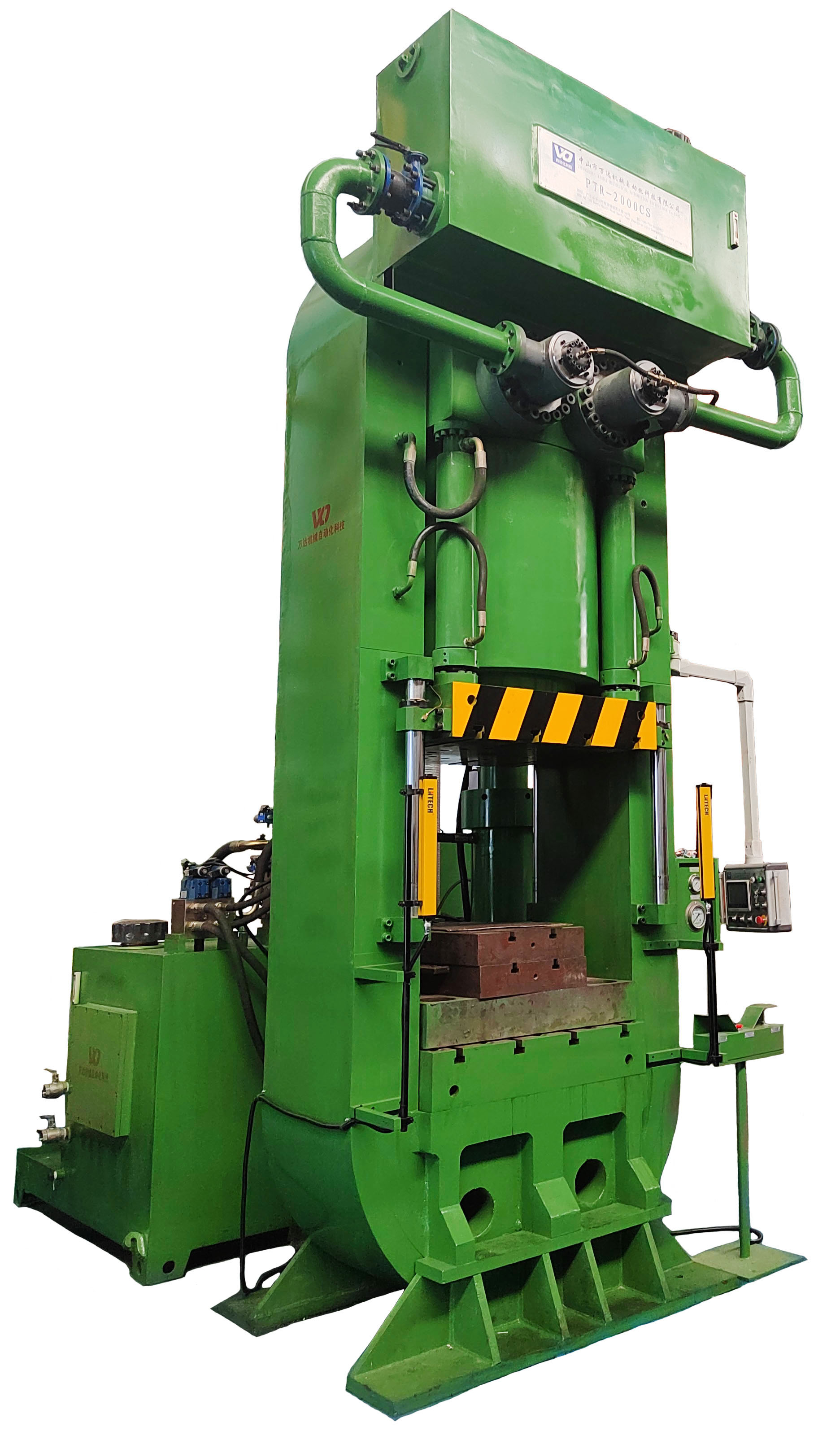

WDR-CSF series ultra-high pressure servo precision CNC hydraulic press press product diagram:

Technical parameters of WDR-CSF series ultra-high pressure servo precision CNC hydraulic press:

Serial number NO.	project item		unit unit	WDR-2000CSF	WDR-3000CSF	WDR-4000CSF
1	Nominal force of the master cylinder Nominal force of master cylinder		KN	20000 (adjustable) (adjustable)	30000 (adjustable) (adjustable)	40000 (adjustable) (adjustable)
2	Liquid working pressure Working liquid pressure		MPa	80/20	80/20	80/20
3	Master cylinder stroke Master cylinder stroke		mm	300 (adjustable) (adjustable)	300 (adjustable) (adjustable)	300 (adjustable) (adjustable)
4	Opening height Maximum Opening height		mm	850	850	850
5	Master cylinder speed Master cylinder speed	No load down No-load down	mm/S	260 (adjustable) (adjustable)	260 (adjustable) (adjustable)	260 (adjustable) (adjustable)
6		suppress Pressing	mm/S	14 (adjustable) (adjustable)	14 (adjustable) (adjustable)	13 (adjustable) (adjustable)
7		Return Returning	mm/S	260 (adjustable) (adjustable)	260 (adjustable) (adjustable)	260 (adjustable) (adjustable)
8	Lower feed cylinder force Lower charging cylinder force		KN	1200 (adjustable) (adjustable)	1200 (adjustable) (adjustable)	1200 (adjustable) (adjustable)
9	Lower feed cylinder stroke Lower top cylinder stroke		mm	50 (Time relay control) (Time relay control)	50 (Time relay control) (Time relay control)	50 (Time relay control) (Time relay control)
10	Workbench size Table size	about Left-right	mm	800	880	1200
11	Workbench size Table size	Before and after Front-back	mm	700	700	1200
12	Servo motor power Servo motor power		KW	60.5	78.3	78.3
13	Cylinder boost stroke Maximum boost stroke of cylinder		mm	33	22	22
