WDR19-10000DS
万达
Product Description
1.3. Machine usage conditions:
1.3.1. Working environment temperature: 0-55°C
1.3.2. Relative humidity: not more than 85%
1.3.3. Power supply voltage: 380V±5%50HZ
1.3.4. Altitude: no more than 1500m
1.3.5. The medium used in the hydraulic system: 68# anti-wear hydraulic oil
1.4. The machine"s semi-automatic action is as follows:
(The front and rear outer ejector cylinders are at the lower limit, and the center ejector cylinder is at the lower limit) The mold transfer workbench is parked outside the workbench → place the parts → the mold transfer workbench moves into the machine workbench (stroke signal) → the four compression cylinders press down and maintain pressure → the master cylinder moves down quickly (stroke signal) → the master cylinder slowly presses down (pressure signal, stroke detection) → the master cylinder maintains pressure (time signal) → pressure relief (pressure signal) → the master cylinder slowly returns (stroke signal) → main cylinder Cylinder quick return (stroke signal) → center ejector cylinder ejection (time signal) → center ejector cylinder retreat (time signal) → four pressing cylinders return → four guide ejector cylinders on the mold transfer table to lift it → mold transfer work The table runs to the outside of the workbench (fast rotation and slow rotation) → stop (stroke signaling) → ejection of the outer (front and rear) ejector cylinder (pressure signaling) → pick up the parts → return of the outer (front and rear) ejector cylinder (pressure signaling) → place the parts.
Main technical parameters:
Serial number | project | unit | Specification | |
1 | Master cylinder force | KN | 100000 (adjustable) | |
2 | Liquid working pressure | MPa | 81.5/18.2 (adjustable) | |
3 | Return force | KN | 1000 (adjustable) | |
4 | Slider stroke | mm | 1600 (adjustable) | |
5 | Maximum opening height | mm | 3000 | |
6 | Master cylinder boost effective stroke | mm | The two sets of superchargers reciprocate and supercharge at staggered times. | |
7 | Workbench and floor height | mm | About 7360 (about 2100 underground) | |
8 | Workbench size | about | mm | 1800 |
Before and after | mm | 1800 | ||
9 | Slider speed | Get off quickly | mm/s | 120 (adjustable) |
slow down | mm/s | 20 (adjustable) | ||
Working in | mm/s | 14-3 (adjustable) | ||
Return | mm/s | 120 (adjustable) | ||
10 | Center ejection cylinder ejection force | KN | 1000 (adjustable) | |
11 | Center ejection cylinder ejection stroke | mm | 1000 (adjustable) | |
12 | Mobile trolley carrying capacity | kg | 10000 (adjustable) | |
13 | Mobile trolley table size (2 pieces can be installed in front and back) | mm | 1800*1800 | |
14 | Mobile trolley trip | mm | 1800 | |
15 | Ejection force of ejection cylinder under mobile trolley | KN | 500*4 (adjustable) | |
16 | Ejection stroke of ejection cylinder under mobile trolley | mm | 10 | |
17 | External ejection cylinder ejection force | KN | 1000*2 (adjustable) | |
18 | External ejection cylinder ejection stroke | mm | 1300 (pressure, time control) | |
19 | Workbench pressing force | KN | 550*4 (adjustable) | |
20 | Pressing stroke | mm | 60 | |
21 | Servo motor power | KW | 92*4 | |
22 | The machine has automated production input and output ports to facilitate automated production connections; it also has remote maintenance and monitoring functions to meet all the needs of informatization, digital intelligence and MES systems. | |||

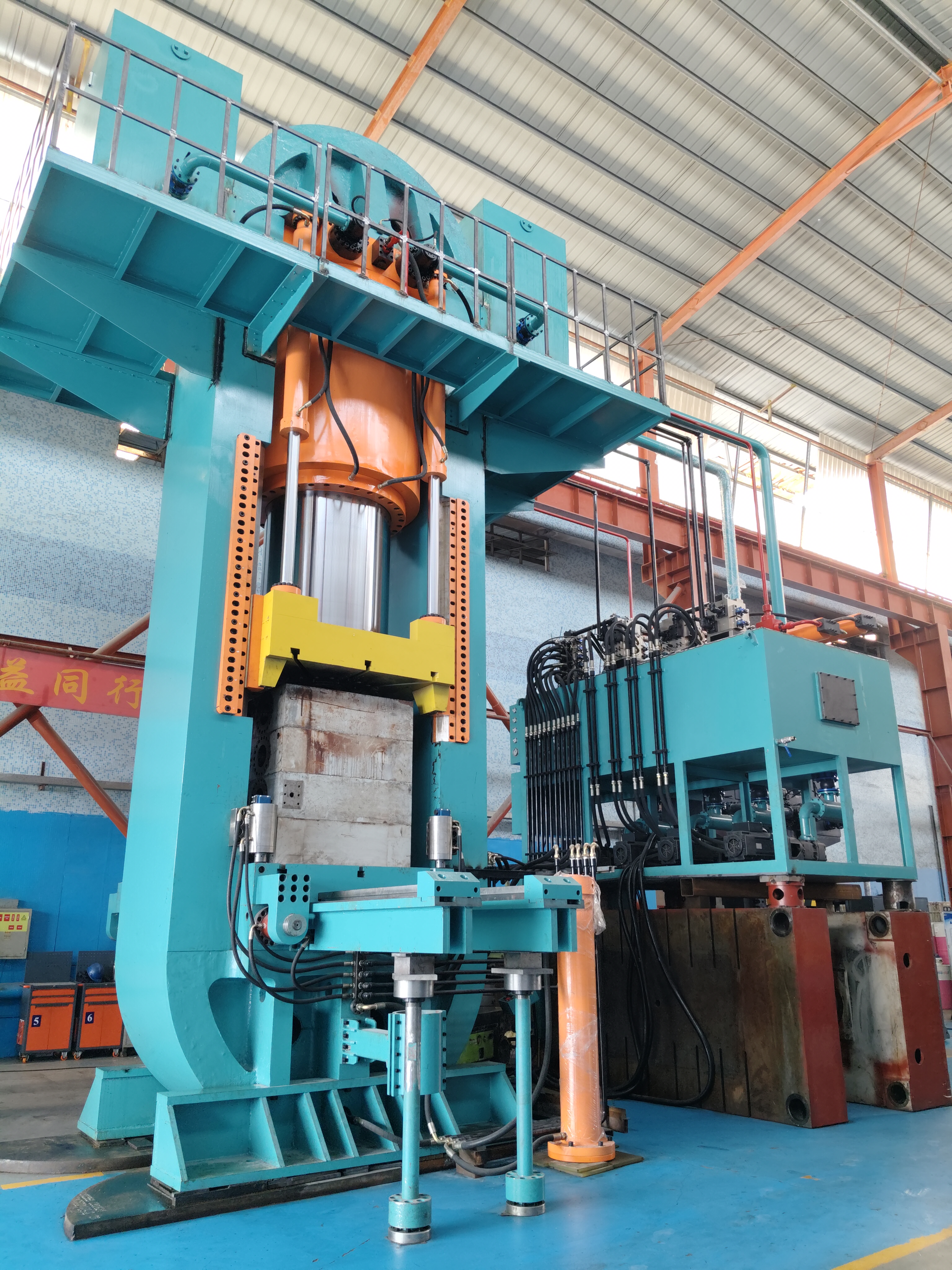

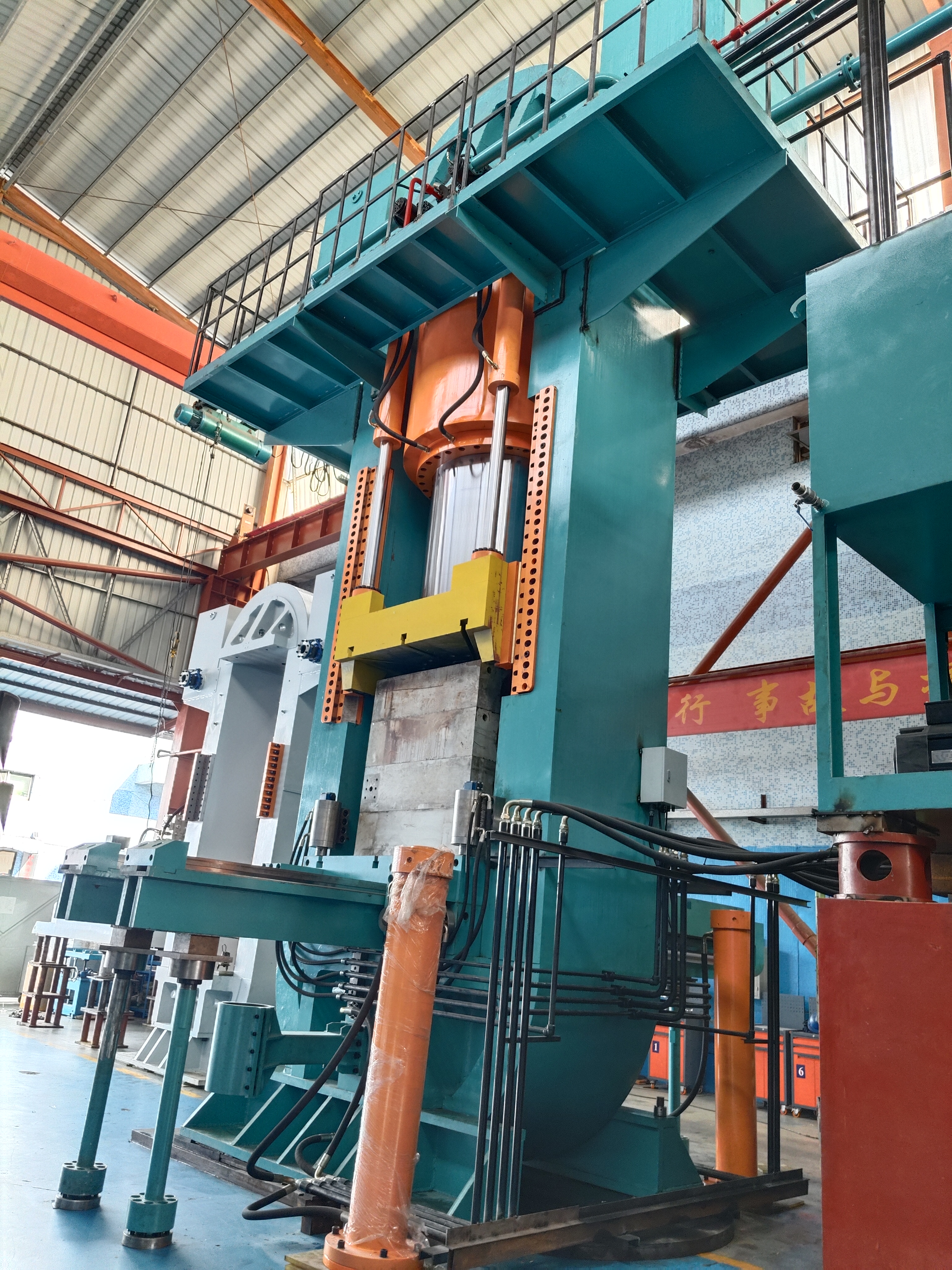

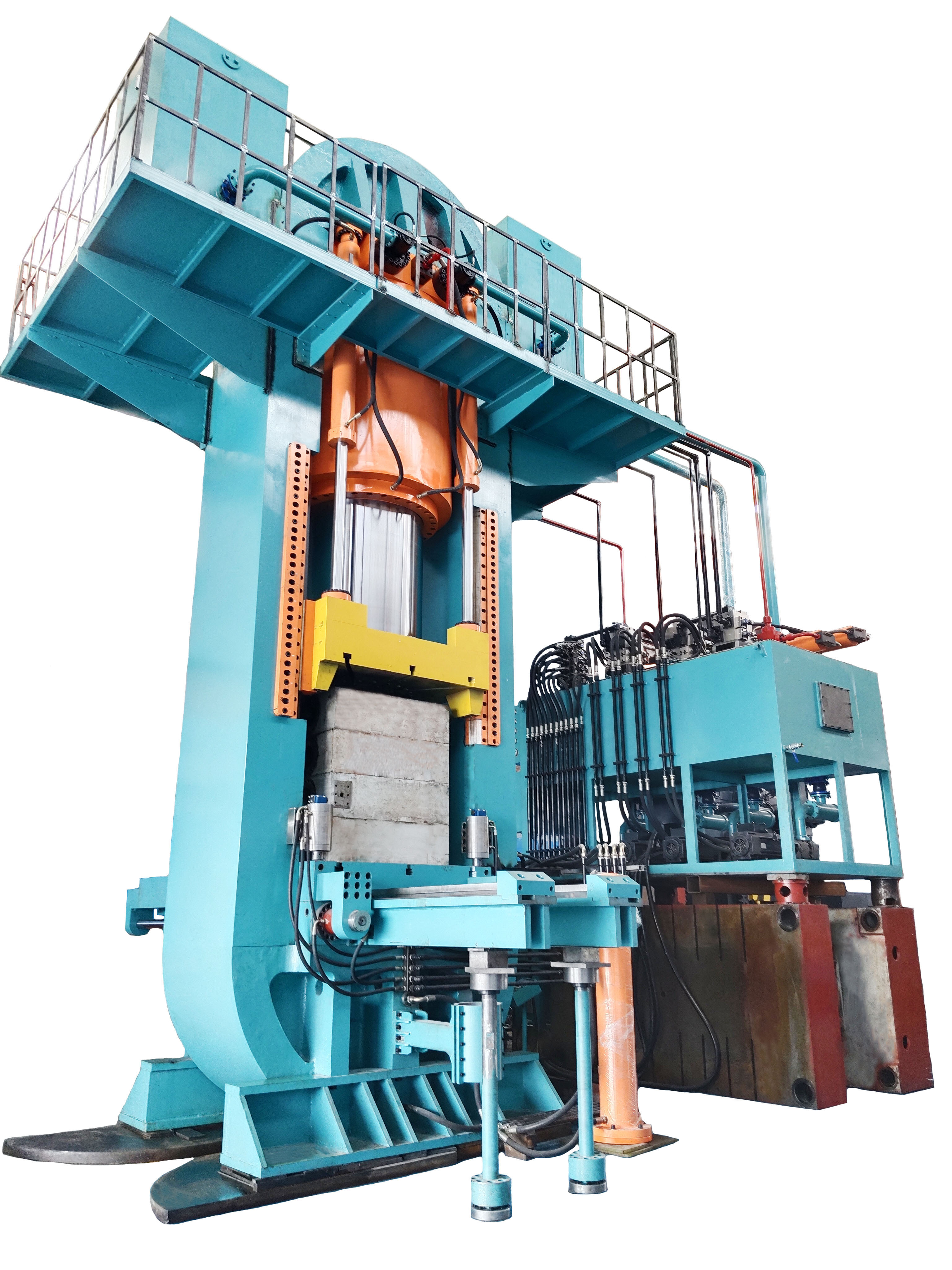

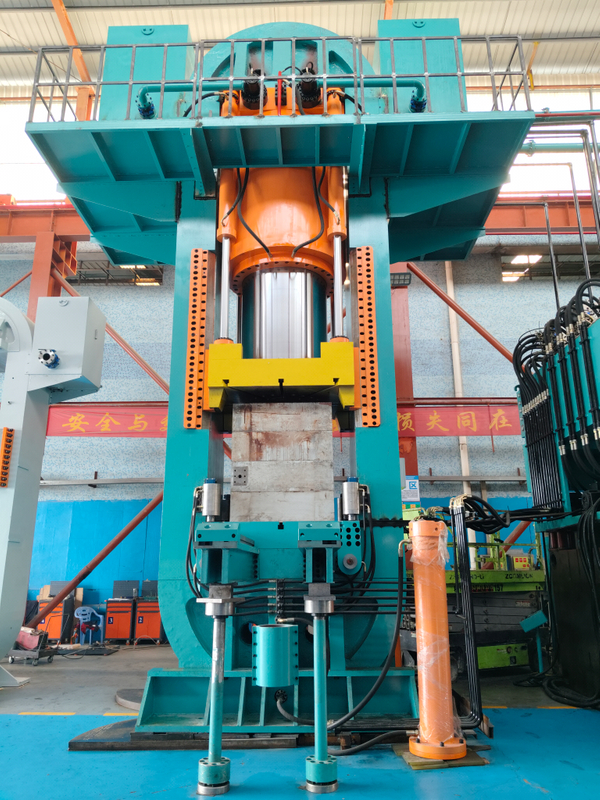

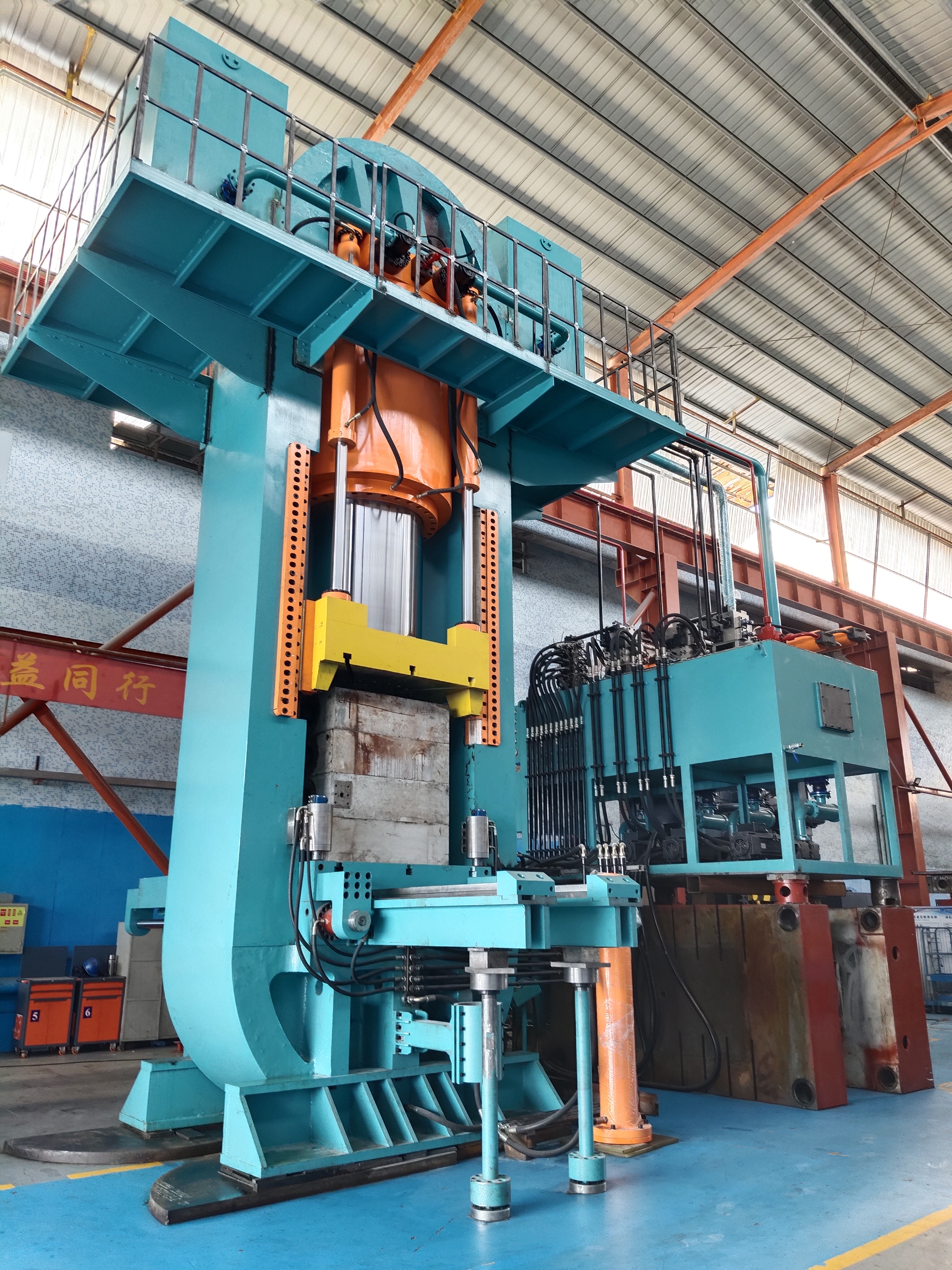

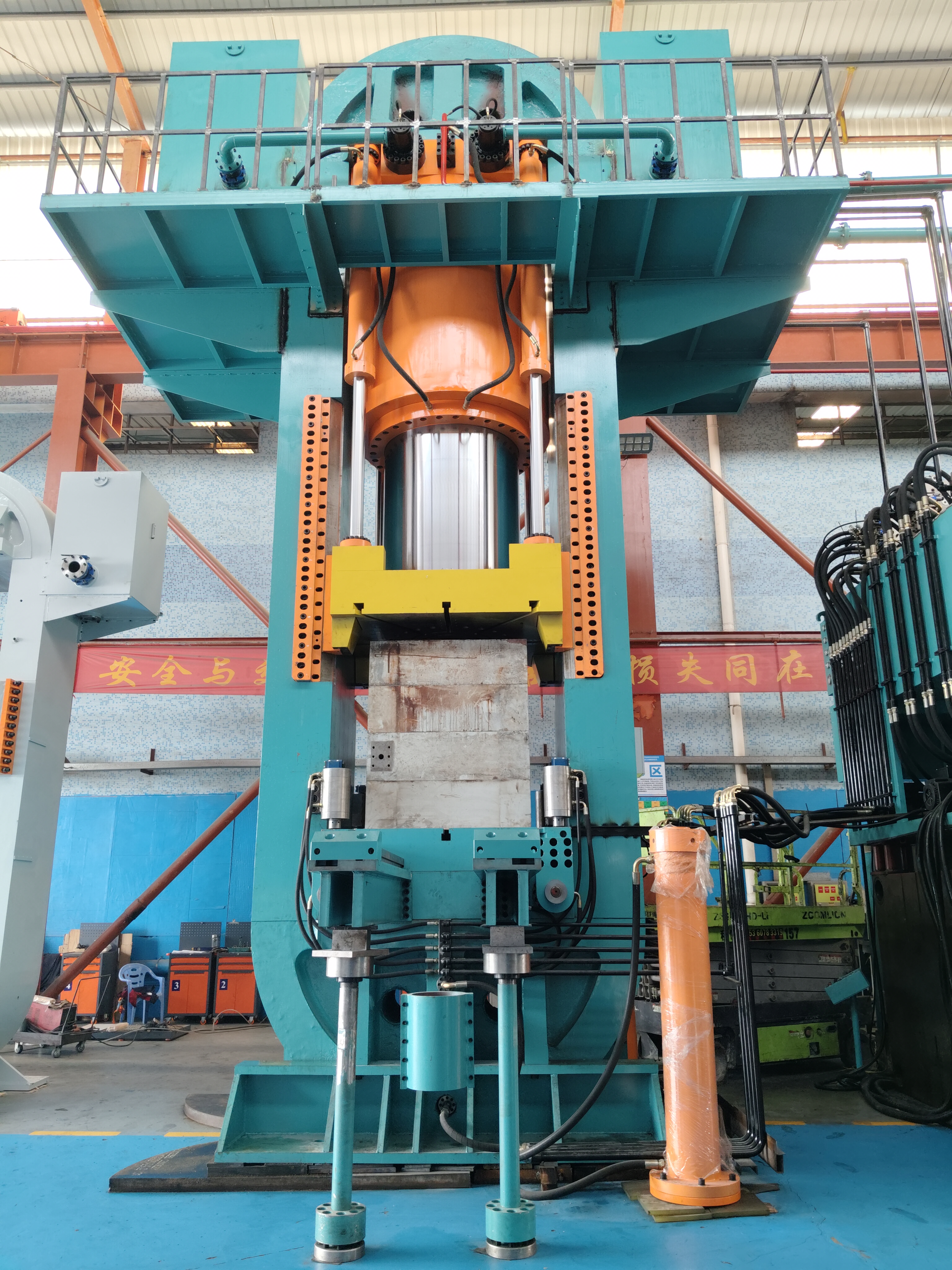

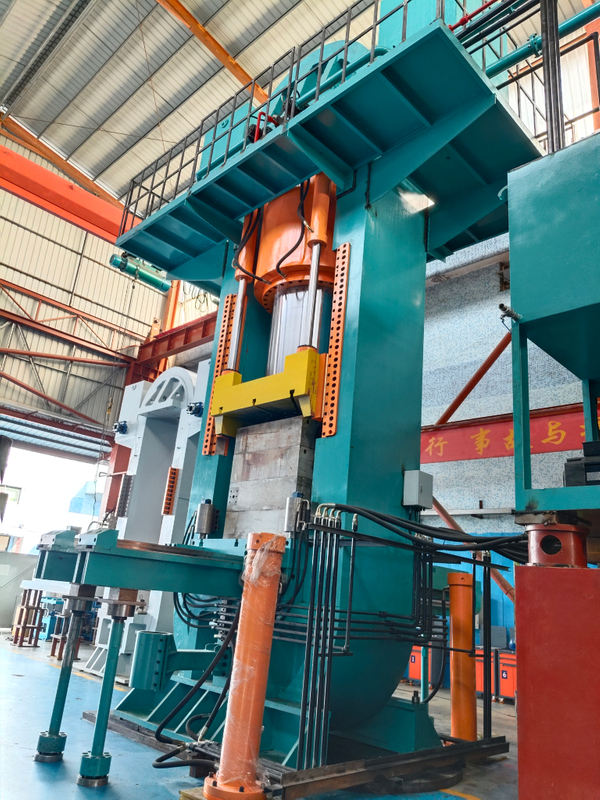

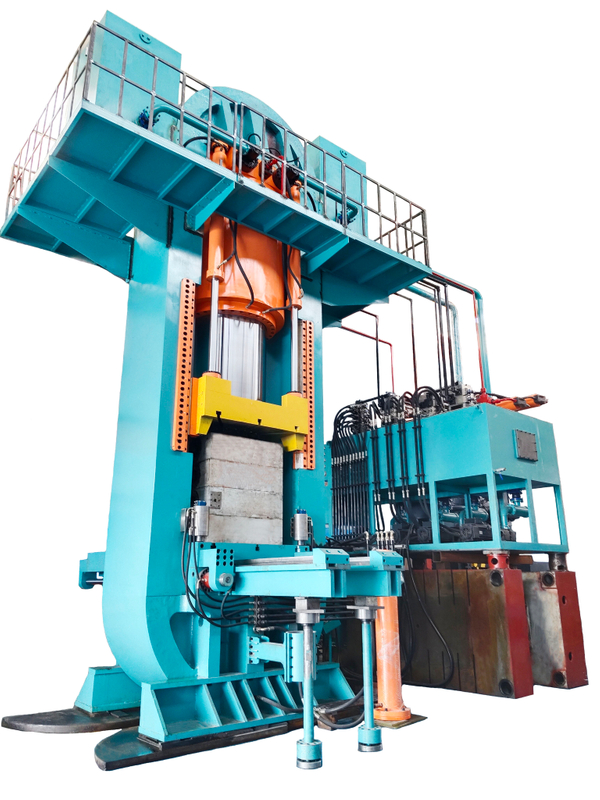

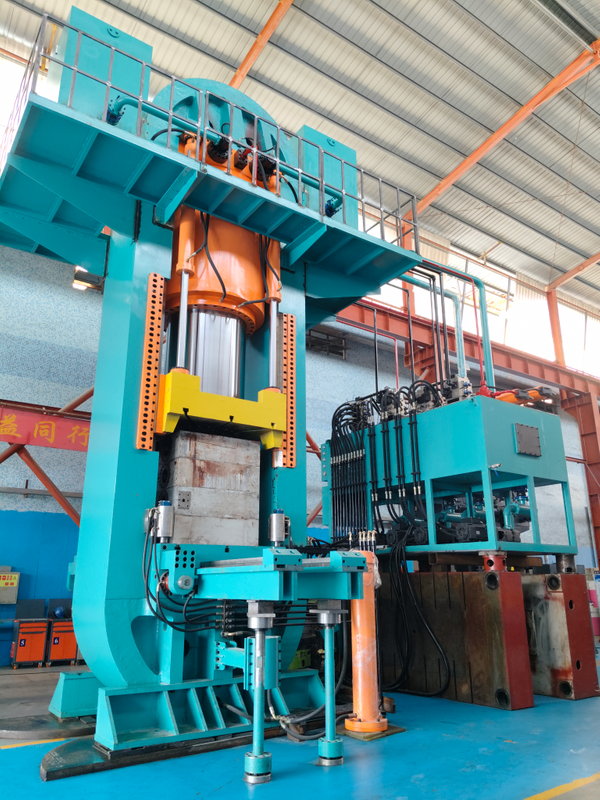

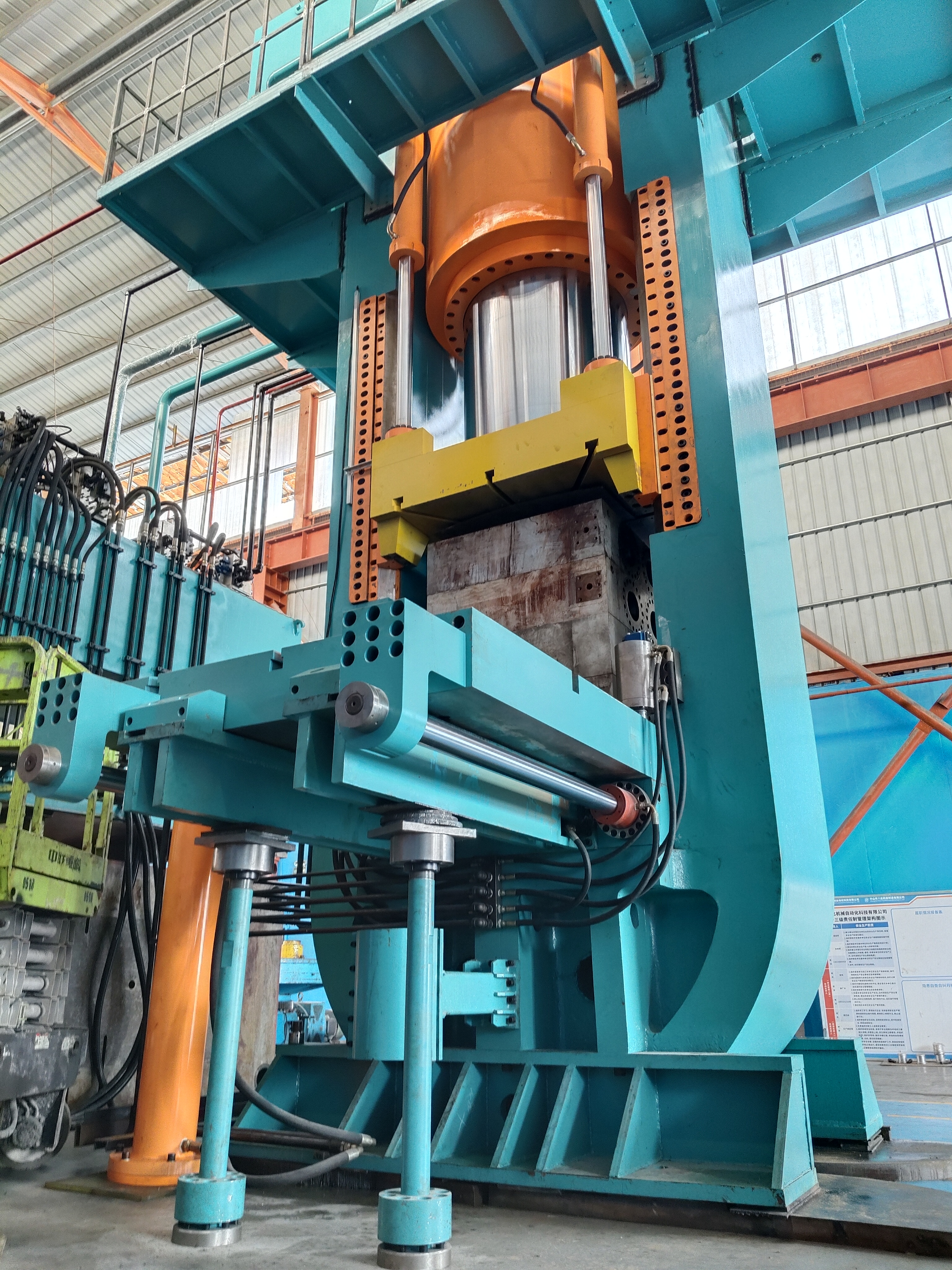

Physical picture
