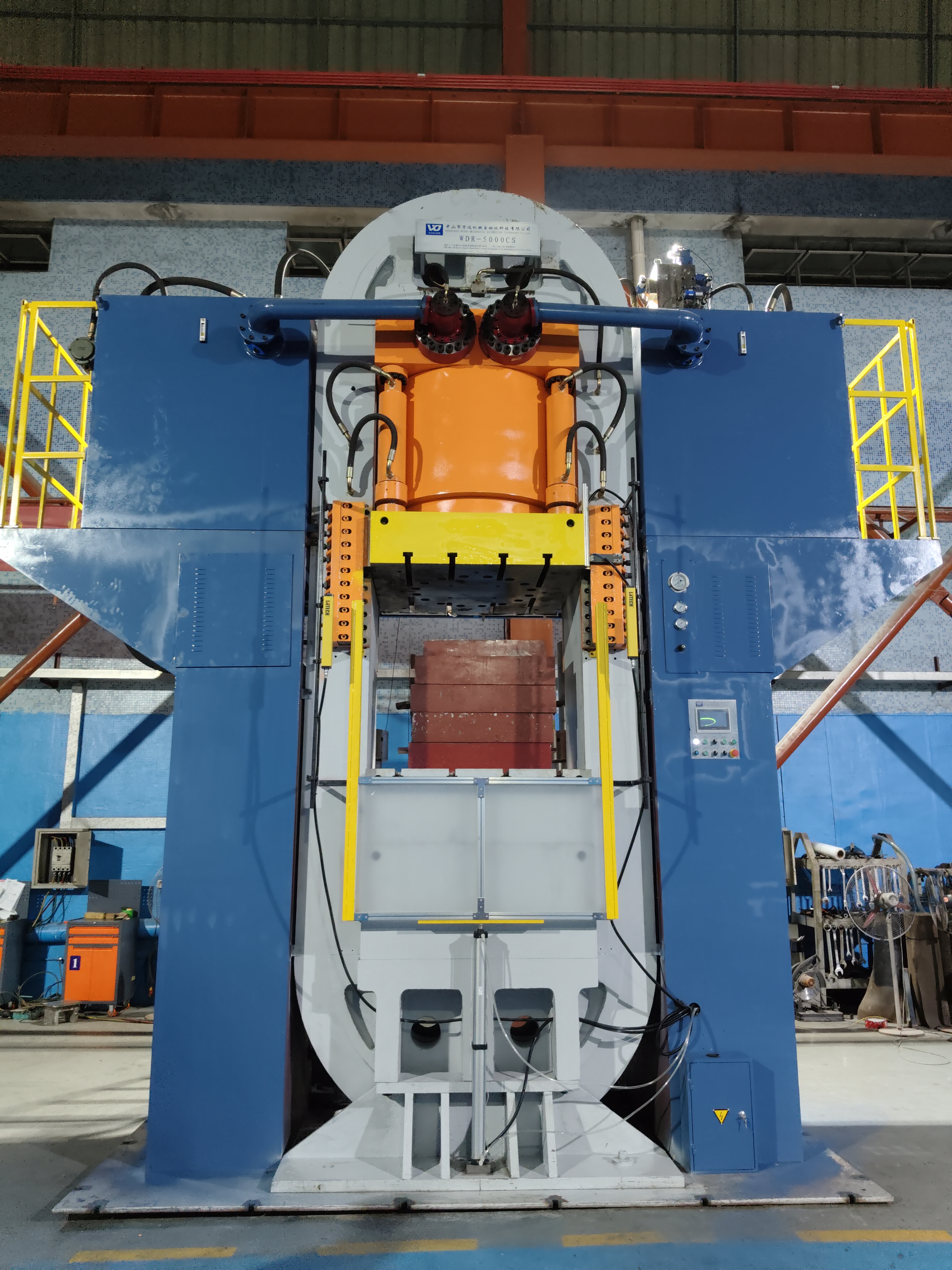

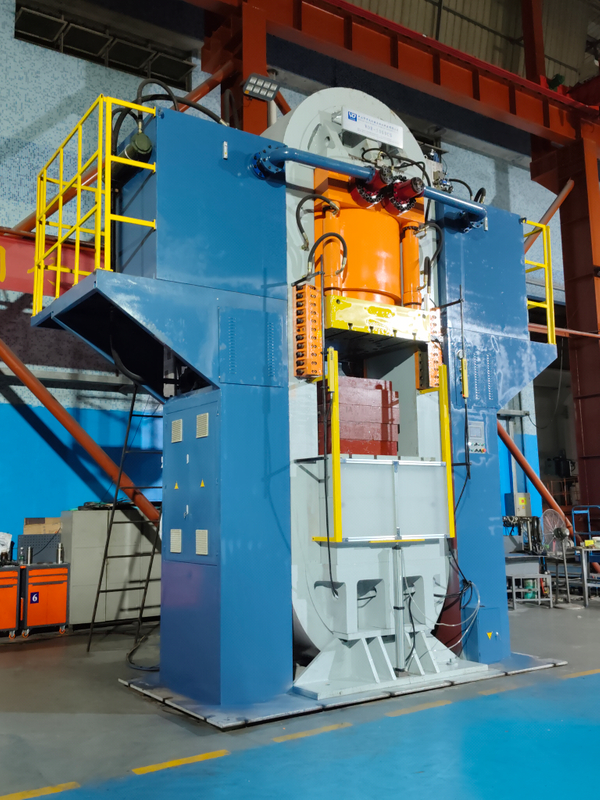

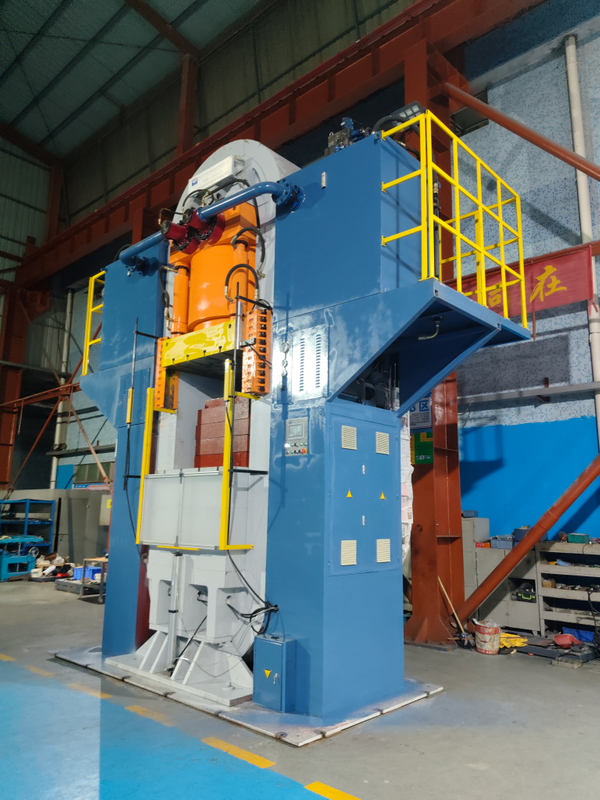

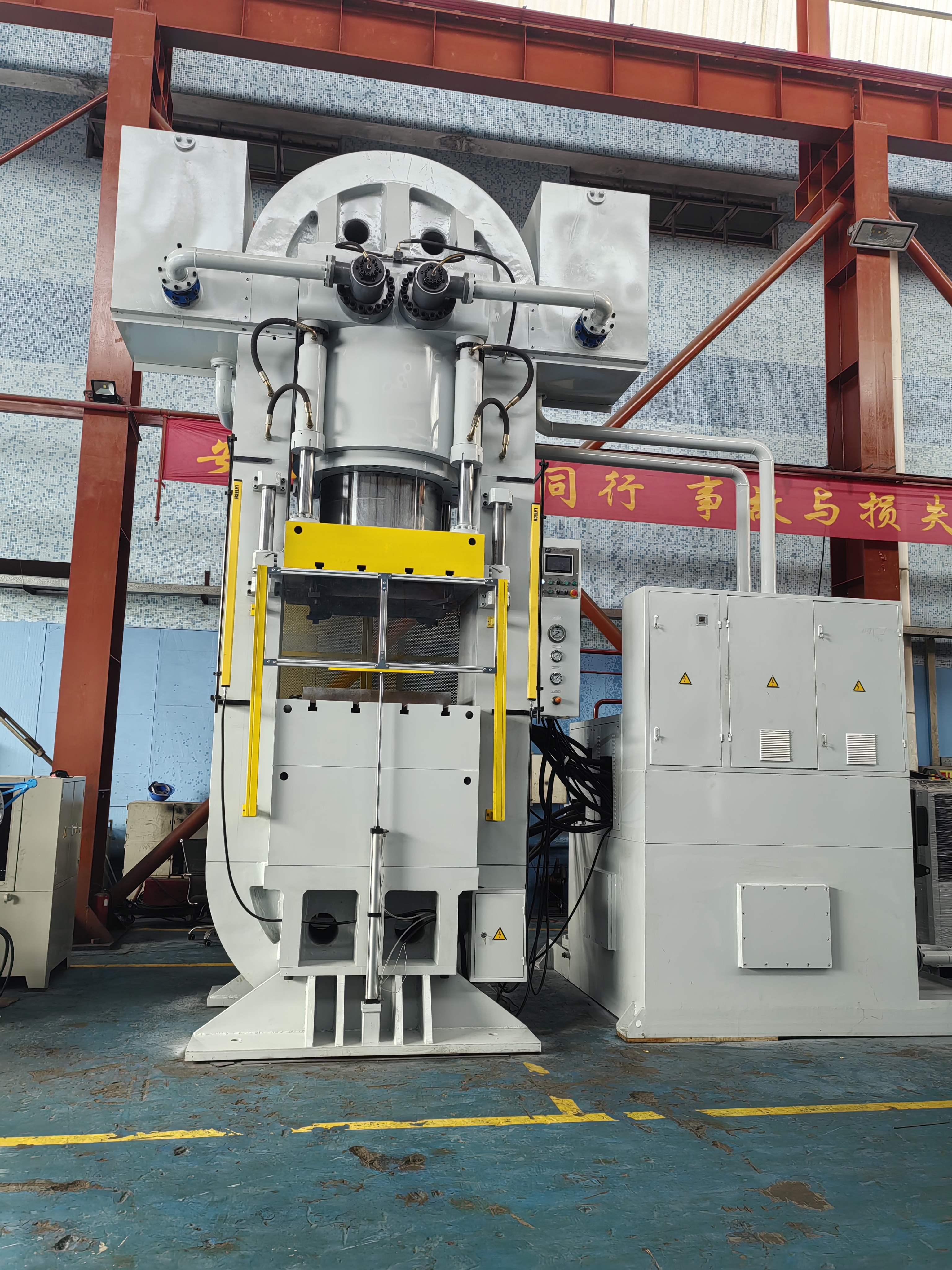

WDR-7000CS-30000CS
万达
Product Description
Application Products/Scenarios Application Products/Scenarios

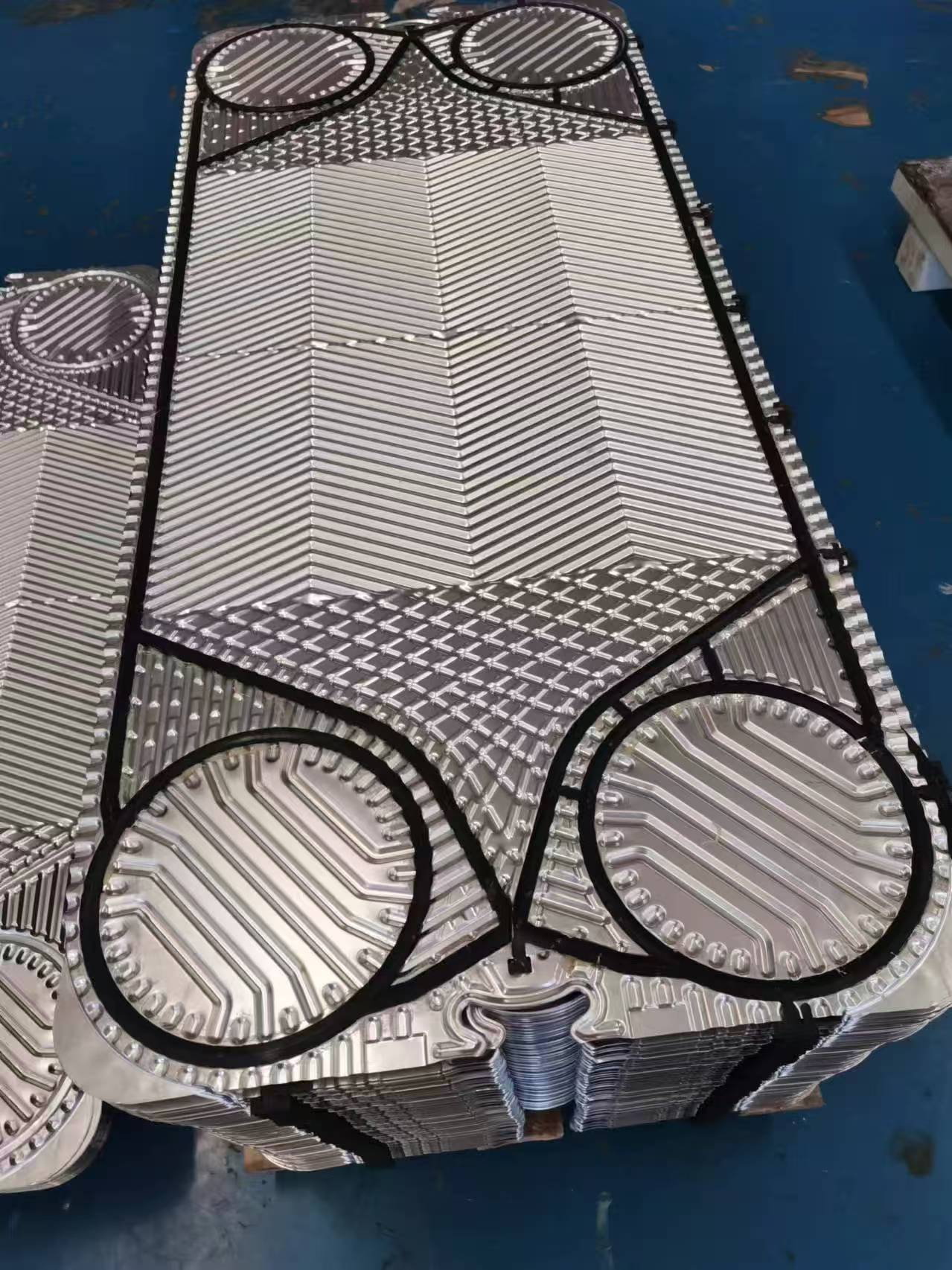

Plate heat exchanger
Plate heat exchanger

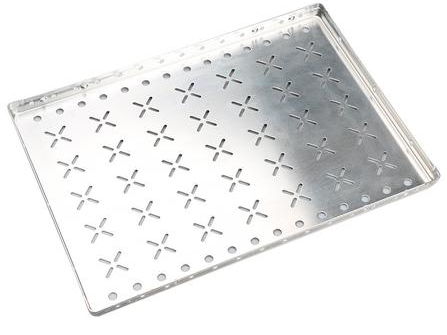

plate

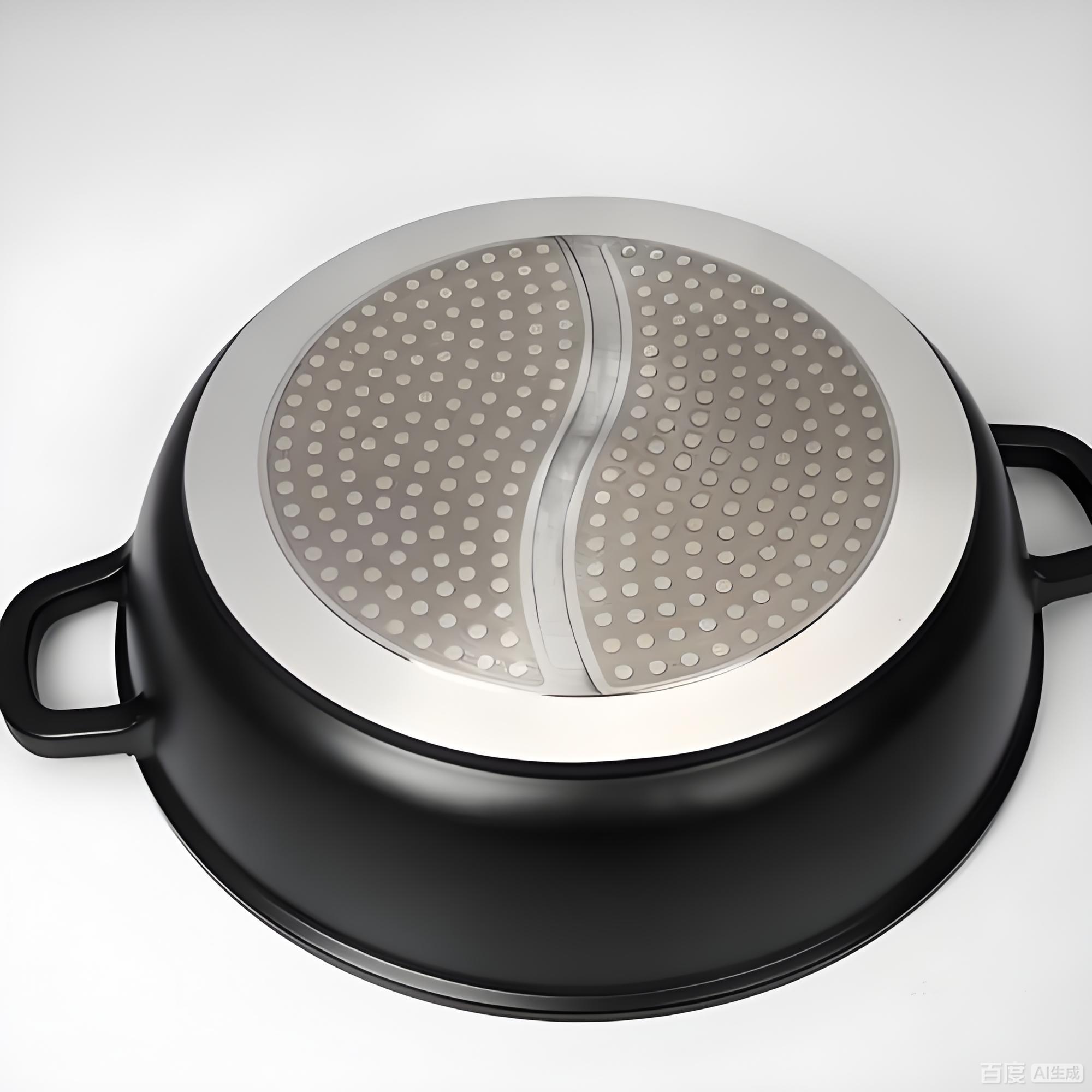

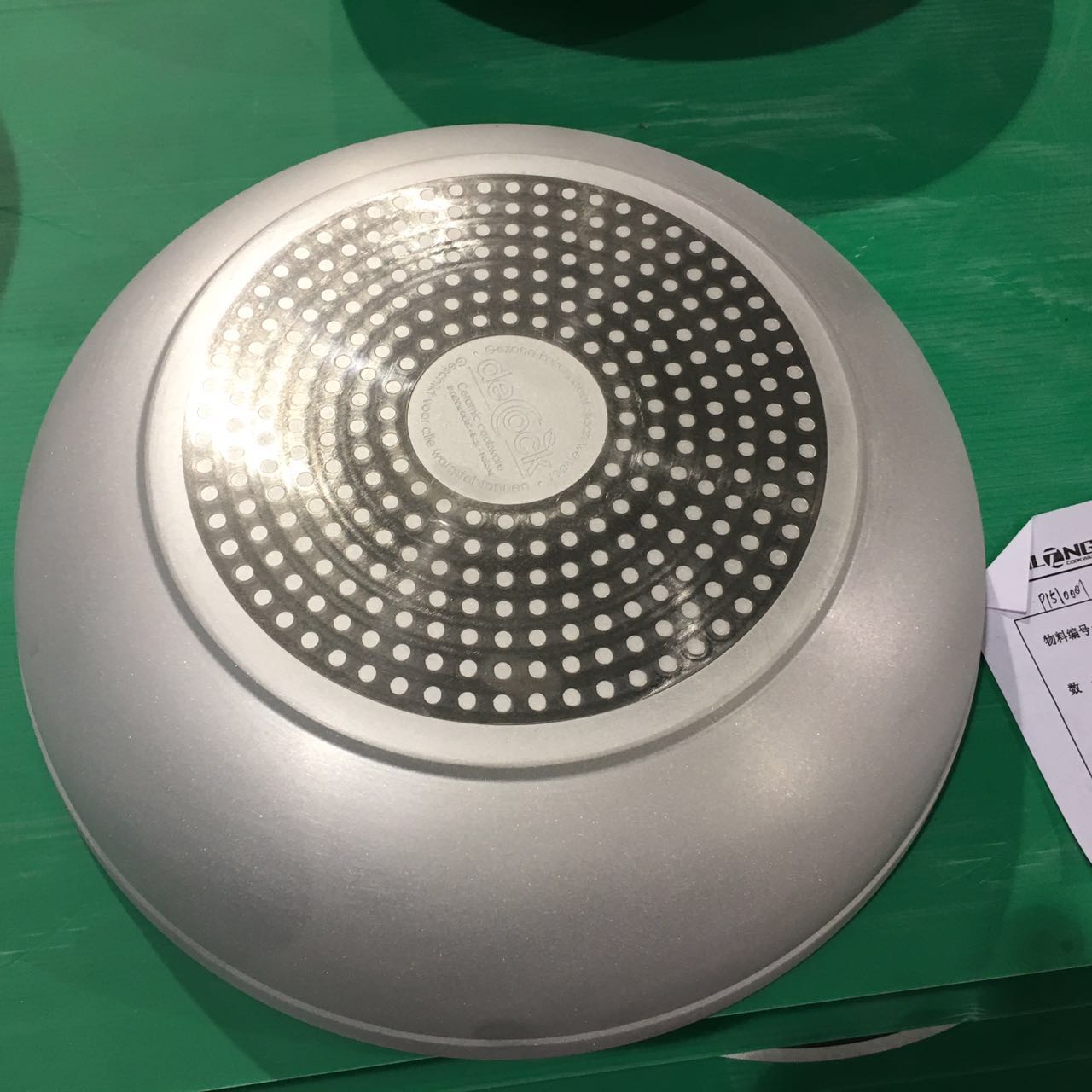

Double bottom pot
Double bottom pot
Main technical parameters
Serial numberNO. | Project Item | Unit | WDR-7000CS | WDR-10000CS | WDR-15000CS | WDR-20000CS | WDR-20000BS | WDR-25000CS | WDR-30000BS | |
1 | Nominal power Nominal force | KN | 70000 (Adjustable) | 100000 (Adjustable) | 150000 (Adjustable) | 200000 (Adjustable) | 200000 (Adjustable) | 250000 (Adjustable) | 300000 (Adjustable) | |
2 | Liquid working pressure | MPa | 89/19.5 (Adjustable) | 81.5/18.2(adjustable)(Adjustable) | 79.5/17.7 (adjustable) | 80/18 (Adjustable) | 80/18 (Adjustable) | 98/24.5 (Adjustable) | 80/18 (Adjustable) | |
3 | Slider stroke | mm | 200 (Adjustable) | 300 (Adjustable) | 1200 (Adjustable) | 300 (Adjustable) | 1000 (Adjustable) | 300 (Adjustable) | 1000 (Adjustable) | |
4 | Max.opening height | mm | 450 | 600 | 2750 | 600 | 2000 | 600 | 2000 | |
5 | Workbench sizeWorkbench size | Left and right LR | mm | 1300 | 1600 | 2200 | 1800 | 2200 | 2300 | 3000 |
Front and rear FB | mm | 2500 | 2500 | 2200 | 3700 | 2200 | 3000 | 3000 | ||
6 | Slider speed | Fast downward | mm/s | 70(Adjustable)(Adjustable) | 60(adjustable)(Adjustable) | 100 (Adjustable) | 70(Adjustable)(Adjustable) | 100 (Adjustable) | 26(Adjustable)(Adjustable) | 80(adjustable)(Adjustable) |
Gongjinpressing | mm/s | 0.2-0.5 (Adjustable) | 0.2-0.5 (Adjustable) | 0-3(adjustable)(Adjustable) | 0-0.8 (Adjustable) | 0-3(adjustable)(Adjustable) | 0-0.3 (Adjustable) | 0-3(adjustable)(Adjustable) | ||
Return | mm/s | 70(Adjustable)(Adjustable) | 60(adjustable)(Adjustable) | 100 (Adjustable) | 70(Adjustable)(Adjustable) | 100 (Adjustable) | 30(Adjustable)(Adjustable) | 80(adjustable)(Adjustable) | ||
7 | Servo motor power | KW | 40.5 | 50.5 | 92*6 | 78.3*2 | 92*6 | 78.3*2 | 92*8 | |
The above parameters are only for reference and can be specially designed and manufactured according to user requirements. The upper and lower withdrawal cylinders, edge holder cylinder, feeding cylinder, pushing cylinder, mobile workbench, quick mold change system, etc. can be configured according to the actual needs of the user.
The parameters above are for reference only and can be customized according to user requirements. Upper and lower ejector cylinders, blank holder cylinders, feeding cylinders, pusher cylinders, moving worktables, quick mold change systems, etc., can be configured according to the user's actual needs.

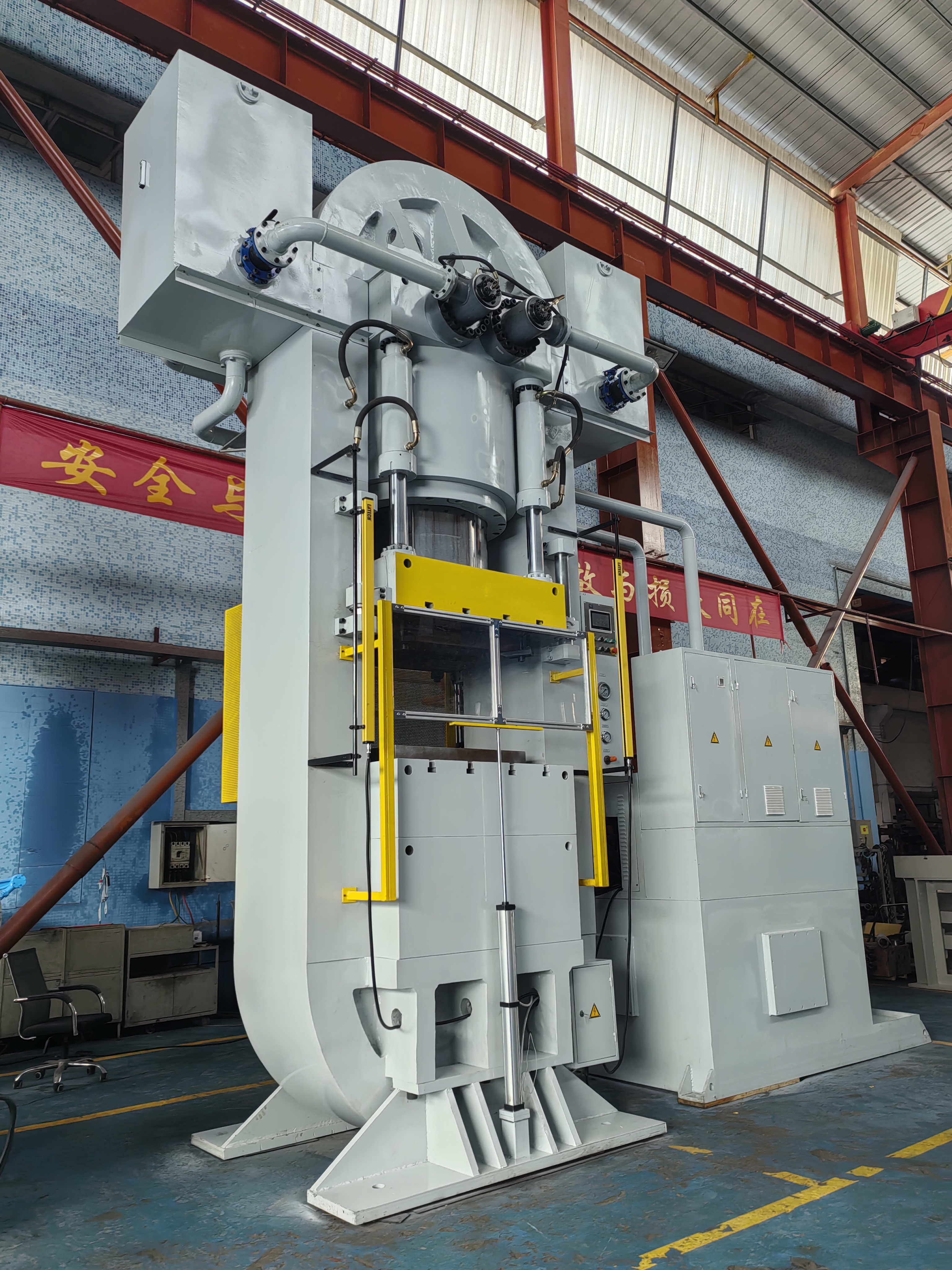

WDR-5000CS
