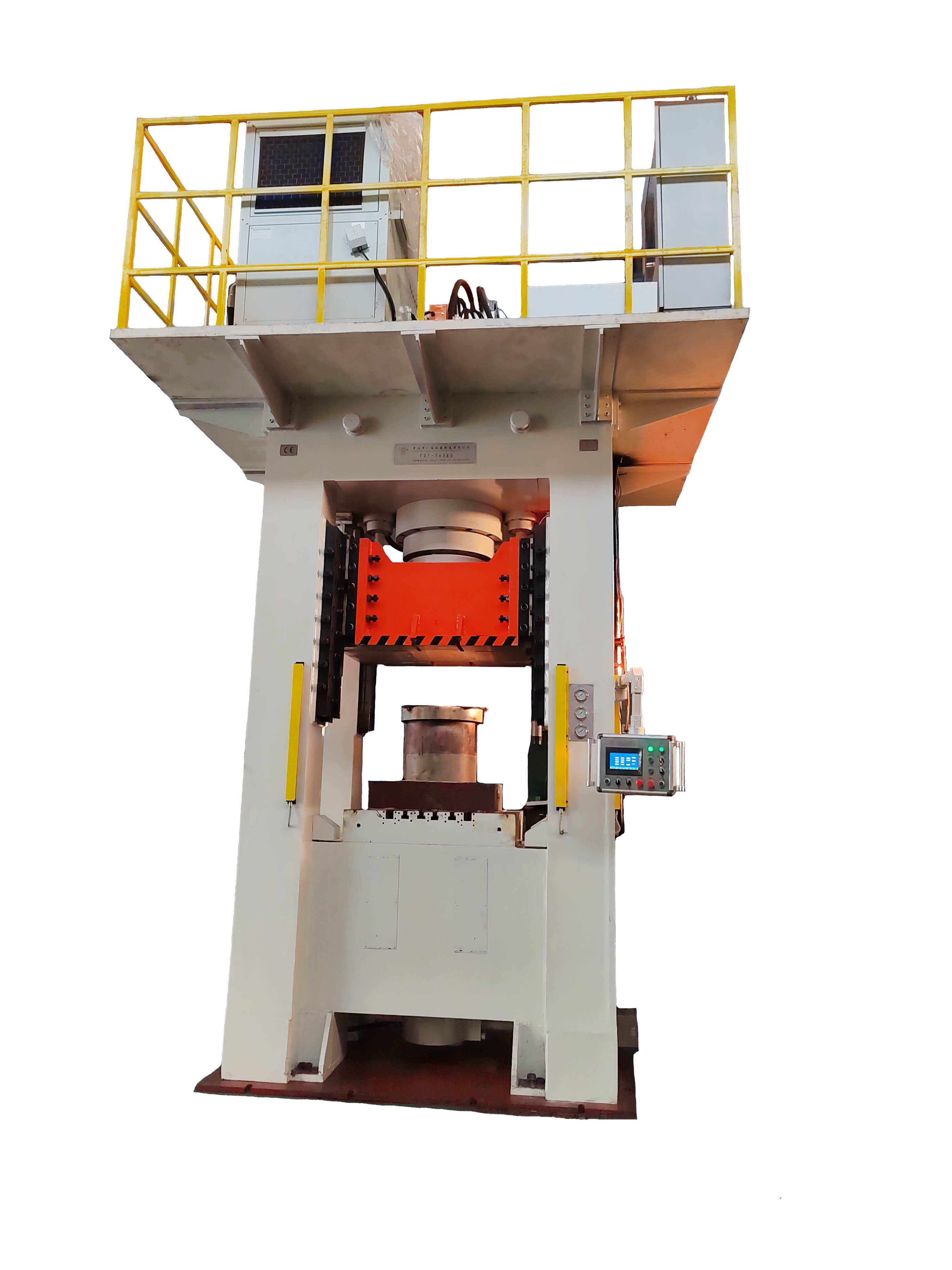

Y27-500KS frame type precision servo CNC hydraulic press

Features: The main body adopts a frame-type structure, and the working method is selected: there are two working specifications: adjustment and semi-automatic (single cycle), and two forming methods: fixed pressure forming and fixed-course forming. Oil barrier measures are set up at the junction of the upper beam of the hydraulic press, the slider and the oil cylinder. The structural parts are fine-processed by advanced equipment to ensure that the overall body has a flat and beautiful appearance, high precision and good rigidity. The workbench size should be designed and made in accordance with the size of the stamping mold, and the workbench aperture T-shaped groove and layout should be designed and made in accordance with the size of the stamping mold. The slider is a fully steel plate welded box structure, with a slider travel 400, and the slider is equipped with a displacement sensor transmission device and a stroke limit limit device, which can effectively prevent over-travel. The hydraulic system's low-pressure large diameter pipeline has flexible joints for shock isolation. Pipes with diameters of more than 32 are flange-type connections, which have good shock resistance and leakage resistance; the working oil temperature of the hydraulic oil must not exceed 50±5℃, and anti-condensation drip treatment is required.

peculiarity: The body of the main machine adopts a frame structure, and the working mode is selected: there are two kinds of working specifications: adjustment, semi-automatic (single cycle), and there are two kinds of forming methods: constant pressure forming and fixed process forming. Oil blocking measures are provided at the joints of the upper beam, slide block and oil cylinder of the hydroulic press. The structural parts are finished by advanced equipment to ensure the appearance of the whole fuselage is smooth and beautiful, high precision and good rigidity. The size of the table should be designed and made in accordance with the size of the stamping die, and the T-slot and layout of the table aperture should be designed and made in accordance with the size of the stamping die. The slide block is all steel plate welded box structure, the slide block stroke is 400, and the slide block is equipped with displacement sensor signaling device and travel limit limiting device, which can effectively prevent overtravel. Hydraulic system low pressure large-diameter pipe with flexible joint victory isolation, diameter of more than 32 of the pipe are used flange connection, victory resistance, leakage resistance is good; The working oil temperature of hydroulic oil shall not exceed 50±5℃, and anti-condensation dripping treatment shall be carried out.


Availability:
Quantity:
Y27-500KS frame type precision servo CNC hydraulic press
Y27-500KS frame type precision servo CNC hydraulic press
Y27-500KS frame type precision servo CNC hydraulic press
  • Y27-500KS frame type precision servo CNC hydraulic press

  • 万达

Product Description

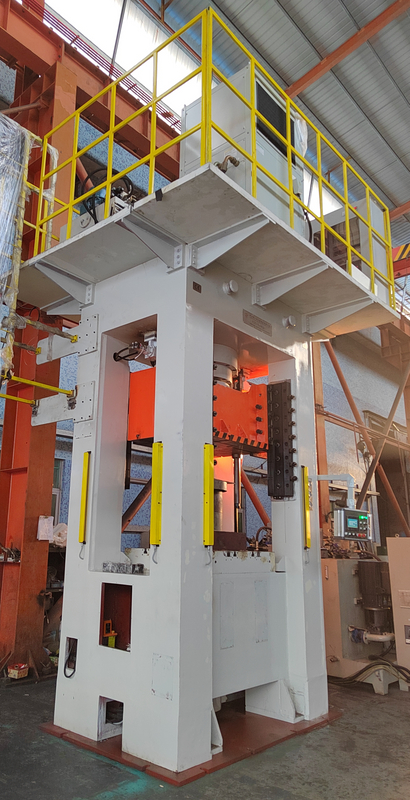

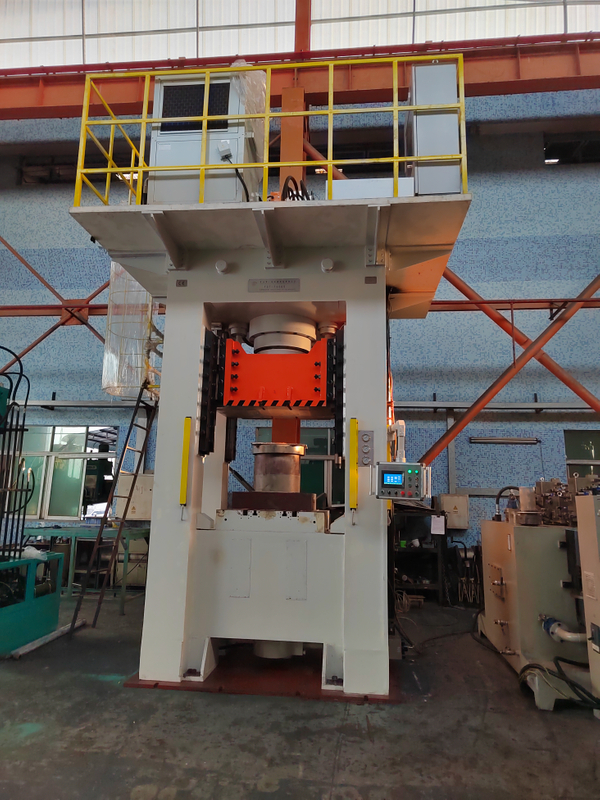

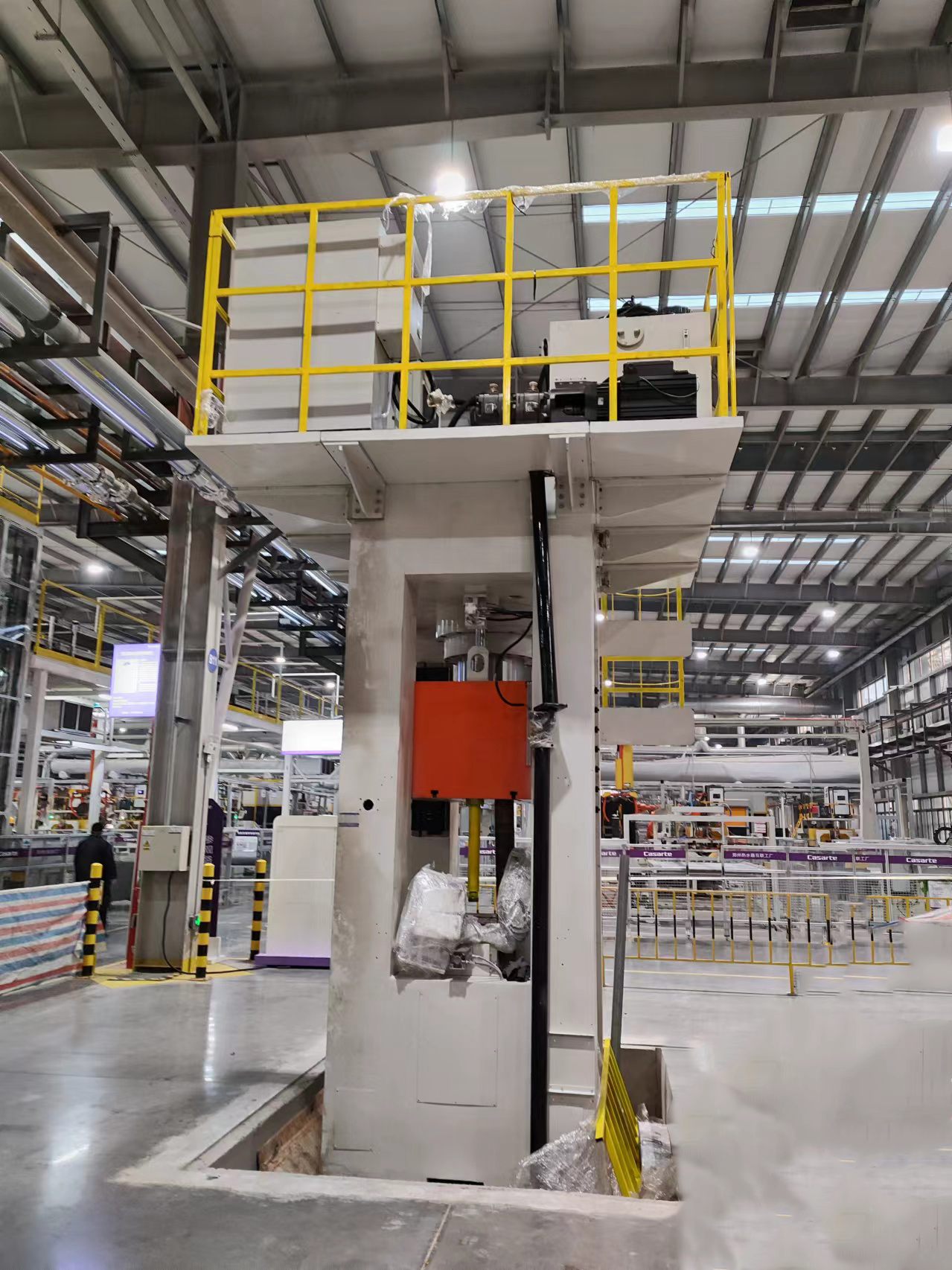

Y27-500KS Frame type precision servo CNC hydraulic press site picture:

Y27-500KS frame type precision servo CNC hydraulic press (3)


Y27-500KS frame type precision servo CNC hydraulic press (2)


Y27-500KS frame type precision servo CNC hydraulic press technical parameters:

Serial number

NO.

project

Item

unit

Unit

Y27-500KS

1

Master cylinder force

KN

5000(adjustable)

2

Liquid working pressure

Maximum working pressure of liquid

MPa

25

3

Master cylinder stroke

mm

400 (adjustable)

4

Hydraulic cushion force

KN

2000 (adjustable)

5

Hydraulic pad   stroke

mm

180(adjustable)

6

Slider opening height

Maximum opening height of the slider

mm

1100

7

Slider speed

Slider speed

No-load downlink

mm/s

300 (adjustable)

Stretch

mm/s

11-22 (adjustable)

Returning

mm/s

280(adjustable)

8

Hydraulic pad speed


Ejection

mm/s

150

Return Send back

mm/s

150

9

Workbench size

Table size

Left-right

mm

1100

Front-back

mm

1000

10

Hole arrangement

Ejector hole layout

Left-right

Number of columns

Number of columns

7

Front-back

Ranking number

Row number

7

Pit-center distance

mm

100*100

Aperture

mm

¢40

Hole number

mm

25

11

T-shaped groove distribution

T-slot distribution

Specification

mm

28

12

Refrigeration mode

Oil cooler

13

Servo motor power

KW

40.9

14

Normal motor power

Ordinary motor power

KW

11
