Y28Series models are suitable for stretching, forming, straightening and other processes of thin metal plates, such as tableware, lighting, metal shell, container, etc.
This series of products is professionally designed, using famous brand imported hydraulic components and electrical control components, precision-made, fast, high precision, energy saving, low noise, and easy operation. It is an ideal equipment in the hardware and electrical industry
The Y28 series model is suitable for processes such as stretching, forming, and straightening of metal sheets. For example: tableware, lighting fixtures, metal shells, containers, etc. are stretched and formed.
This series of products is professionally designed, using famous brands, imported hydroulic components, electrical control components, precision manufacturing, fast speed, high precision, energy saving, low noise, easy operation, and is an ideal equipment for the hardware and electrical industry.
| Quantity: | |
|---|---|

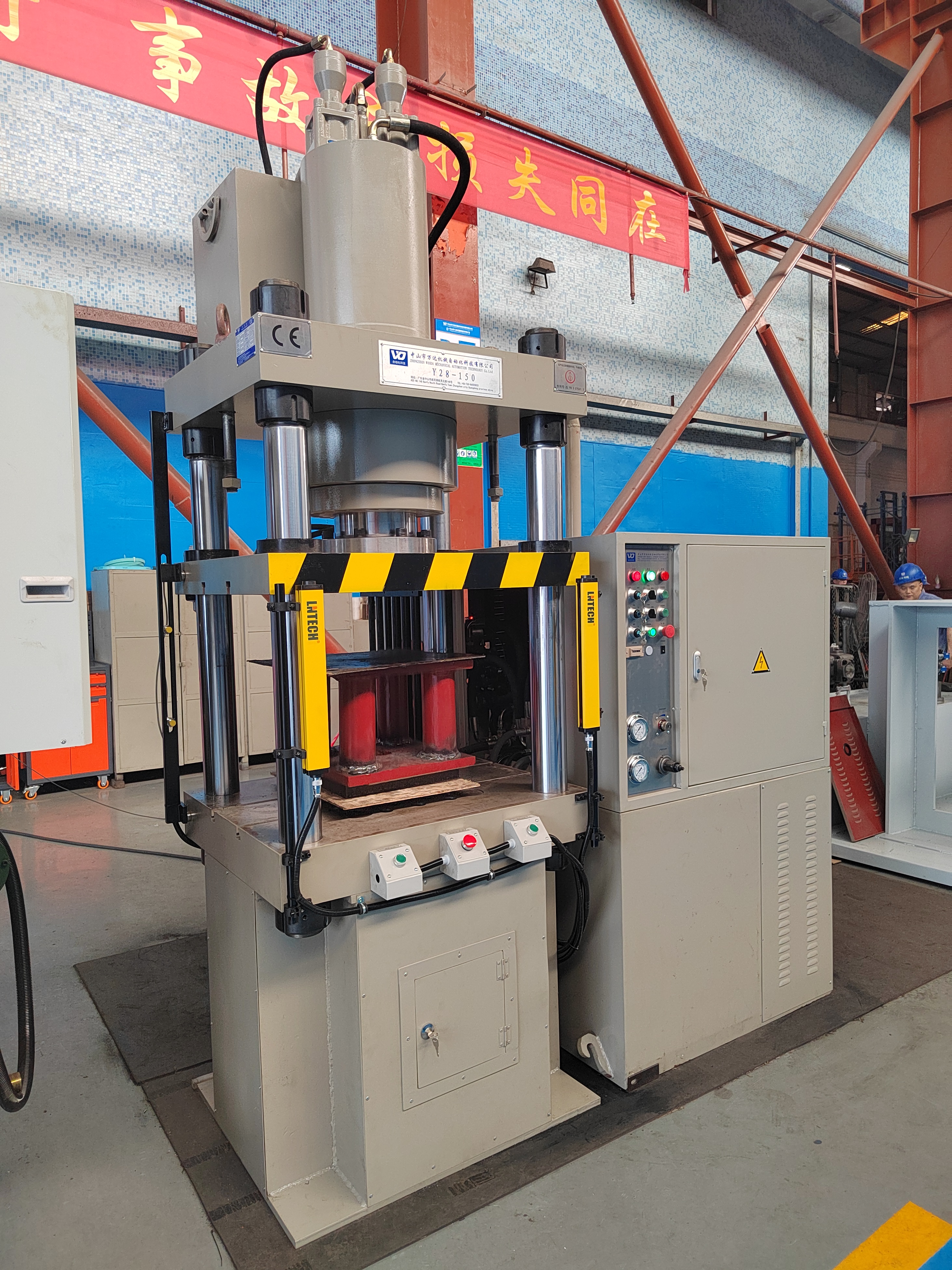

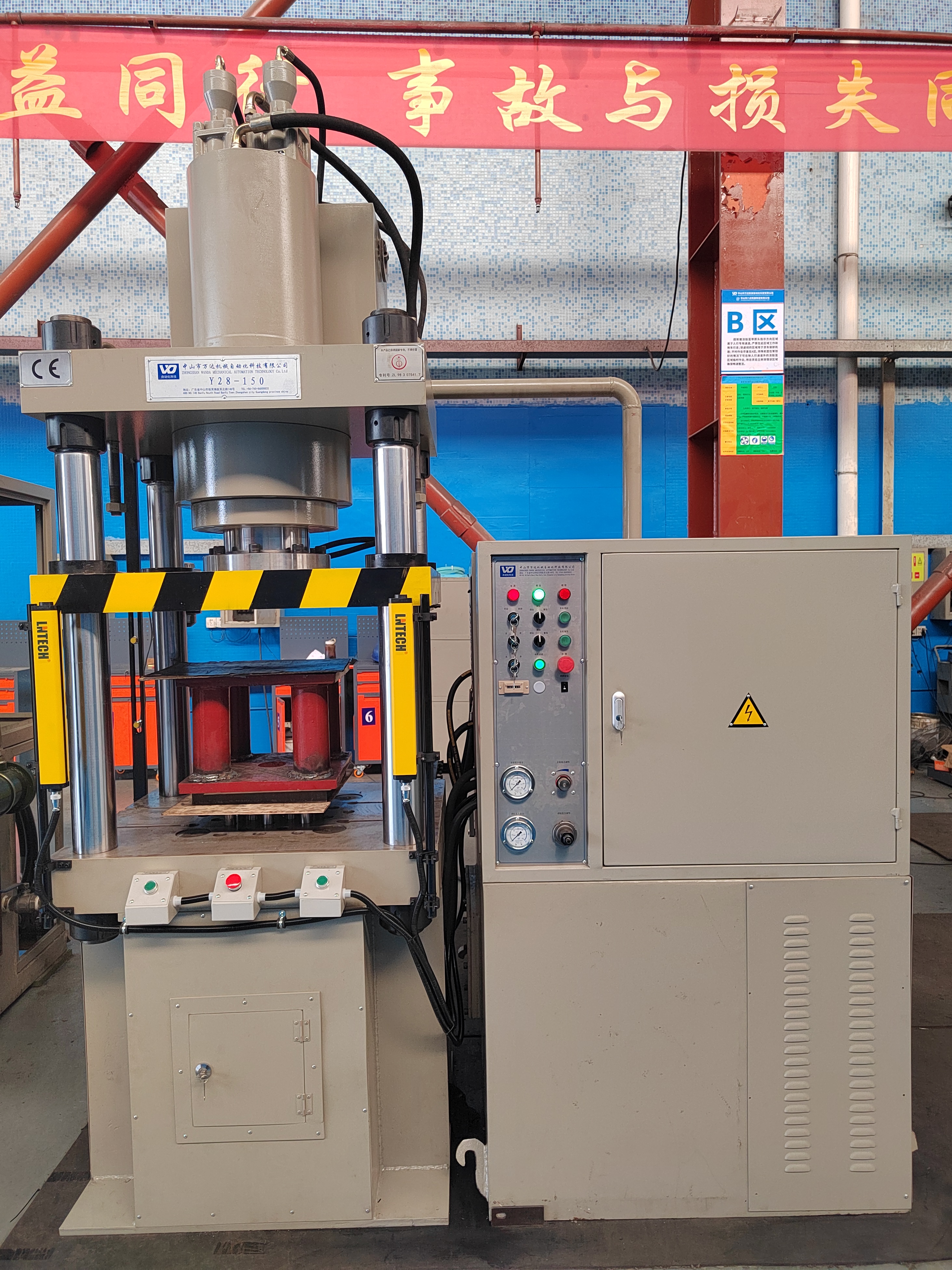

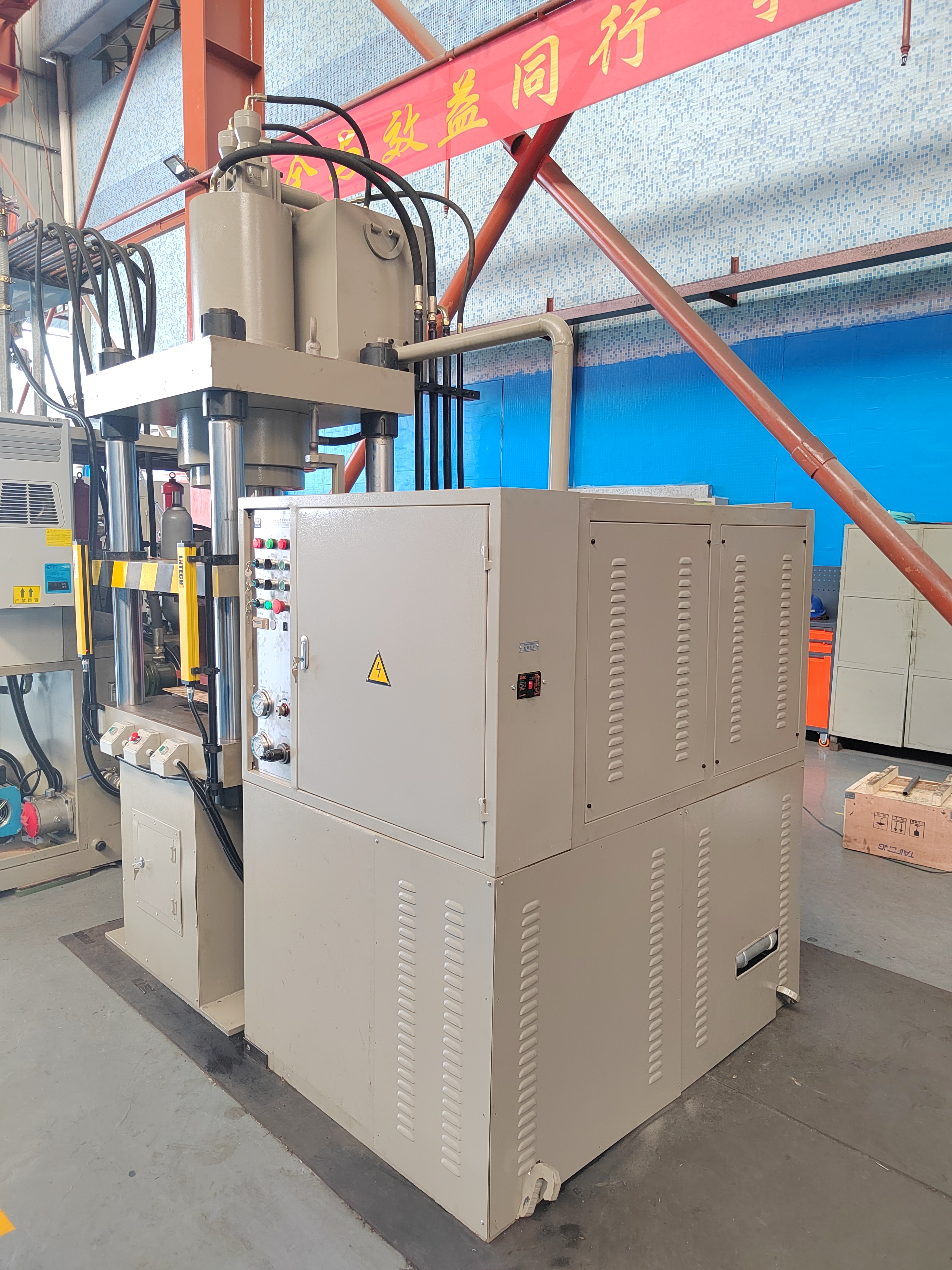

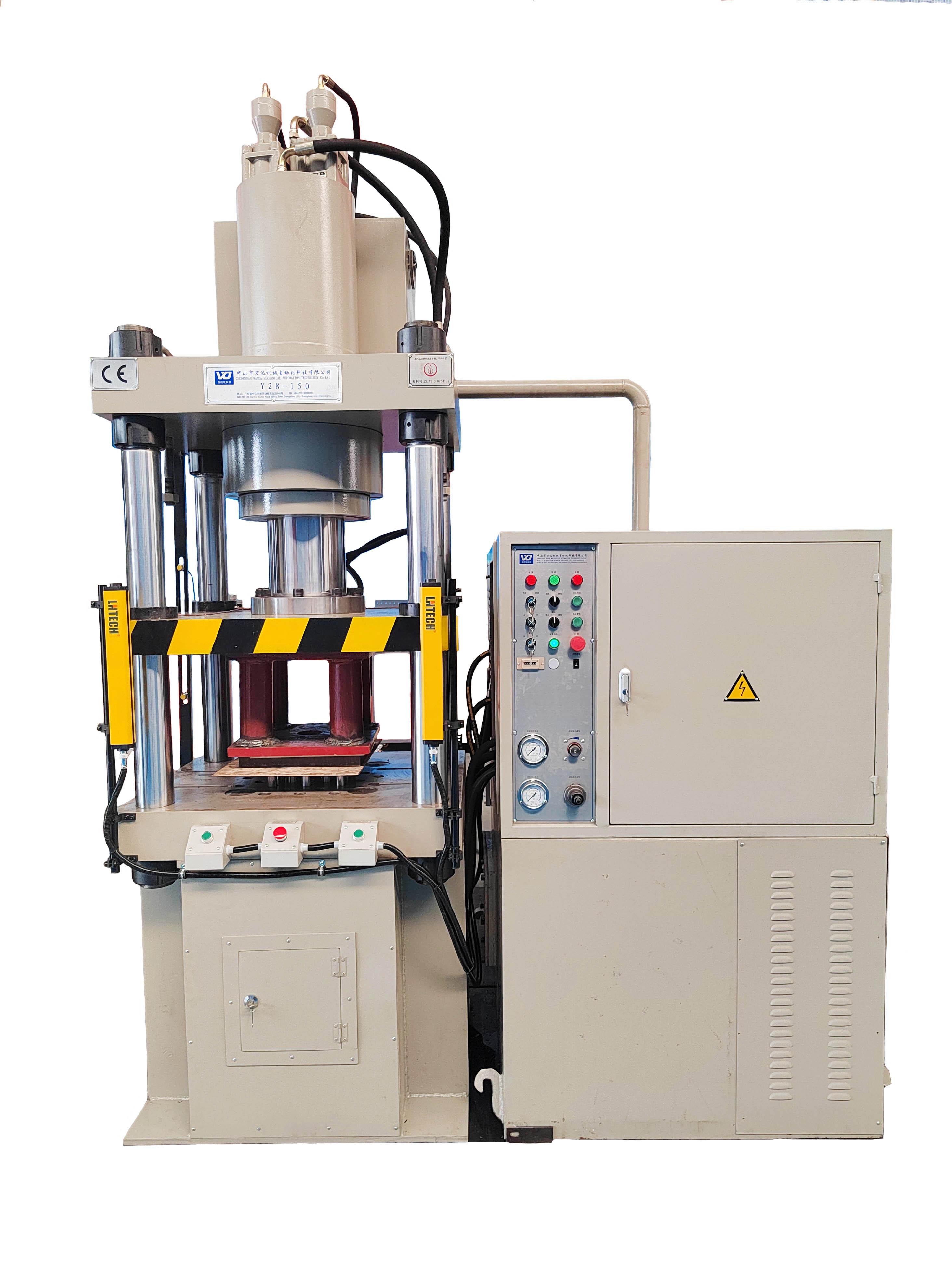

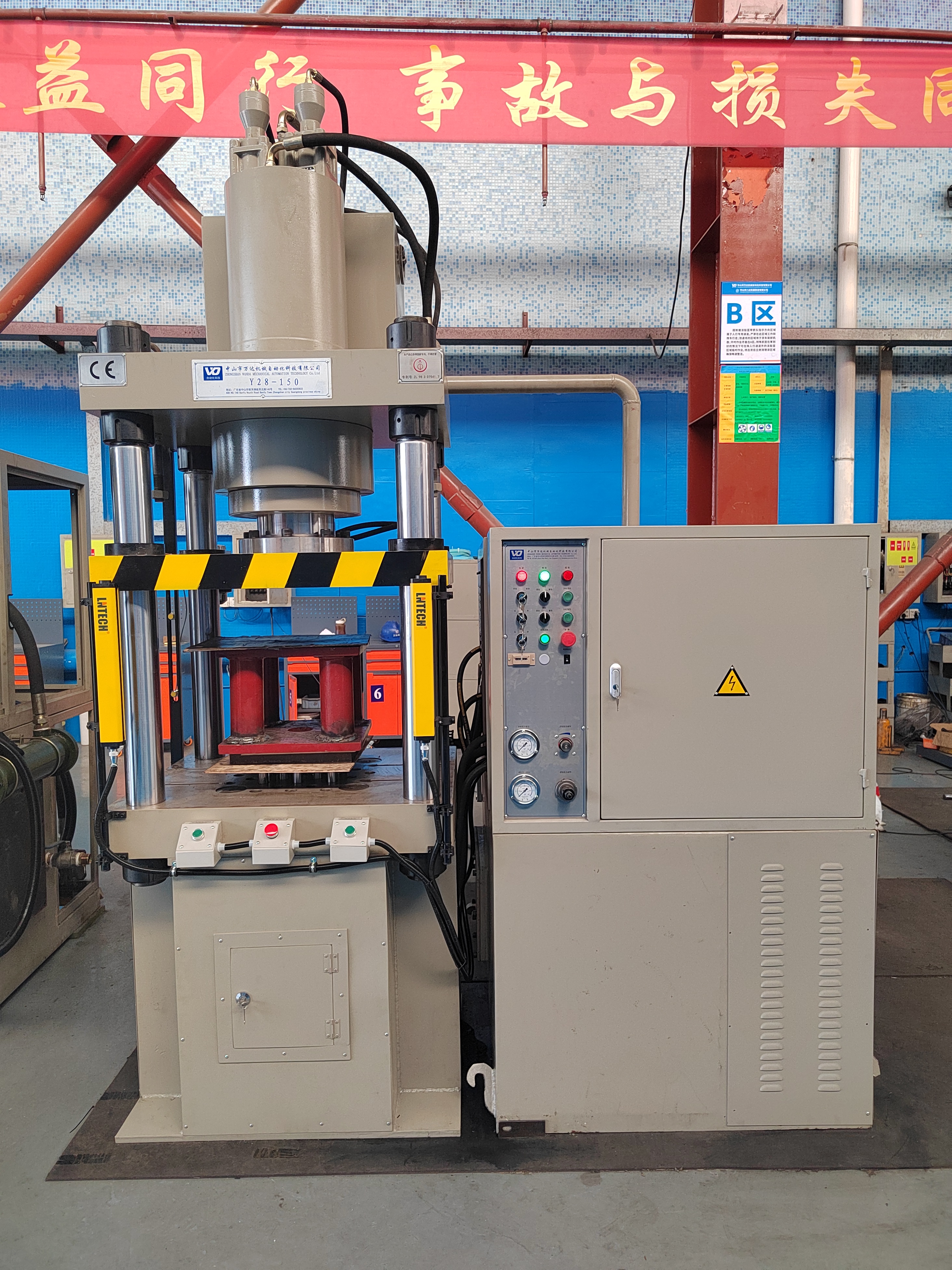

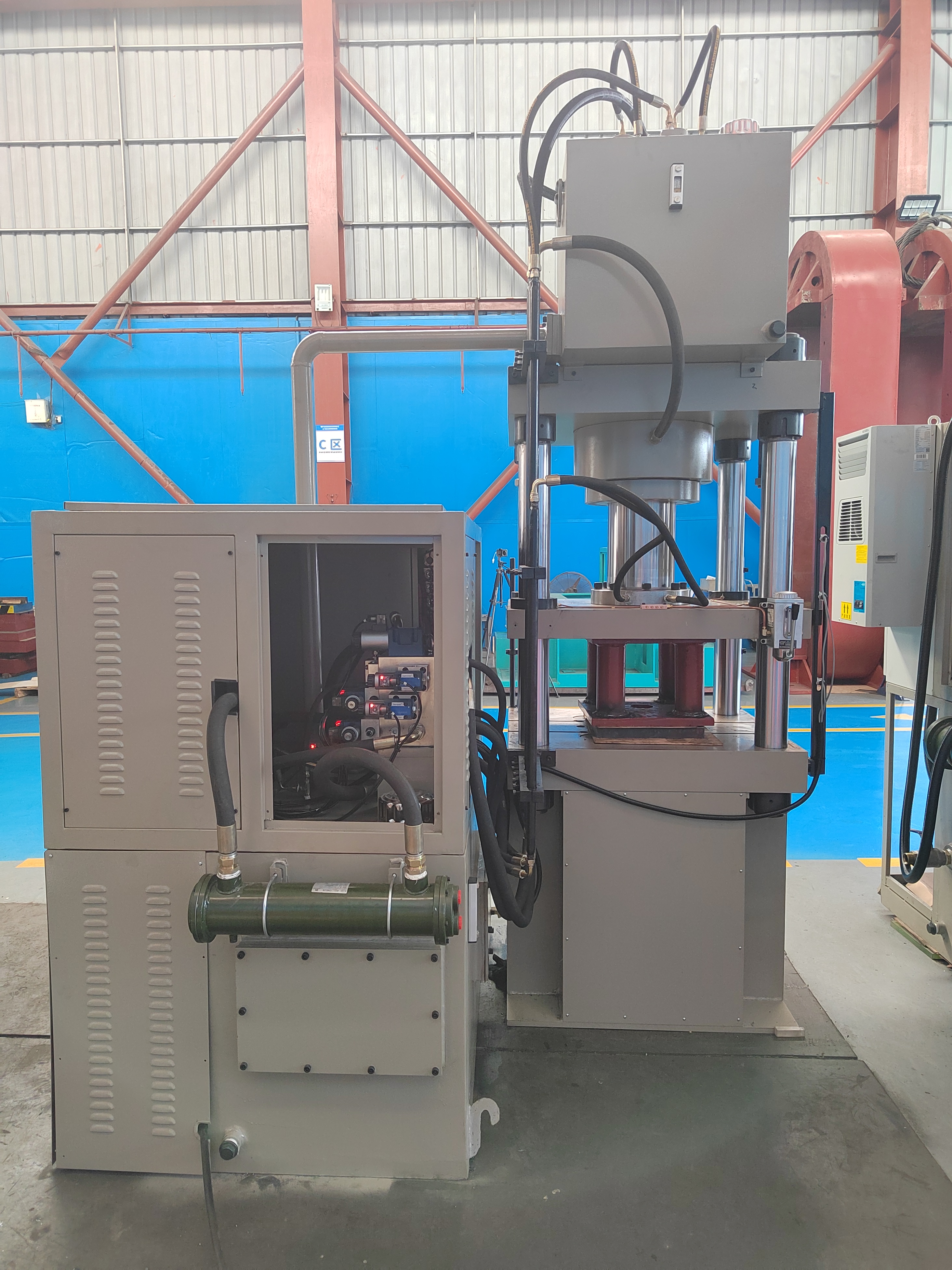

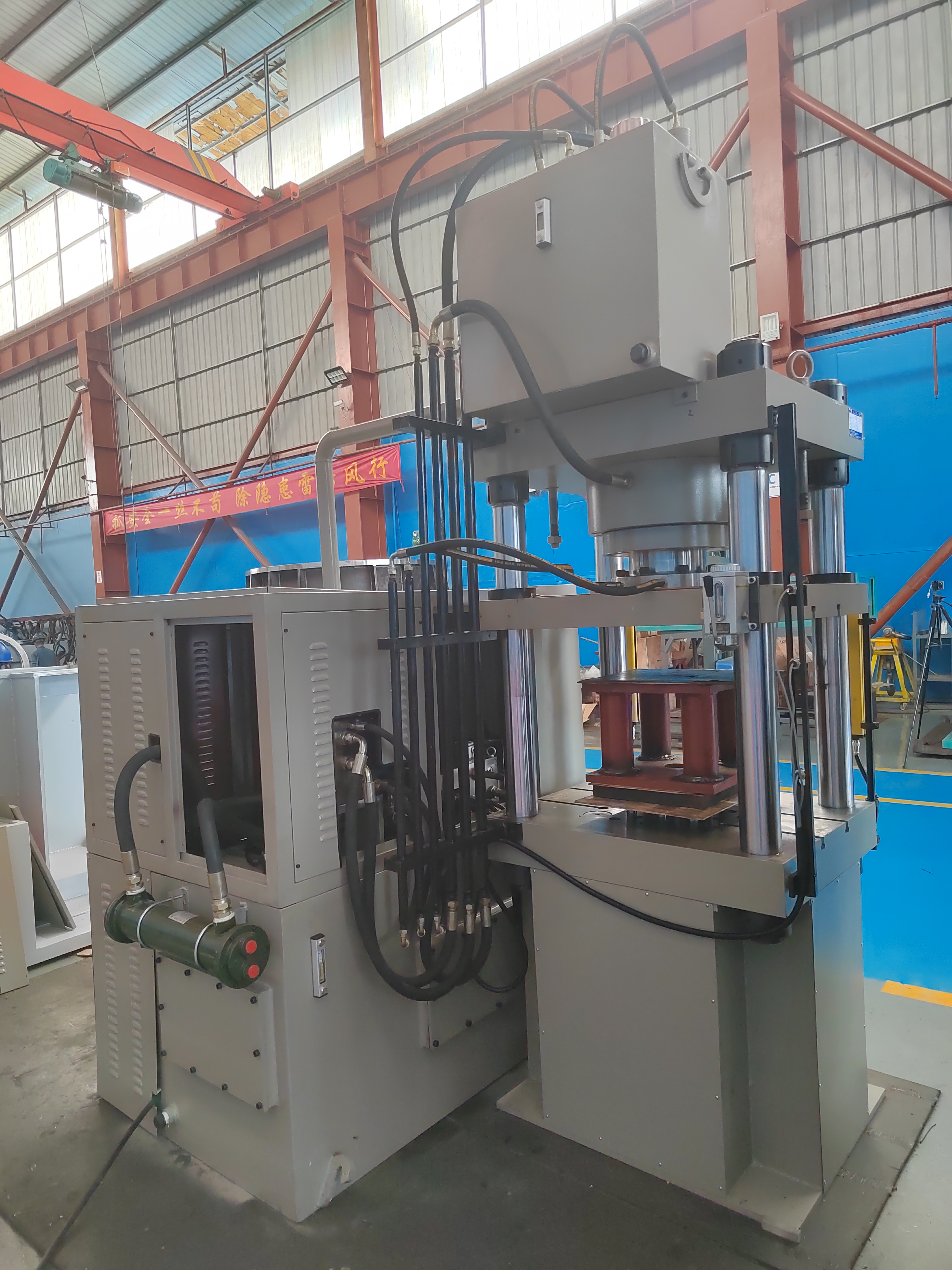

Y28-150
万达
Product Description
Main technical parameters:
Serial number NO. | Project Item | Unit | Y28-150 | |
1 | Main cylinder force | KN | 1000 | |
2 | Bottom cylinder force | KN | 500 | |
3 | Ejection cylinder force | KN | 100 | |
4 | Slider stroke Max. slider stroke | mm | 400 | |
5 | Bottom cylinder stroke Max. bottom cylinder stroke | mm | 150 | |
6 | Max. ejection cylinder stroke | mm | 150 | |
7 | Workspace opening height Max. opening height in the workspace | mm | 600 | |
8 | Working slider speed Working slider speed | Quick down | mm/s | 250 |
Stretch | mm/s | 14-25 | ||
Return | mm/s | 220 | ||
9 | Bottom cylinder speed Bottom cylinder speed | Eject eject | mm/s | 65 |
Return send back | mm/s | 80 | ||
10 | Effective size of work surface Effective size of workbench | Left and right (inside the column) LR(inside the column) | mm | 650 |
Front and back (edge) FB (edge) | mm | 750 | ||
11 | Hydraulic system pressure | MPa | 22.5 | |
12 | Motor Power | KW | 18.5 (Ordinary motor) | |
