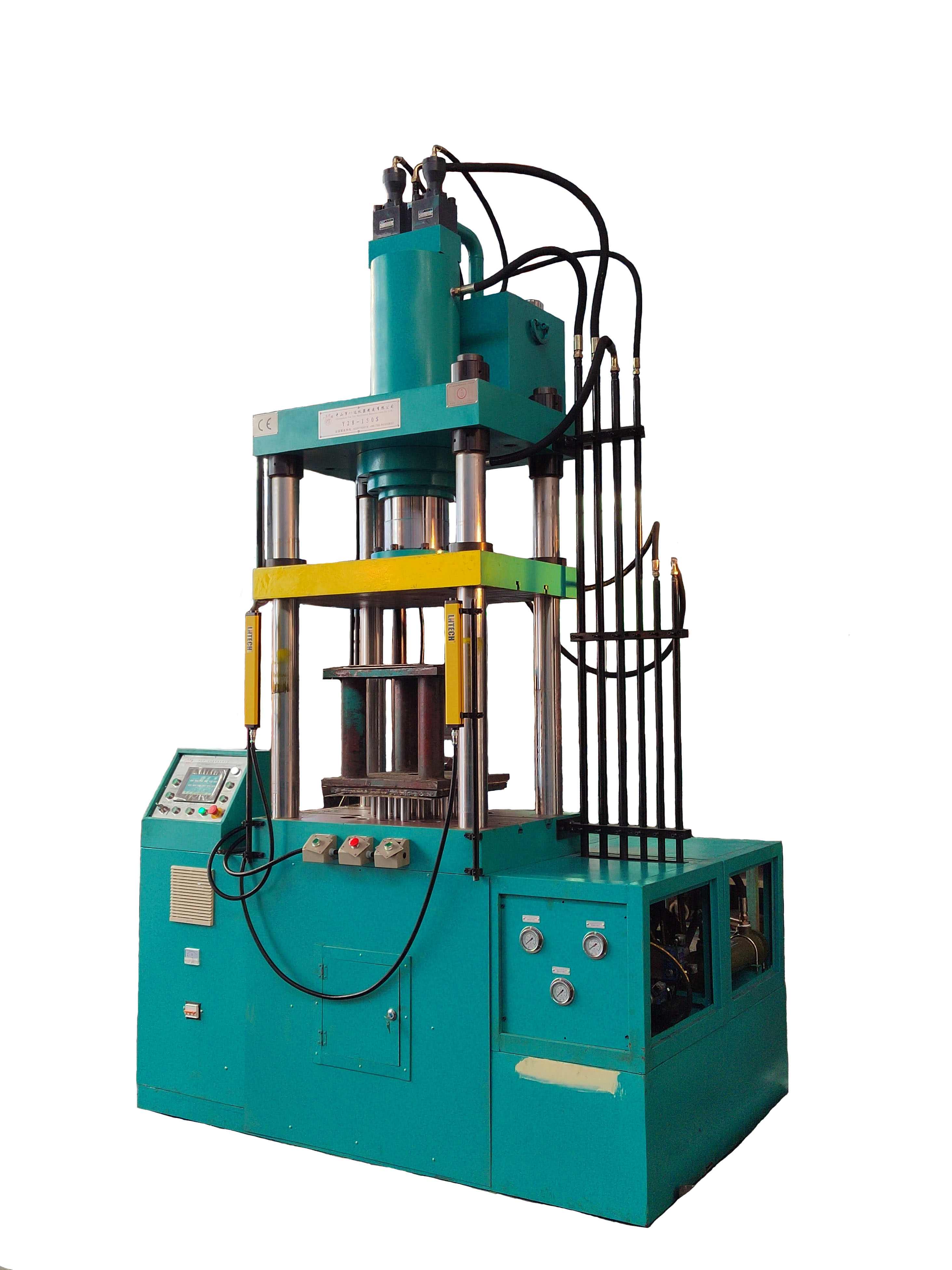

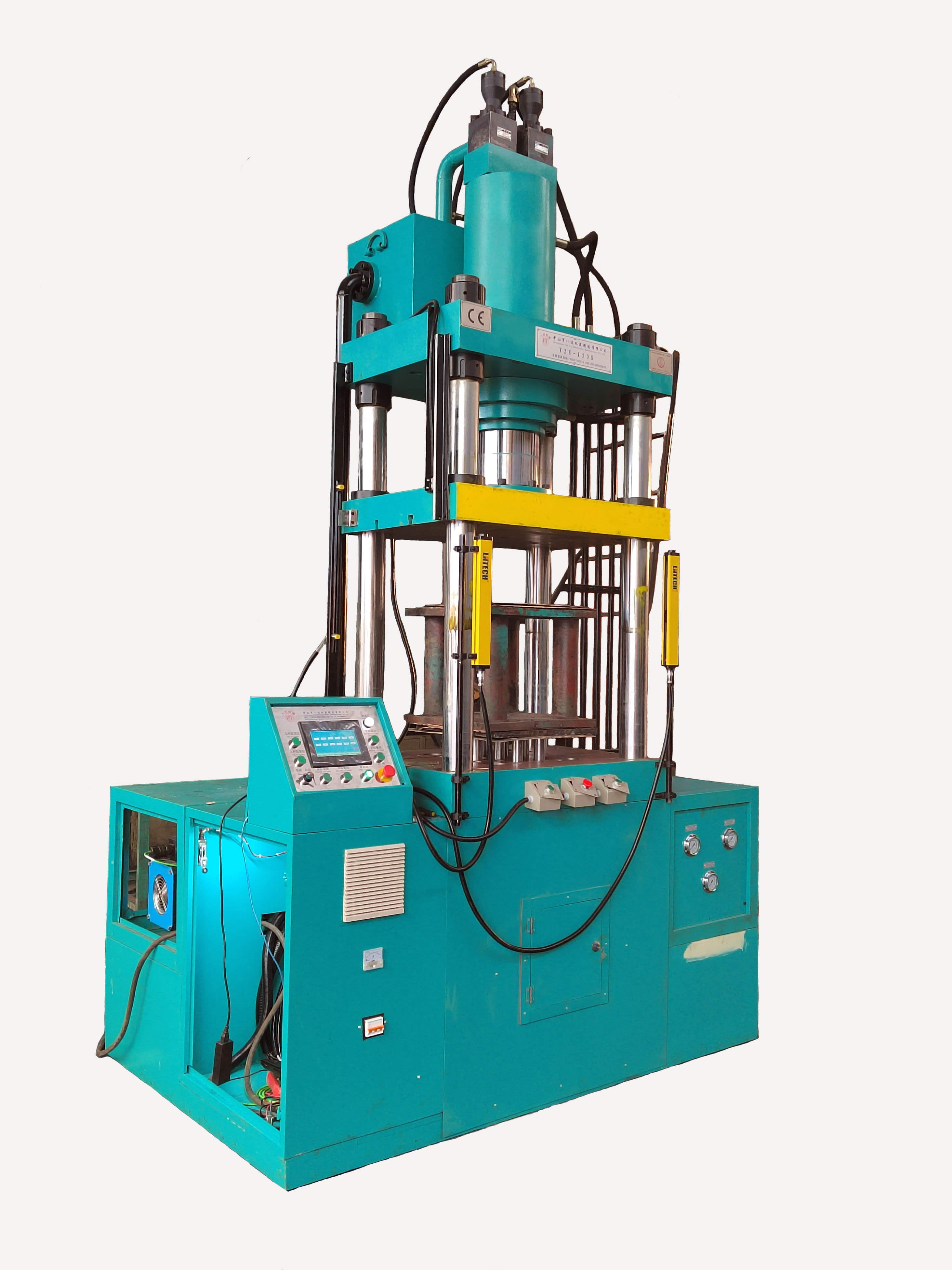

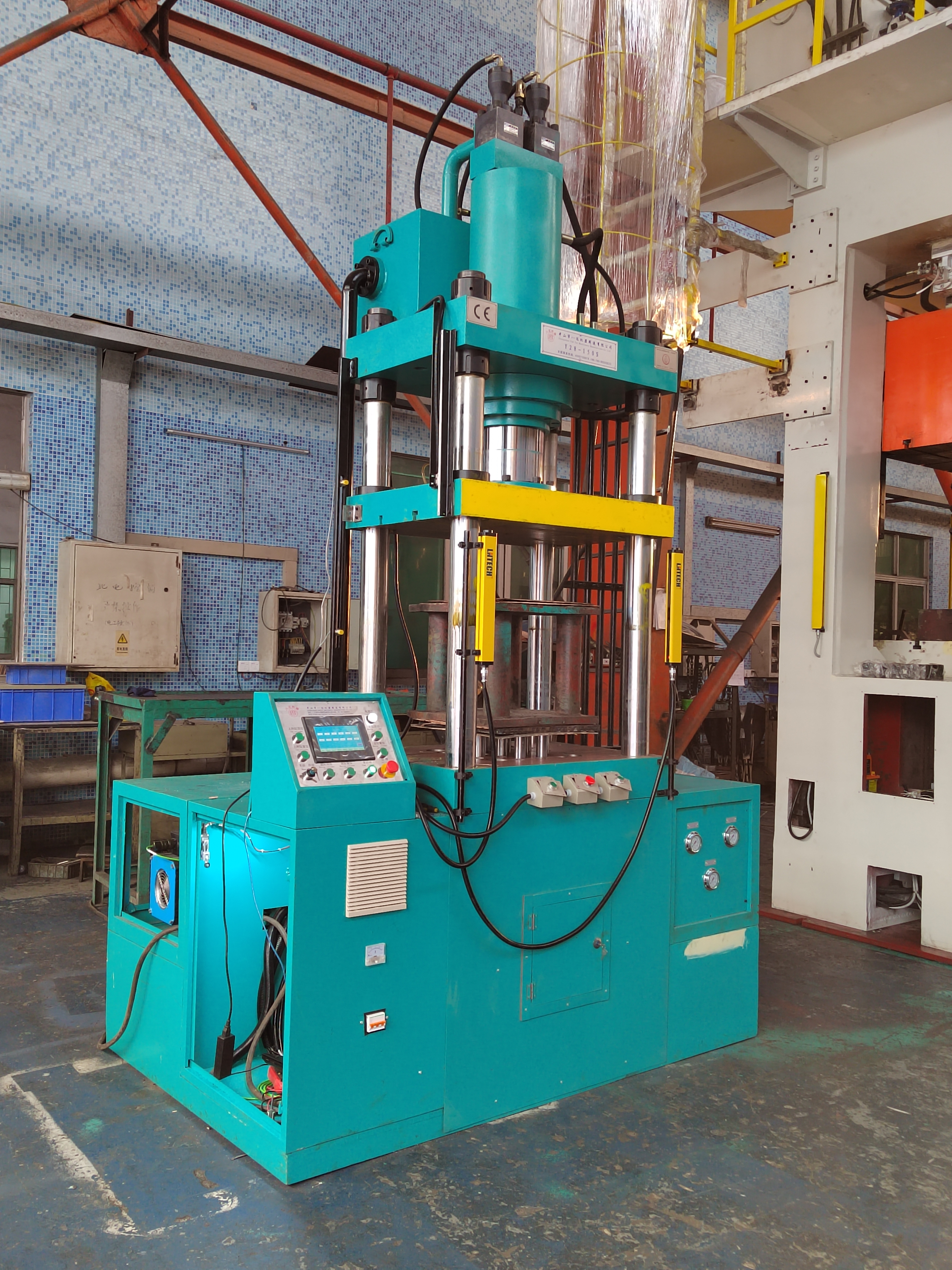

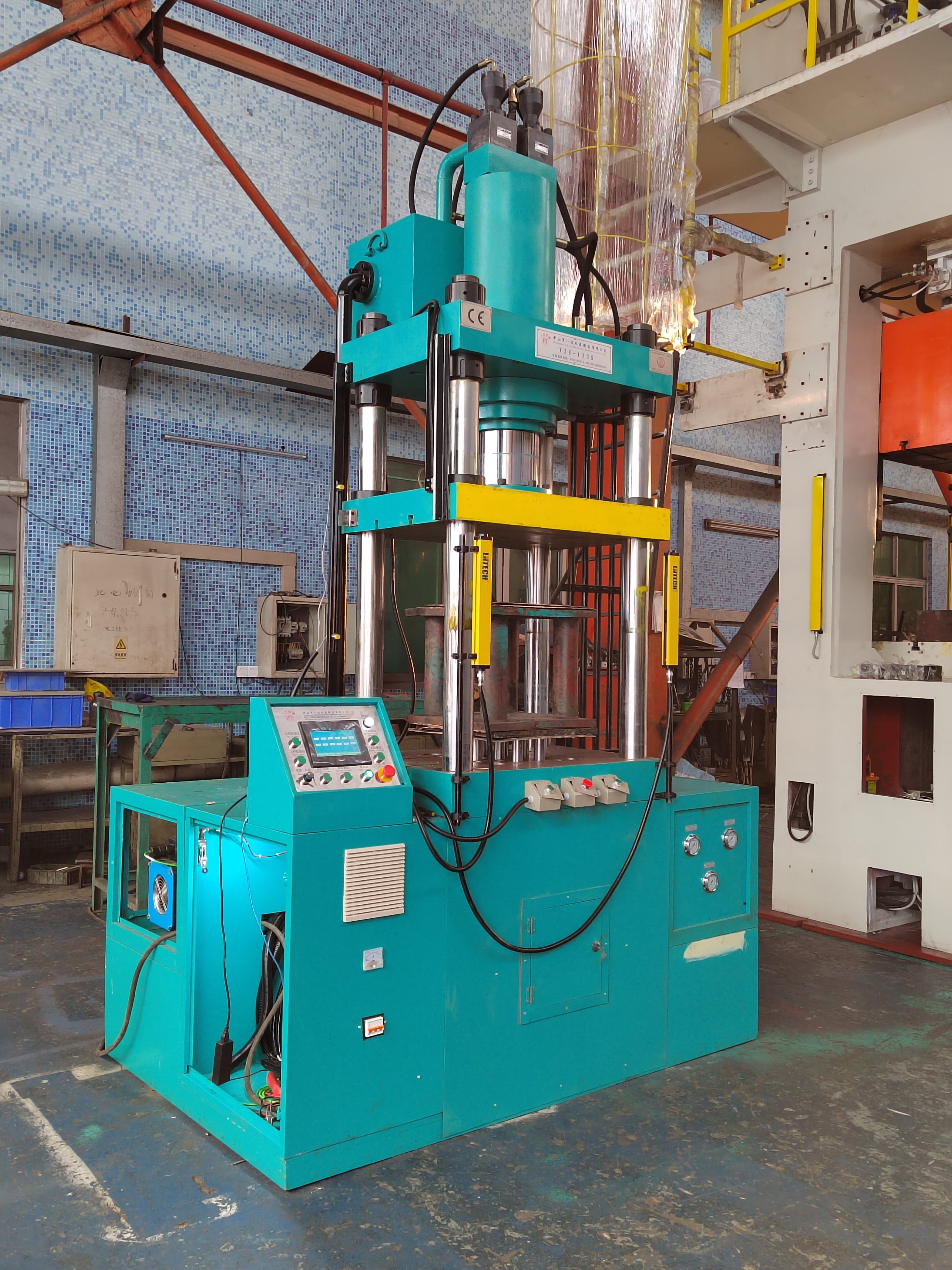

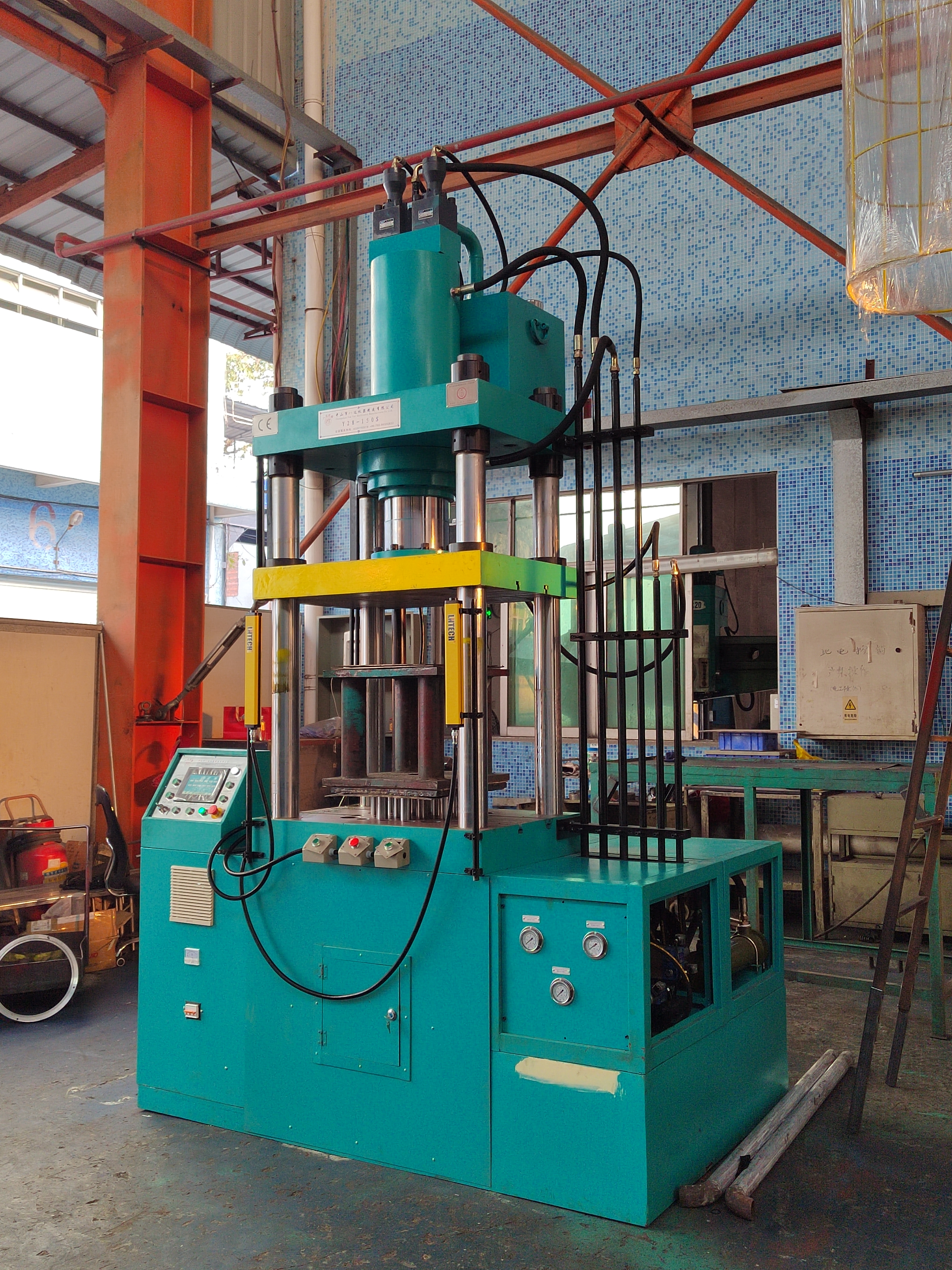

Y28-150S

Y28-S series double action stretching machine product description:
The Y28-S series models are suitable for processes such as stretching, forming, and straightening of metal sheets. For example, tableware, lighting, metal shells, containers, etc. are stretched and formed.

This series of products is professionally designed, using well-known brands, imported hydraulic components, electrical control components, precision manufacturing, fast speed, high accuracy, energy saving, low noise, and convenient operation. It is an ideal equipment in the hardware and electrical industry.
Availability:
Quantity:
Y28-150S
Y28-150S
Y28-150S
Y28-150S
Y28-150S
  • Y28-150S

  • 万达

Product Description

Main technical parameters of Y28-150S:

NO.

Item

Unit

Y28-150S

1

Nominal force

KN

1500

2

Master cylinder force

KN

1000(adjustable)

3

Bottom cylinder force

KN

500(adjustable)

4

Charging cylinder force

KN

100(adjustable)

5

Maximum stroke of the slider

mm

500(adjustable)

6

Maximum stroke of bottom cylinder

mm

250(adjustable)

7

Maximum stroke of top cylinder

mm

180(adjustable)

8

Maximum opening height of working area

mm

900

9

Working slider speed


fast downward

mm/S

180(adjustable)

stretch

mm/S

14(adjustable)

Returning

mm/S

180(adjustable)

10

Effective size of table

Left-right(inside column)

mm

700

Front-back(edge)

mm

700

11


Maximum working pressure of master cylinder hydraulic system

MPa

21

12

Servo motor power

KW

13.4

13


Bottom cylinder speed

ejection

mm/S

70(adjustable)

Send back

mm/S

80(adjustable)
