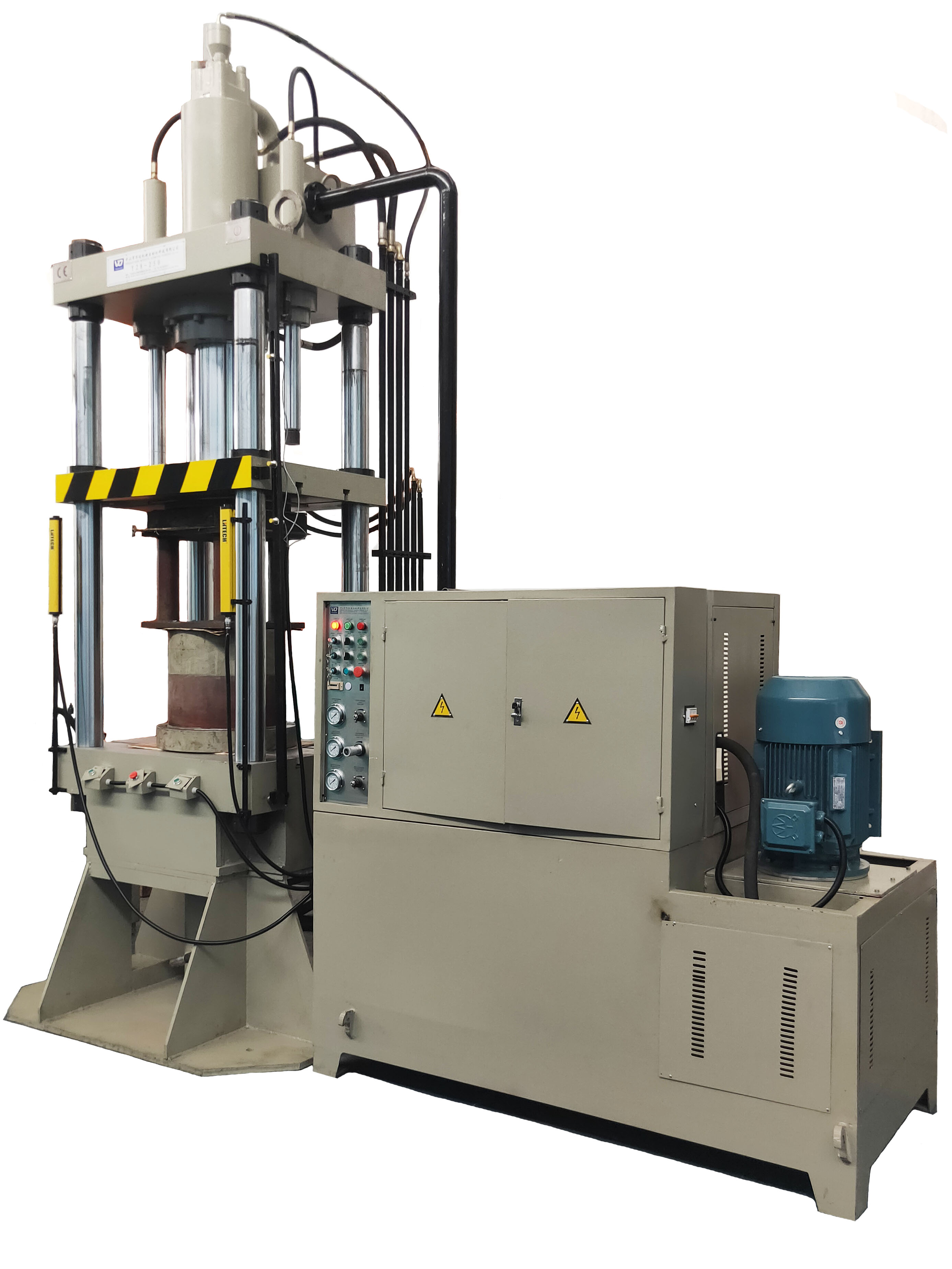

Y28-250
万达
Product Description

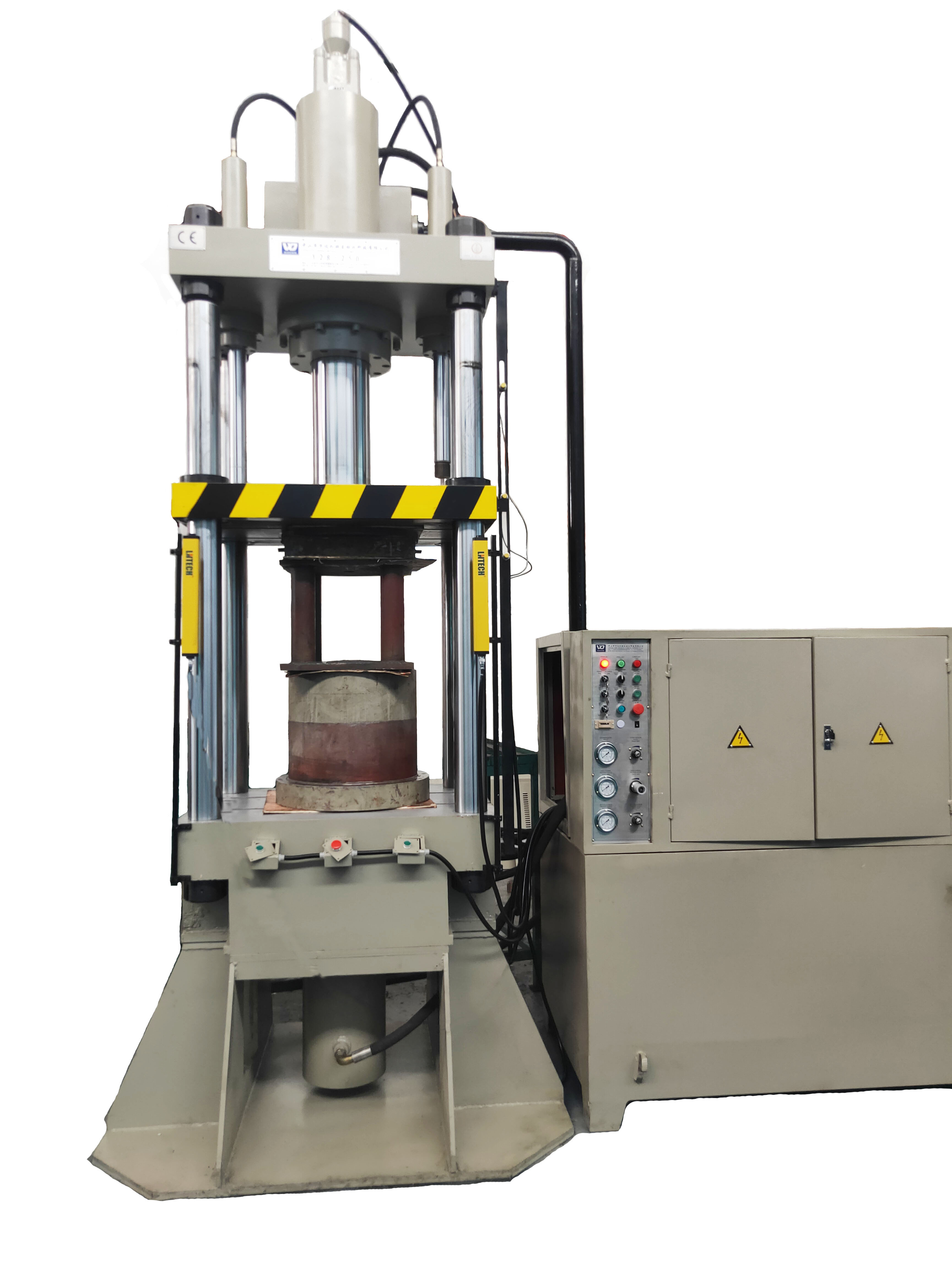

Y28-250 pressed product picture:
Y28-250 Main technical parameters Y28-250 Main technical parameters:
Serial numberNO. | ItemItem | UnitUnit | Y28-250 | |
1 | Nominal force Nominal force | KN | 2500 | |
2 | Master cylinder force Master cylinder force | KN | 1000 | |
3 | Sump force Bottom cylinder force | KN | 1500 | |
4 | Ejection cylinder force Charging cylinder force | KN | 100 | |
5 | Master cylinder stroke Master cylinder stroke | mm | 350 | |
6 | Sump stroke Bottom cylinder stroke | mm | 350 | |
7 | Top cylinder stroke Jacking cylinder stroke | mm | 100 | |
8 | Workbench opening height Maximum opening height of workbench | mm | 1000 | |
9 | The height of the work surface from the ground Table height from ground | mm | 900 | |
10 | master cylinder speed Master cylinder speed | ejection | mm/S | 260 |
Work progresses Work progress | mm/S | 45 | ||
Returning | mm/S | 260 | ||
11 | Sump speed Bottom cylinder speed | ejection | mm/S | 30 |
Returning | mm/S | 70 | ||
12 | Effective size of workbench Effective size of table | Left and right (within the column) Left-right(inside column) | mm | 820 |
Front and back (edge) Front-back(edge) | mm | 850 | ||
13 | Hydraulic system pressure Maximum pressure of hydraulic system | MPa | 25 | |
14 | Motor powerMotor power | KW | 22 | |
