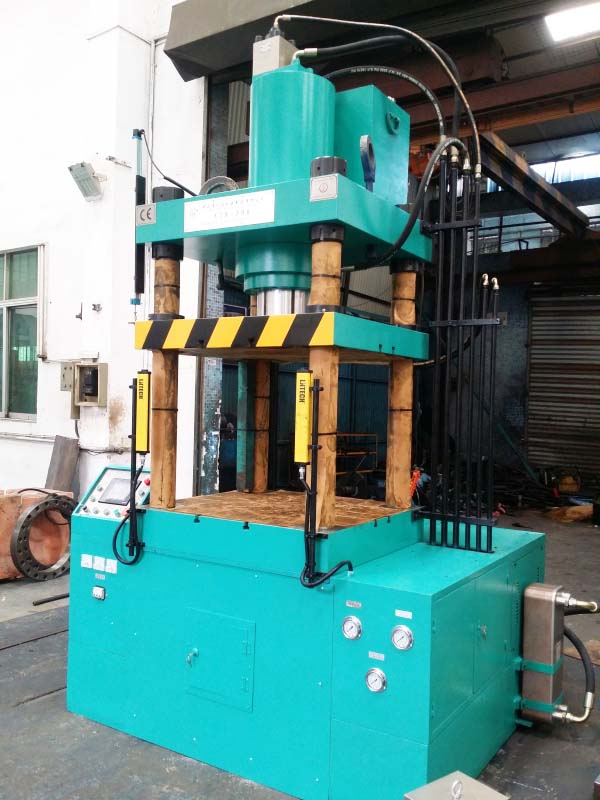

Y28-350BL
八达
Product Description
Y28 series models are suitable for stretching, forming, straightening and other processes of metal sheets.For example: tableware, lighting, metal shells, containers and utensils, etc. stretch forming.
This series of products is professionally designed, using famous brands and imported hydraulic components and electrical control components. It is made with precision, fast speed, high precision, energy saving, low noise and easy operation. It is an ideal equipment for the hardware and electrical appliance industry.
Y28 series four-column double-action stretching machine parameters | ||||||||
project | unit | Y28-65 | Y28-100 | Y28-150 | Y28-200 | Y28-350 | Y28-500 | |
Nominal pressure | KN | 650 | 1000 | 1500 | 2000 | 3500 | 5000 | |
Master cylinder force | KN | 350 | 650 | 1000 | 1500 | 2500 | 3500 | |
Sump force | KN | 250 | 350 | 500 | 500 | 1000 | 1500 | |
Ejection force | KN | 50 | 50 | 50 | 100 | 150 | 200 | |
Maximum stroke of slider | mm | 300 | 500 | 500 | 550 | 600 | 650 | |
Sump stroke | mm | 100 | 250 | 250 | 280 | 300 | 330 | |
Top cylinder stroke | mm | 50 | 100 | 180 | 200 | 200 | 200 | |
Workbench height from ground | mm | 750 | 1030 | 1000 | 1128 | 1200 | 1550 | |
Opening height | mm | 600 | 860 | 900 | 950 | 1120 | 1300 | |
Slider speed | fast forward | mm/s | 130 | 150 | 170 | 150 | 150 | 180 |
Work progresses | mm/s | 20 | 20 | 25 | 25 | 25 | 17-25 | |
Return trip | mm/s | 160 | 150 | 180 | 180 | 160 | 180 | |
working desk size | Left and right (within the column) | mm | 400 | 550 | 650 | 700 | 800 | 1000 |
Front and back (edge) | mm | 450 | 600 | 750 | 900 | 900 | 1200 | |
Hydraulic system pressure | MPa | 20 | 22 | 22 | 22 | 22 | 22 | |
Motor Power | KW | 7.5 | 11 | 15 | 22 | 22 | 37 | |
Machine weight (approx.) | KG | 3200 | 4150 | 6200 | 8500 | 12500 | 20000 | |
Machine dimensions | about | mm | 1300 | 1620 | 1730 | 1800 | 1950 | 2400 |
before and after | mm | 1100 | 1300 | 1420 | 1600 | 1640 | 1850 | |
high | mm | 2400 | 3400 | 3550 | 3700 | 3800 | 4500 | |
