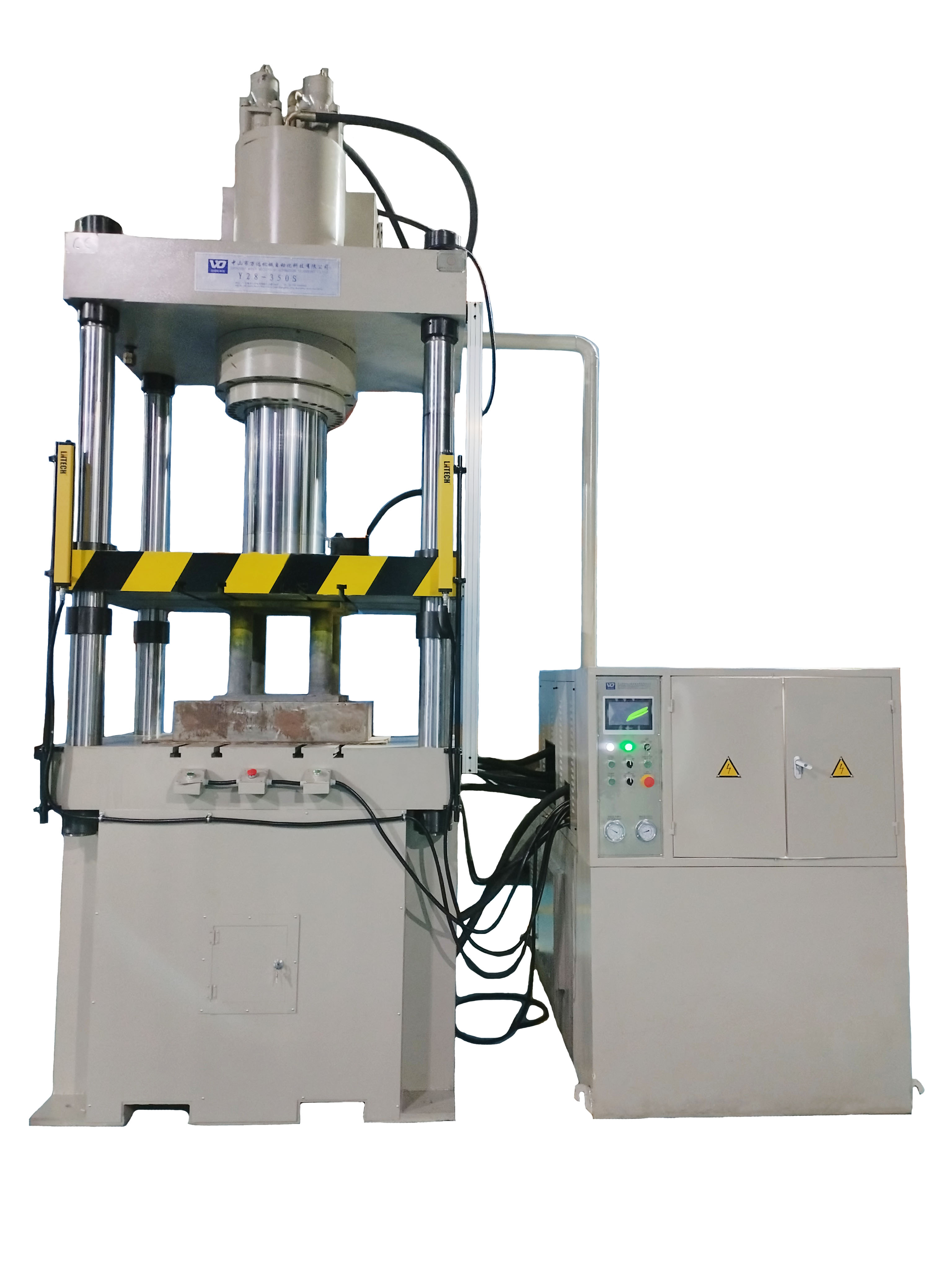

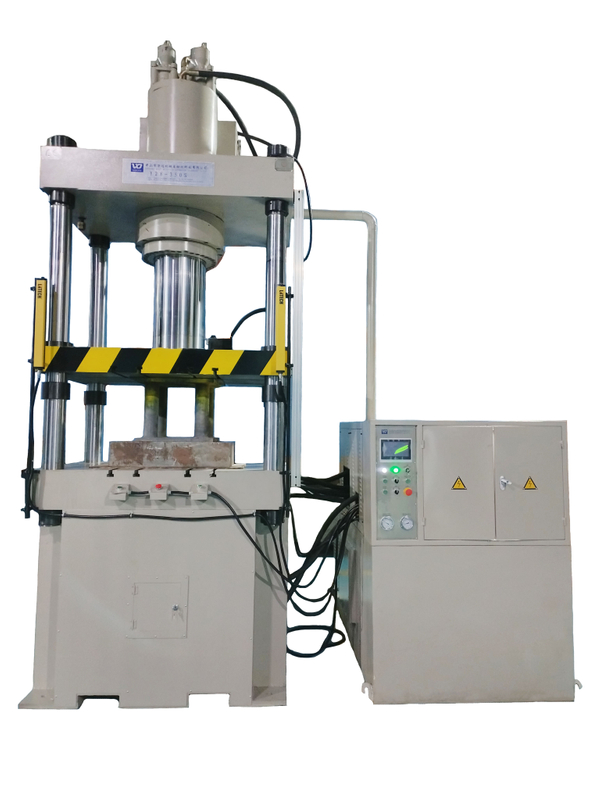

Y28-350S
万达
Product Description
Technical parameters Main technical:
Serial number NO. | Project Item | Unit | Value Spec. | |
1 | Nominal force | KN | 3500 | |
2 | Main cylinder force | KN | 2500 (adjustable) | |
3 | Bottom cylinder force | KN | 1000 (adjustable) | |
4 | Top material cylinder force | KN | 150 (adjustable) | |
5 | Slider stroke Maximum stroke of slider | mm | 600 (adjustable) | |
6 | Bottom cylinder stroke Maximum stroke of bottom cylinder | mm | 300 (adjustable) | |
7 | Threading cylinder stroke Maximum stroke of top material cylinder | mm | 200 (Time relay control) (time relay control) | |
8 | Workspace opening height Maximum opening height in the workspace | mm | 1120 | |
9 | Working slider speed Working slider speed | No load down No-load down | Mm/S | 220 (adjustable) |
Stretch | Mm/S | 14-25 (adjustable) | ||
Return | Mm/S | 220 (adjustable) | ||
10 | Workbench effective size Effective size of table | Left and left (inside the column)LR | mm | 1200 |
Front and back (edge) FB (Edge) | mm | 1000 | ||
11 | Hydraulic system pressure | MPa | 24.6 | |
12 | Motor Power | KW | 26.7 | |
