Y28-350S
万达
Product Description

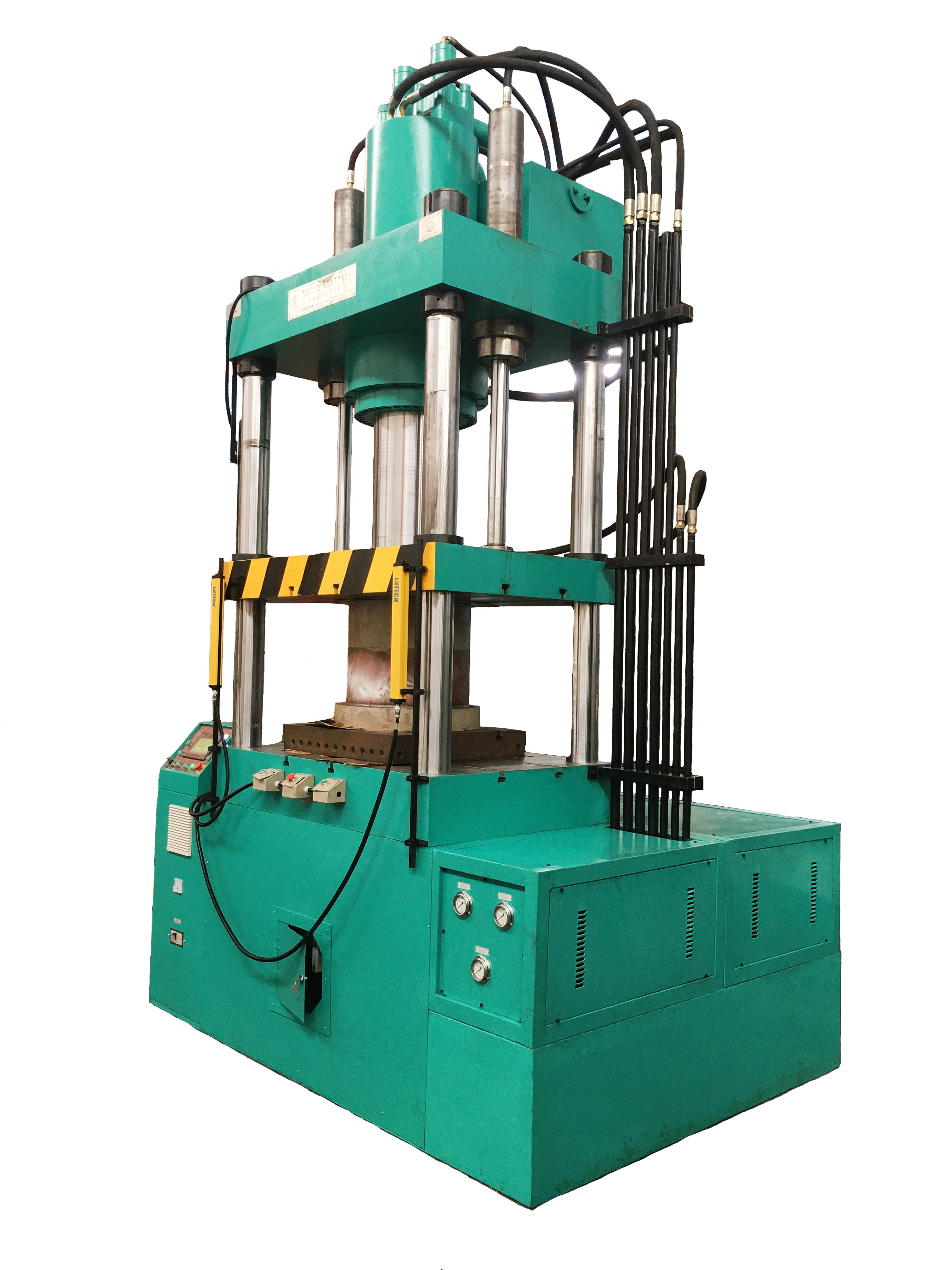

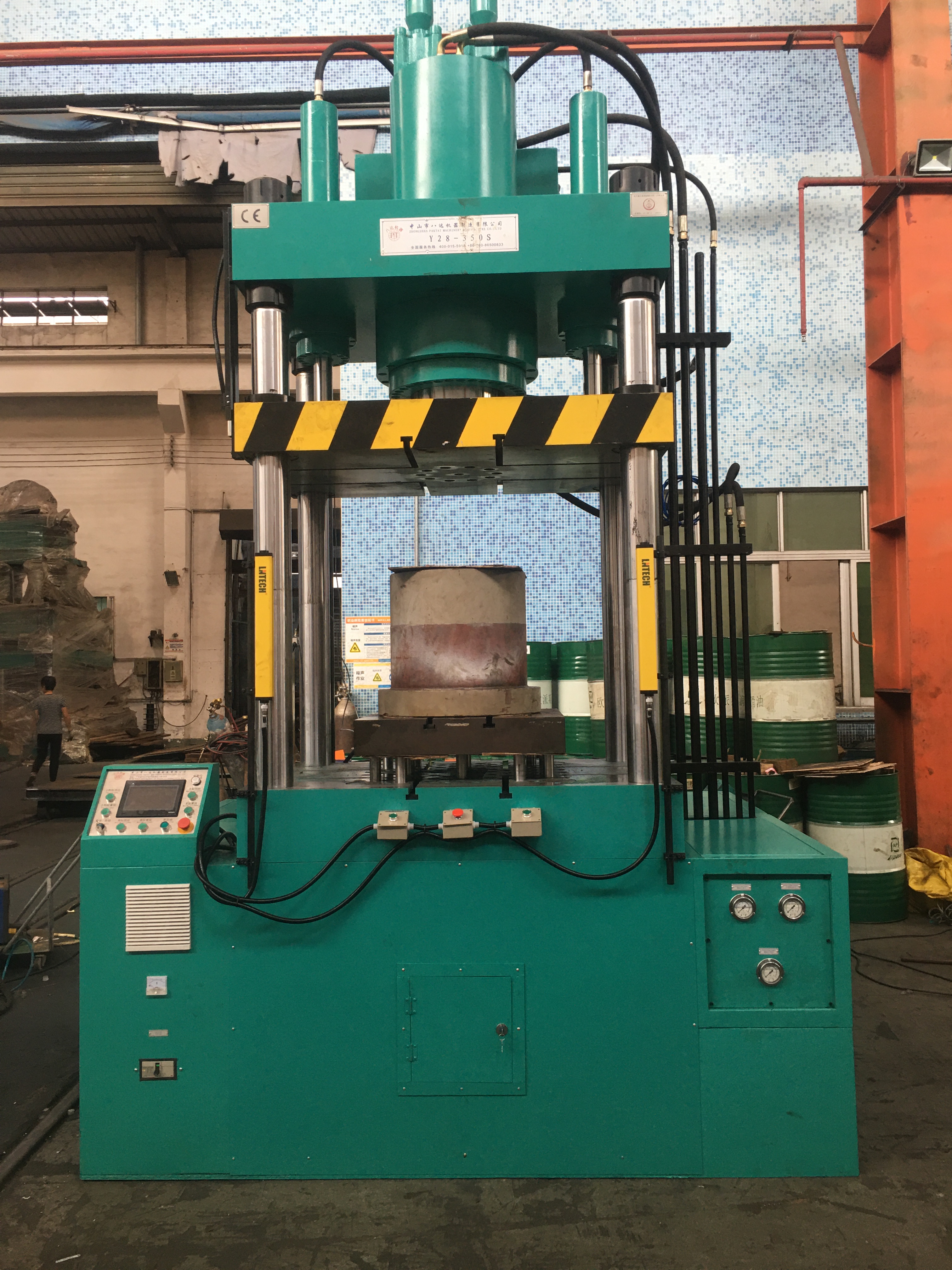

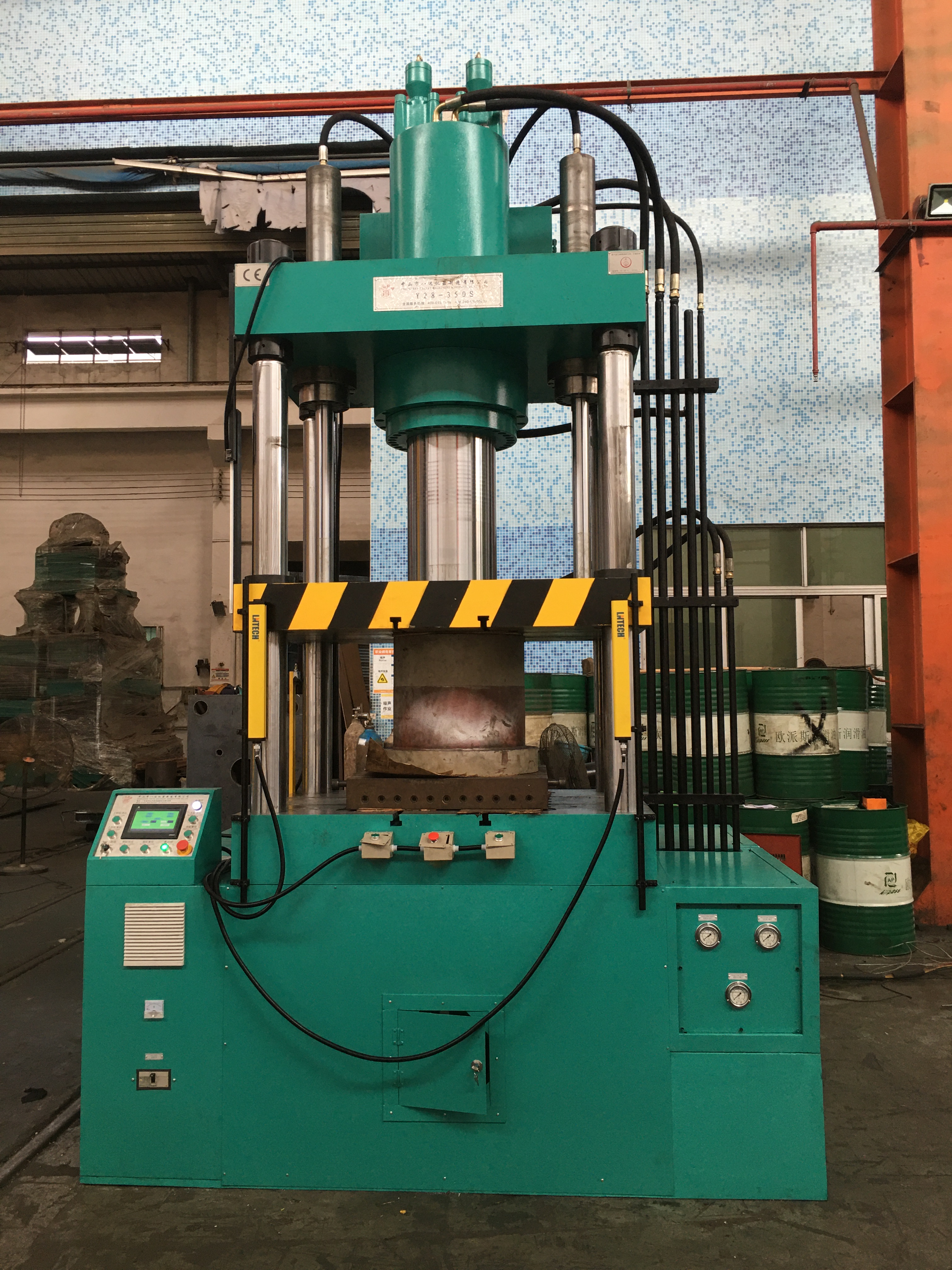

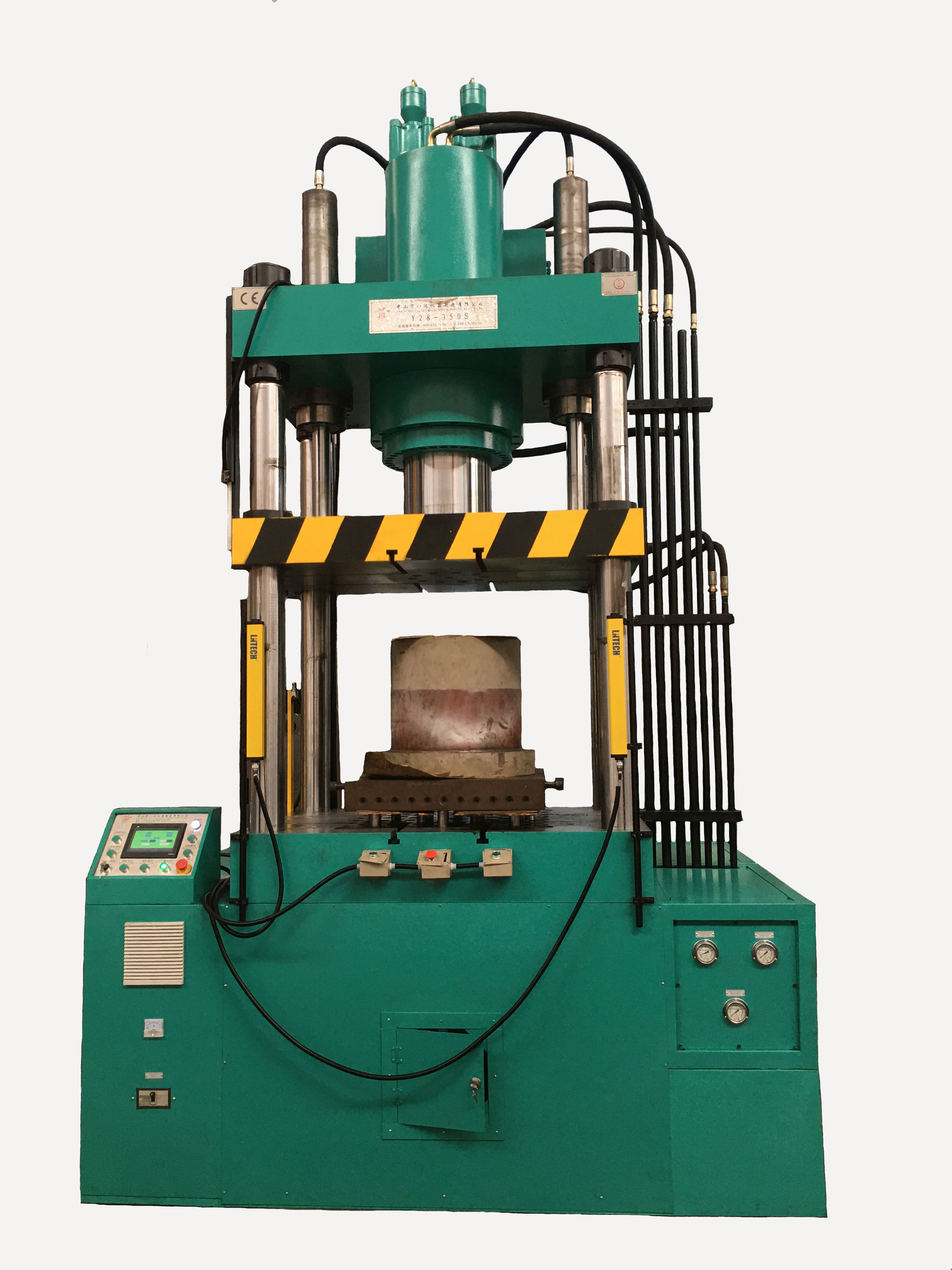

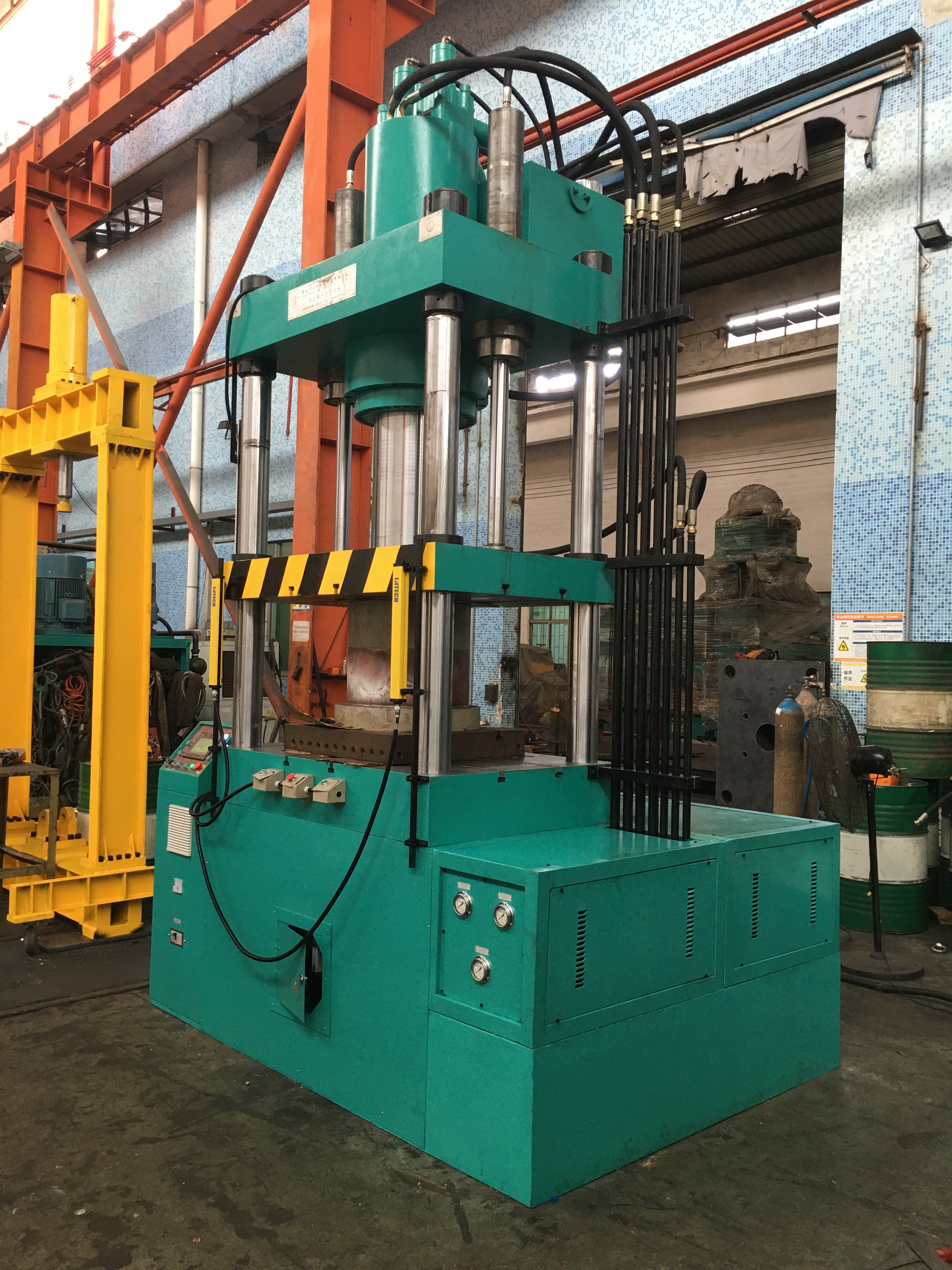

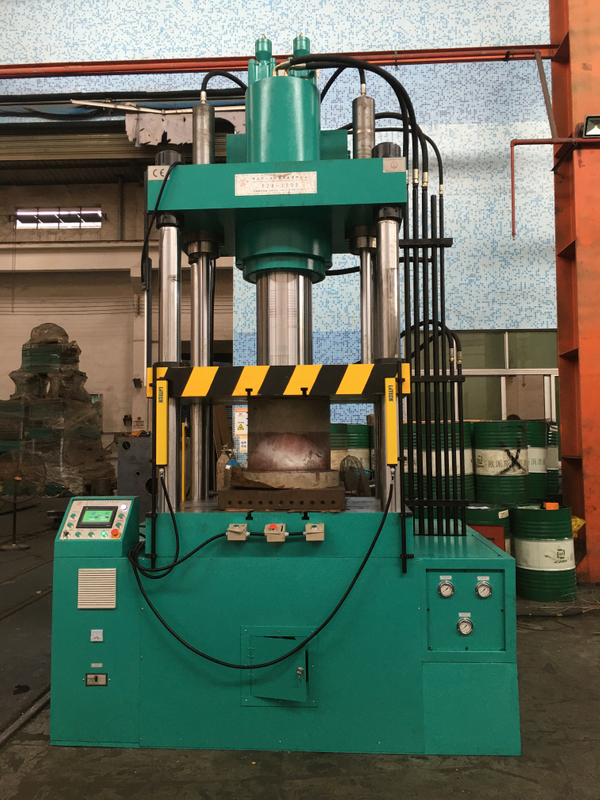

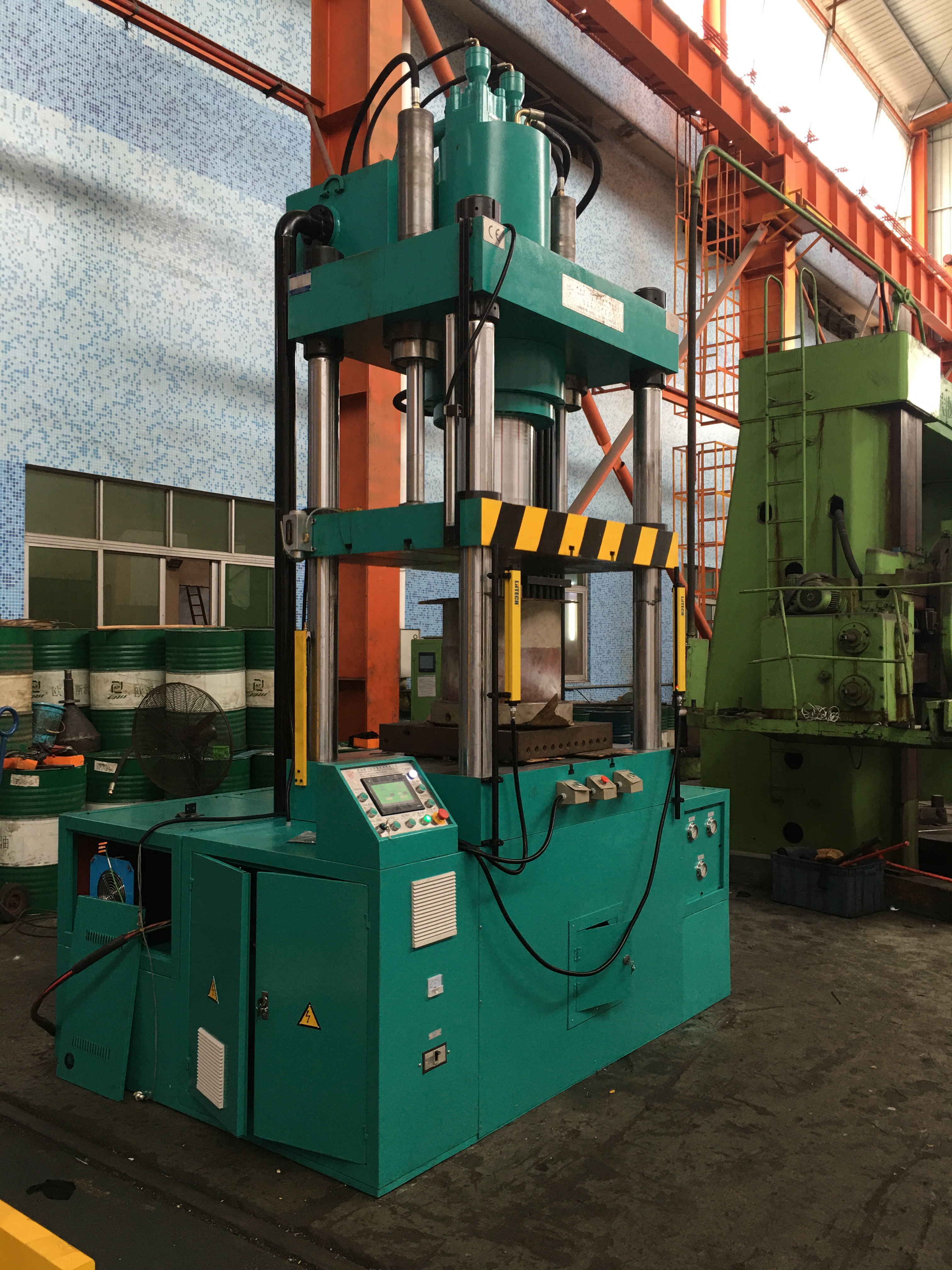

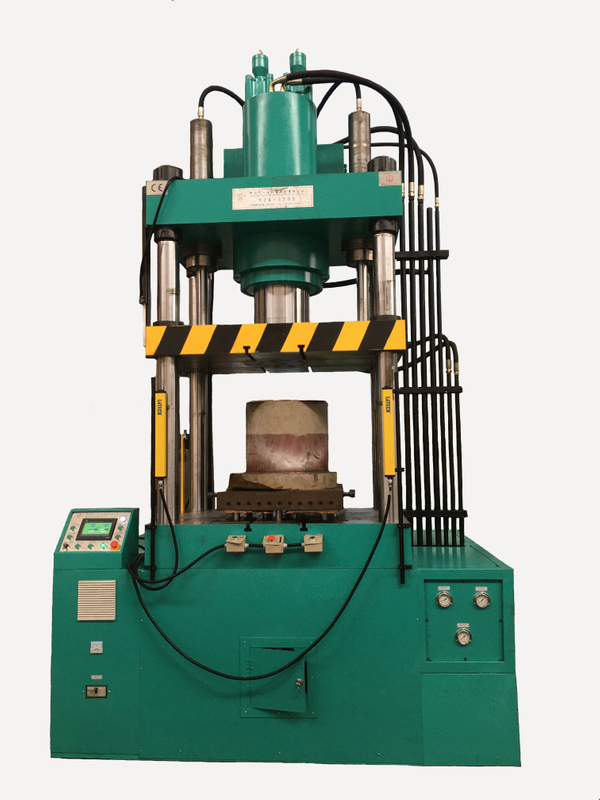

Y28-350S Pressing Product Diagram Y28-350S Pressing Product Diagram:
Main technical parameters of Y28-350S:
Serial numberNO. | ItemItem | UnitUnit | Y28-350S | |
1 | Nominal force Nominal force | KN | 3500 | |
2 | Master cylinder force Master cylinder force | KN | 2500 (adjustable) (adjustable) | |
3 | Sump force Bottom cylinder force | KN | 1000 (adjustable) (adjustable) | |
4 | Ejection cylinder force Charging cylinder force | KN | 150 (adjustable) (adjustable) | |
5 | Slider stroke Maximum stroke of the slider | mm | 600 (adjustable) (adjustable) | |
6 | Sump stroke Maximum stroke of bottom cylinder | mm | 150 (adjustable) (adjustable) | |
7 | Top cylinder stroke Maximum stroke of top cylinder | mm | 200 (adjustable) (adjustable) | |
8 | Working area opening height Maximum opening height of working area | mm | 1150 | |
9 | Working slider speed Working slider speed | Get off quickly Fast downward | mm/s | 220 (adjustable) (adjustable) |
stretch stretch | mm/s | 16-30 (adjustable) (adjustable) | ||
Returning | mm/s | 220 (adjustable) (adjustable) | ||
10 | Effective size of workbench Effective size of table | left-right(inside column) | mm | 1100 |
front-back(inside column) | mm | 650 | ||
11 | Hydraulic system pressure Hydraulic system pressure | MPa | 25 | |
12 | Motor powerMotor power | KW | 39.7 | |
