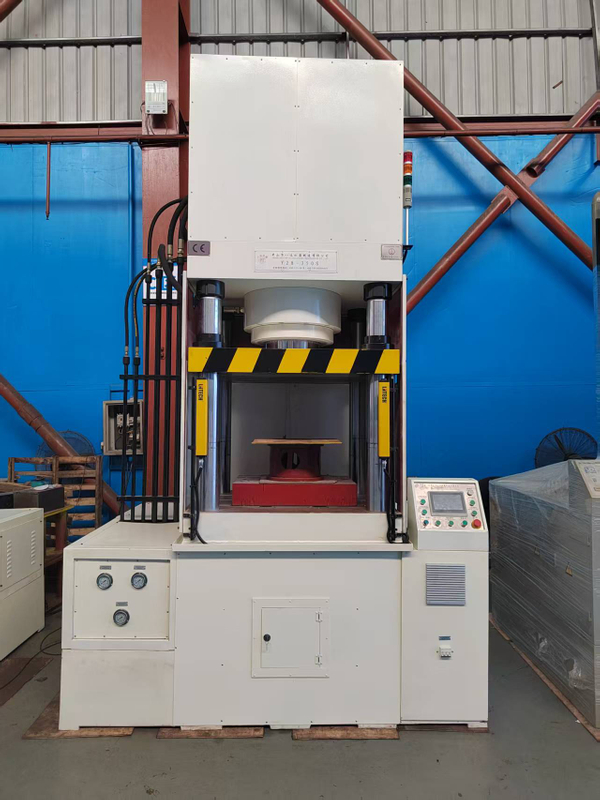

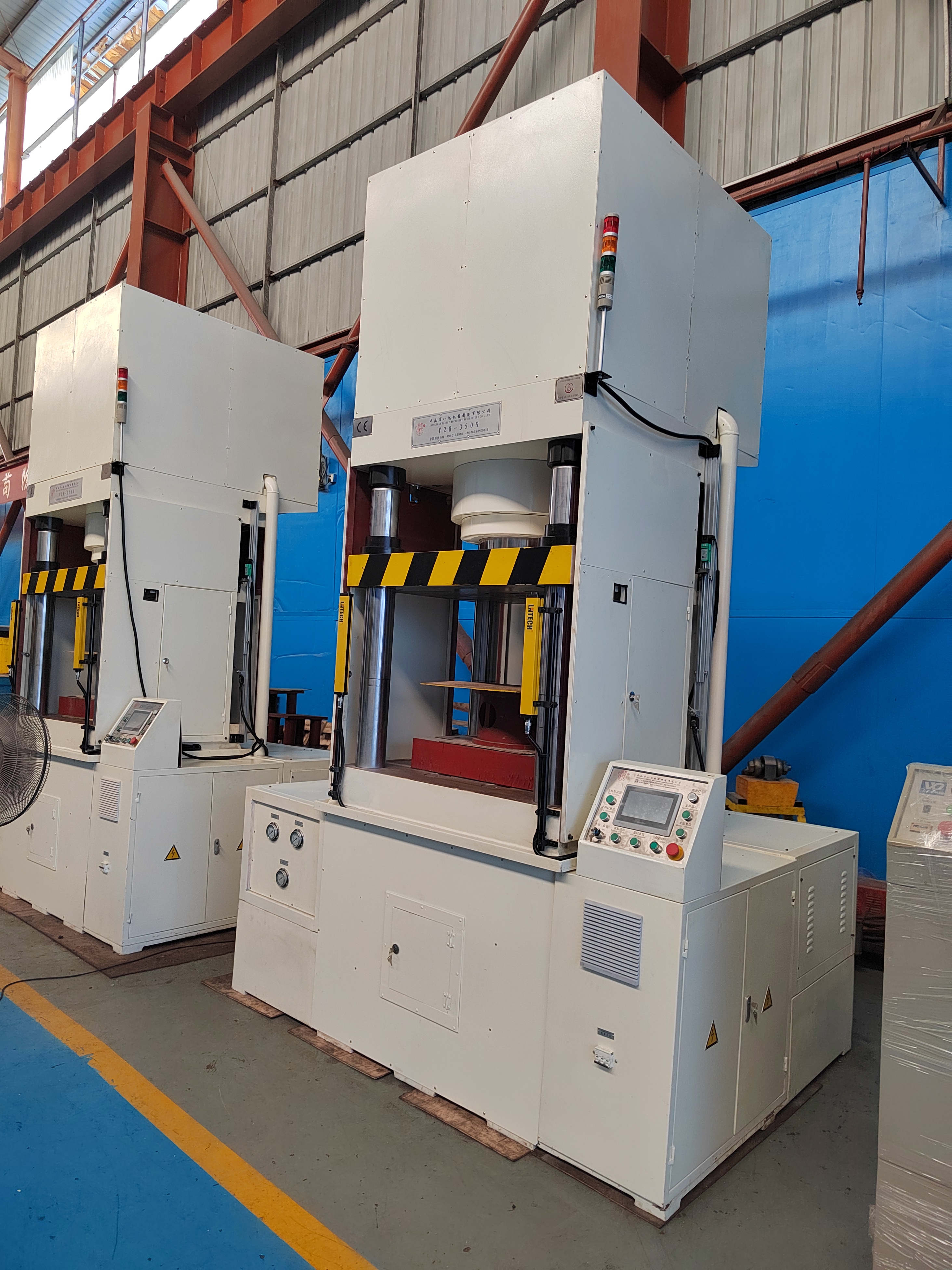

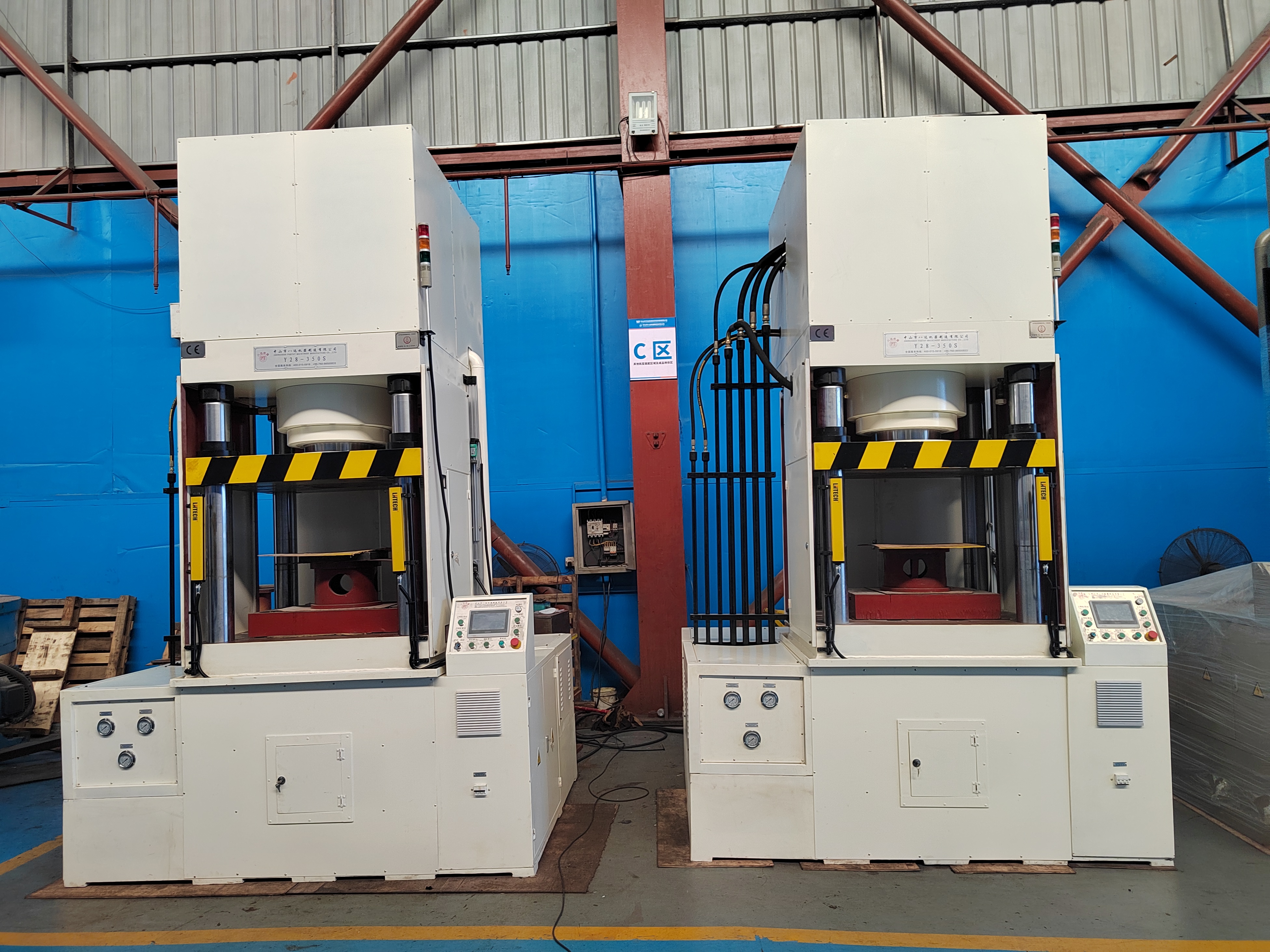

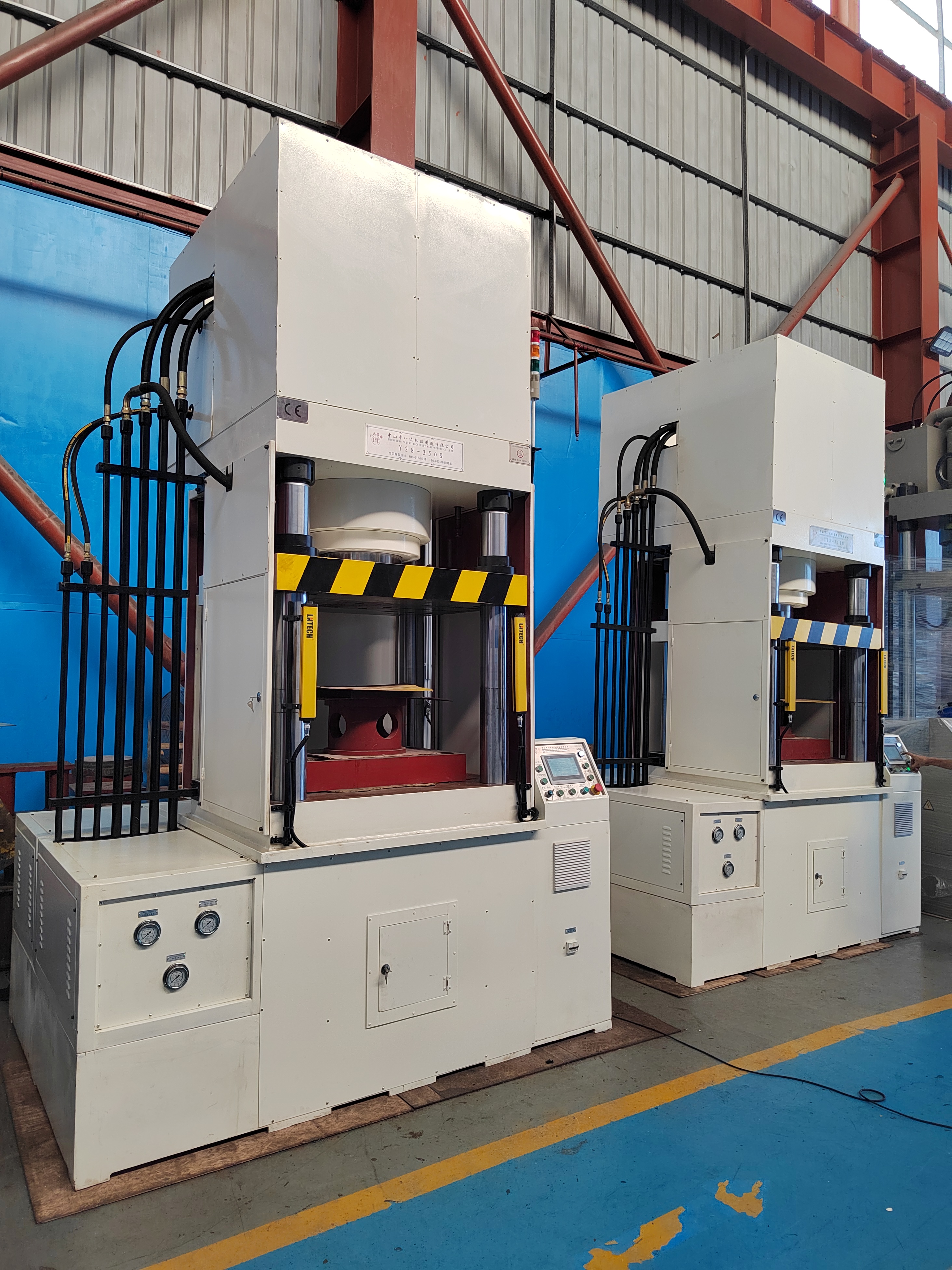

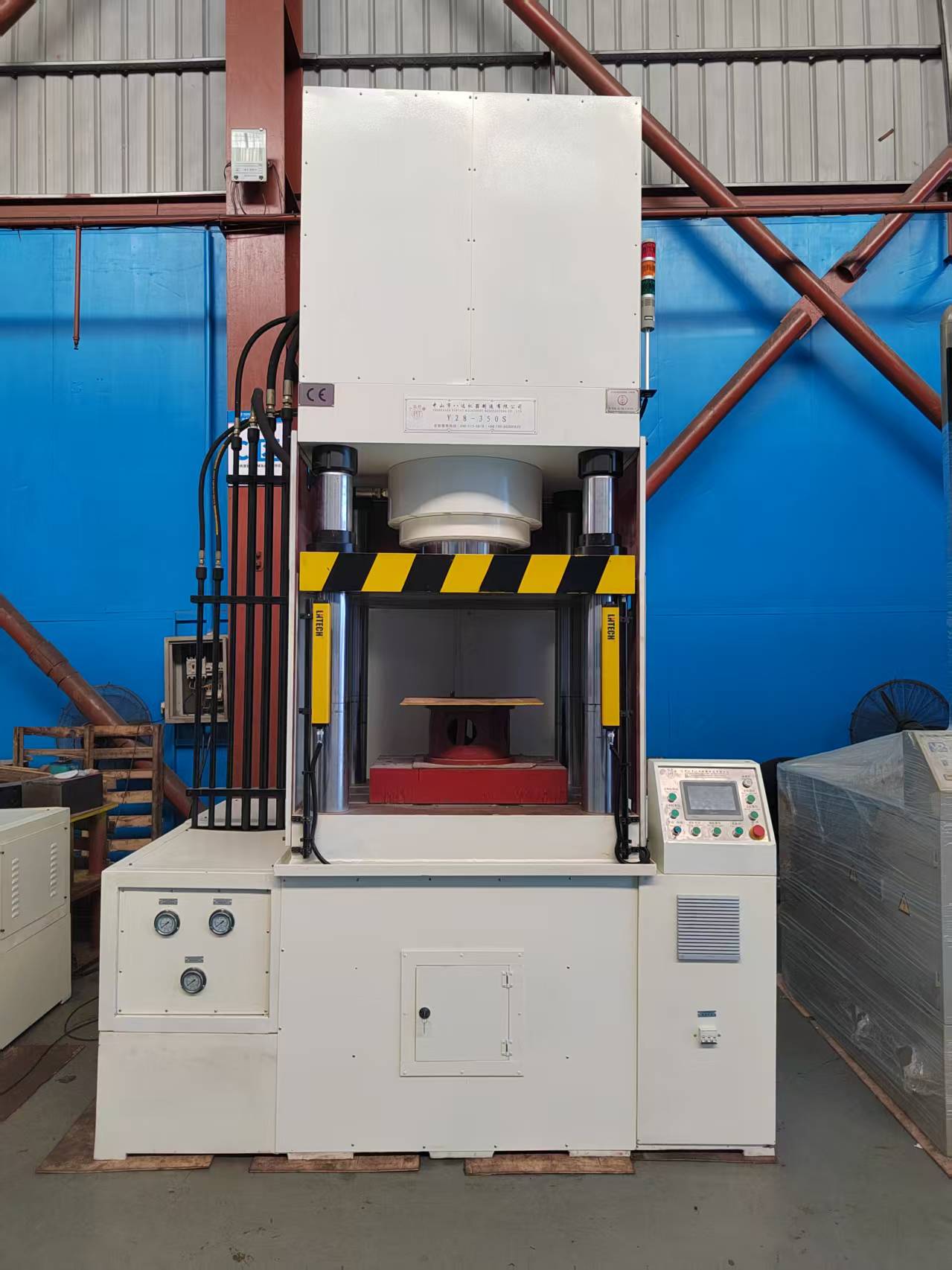

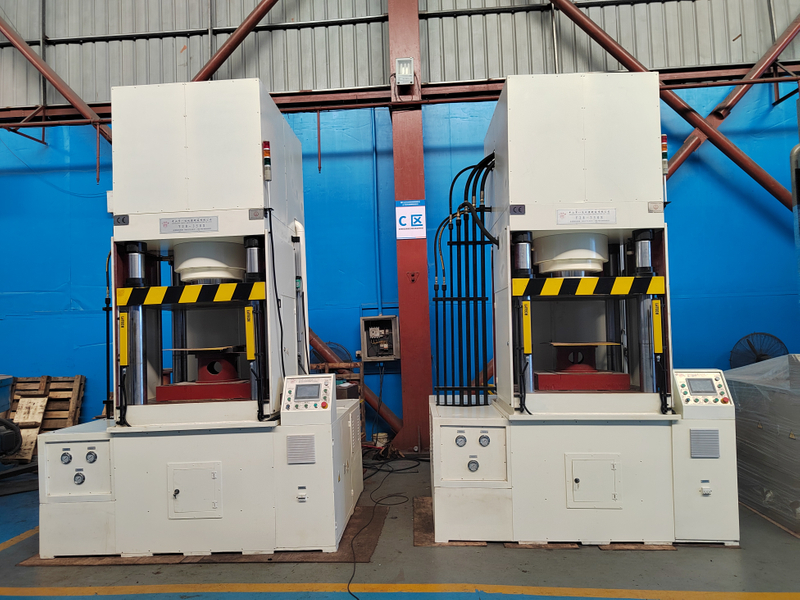

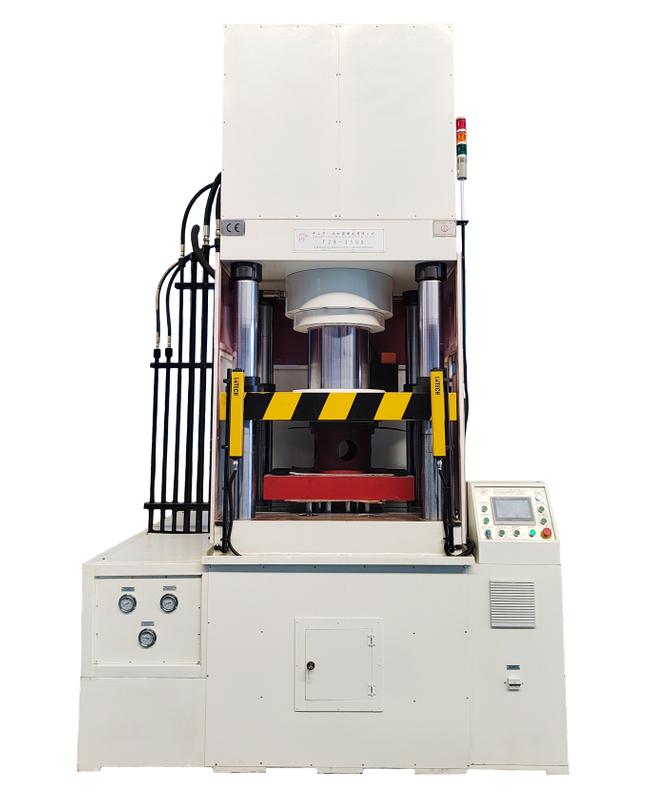

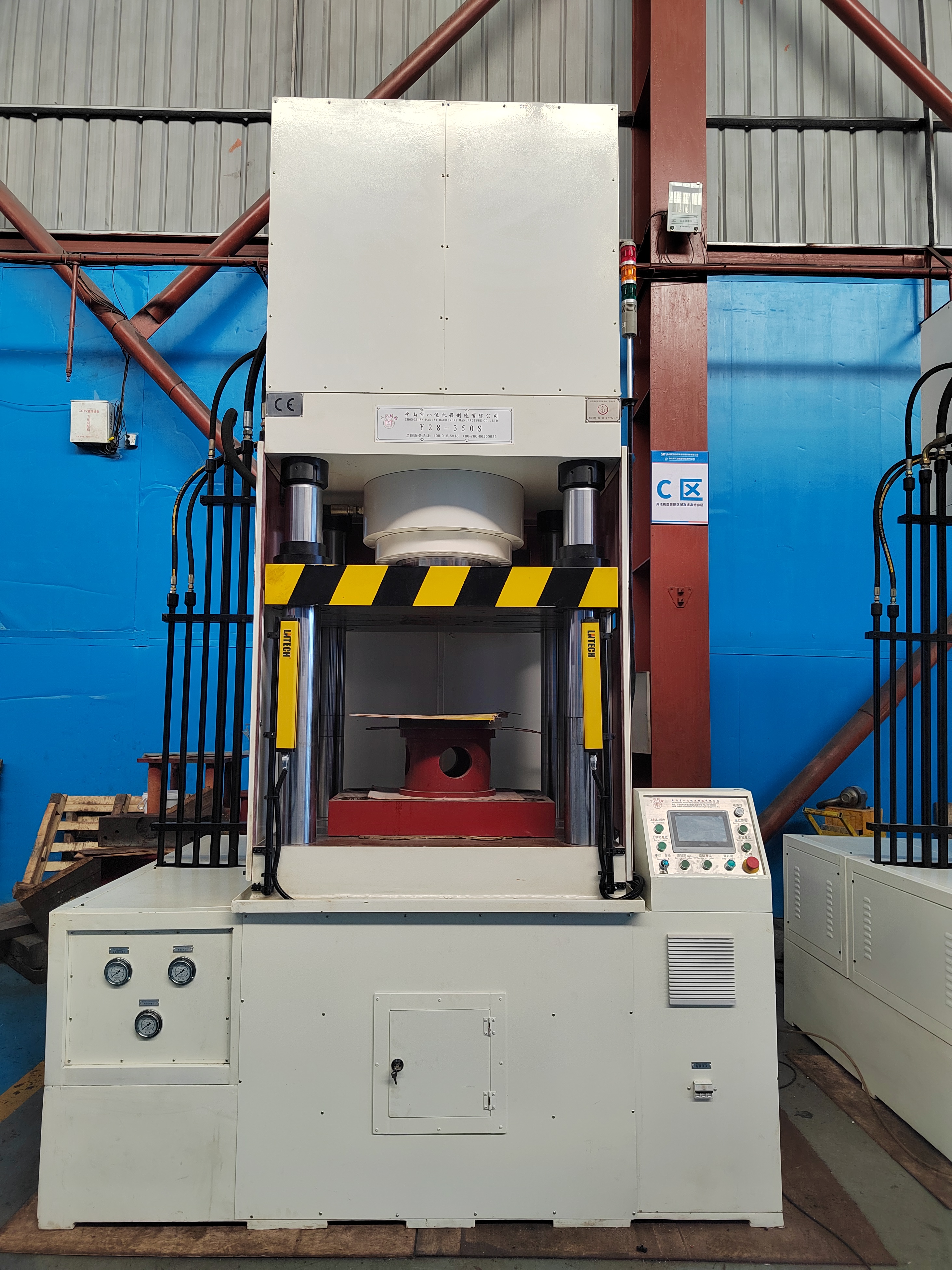

Y28-350S servo double-action stretching machine

The Y28-350S servo double-action stretcher has a high safety protection level. There is a fixed four-sided protective plate above the plane of the upper beam plate that is consistent with the top height. The double-open door design is adopted from the left and right of the upper beam plate to the lower area, and the machine will stop operating immediately when the door body is opened, ensuring operation safety in all aspects.

Availability:

Quantity:



Inquire Add to Basket

Model:
Y28-350S
Brand:
万达

Product Description

Product Description

Main technical parameters

Serial number	project		unit	Value
1	Nominal power		KN	3500
2	Master cylinder force		KN	2500 (adjustable)
3	Hydraulic system pressure		MPa	24.6
4	Bottom cylinder force		KN	1000 (adjustable)
5	Threading cylinder force		KN	150 (adjustable)
6	Slider stroke		mm	400 (adjustable)
7	Bottom cylinder stroke		mm	200 (adjustable)
8	Threading cylinder stroke		mm	150 (Time relay control)
9	Workspace opening height		mm	750
10	Height of the workbench from the ground		mm	About 1100
11	Working slider speed	No load down	mm/s	220 (adjustable)
		Stretch	mm/s	14-25 (adjustable)
		Return	mm/s	220 (adjustable)
12	Workbench effective size	Left and right (inside the column)	mm	800
12	Workbench effective size	Front and back (edge)	mm	900
13	Servo motor power		KW	26.7
