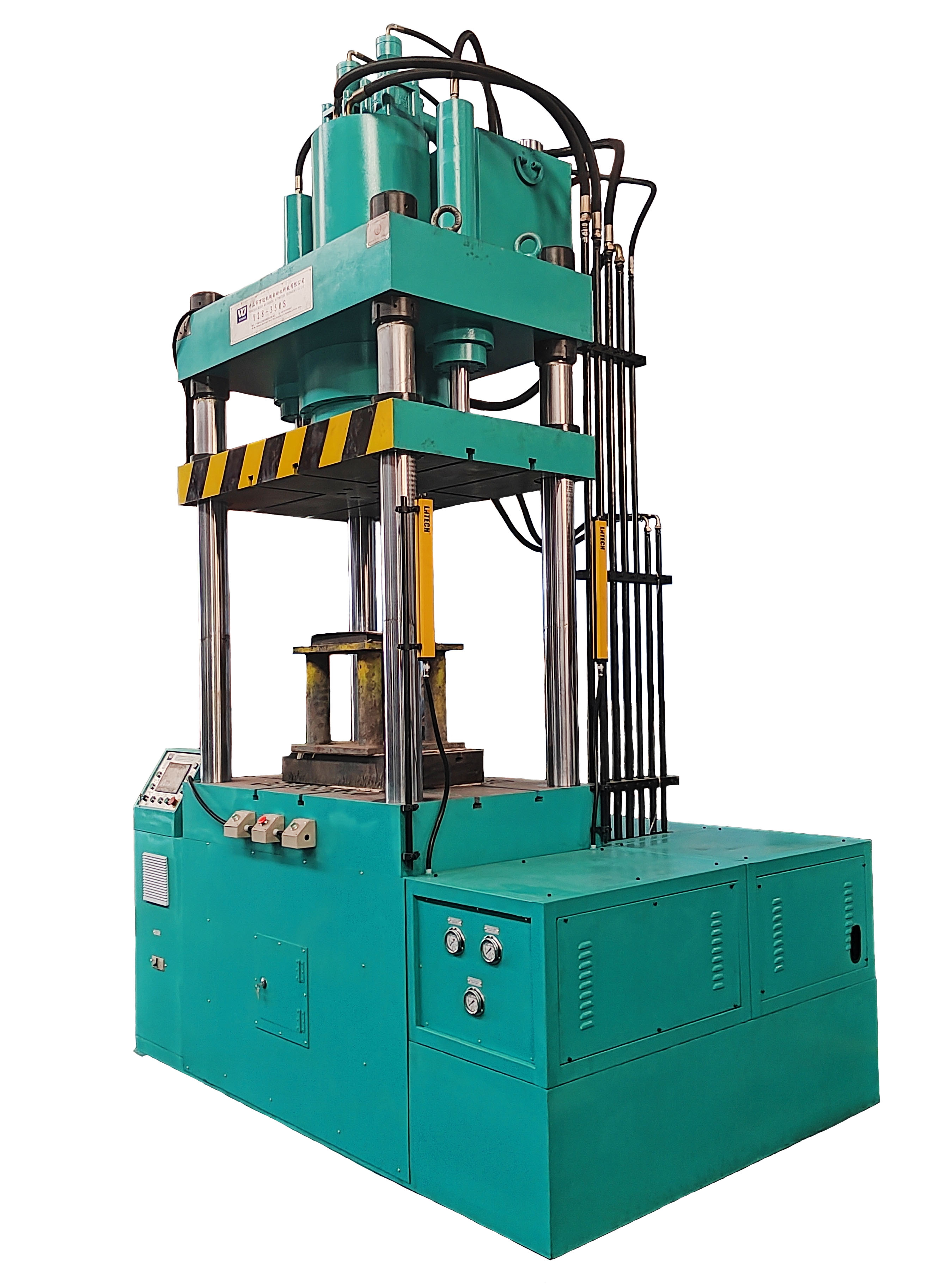

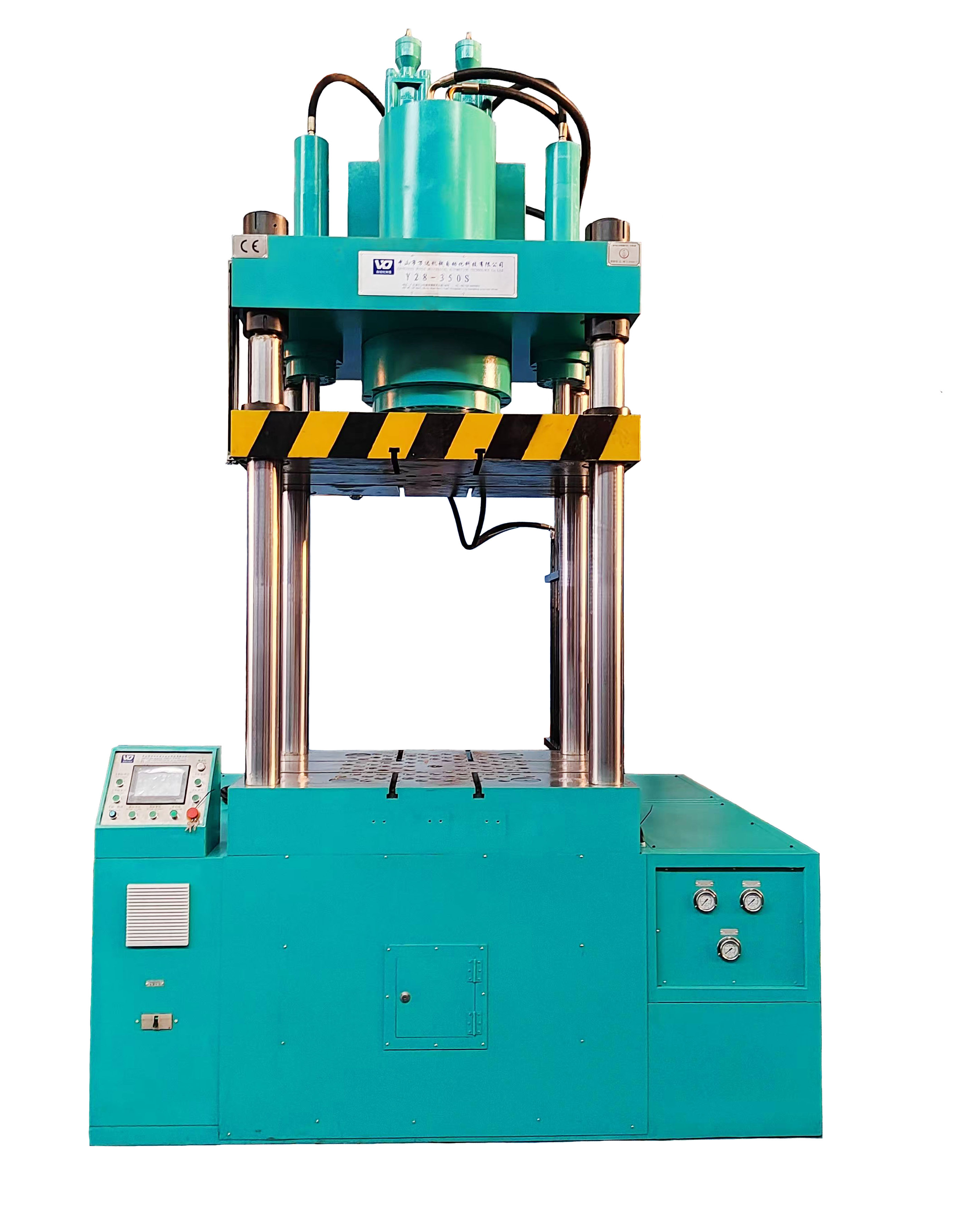

Y28-350S servo precision CNC double-action stretching machine

Y28-S series models are used for stretch forming of these coverings for home appliances and automotive accessories. Suitable for stretching, forming, straightening and other processes of thin metal plates. For example: tableware, lighting, metal shells, containers, etc. stretching and forming.
This series of products is professionally designed, using famous brands, imported hydraulic components, electrical control components, precision-made, fast speed and high precision.
It saves energy, has low voice and is easy to operate, and is an ideal equipment in the hardware and electrical industry.
Availability:
Quantity:
Y28-350S servo precision CNC double-action stretching machine
Y28-350S servo precision CNC double-action stretching machine
Y28-350S servo precision CNC double-action stretching machine
Y28-350S servo precision CNC double-action stretching machine
Y28-350S servo precision CNC double-action stretching machine
Y28-350S servo precision CNC double-action stretching machine
  • Y28-350S

  • 万达

Product Description

Technical parameters Main technical:

Serial number NO.

Project Item

Unit

Value Spec.

1

Nominal force

KN

3500

2

Main cylinder force

KN

2500 (adjustable)

3

Bottom cylinder force

KN

1000 (adjustable)

4

Top material cylinder force

KN

150 (adjustable)

5

Slider stroke Maximum stroke of slider

mm

600 (adjustable)

6

Maximum stroke of bottom cylinder

mm

200 (adjustable)

7

Threading cylinder stroke

Maximum stroke of top material cylinder

mm

200

8

Workspace opening height

Maximum opening height in the workspace

mm

1150

9

Working slider speed

Working slider speed

No load down

No-load down

Mm/S

220 (adjustable)

Stretch


Mm/S

16-30 (adjustable)

Return

Mm/S

220 (adjustable)

10

Workbench effective size

Effective size of table

Left and right LR

mm

1100 (Inside the column)

Front and rear FB

mm

650 (Inside the column)

11

Hydraulic system pressure

MPa

25

12

Motor Power

KW

39.7
