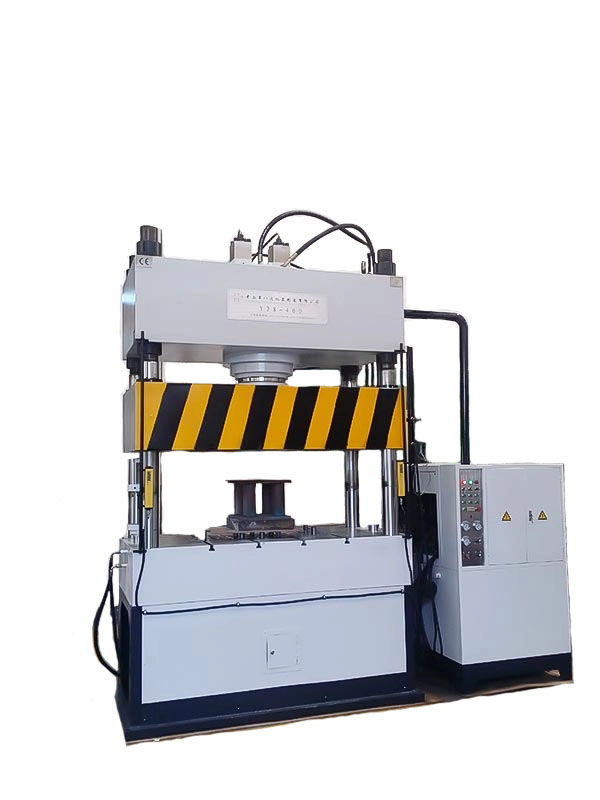

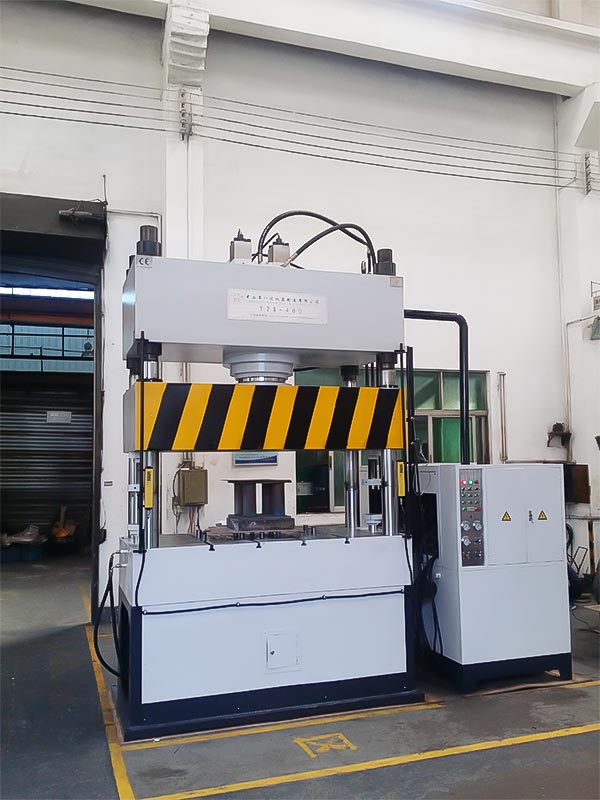

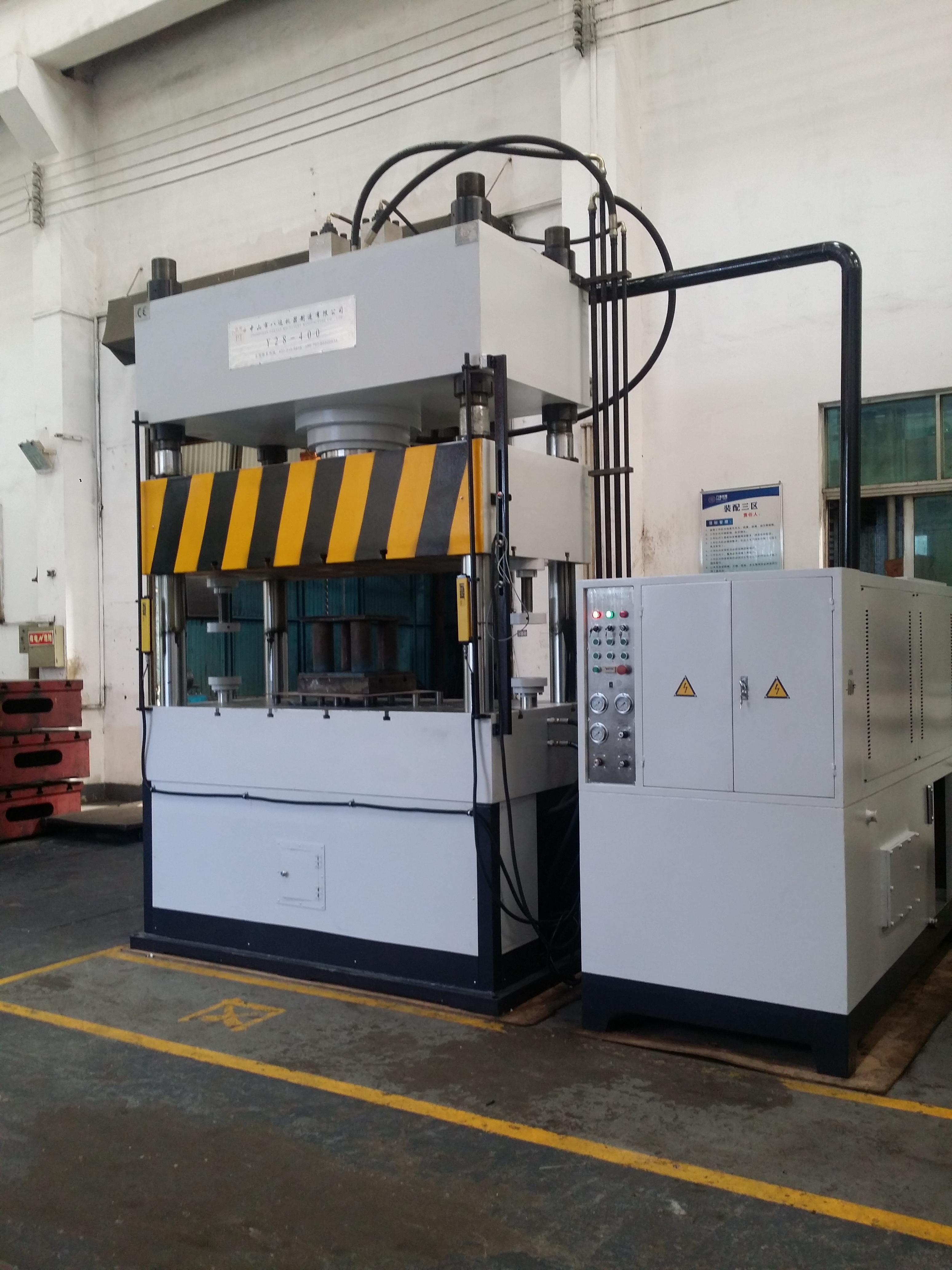

Y28 series hydraulic press is suitable for sheet metal deep drawing, forming, straightening and other process. Finished products for example: tableware, electricity box, metal shell, metal sink, car body etc.
This series hydraulic press of professional design, we adopt international famous brand products for hydraulic and electrical components, have the advantages of high precision, energy saving, low voice, easy operation and maintenance, high production efficiency, it's the ideal equipment in hardware industry.
Quantity: | |
---|---|
product description
<
Y28 Series Double-action Drawing Hydraulic Press Technical Parameters | |||||||||||||
Item | Units | Specification | |||||||||||
Y28-65 | Y28-100 | Y28-150 | Y28-200 | Y28-350 | Y28-500 | Y28-500L | Y28-600 | Y28-700 | Y28-880 | Y28-1300 | |||
Nominal Force | Tonf | 65 | 100 | 150 | 200 | 350 | 500 | 500 | 600 | 700 | 800 | 1300 | |
Main Cylinder Force | Tonf | 35 | 65 | 100 | 150 | 250 | 350 | 350 | 200X2 | 500 | 630 | 1000 | |
Bottom Cylinder Force | Tonf | 25 | 35 | 50 | 50 | 100 | 150 | 150 | 200 | 200 | 250 | 300 | |
Ejector Force | Tonf | 5 | 5 | 5 | 10 | 15 | 20 | 30 | 30 | 30 | |||
Slider Stroke | mm | 300 | 500 | 500 | 550 | 600 | 650 | 700 | 700 | 1100 | 1000 | 1050 | |
Bottom Cylinder Stroke | mm | 100 | 250 | 250 | 280 | 300 | 330 | 400 | 400 | 350 | 350 | 600 | |
Ejector Stroke | mm | 50 | 100 | 180 | 200 | 200 | 200 | 200 | 200 | 200 | |||
Worktable Height from Ground | mm | 750 | 1030 | 1000 | 1128 | 1200 | 1550 | 900 | 1630 | 1200 | |||
Opening Height | mm | 600 | 860 | 900 | 950 | 1120 | 1330 | 1200 | 1200 | 1600 | 1500 | 1500 | |
Slider Speed | Fast Downward | mm/s | 130 | 150 | 170 | 150 | 150 | 150 | 150 | 150 | 260 | >200 | 150 |
Pressing | mm/s | 20 | 20 | 25 | 25 | 25 | 25 | 10 | 10 | 6-14 | 6-12 | 10 | |
Return | mm/s | 160 | 150 | 180 | 180 | 160 | 160 | 150 | 150 | 110 | 110 | 160 | |
Worktable Size | L.R | mm | 400 | 550 | 650 | 700 | 800 | 1000 | 2100 | 1900 | 2600 | 2400 | 1600 |
F.B | mm | 450 | 600 | 750 | 900 | 900 | 1200 | 1600 | 1400 | 1800 | 1800 | 1400 | |
System Pressure | Mpa | 20 | 22 | 22 | 22 | 22 | 22 | 21 | 21 | 25 | 25 | 21 | |
Motor Power | KW | 7.5 | 11 | 15 | 22 | 22 | 30 | 30 | 30 | 45.5 | 44 | 65 | |
Overall Dimension | L.R | mm | 1300 | 1620 | 1730 | 1800 | 1950 | 2400 | 3300 | 3125 | 4065 | ||
F.B | mm | 1100 | 1300 | 1420 | 1600 | 1640 | 1850 | 2200 | 2080 | 1885 | |||
Height | mm | 2400 | 3400 | 3550 | 3700 | 3800 | 4500 | 4915 | 4500 | 6300 | |||
Weight | Kg | 3200 | 4150 | 6200 | 8500 | 12500 | 20000 | 43500 | 3500 | 56000 | 57000 | 66000 |
