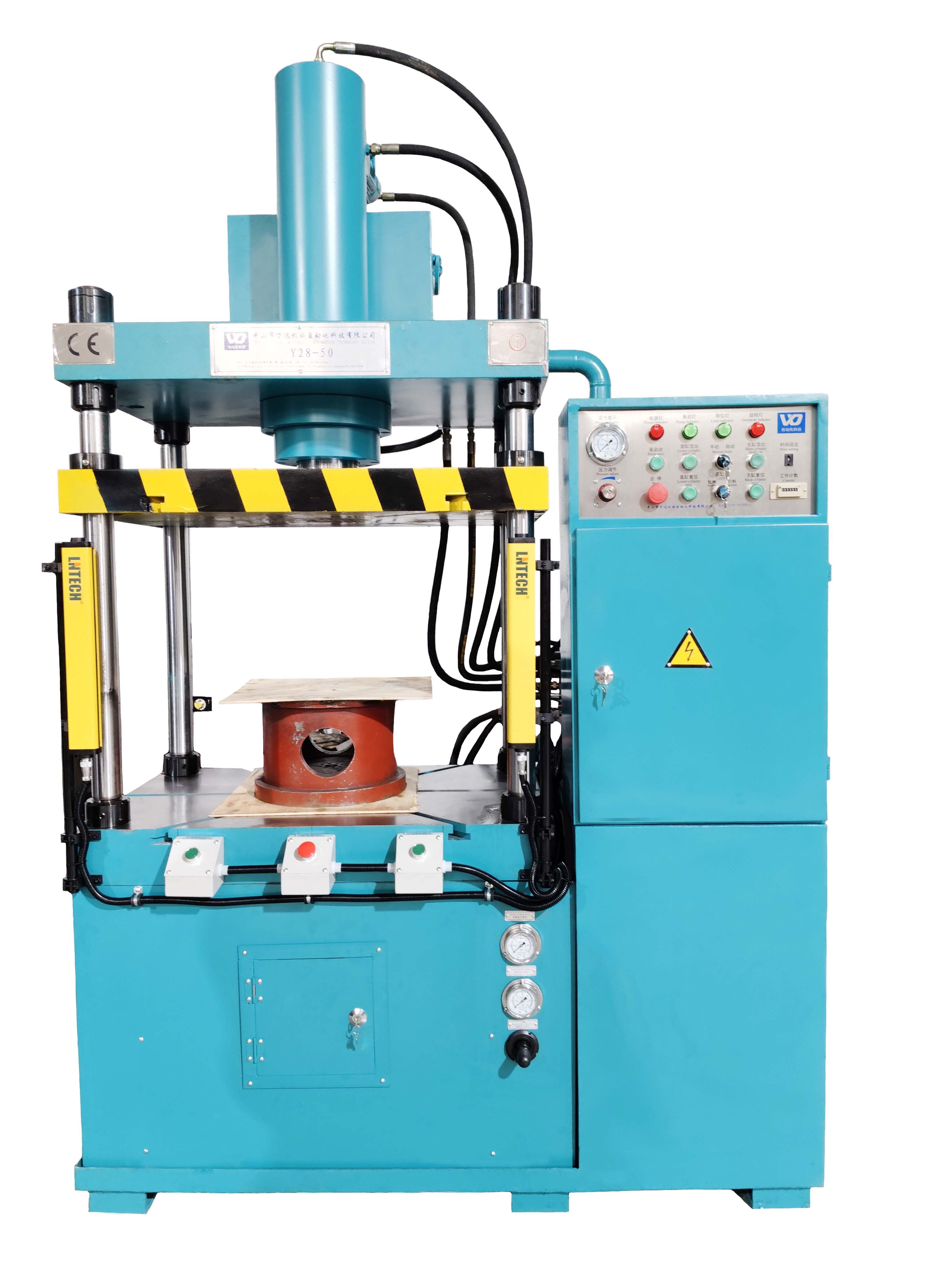

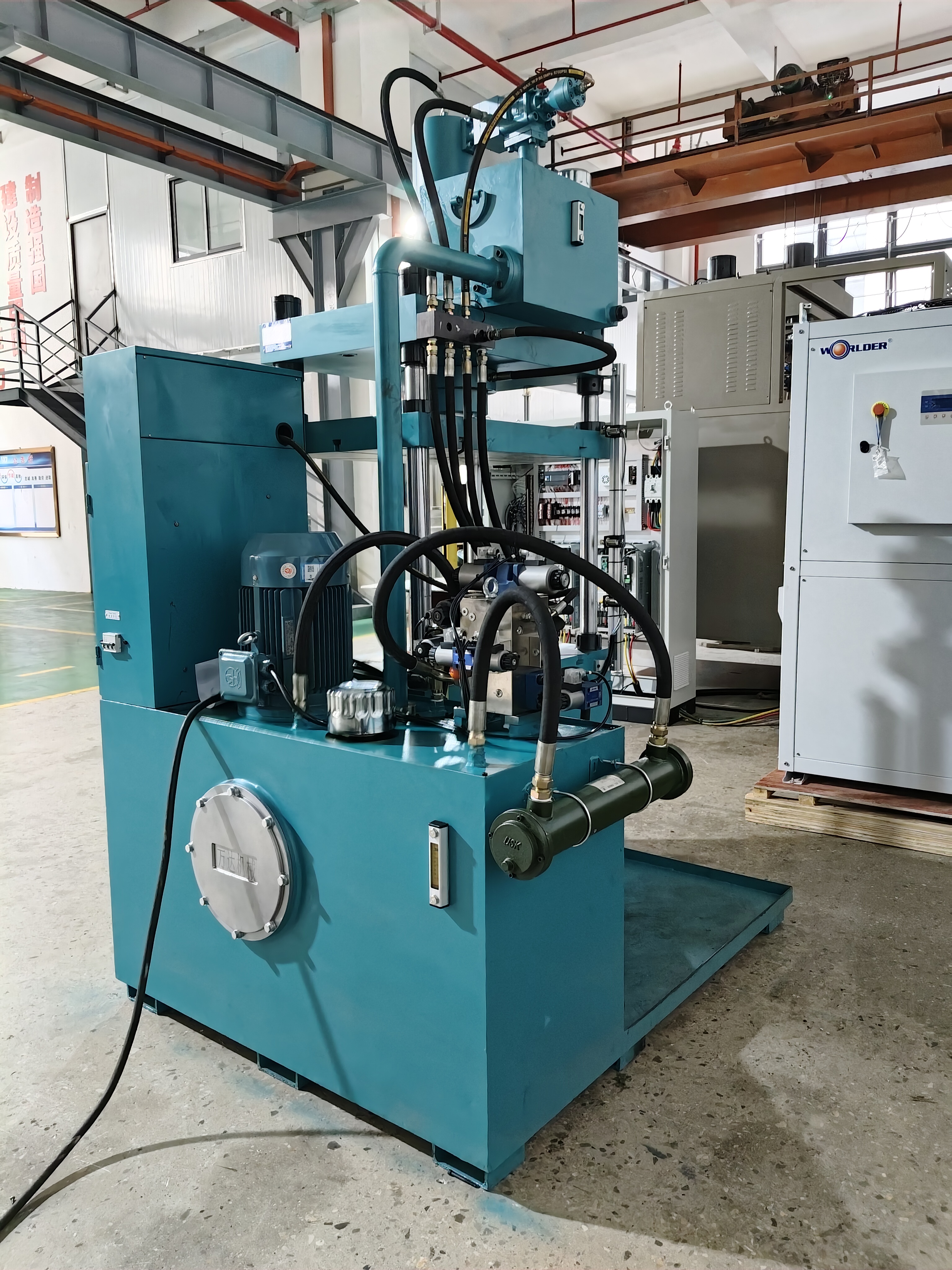

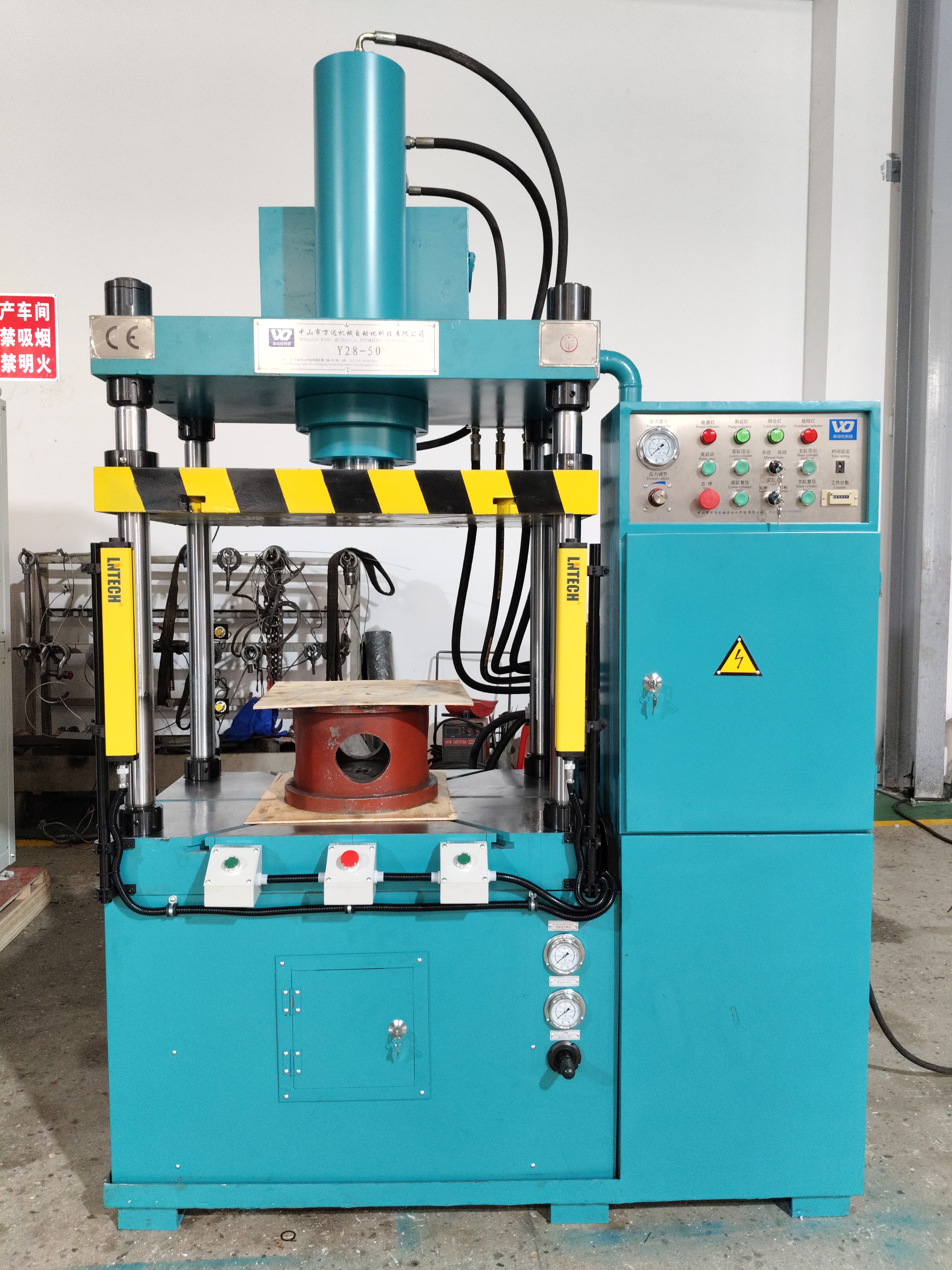

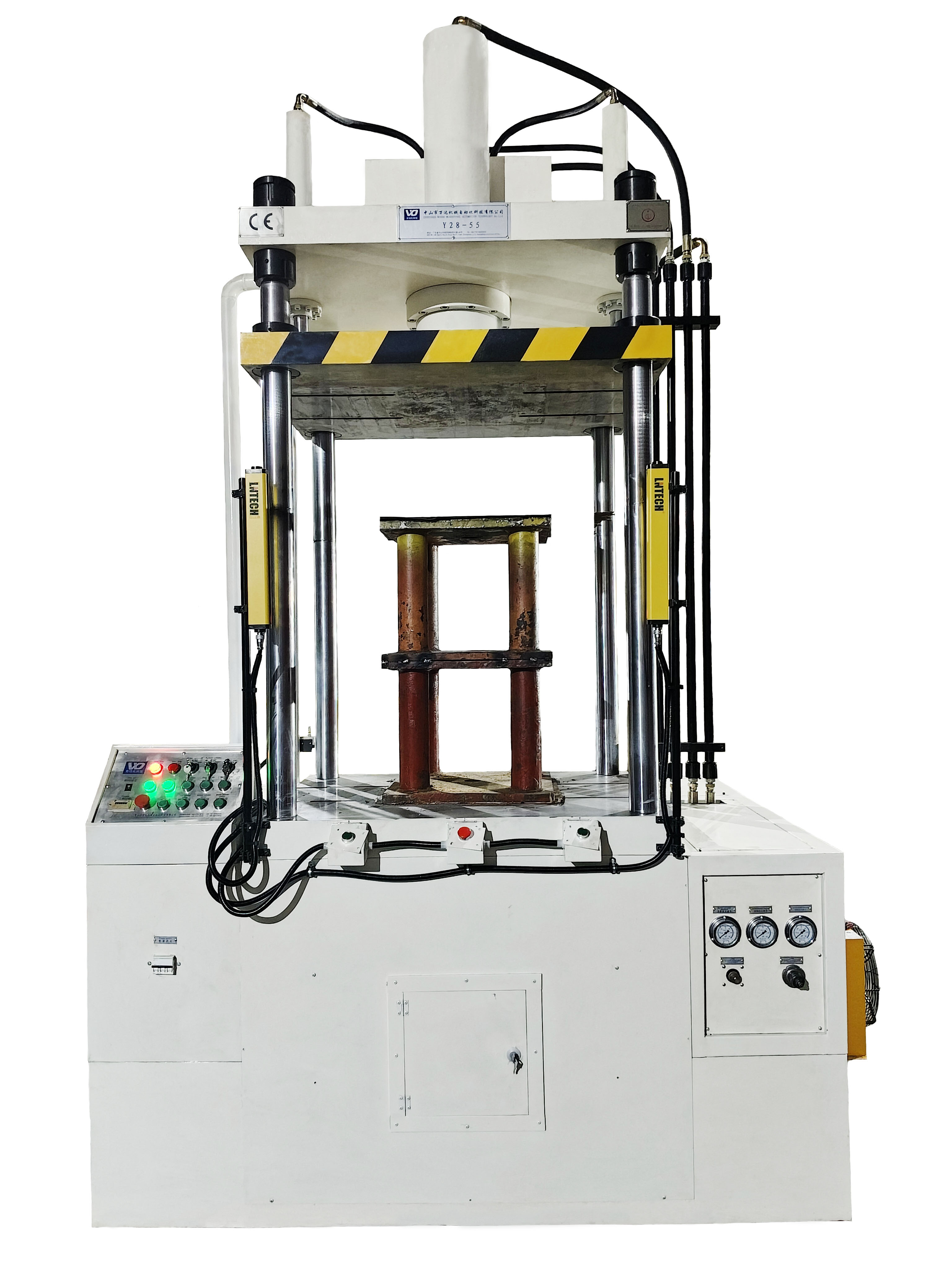

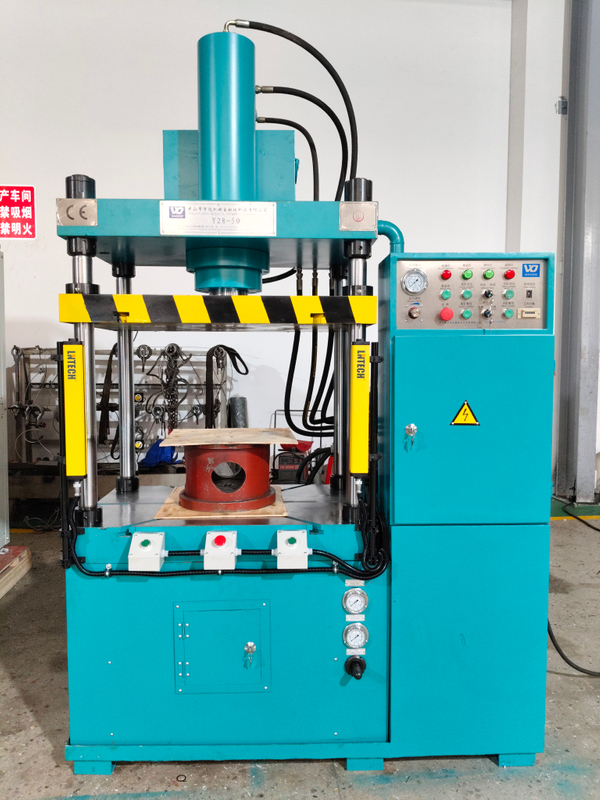

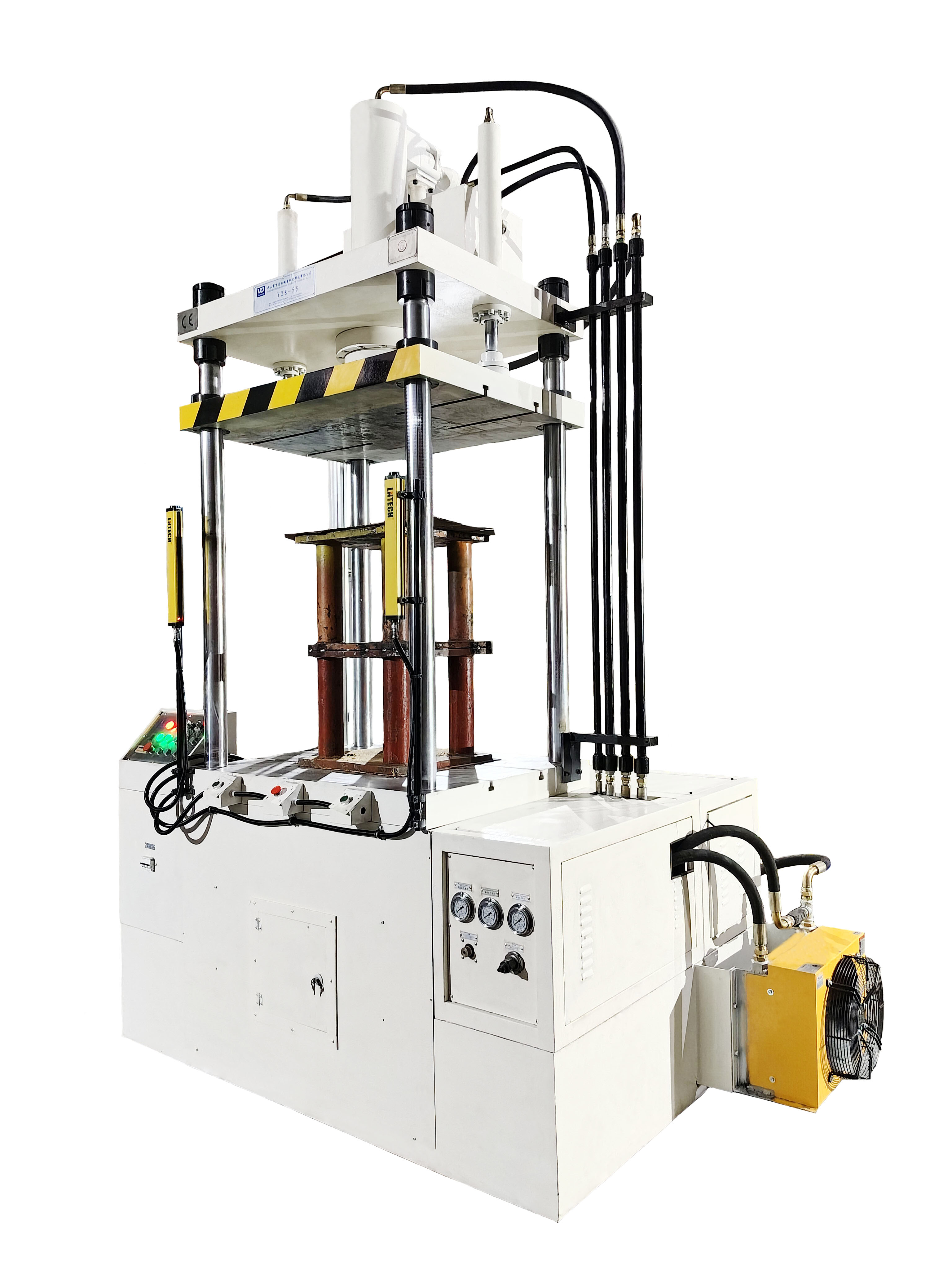

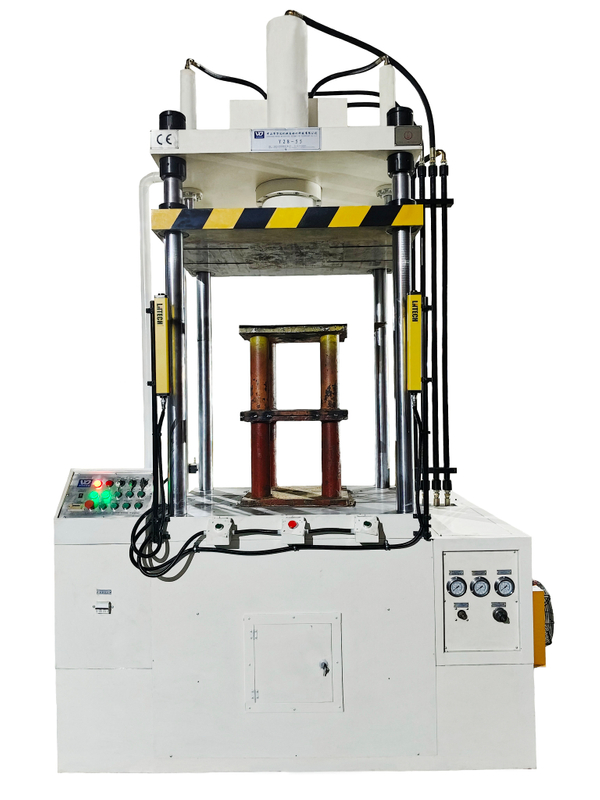

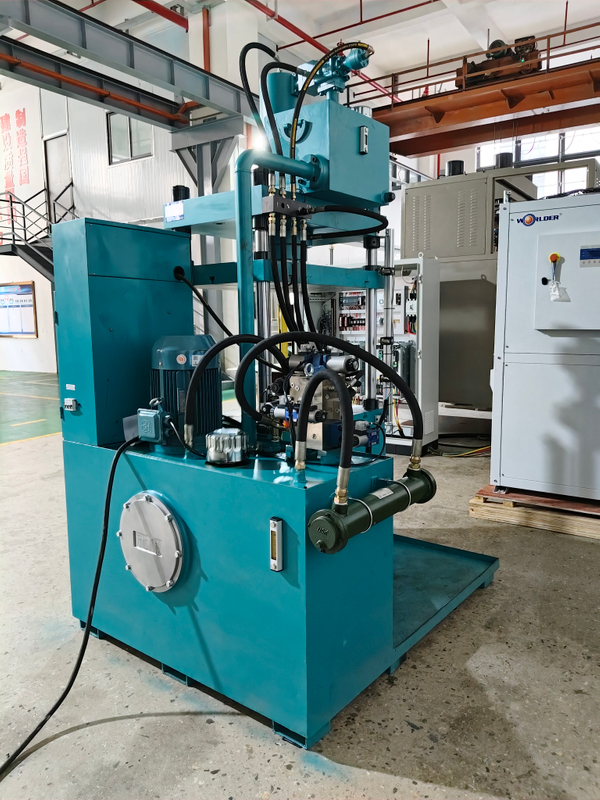

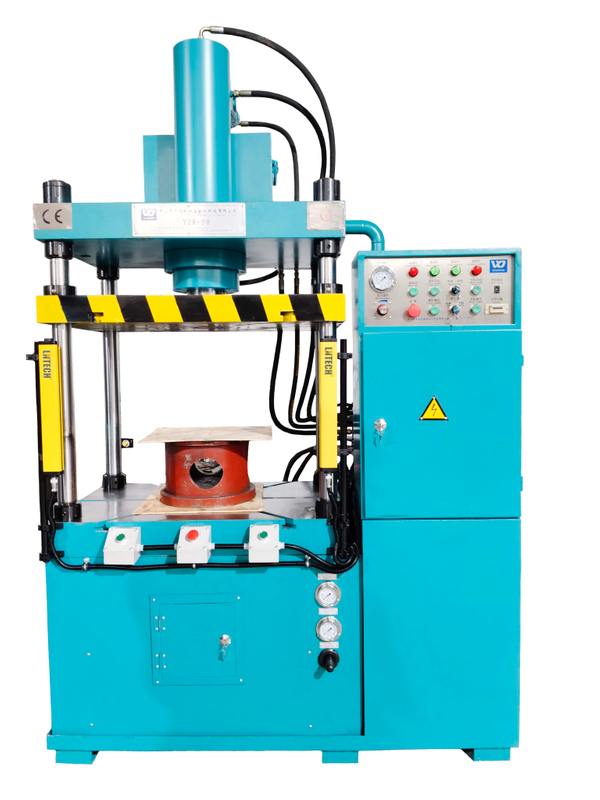

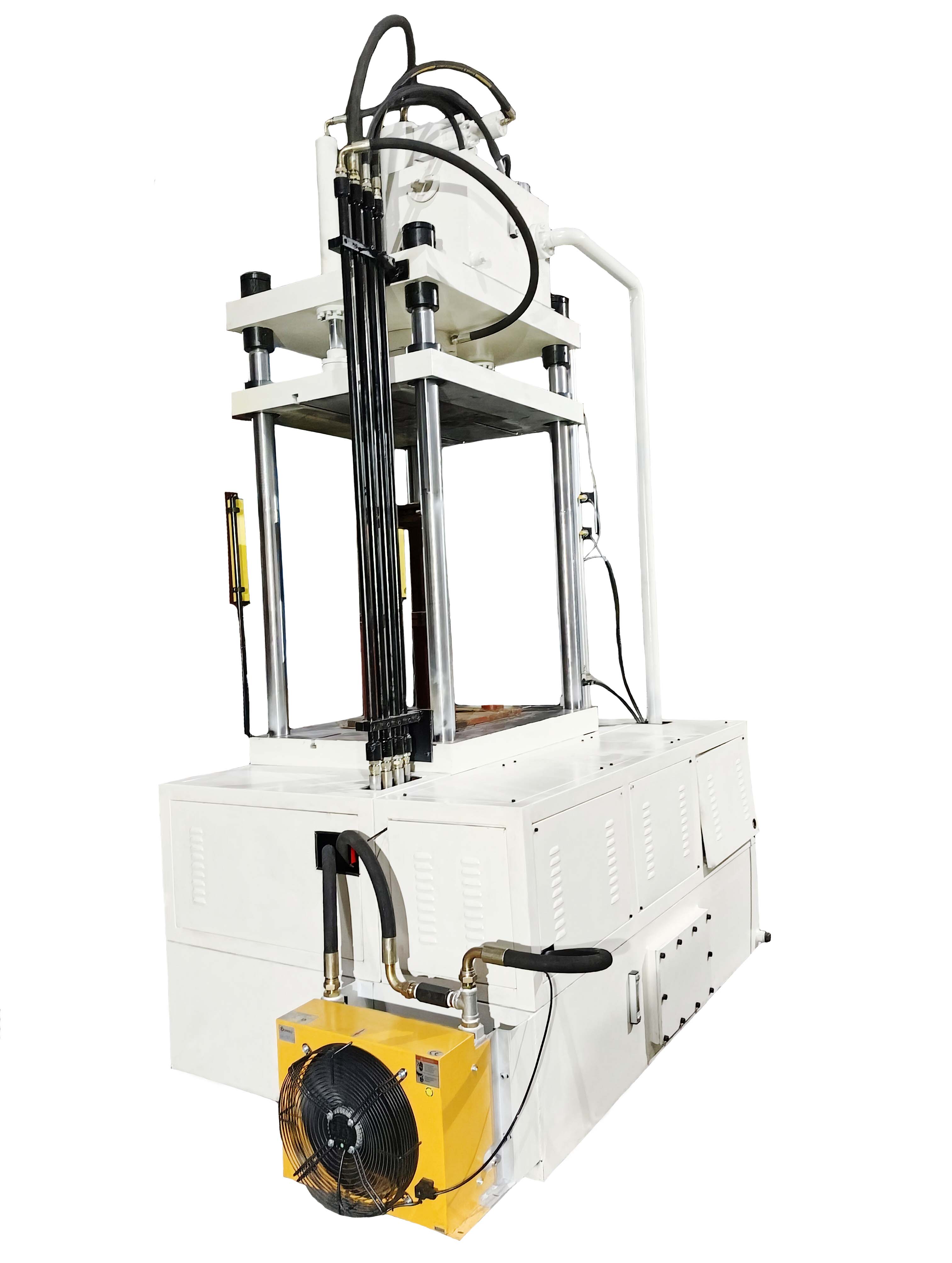

Y28-50-55 four-column double-action stretching machine

Serial number

project

unit

Y28-50 specifications

Y28-55 specifications

1

Nominal force of the master cylinder

KN

400

400

2

Maximum working pressure of liquid system

MPa

23

20.5

3

Slider stroke

mm

450

450

4

Opening height

mm

650

1200

5

Slider speed

No load down

Mm/s

120

180

Working in

Mm/s

13

18-36

Return

Mm/s

100

180

6

Workbench size

Left and right (inside the column)

mm

800

900

Front and back (edge)

mm

600

900

7

Motor power

KW

5.5

7.5

8

Nominal force of bottom cylinder

KN

100

150

9

Bottom cylinder stroke

Mm

100

100

10

Lower and middle lifting cylinder force

KN

/

50

11

Lower and middle lifting cylinder stroke

Mm

/

50
