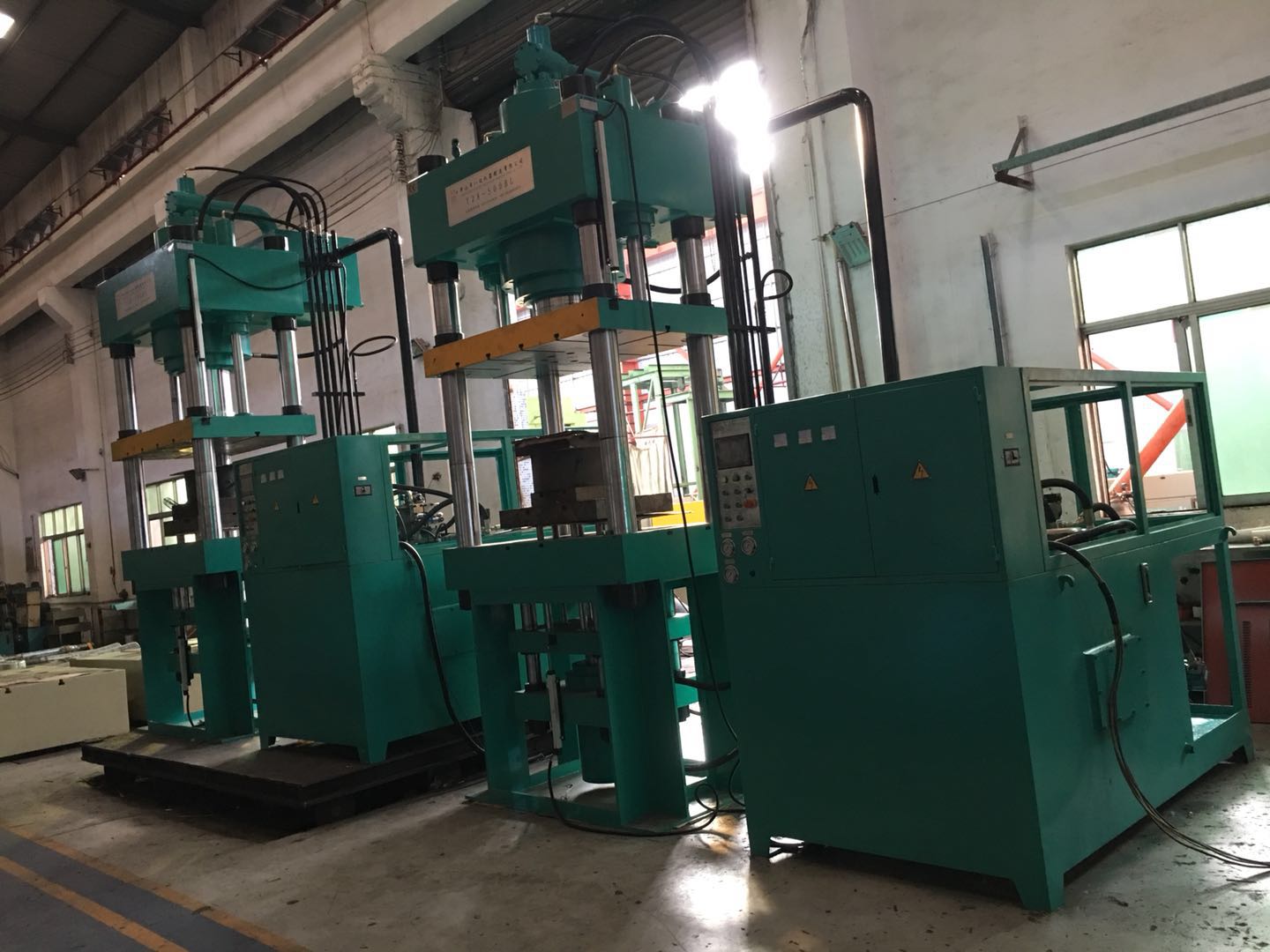

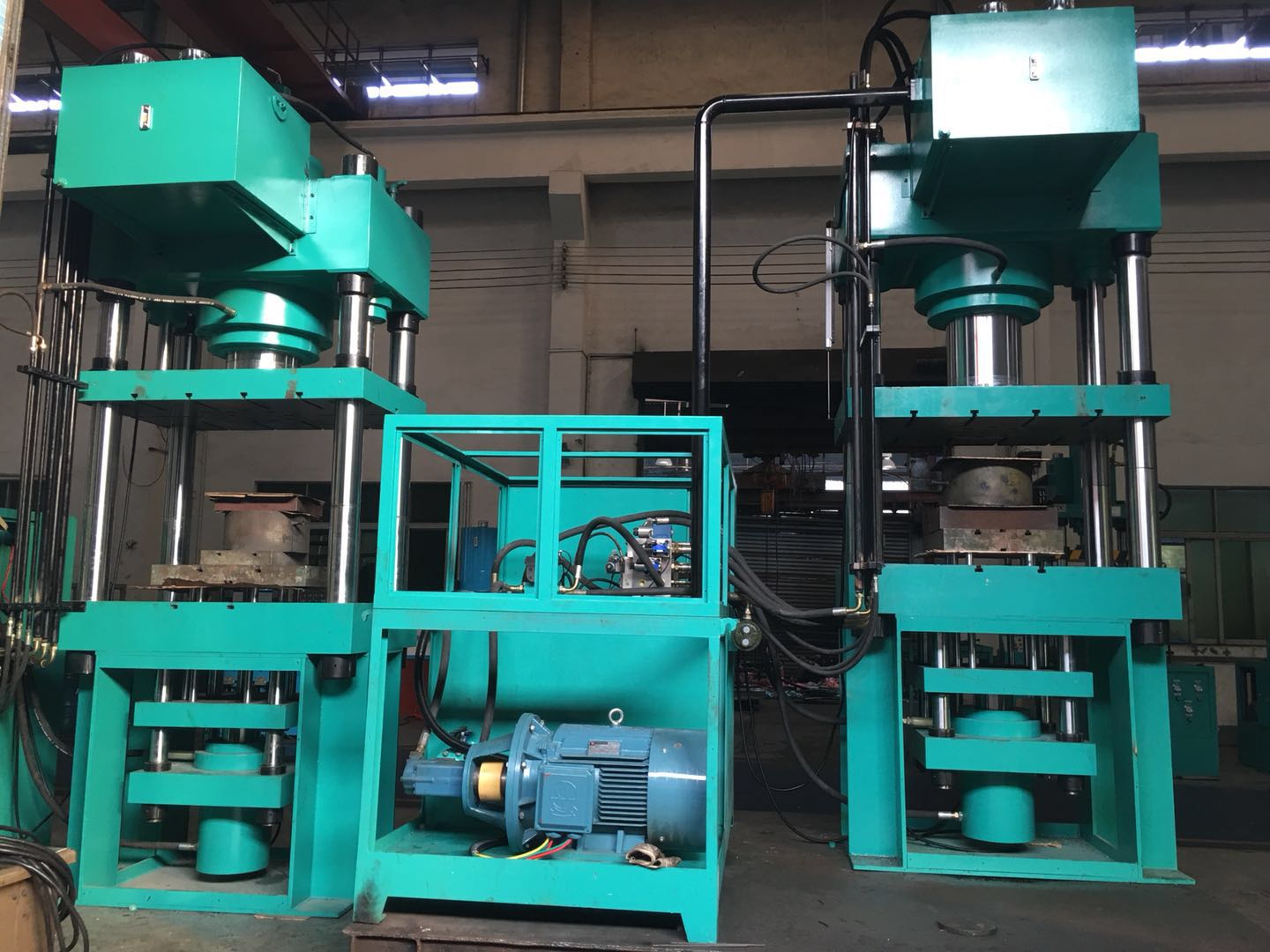

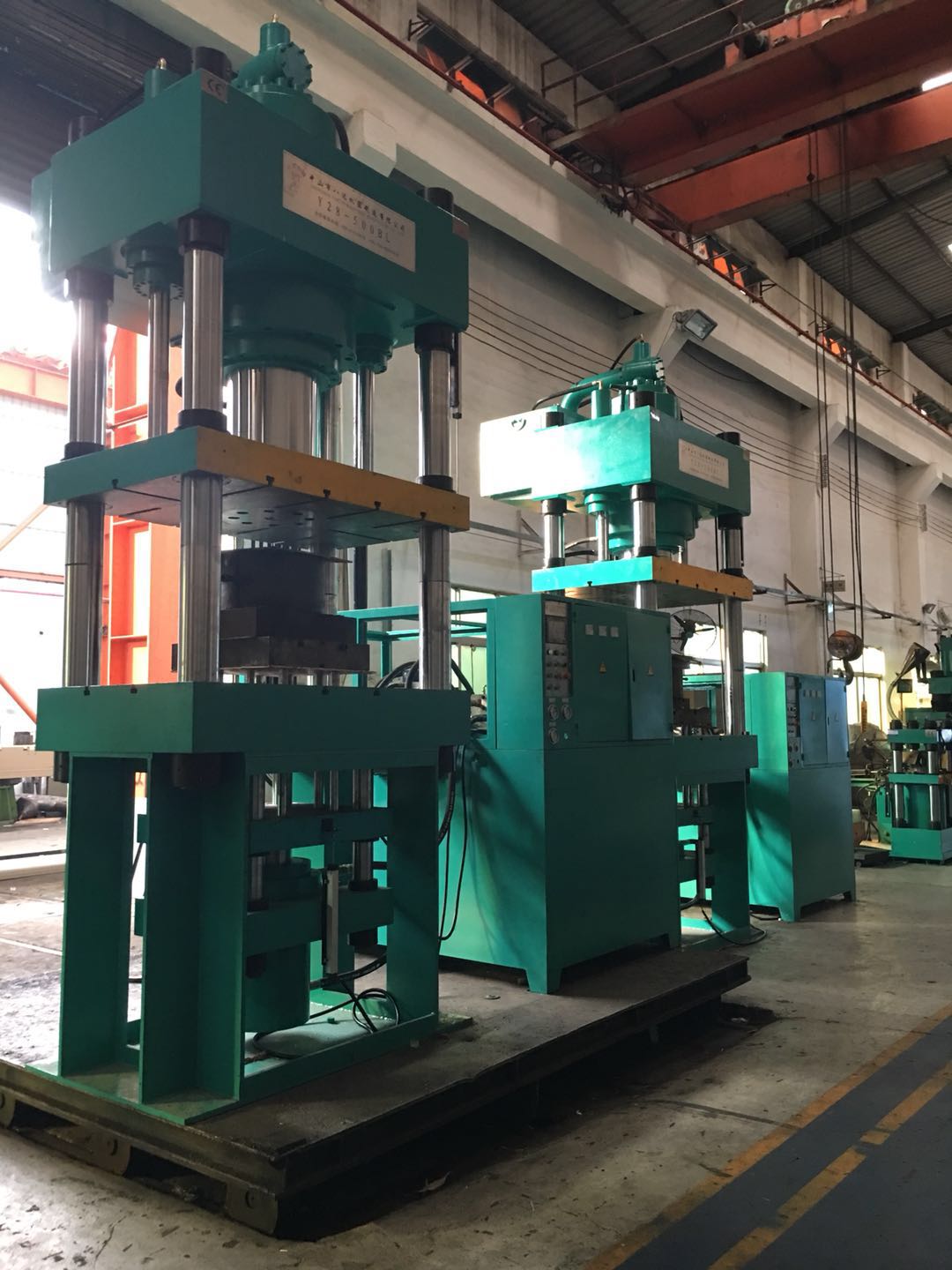

Y28-500BL
万达
Product Description
Y28-500BL pressed product diagramY28-500BL pressed product diagram:
Main technical parameters of Y28-500BL:
Serial numberNO. | ItemItem | UnitUnit | Y28-500BL | |
1 | Nominal force Nominal force | KN | 5000 | |
2 | Master cylinder force Master cylinder force | KN | 3500 (adjustable) (adjustable) | |
3 | Sump force Bottom cylinder force | KN | 1500 (adjustable) (adjustable) | |
4 | Ejection cylinder force Charging cylinder force | KN | 200 (adjustable) (adjustable) | |
5 | Slider stroke Maximum stroke of the slider | mm | 600 (adjustable) (adjustable) | |
6 | Sump stroke Maximum stroke of bottom cylinder | mm | 300 (adjustable) (adjustable) | |
7 | Top cylinder stroke Maximum stroke of top cylinder | mm | 200 (adjustable) (adjustable) | |
8 | Working area opening height Maximum opening height of working area | mm | 1100 | |
9 | Working slider speed Working slider speed | Get off quickly Fast downward | mm/S | 230 (adjustable) (adjustable) |
stretch stretch | mm/S | 16-30 (adjustable) (adjustable) | ||
Returning | mm/S | 200 (adjustable) (adjustable) | ||
10 | Effective size of workbench Effective size of table | left-right(inside column) | mm | 1200 |
front-back(inside column) | mm | 600 | ||
11 | Effective size of edge plate Effective size of the holder plate | left-right | mm | 815 |
front-back | mm | 715 | ||
12 | Sump speed Bottom cylinder speed | Push out ejection | mm/S | 50 |
return Send back | mm/S | 50 | ||
13 | Hydraulic system pressure Hydraulic system pressure | MPa | 21 | |
14 | Motor Power Motor power | KW | 55 | |
