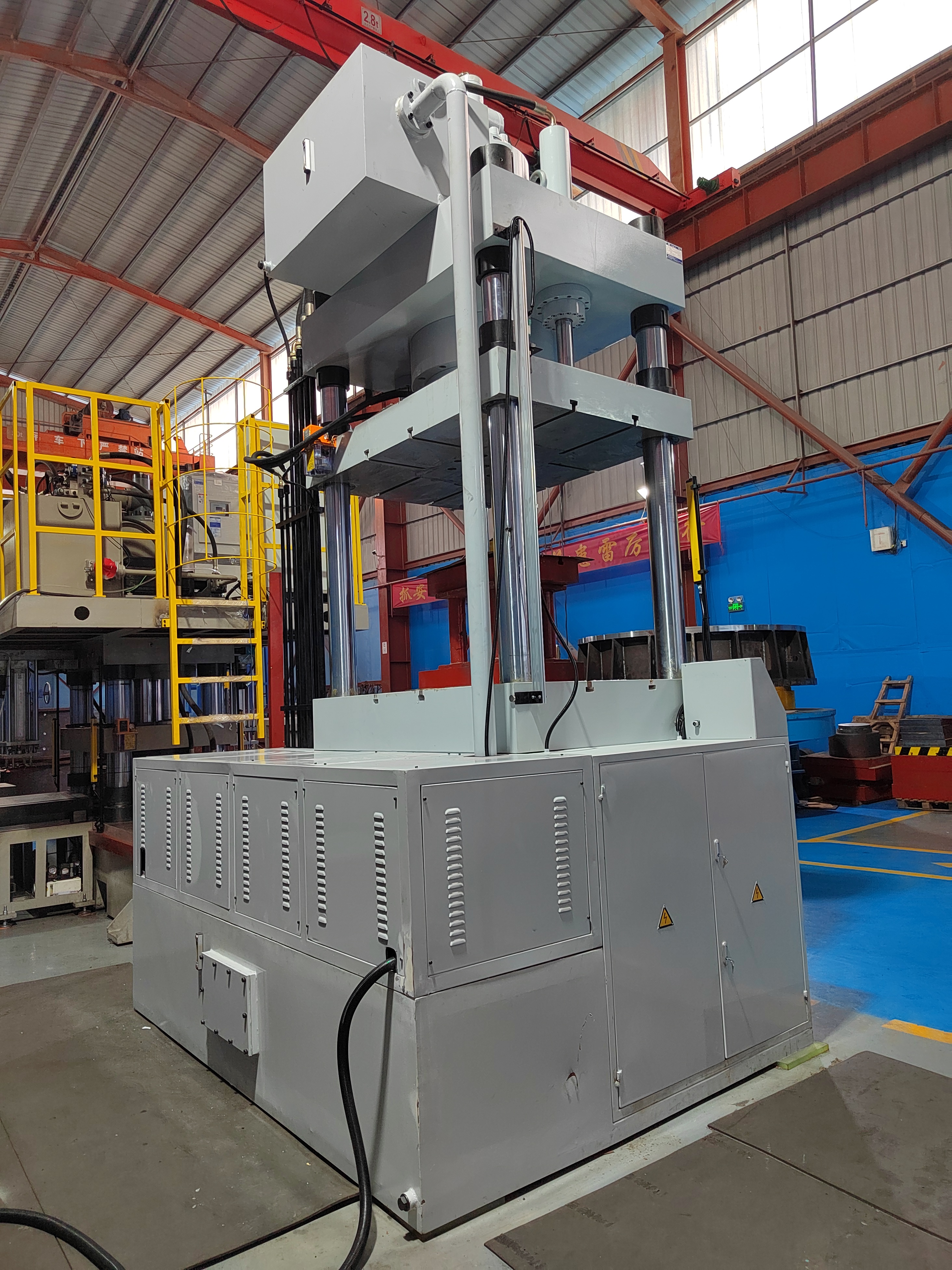

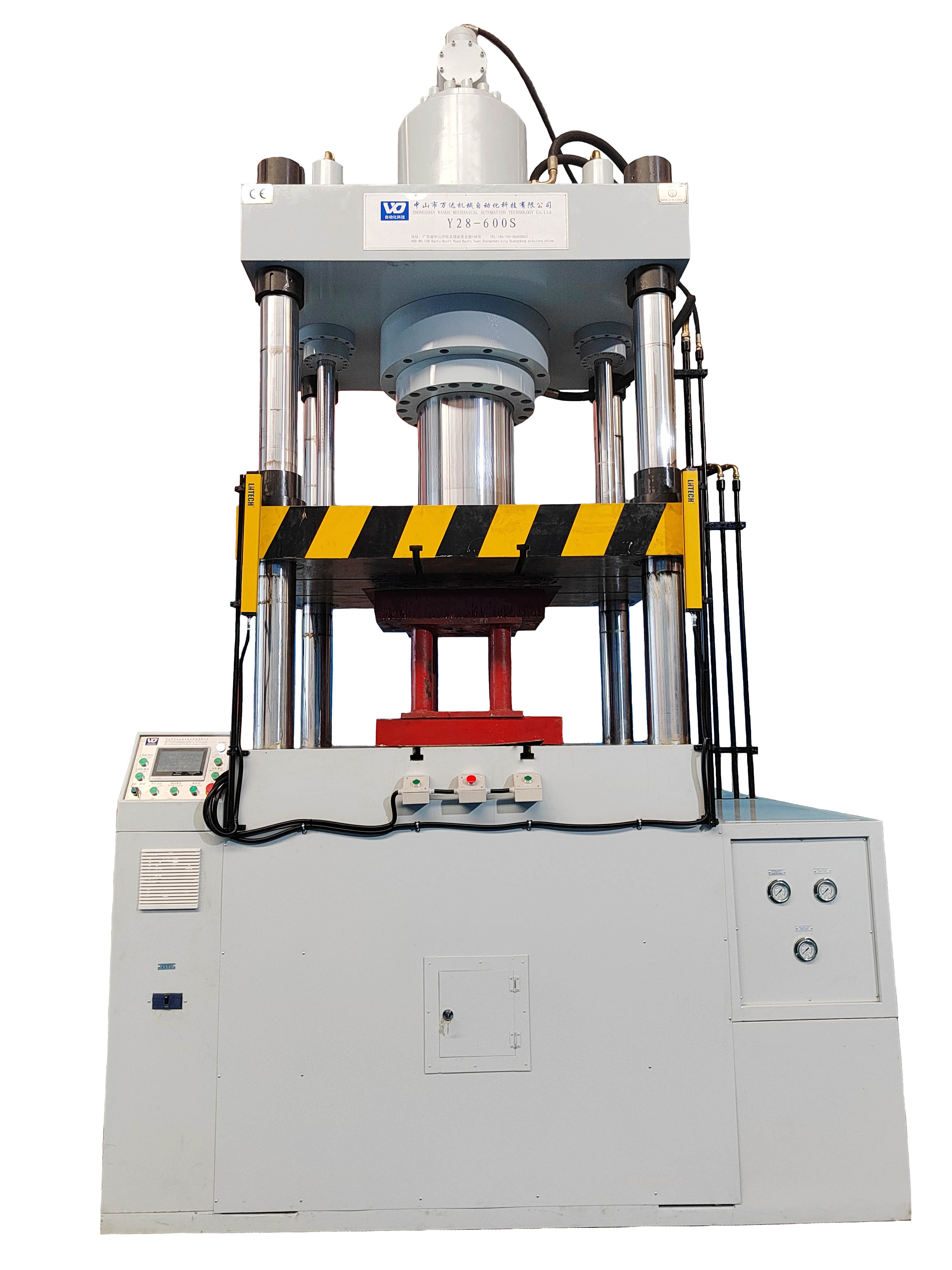

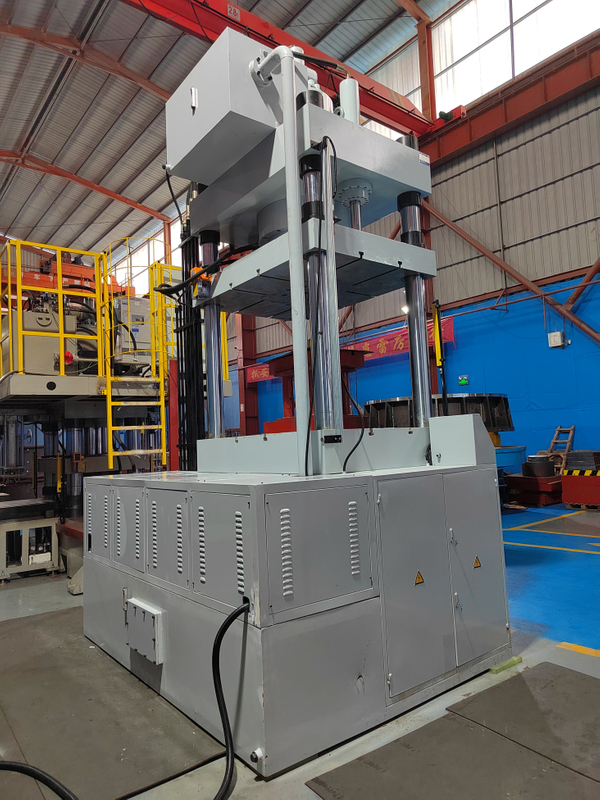

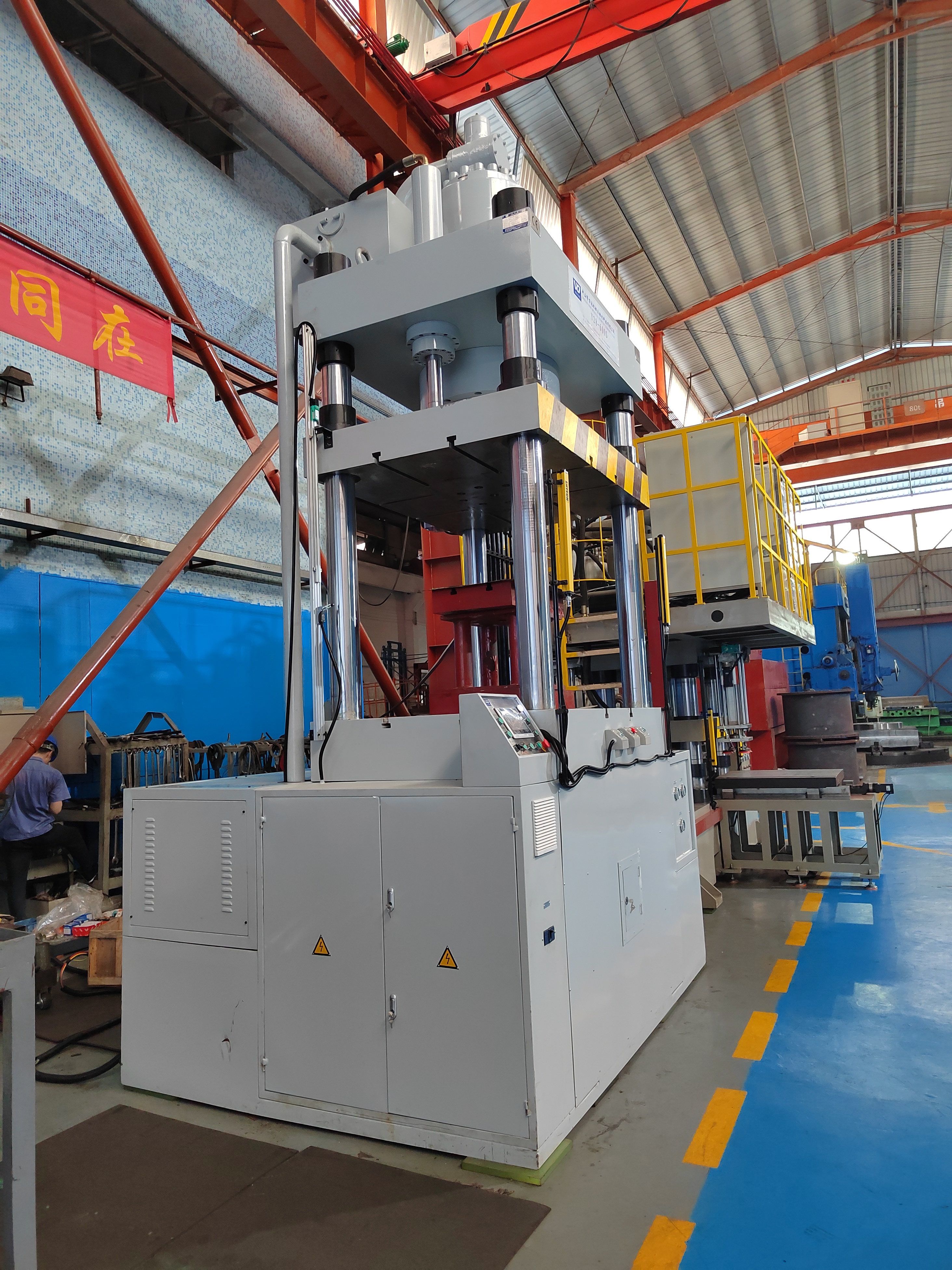

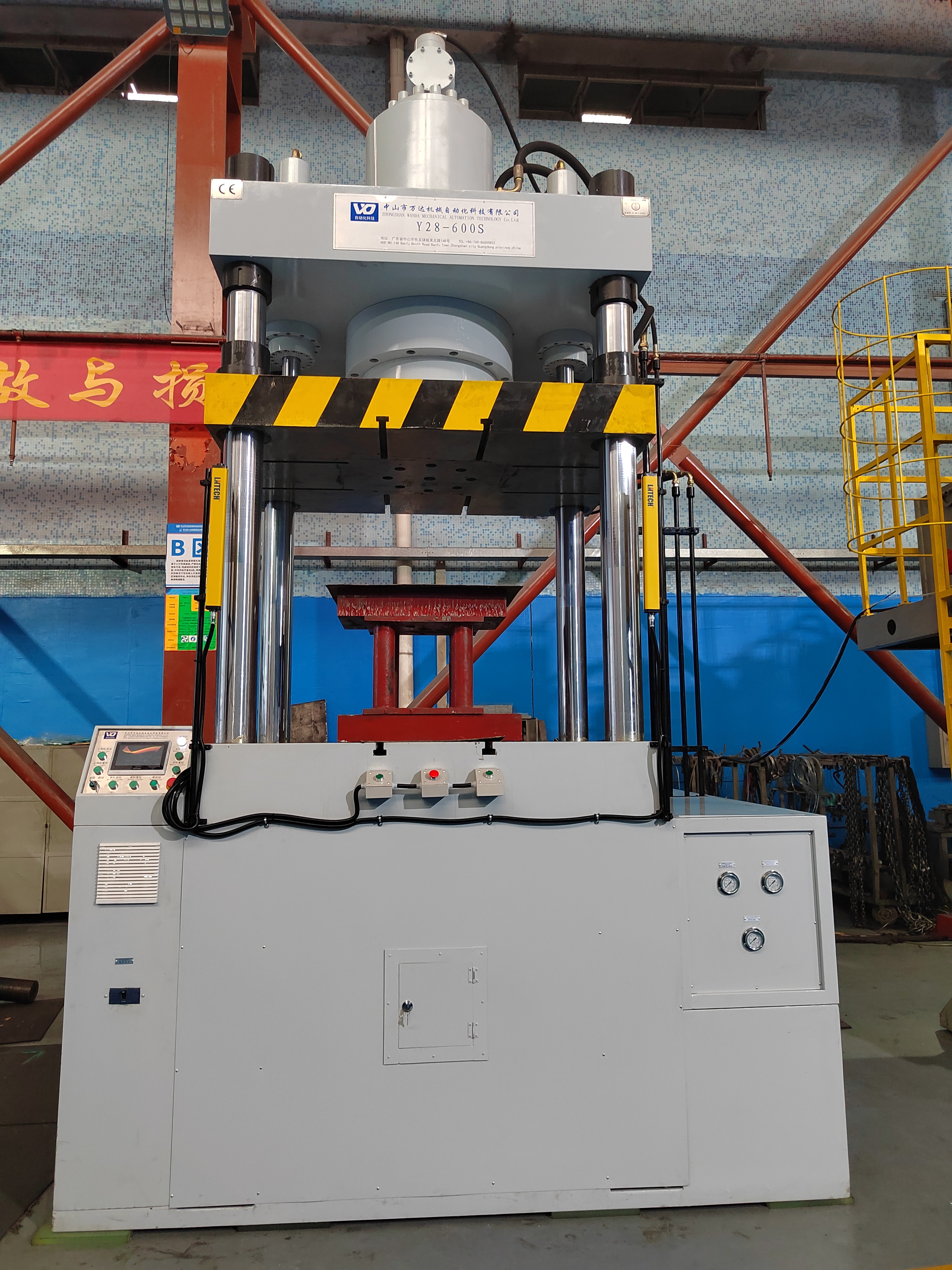

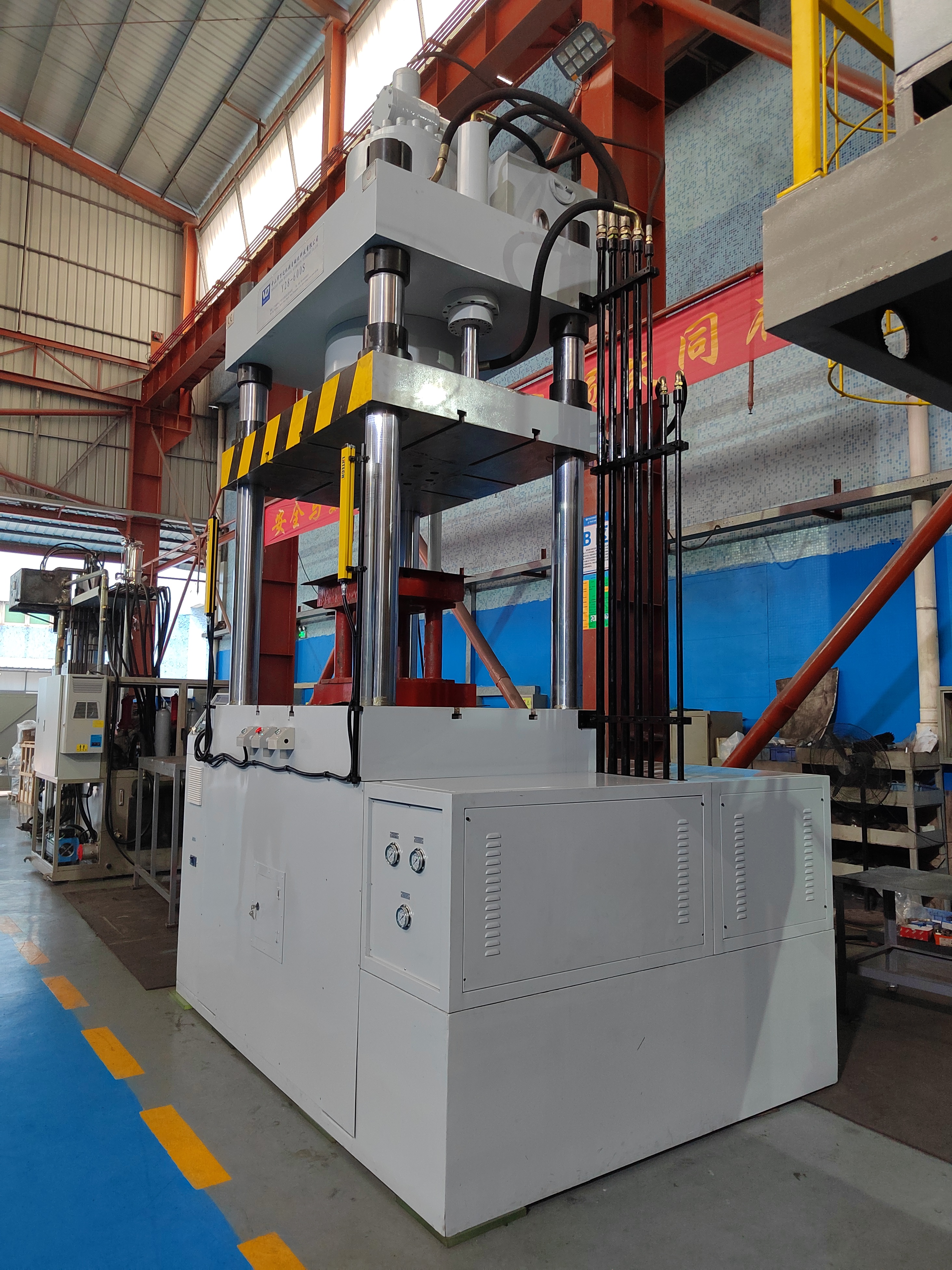

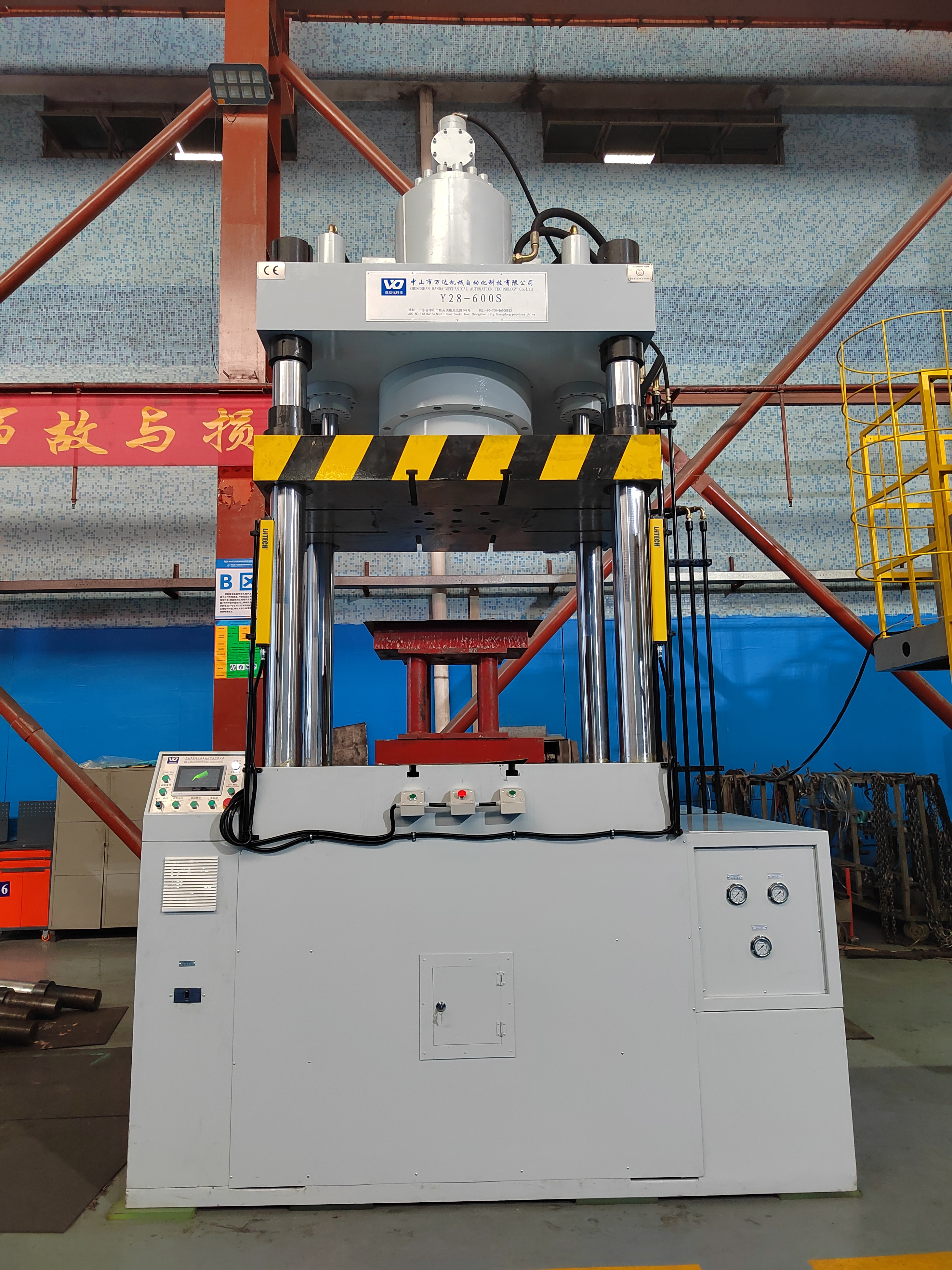

Y28-600S double-action stretching machine kitchen appliances stretch forming

1

Master cylinder force

KN

4000 (adjustable)

2

Bottom cylinder force

KN

2000 (adjustable)

3

Threading cylinder force

KN

300 (adjustable)

4

Maximum slider travel

mm

650 (adjustable)

5

Maximum stroke of bottom cylinder

mm

300 (adjustable)

6

Maximum stroke of the feed cylinder

mm

200 (Time relay control)

7

Maximum opening height of the work area

mm

1200

8

Working slider speed

Get off quickly

mm/s

300 (adjustable)

Stretch

mm/s

17-35 (adjustable)

Return

mm/s

300 (adjustable)

9

Bottom cylinder speed

Eject

mm/s

70 (adjustable)

return

mm/s

Passive return

10

Effective size of work surface

Left and right (inside the column)

mm

1330

Front and back (edge)

mm

1250

11

Hydraulic system pressure

MPa

25.2

12

Motor power

KW

60.5 (Servo motor)
