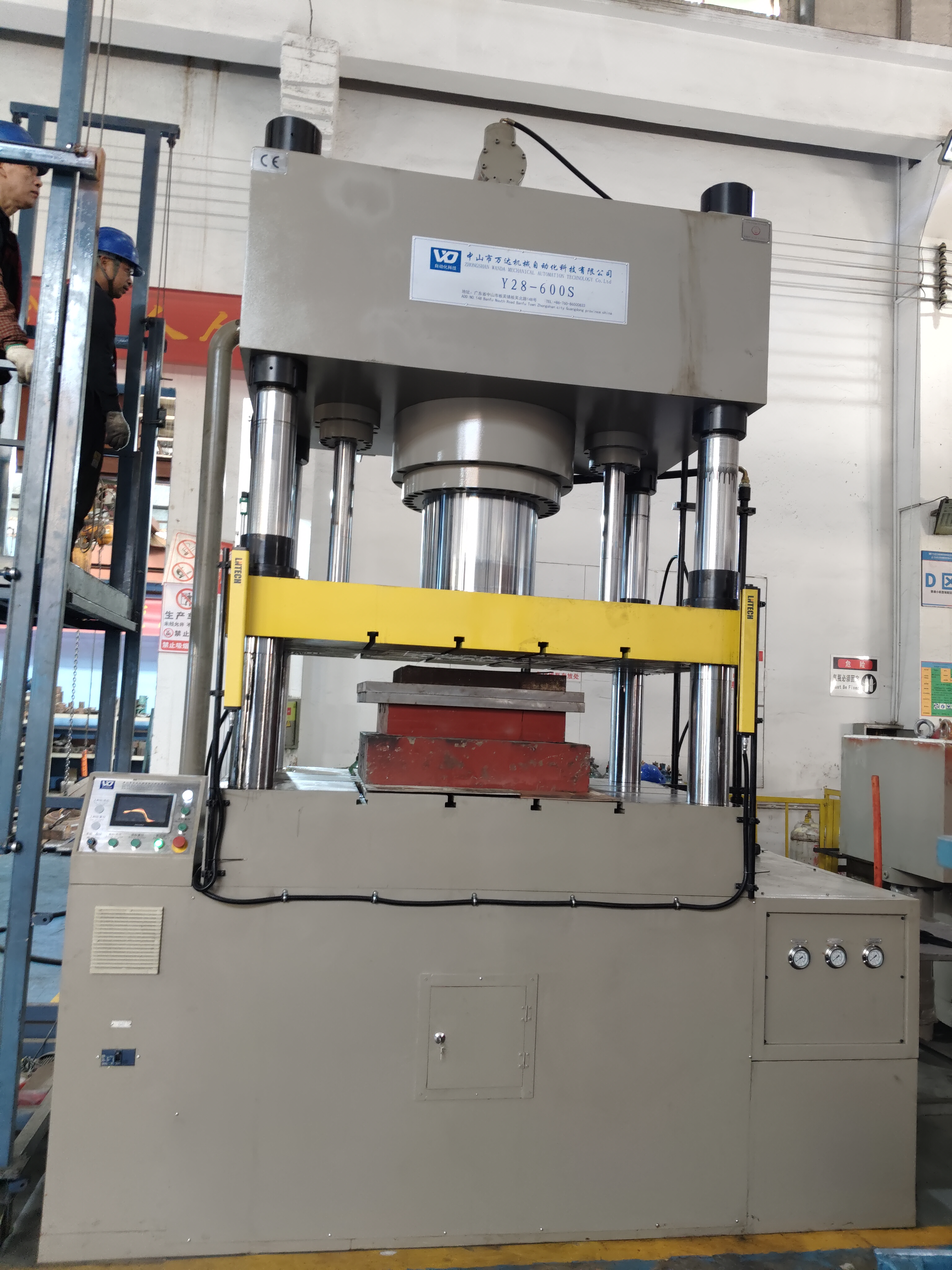

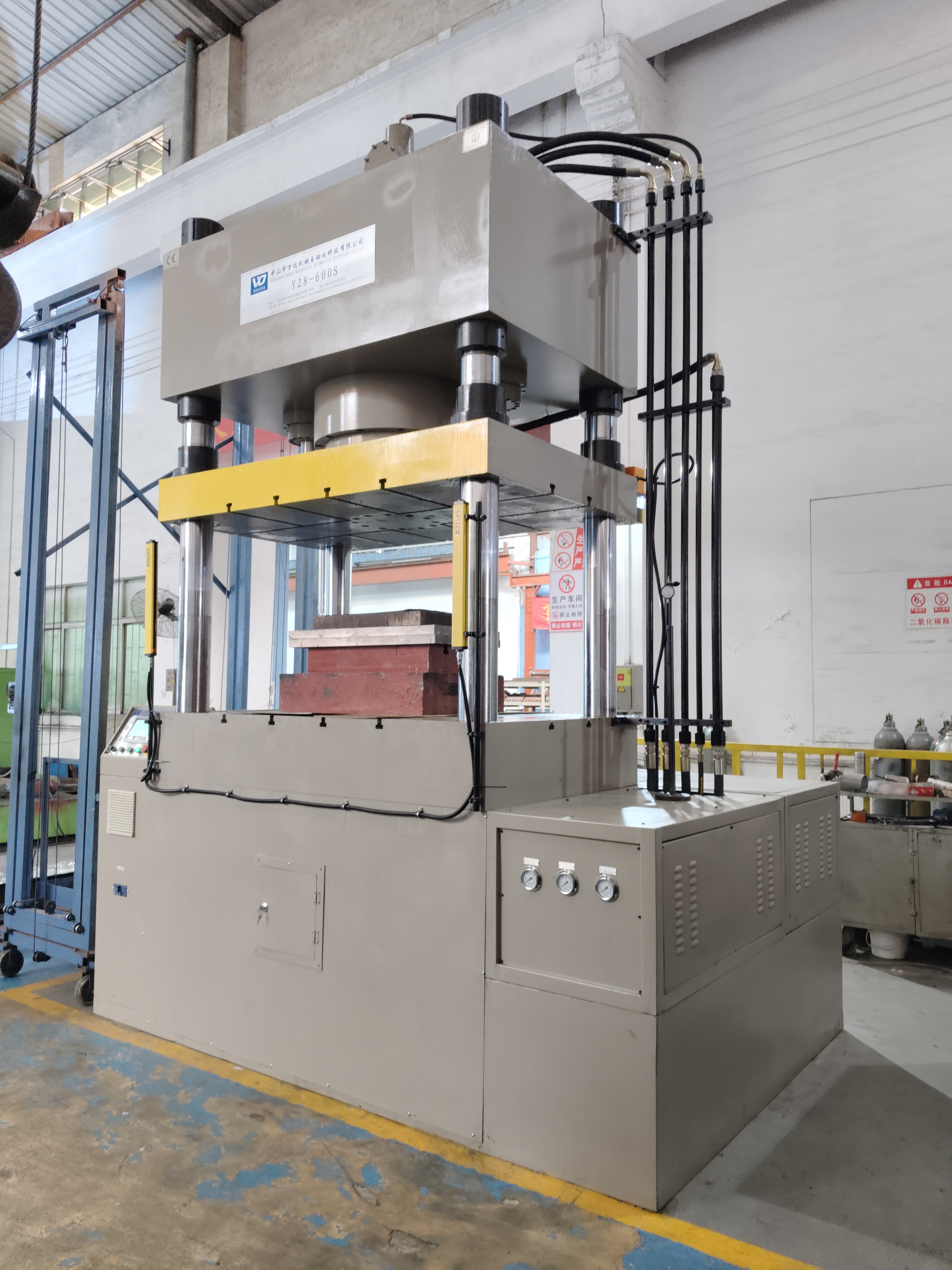

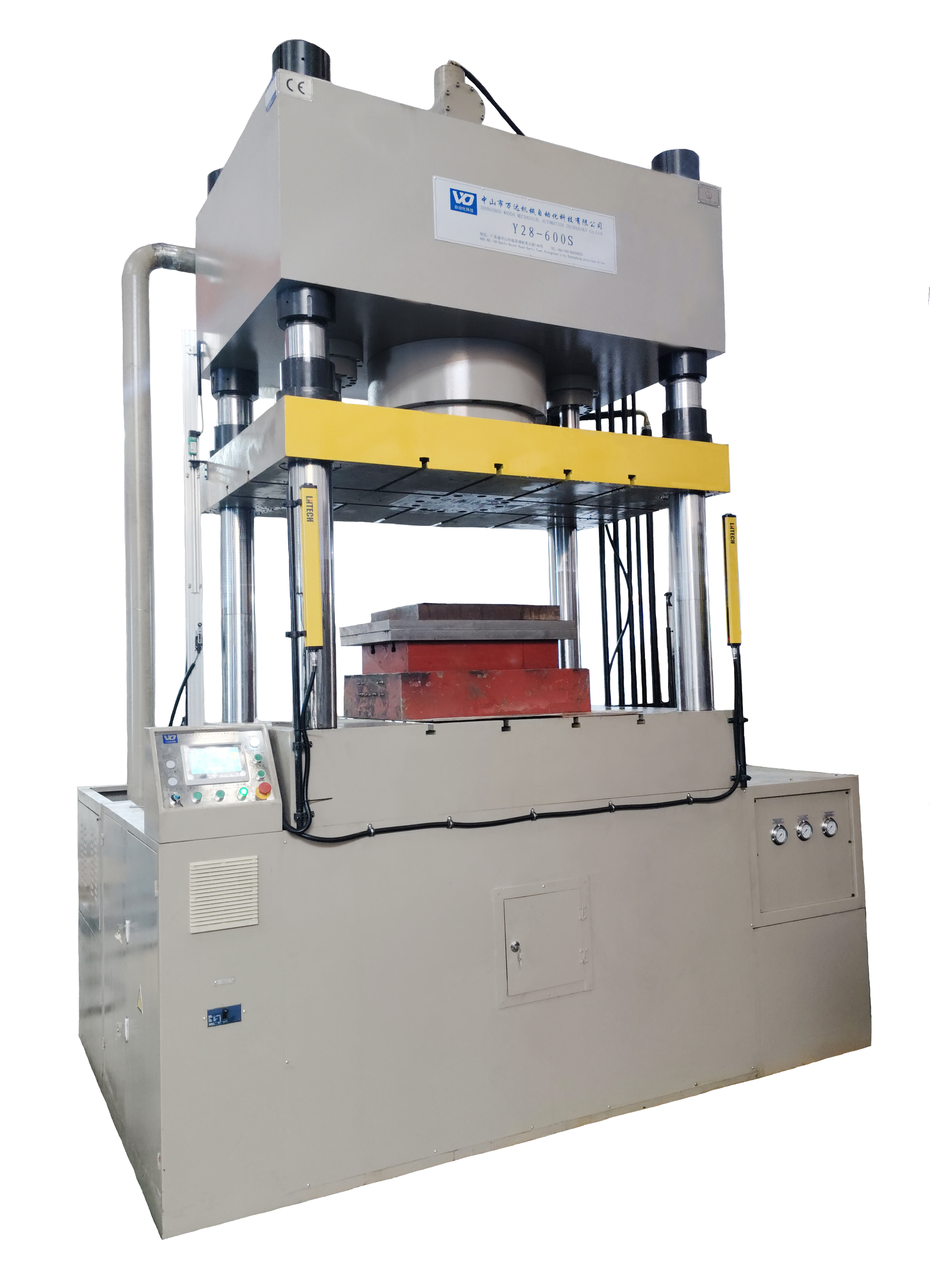

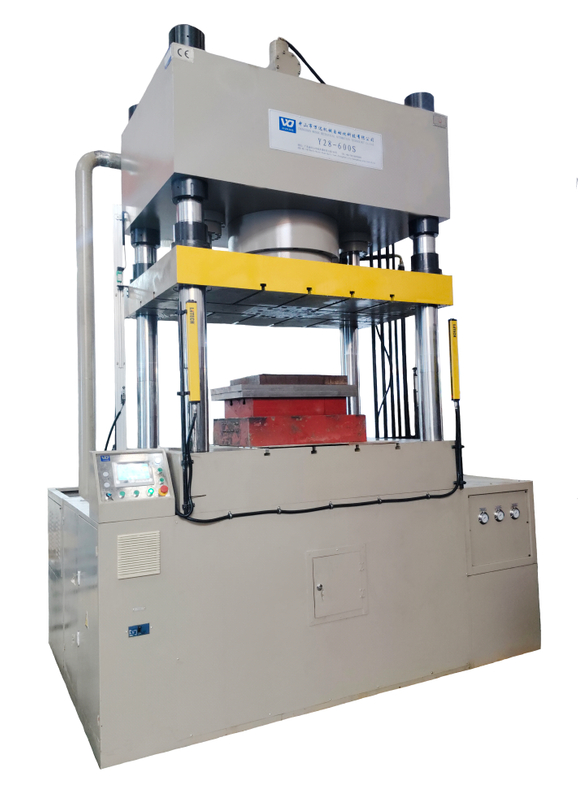

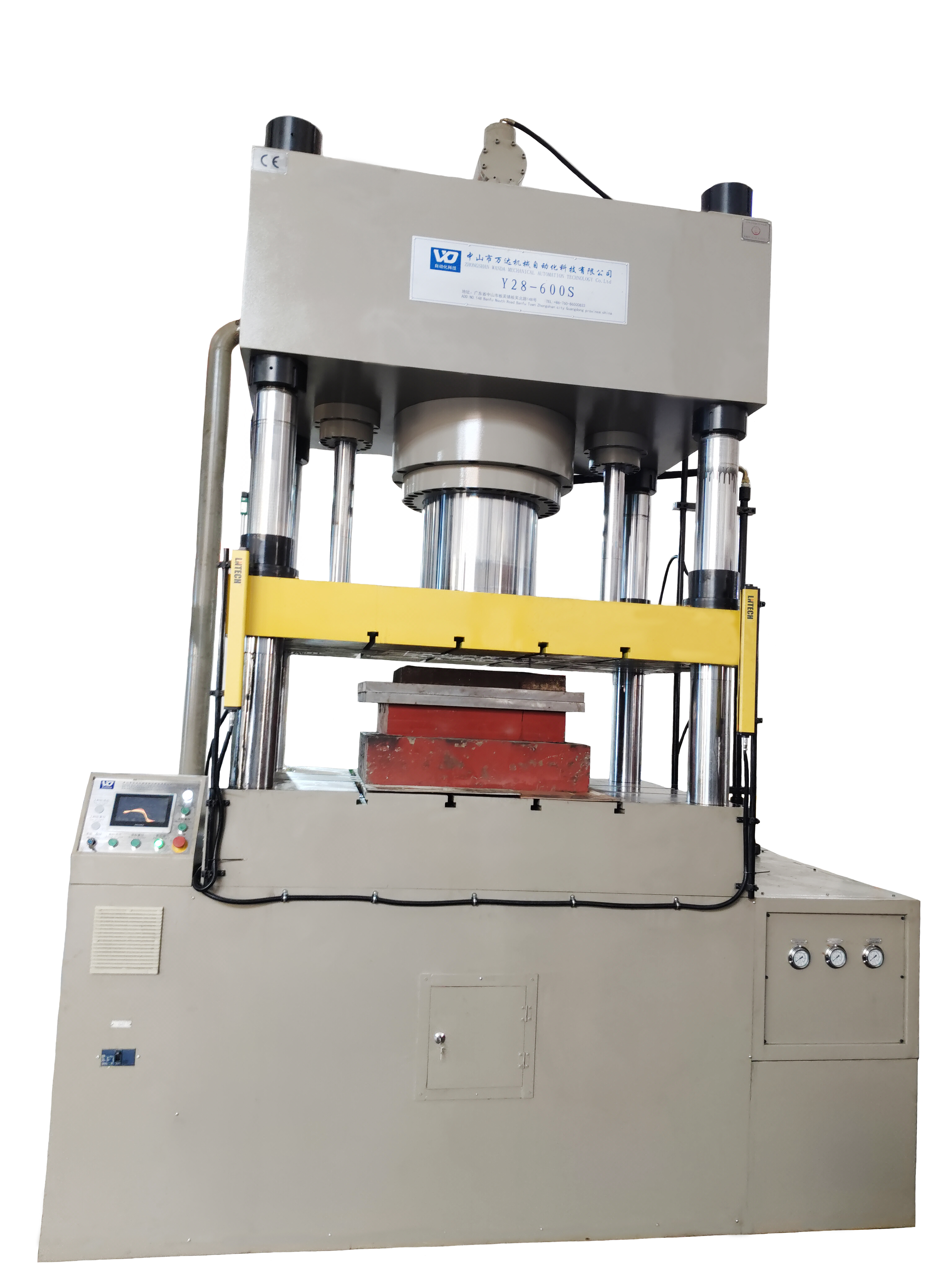

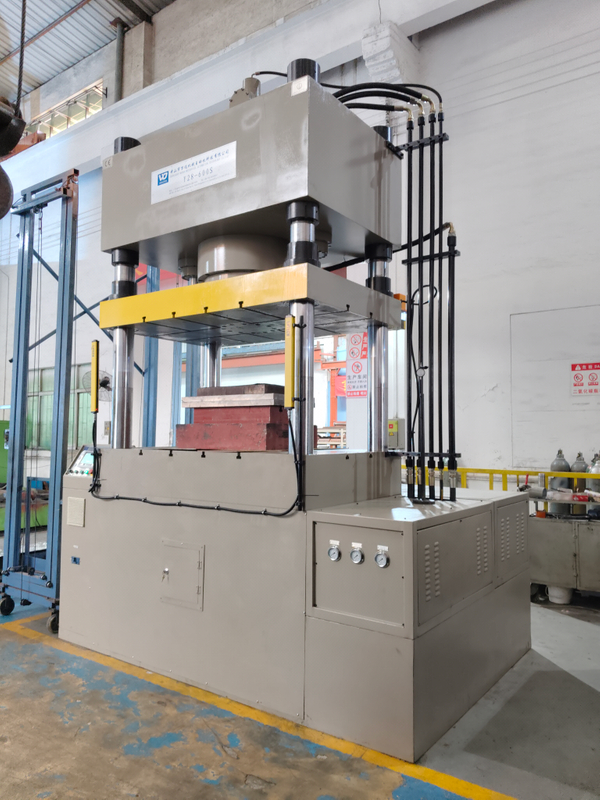

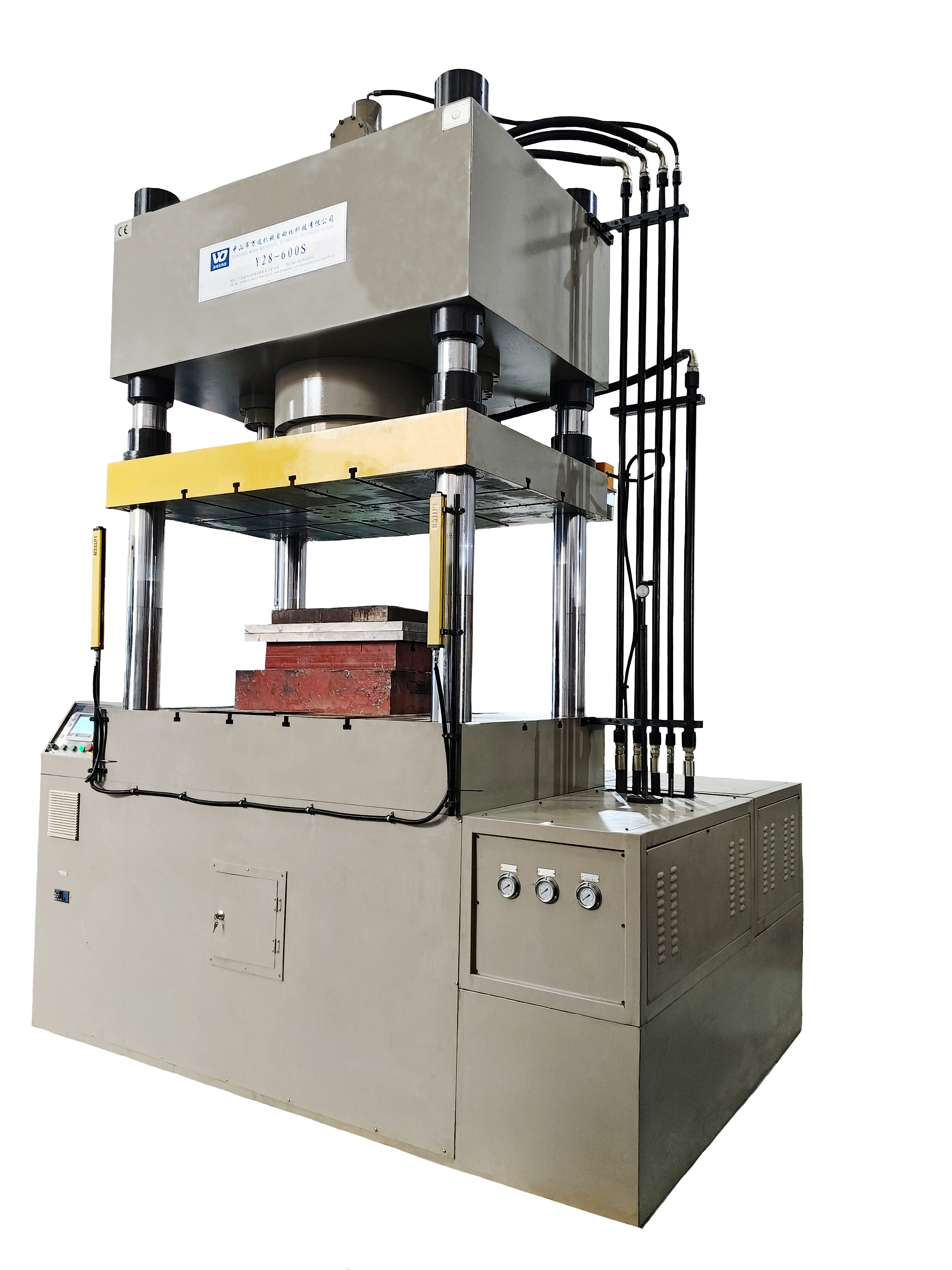

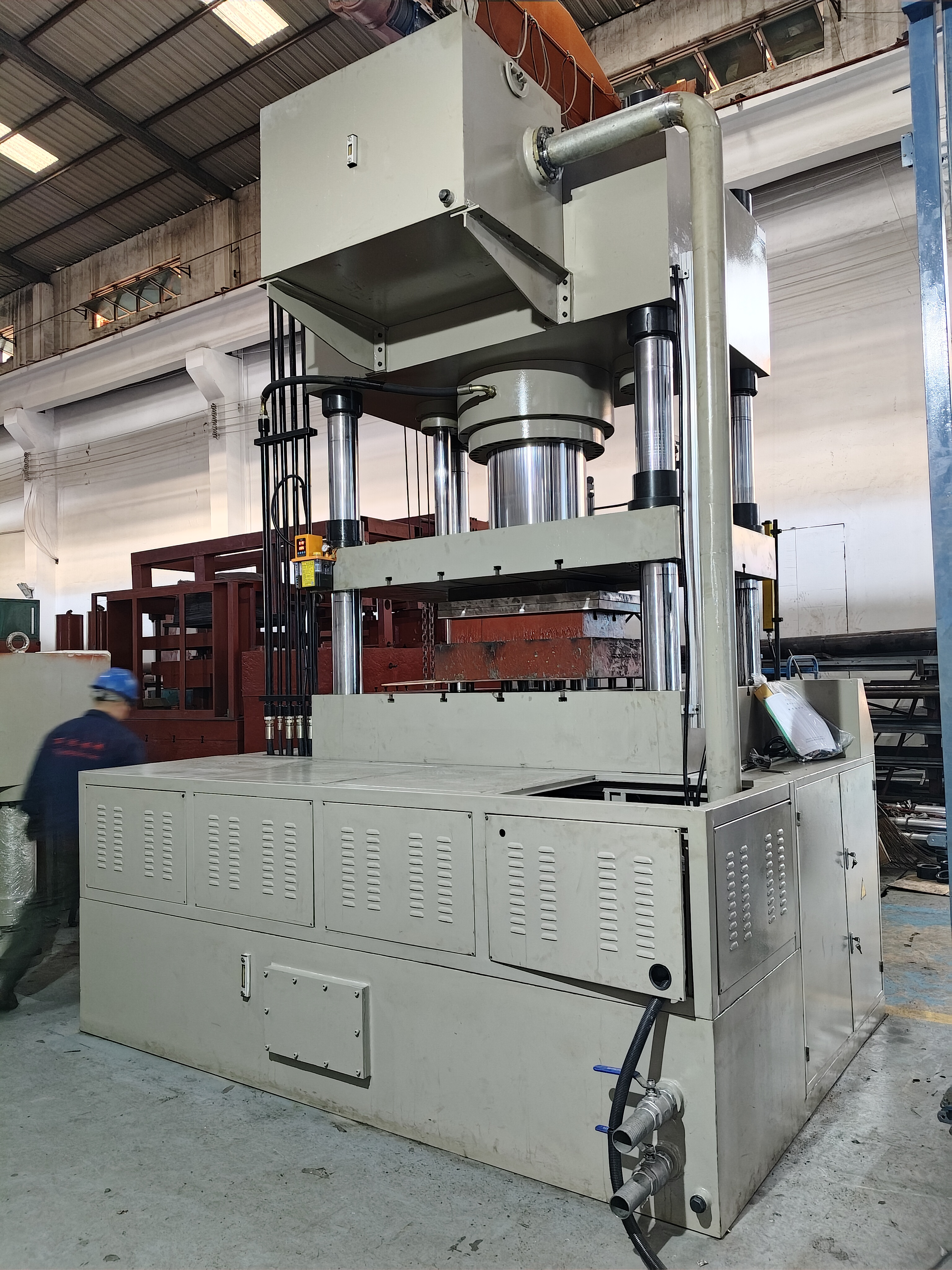

Y28-600S
万达
Product Description
Main technical parameters:
Serial number | project | Unit | Specification | |
1 | Main cylinder nominal force | KN | 5000(adjustable)(Adjustable) | |
2 | Hydraulic cushion force | KN | 1000 (Adjustable) | |
3 | Main cylinder stroke | mm | 500 (Adjustable) | |
4 | Hydraulic cushion strokeHydraulic cushion stroke | mm | 200 (Adjustable) | |
5 | Max. opening height of working area | mm | 900 | |
6 | Master cylinder speed Main cylinder speed | No load down | mm/s | 210(adjustable)(Adjustable) |
Suppressing pressing | mm/s | 14-25(adjustable)(Adjustable) | ||
Return | mm/s | 180 (Adjustable) | ||
7 | hydraulic pad speed Hydraulic cushion speed | Push out | mm/s | 70(adjustable)(Adjustable) |
Return | mm/s | Passive return | ||
8 | Workbench size Table size | LR(in the column) | mm | 1500 |
FB(edges) | mm | 1200 | ||
9 | Hydraulic pad size Hydraulic cushion size | Left and right LR | mm | 1000 |
Front and rear FB | mm | 800 | ||
10 | Hydraulic system pressure Hydraulic system pressure | Main cylinderMain cylinder | Mpa | 25.5 |
Bottom cylinder | MPa | 24.5 | ||
11 | Servo motor power | KW | 50.7 | |
Pressed product types:

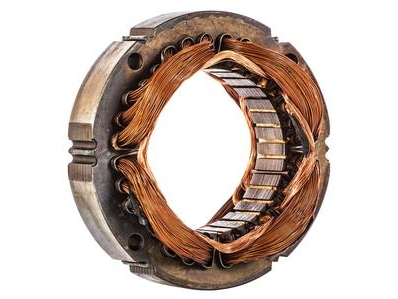

Motor stator
Hydraulic valve parts

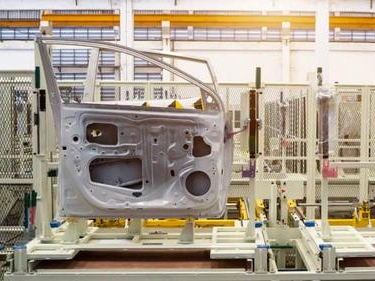

car covering parts

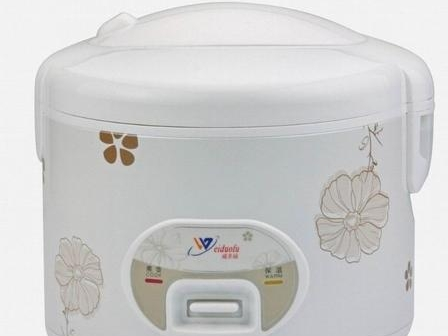

Home appliance casing
Hardware accessories

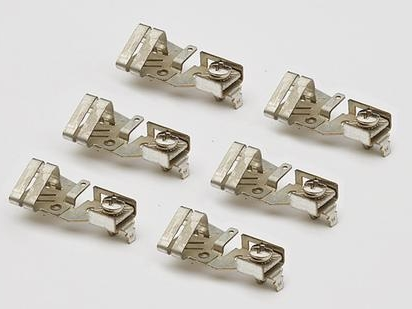

Hardware stamping parts
