Y28-800

500-ton and 800-ton stretching machines are used for the production of aluminum alloy trolley boxes
Availability:
Quantity:
  • Y28-800

  • 八达

Product Description

Y28 series models are suitable for stretching, forming, straightening and other processes of metal sheets.For example: tableware, lighting, metal shells, containers and utensils, etc. stretch forming.

This series of products is professionally designed, using famous brands and imported hydraulic components and electrical control components. It is made with precision, fast speed, high precision, energy saving, low noise and easy operation. It is an ideal equipment for the hardware and electrical appliance industry.

Y28 series four-column double-action stretching machine parameters

project

unit

Y28-65

Y28-100

Y28-150

Y28-200

Y28-350

Y28-500

Nominal pressure

KN

650

1000

1500

2000

3500

5000

Master cylinder force

KN

350

650

1000

1500

2500

3500

Sump force

KN

250

350

500

500

1000

1500

Ejection force

KN

50

50

50

100

150

200

Maximum stroke of slider

mm

300

500

500

550

600

650

Sump stroke

mm

100

250

250

280

300

330

Top cylinder stroke

mm

50

100

180

200

200

200

Workbench height from ground

mm

750

1030

1000

1128

1200

1550

Opening height

mm

600

860

900

950

1120

1300

Slider speed

fast forward

mm/s

130

150

170

150

150

180

Work progresses

mm/s

20

20

25

25

25

17-25

Return trip

mm/s

160

150

180

180

160

180

working desk size

Left and right (within the column)

mm

400

550

650

700

800

1000

Front and back (edge)

mm

450

600

750

900

900

1200

Hydraulic system pressure

MPa

20

22

22

22

22

22

Motor Power

KW

7.5

11

15

22

22

37

Machine weight (approx.)

KG

3200

4150

6200

8500

12500

20000

Machine dimensions

about

mm

1300

1620

1730

1800

1950

2400

before and after

mm

1100

1300

1420

1600

1640

1850

high

mm

2400

3400

3550

3700

3800

4500

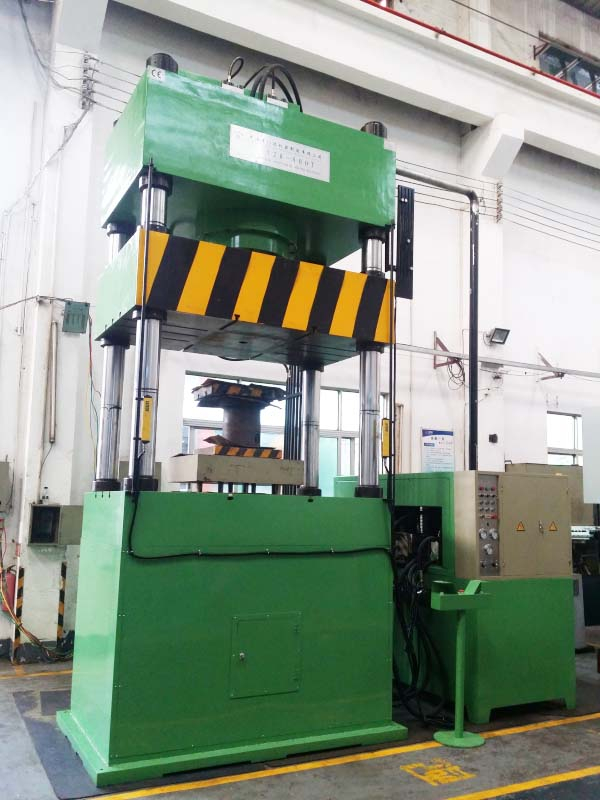

Pictures of Y8-800 double-action stretching machine Jiangxi Yingding (4)
