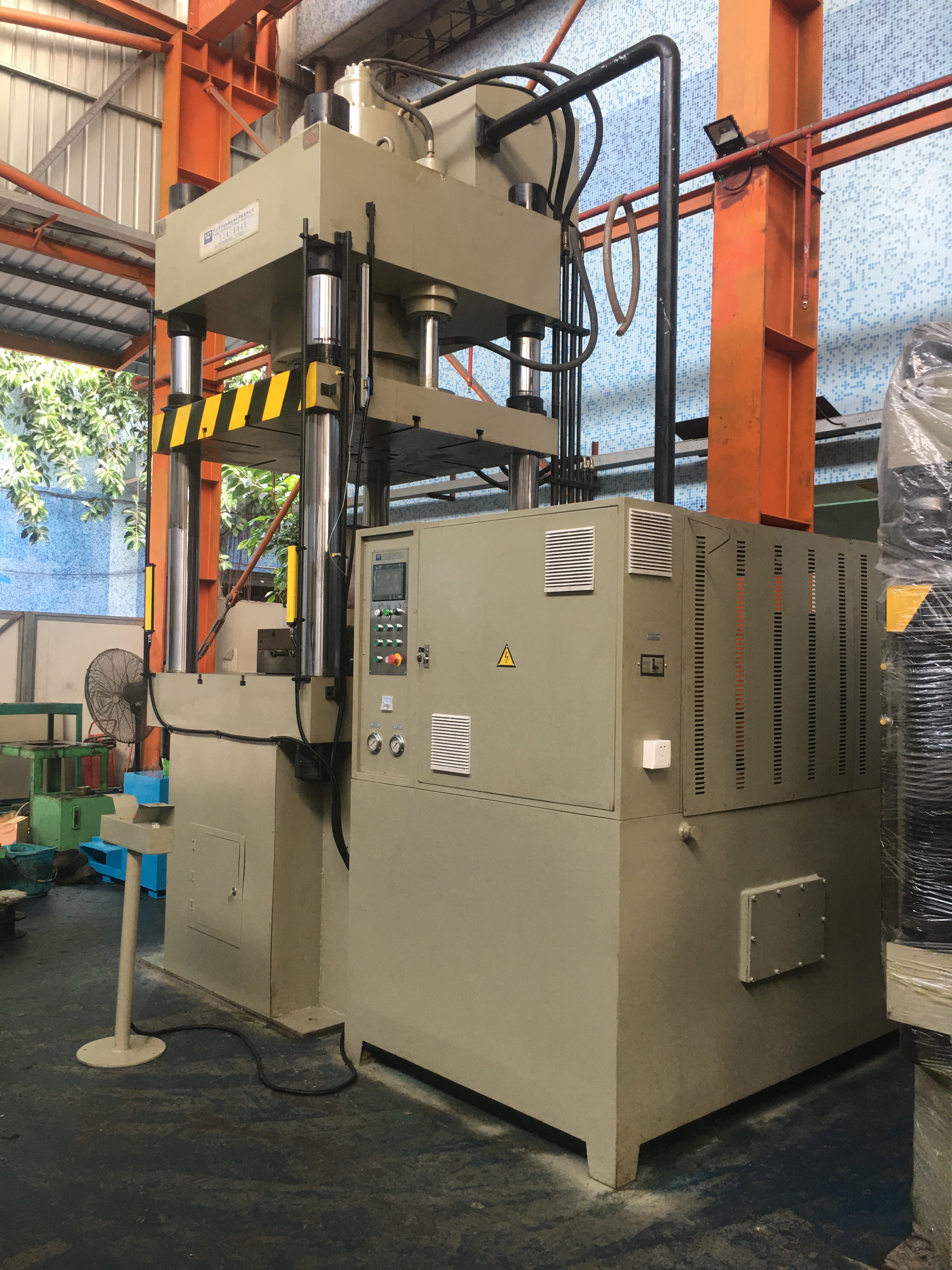

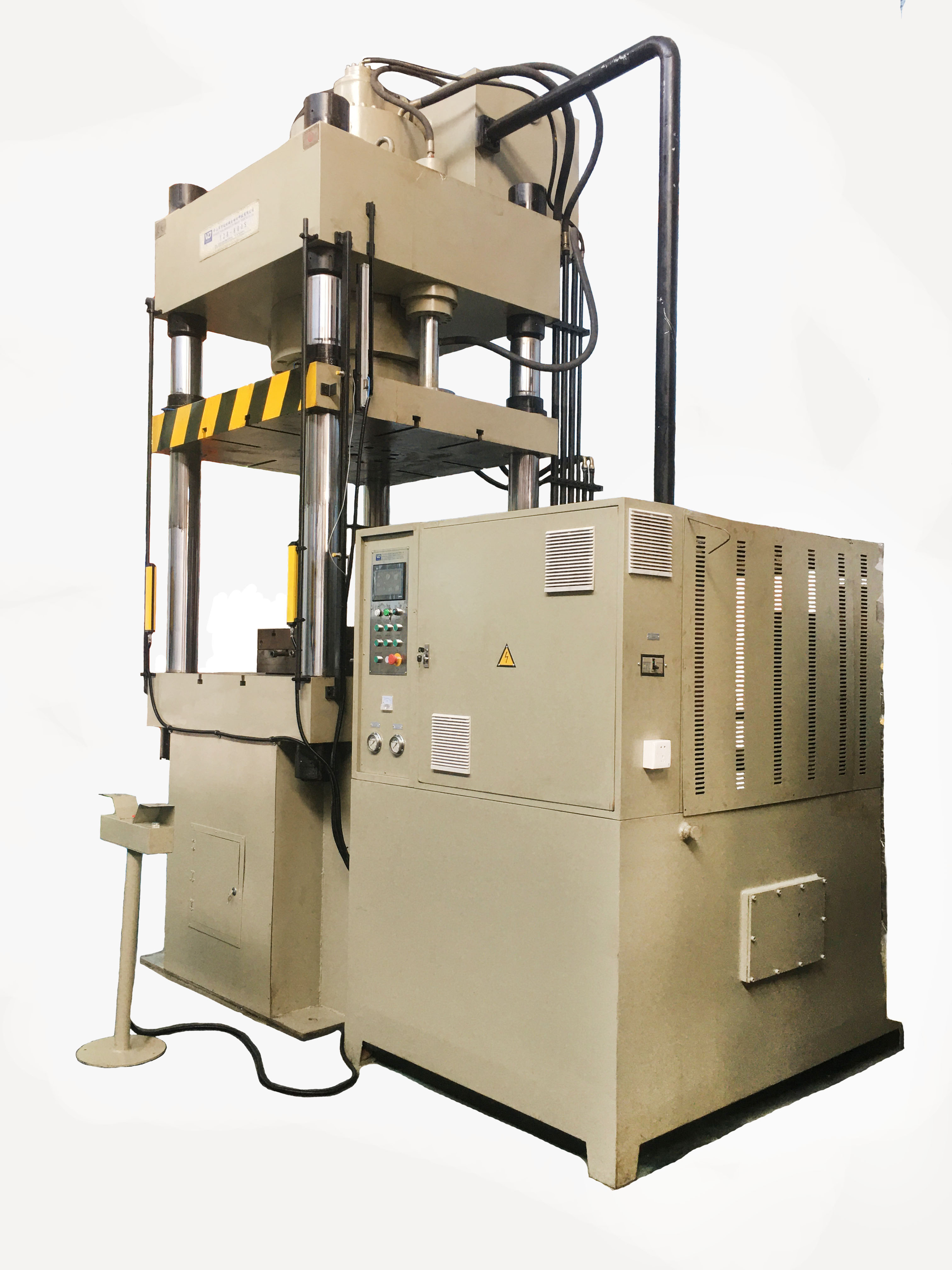

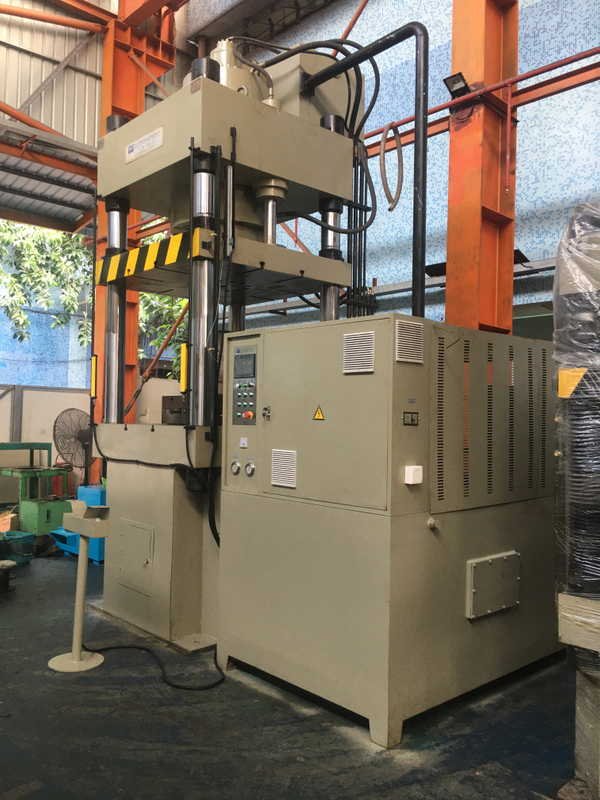

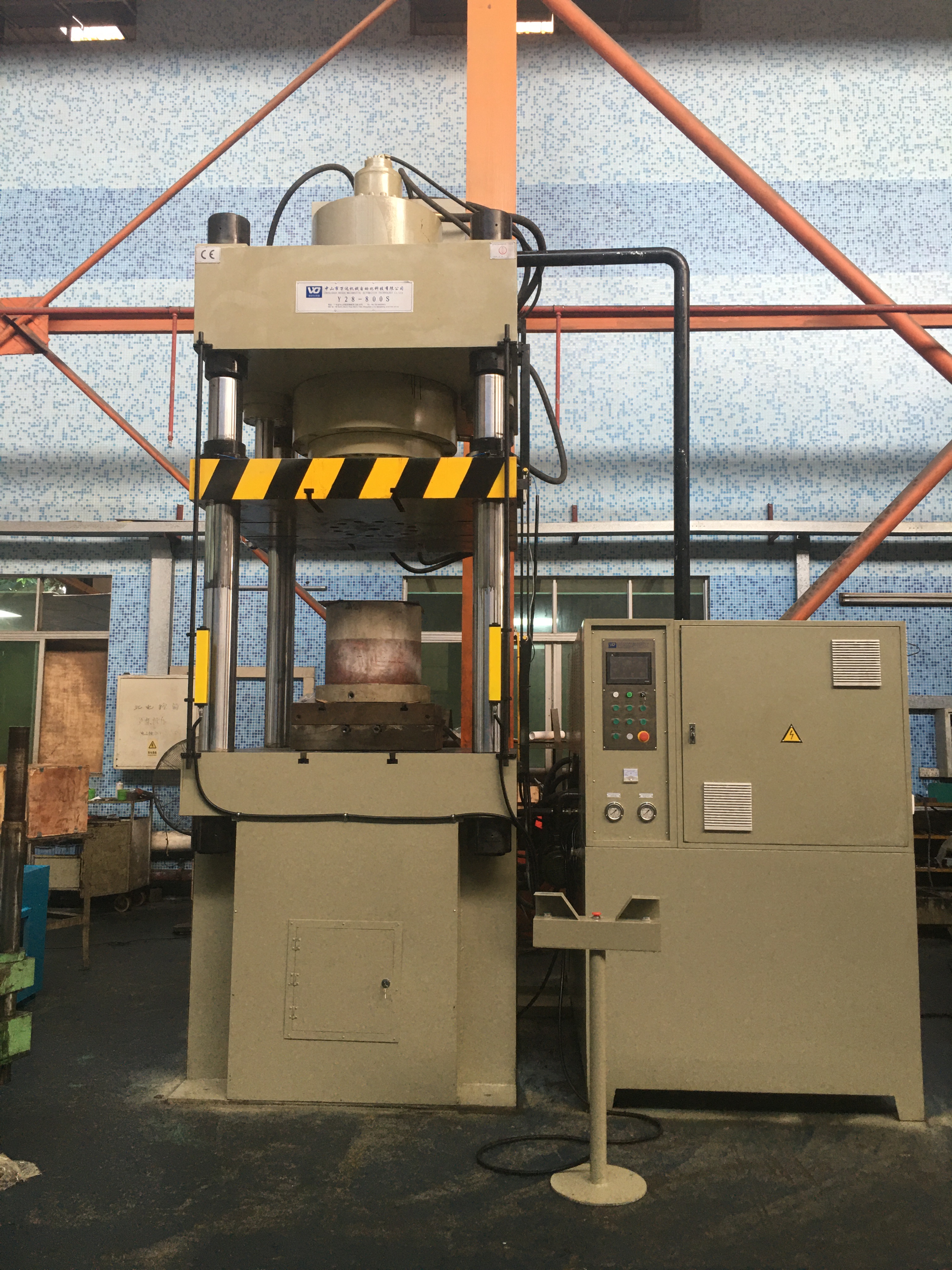

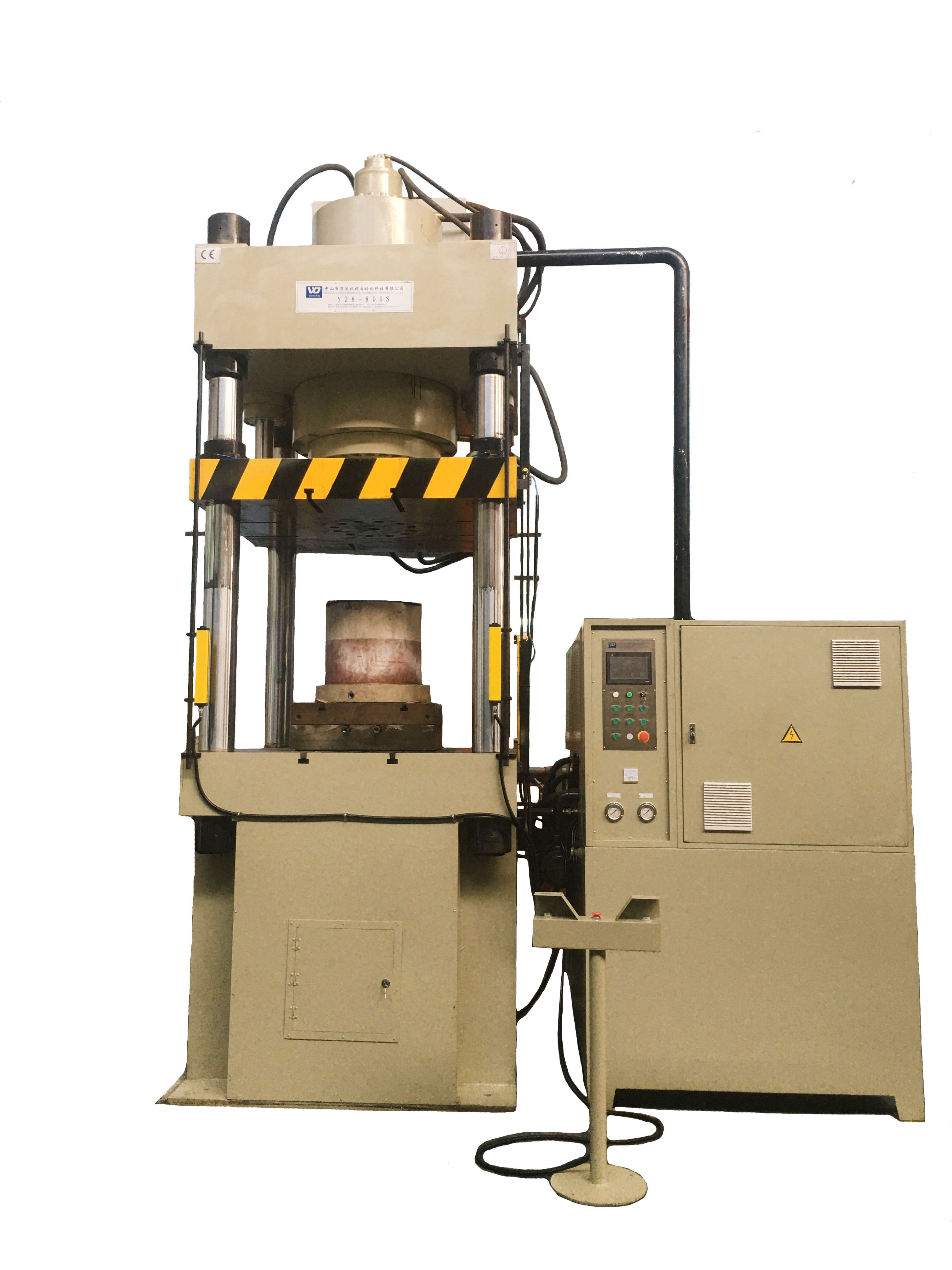

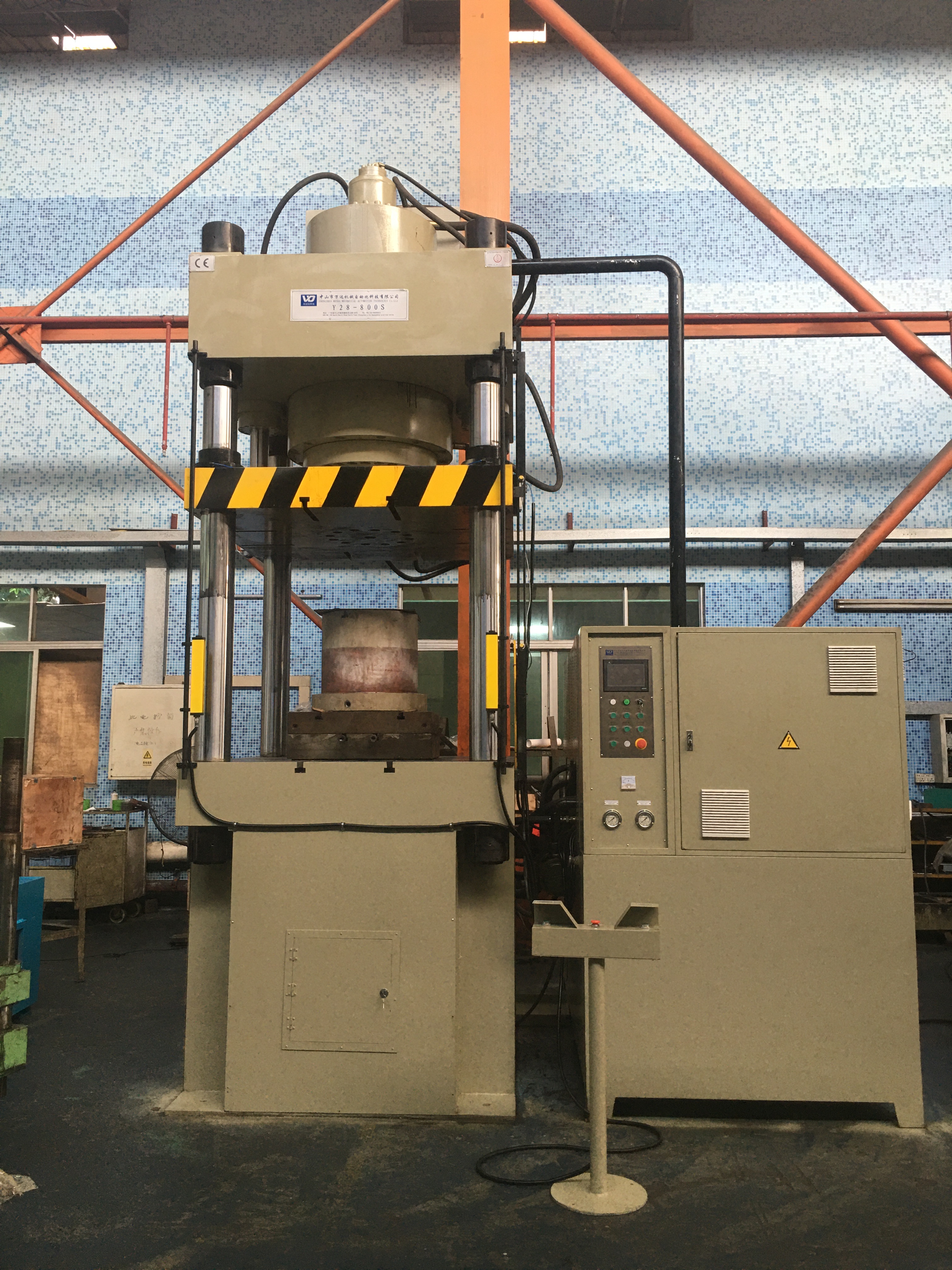

Y28-800S
万达
Product Description
Y28-800S Pressing Product Diagram Y28-800S Pressing Product Diagram:
Main technical parameters of Y28-800S:
Serial numberNO. | ItemItem | UnitUnit | Y28-800S | |
1 | Nominal force Nominal force | KN | 8000 | |
2 | Master cylinder force Master cylinder force | KN | 5500 (adjustable) (adjustable) | |
3 | Sump force Bottom cylinder force | KN | 2500 (adjustable) (adjustable) | |
4 | Ejection cylinder force Charging cylinder force | KN | 200 (adjustable) (adjustable) | |
5 | Slider stroke Maximum stroke of the slider | mm | 500 (adjustable) (adjustable) | |
6 | Sump stroke Maximum stroke of bottom cylinder | mm | 250 (adjustable) (adjustable) | |
7 | Top cylinder stroke Maximum stroke of top cylinder | mm | 200 (adjustable) (adjustable) | |
8 | Working area opening height Maximum opening height of working area | mm | 1200 | |
9 | Working slider speed Working slider speed | Get off quickly Fast downward | mm/s | 150 (adjustable) (adjustable) |
Stretch slowly Slow draw | mm/s | 12 (adjustable) (adjustable) | ||
Returning | mm/s | 140 (adjustable) (adjustable) | ||
10 | Ejection cylinder speed Cylinder ejection speed | Push out ejection | mm/s | 55(adjustable) (adjustable) |
return Send back | mm/s | 36 (adjustable) (adjustable) | ||
11 | Effective size of workbench Effective size of table | left-right | mm | 1100 |
front-back | mm | 1100 | ||
12 | Hydraulic system pressure Hydraulic system pressure | MPa | 25 | |
13 | servo motor power servo motor power | KW | 39.7 | |
