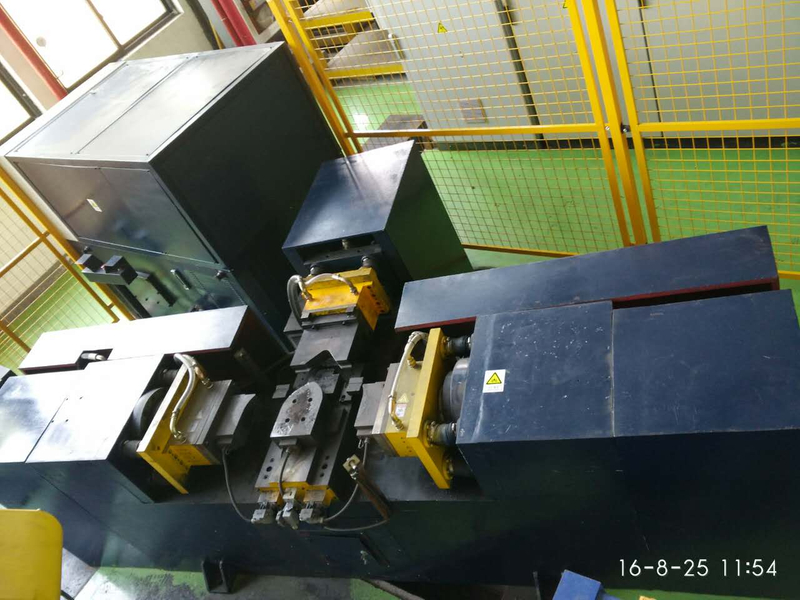

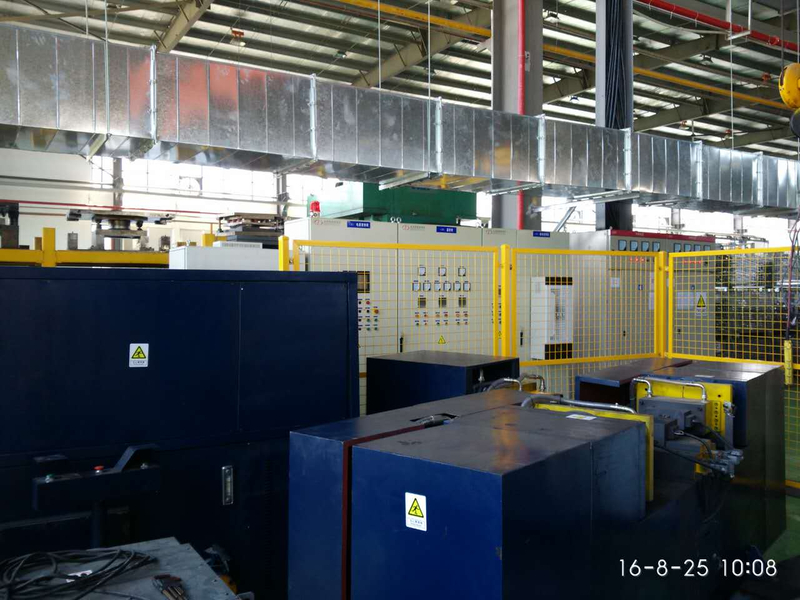

Y92-150 servo CNC press brake high-end off-road station wagon front brake warm forging production line

1. Application
This machine is a special machine designed for the hot press bending process in the hot forging industry.The machine is controlled by a proportional hydraulic system and a CNC electrical system to drive the hydraulic cylinder.The pressure and stroke of the machine can be displayed and set digitally on the touch screen.The machine has manual mold adjustment and semi-automatic modes.

2. Mechanical Action Description Mechanical Action Description
There are 2 working modes: manual and semi-automatic.
Manual:Each cylinder can be operated independently.

Semi-automatic: Press the two-hand start button and the machine can automatically complete all actions once.

The semi-automatic action sequence is as follows：
Pressing two-hand buttons, main cylinder push-out (reach main cylinder pressure) side cylinder push-out simultaneously(reach side cylinder pressure) main cylinder return (main cylinder return in place) side cylinder return (side cylinder return in place) lower cylinder push-out (lower cylinder push-out in place) standstill (reach standstill time) lower cylinder return (lower cylinder return in place) end.

Availability:

Quantity:



Inquire Add to Basket

Model:
Y92-150 servo CNC press brake high-end off-road station wagon front brake warm forging production line
Brand:
Wanda

Product Description

Product Description

Finished Products

Main Technical Specification

No.	Item		Unit	Parameter Specification
1	Nominal Force		Ton	150
2	Main Cylinder Force (Adjustable)		Ton	30 (adjustable)
3	Max. Stroke of Main Cylinder (Adjustable)		mm	120 (adjustable)
4	Side Cylinder(left and right) Force (Adjustable)		Ton	60*2 (adjustable)
5	Max. Stroke of Side Cylinder(left and right) (Adjustable)		mm	180 (adjustable)
6	Lower Cylinder Force (Adjustable)		kgf	150 (adjustable)
7	Max. Stroke of Lower Cylinder (Adjustable)		mm	150 (adjustable)
8	Main Cylinder Speed (Adjustable)	Push-out	mm/s	230 (adjustable)
8	Main Cylinder Speed (Adjustable)	Return	mm/s	250 (adjustable)
9	Side Cylinder Speed (Adjustable)	Push-out	mm/s	50 (adjustable)
9	Side Cylinder Speed (Adjustable)	Return	mm/s	150 (adjustable)
10	Bending Product Diameter		mm	φ46
11	Bending Product Length		mm	615
12	Motor PowerMotor Power		KW	30

Y92-150 servo CNC press brake high-end off-road station wagon front brake warm forging production line
