YF-1000CS
万达
Product Description
Main technical parameters:
Serial number NO. | Project Item | Unit | YF-1000CS | |
1 | Master cylinder nominal pressure Master cylinder nominal pressure | KN | 800-10000 (Adjustable) | |
2 | Maximum working pressure of liquid Maximum working pressure of liquid | MPa | 26(Adjustable) | |
3 | Slider stroke | mm | 0-500 (Adjustable) | |
4 | Distance between the lower plane of the pressure head and the upper plane of the cushion plate | maximum maximum | mm | 600 |
Minimum Minimum | mm | 0 | ||
5 | Nominal force of side cylinder | KN | 100*1000 (adjustable)*2 pressure relay control 100*1000(Adjustable)*2Pressure relay control | |
6 | Side cylinder stroke | mm | 0-325 (Adjustable) | |
7 | Side cylinder slider from main machine center distance Distance between the sliding block of the side cylinder and the center of the main engine | mm | 375 | |
8 | Distance of the center line of the side cylinder slider from the plane on the pad Distance between the centerline of the side cylinder slider and the flat surface of the cushion plate | mm | 70 | |
9 | Slider speed Slider speed | no load down | mm/s | 0-120 (Adjustable) |
Suppressing pressing | mm/s | 0-8 (Adjustable) | ||
Return | mm/s | 0-120 (Adjustable) | ||
10 | Side cylinder speed Side cylinder speed | Combining model mold clamping | mm/s | 0-40 (Adjustable) |
Return | mm/s | 0-50 (Adjustable) | ||
11 | Workbench size Workbench size | Left and right (inside the column) | mm | 1000 |
Front and back (edge) | mm | 1100 | ||
12 | Mobile workbench size Mobile workbench size | Left and right LR | mm | 900 |
Front and rear FB | mm | 800 | ||
Thick | mm | 100 | ||
13 | Side cylinder slide size Side cylinder slider size | Up and down | mm | 130 |
Front and rear FB | mm | 750 | ||
Thick | mm | 70 | ||
14 | Servo motor power | KW | 26.7*2+53.4 | |
15 | The distance between the workbench and the ground | mm | 900 | |
16 | Maximum load-bearing capacity of mobile workbench | KN | 250 | |
17 | Modular servo motor power Power of the mode-moving servo motor | KW | 1*2 | |
18 | Oil cooler | 12000Kcal/h | ||
19 | The power station is placed on the hydraulic station, and the electrical control box is placed on the hydraulic station to reduce the footprint Place the power station on top and the electrical control box on top of the hydroulic station to reduce the footprint | |||
20 | It has intelligent, informatized, digital, remote monitoring functions, safety grating + touch screen + PLC + pressure sensor + magnetic scale displacement combination + two sides simultaneous operation functions Equipment with intelligence, information-based, digital, remote monitoring functions, safety grating+touch screen+PLC+pressure sensor+magnetic grating ruler displacement combination+simultaneous operation on both sides | |||

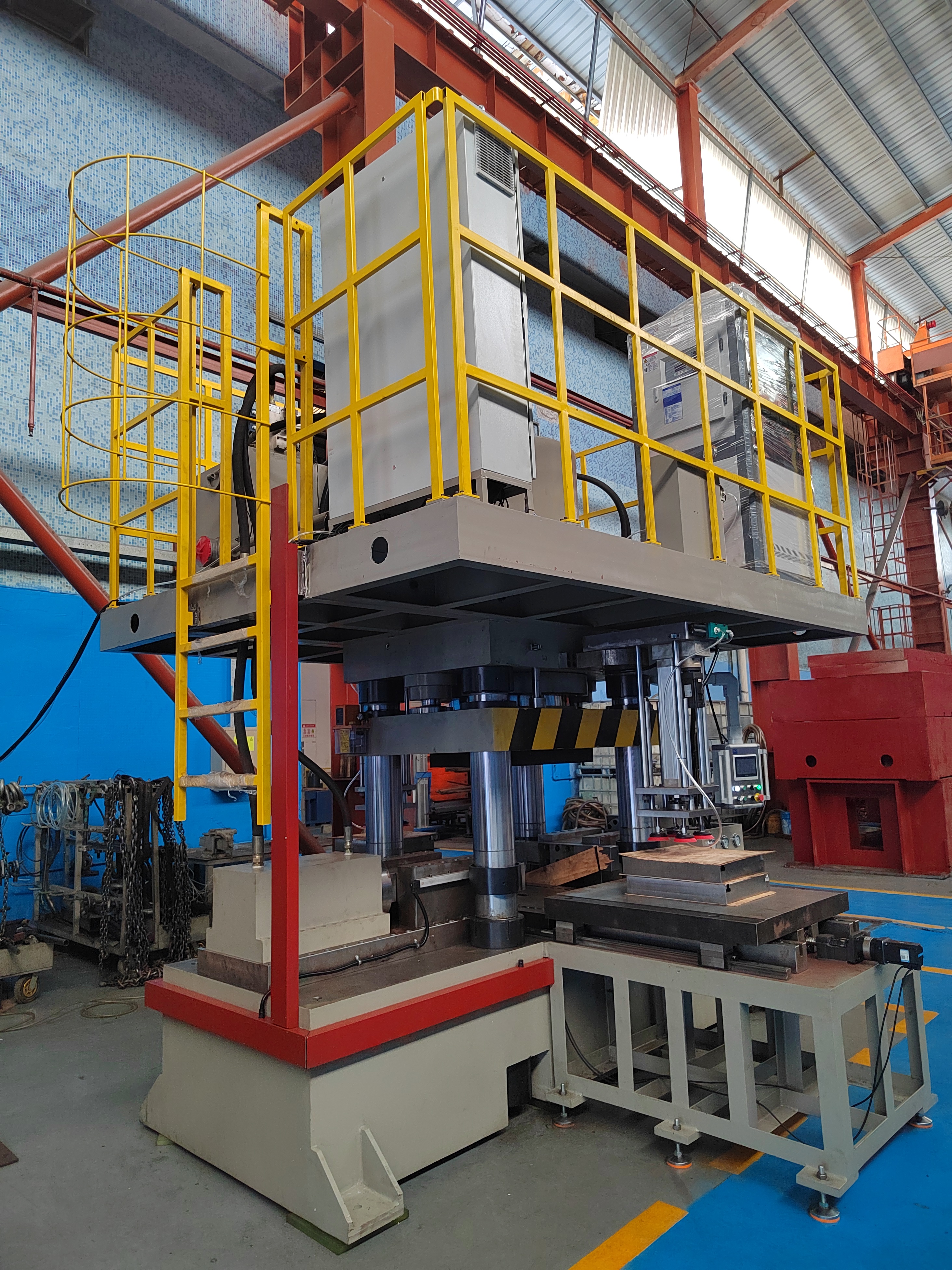

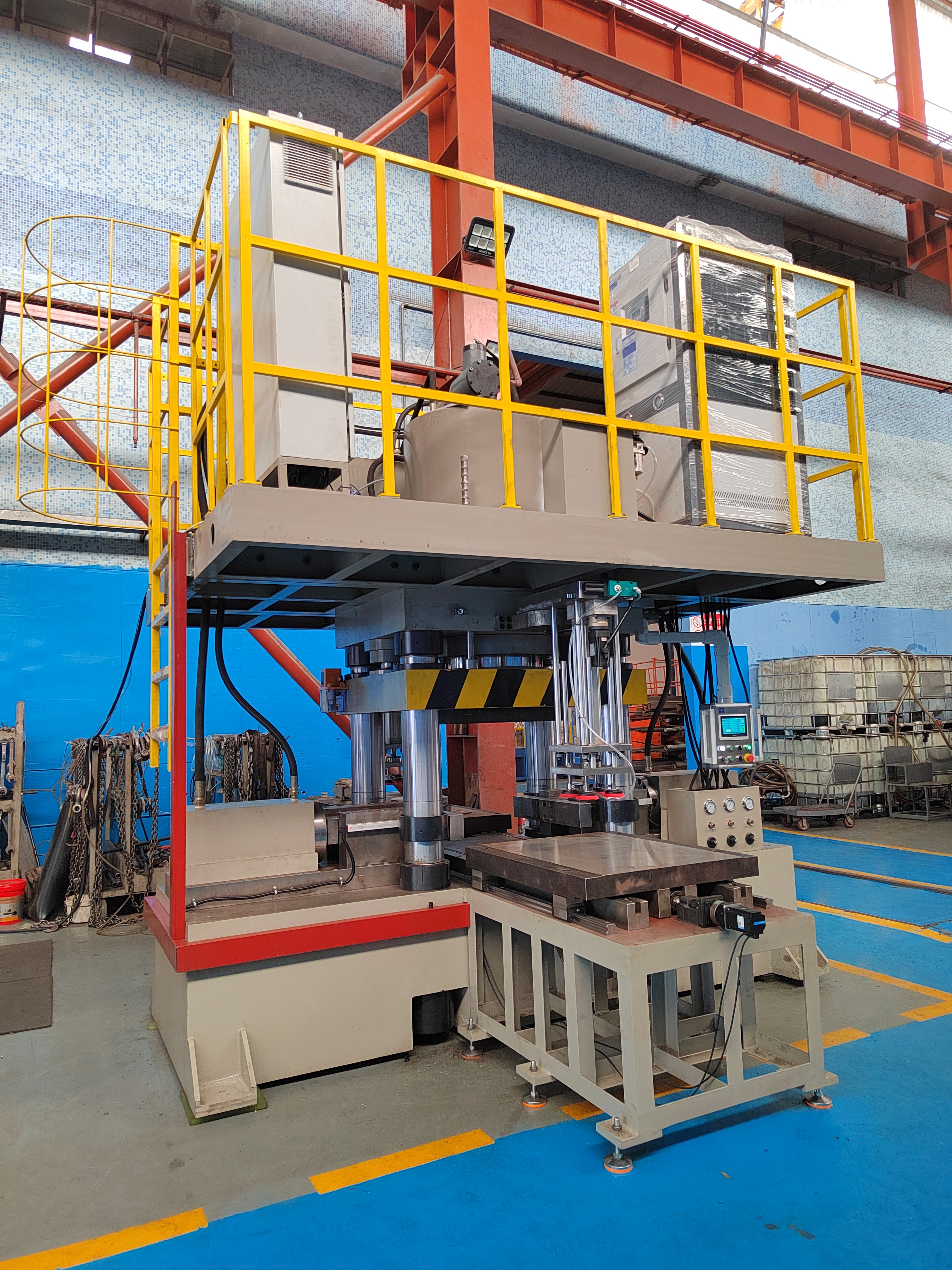

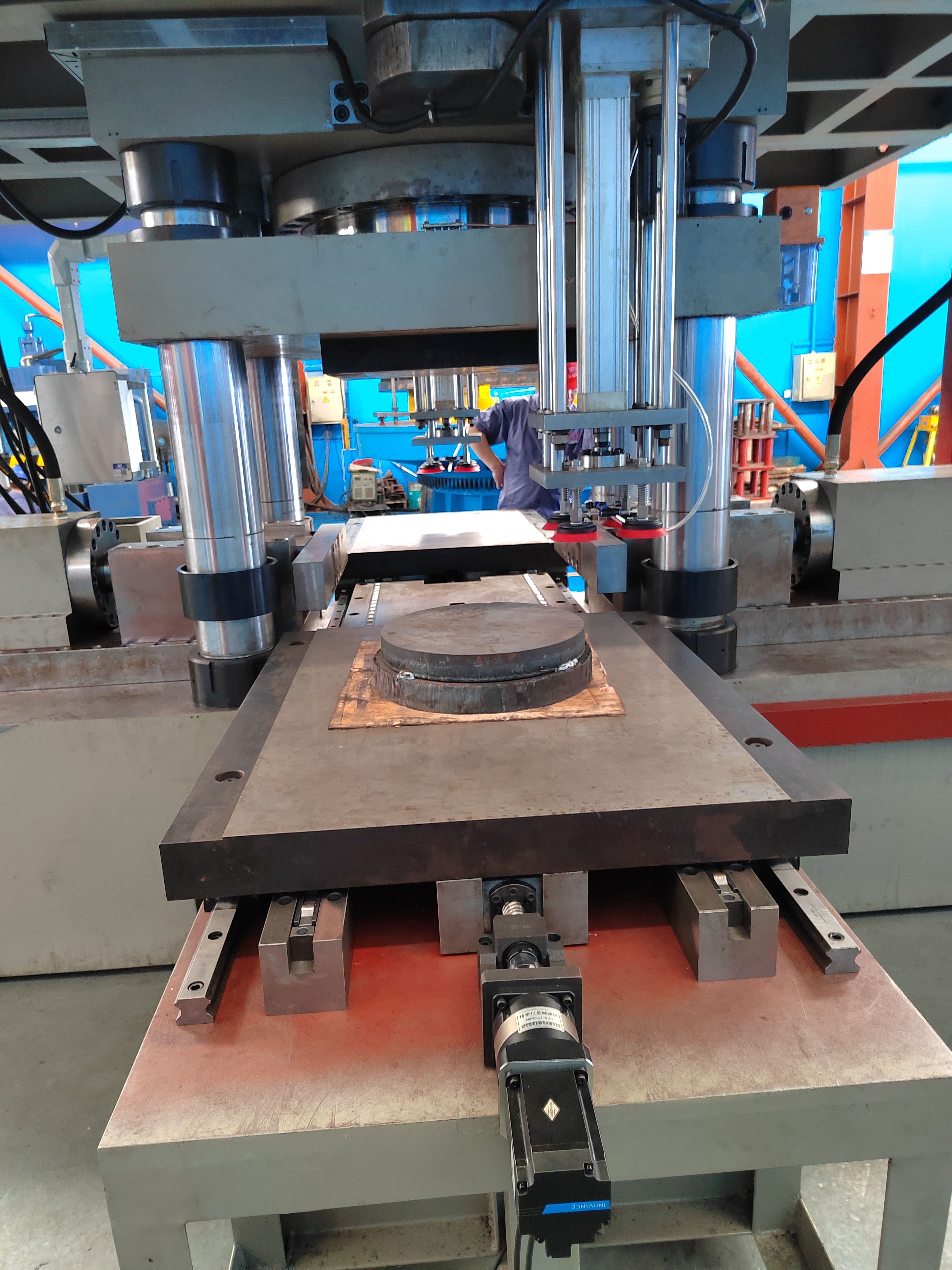

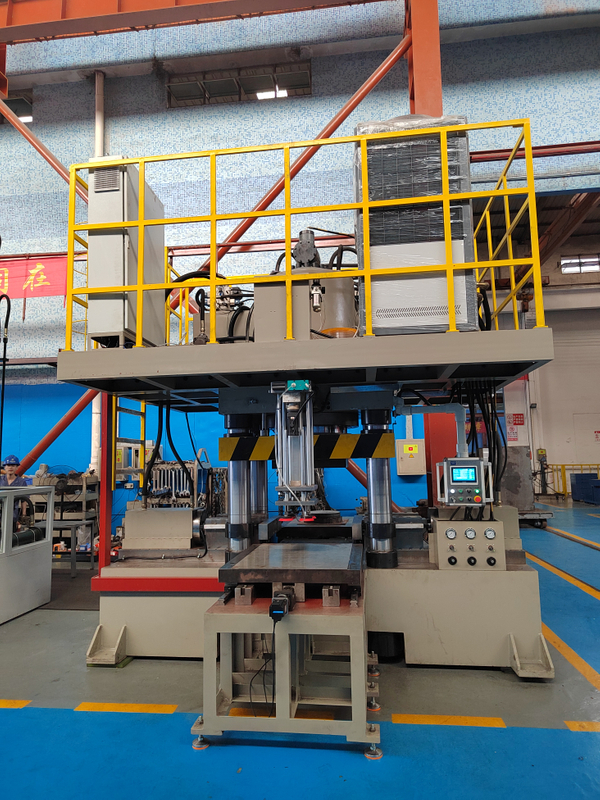

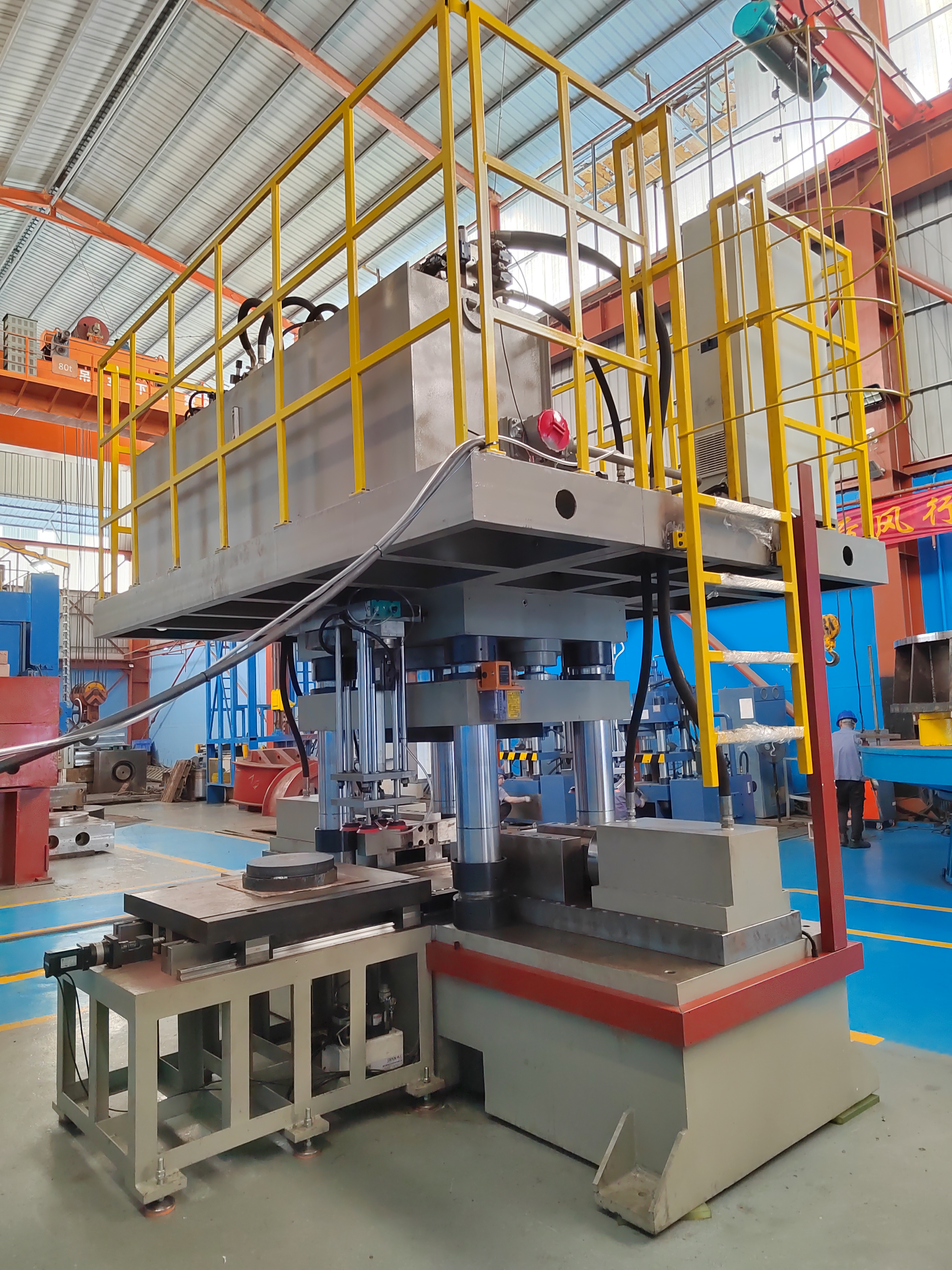

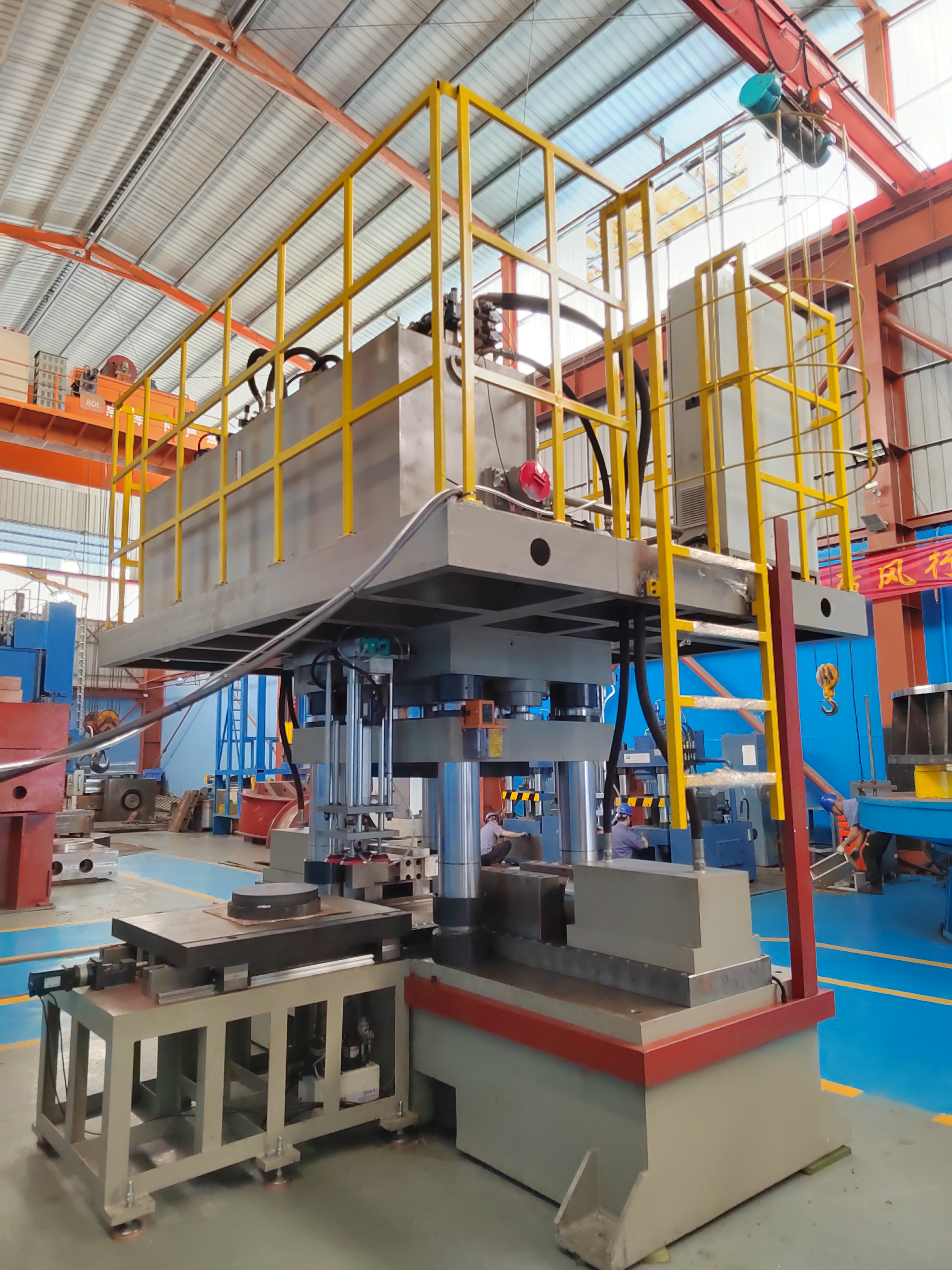

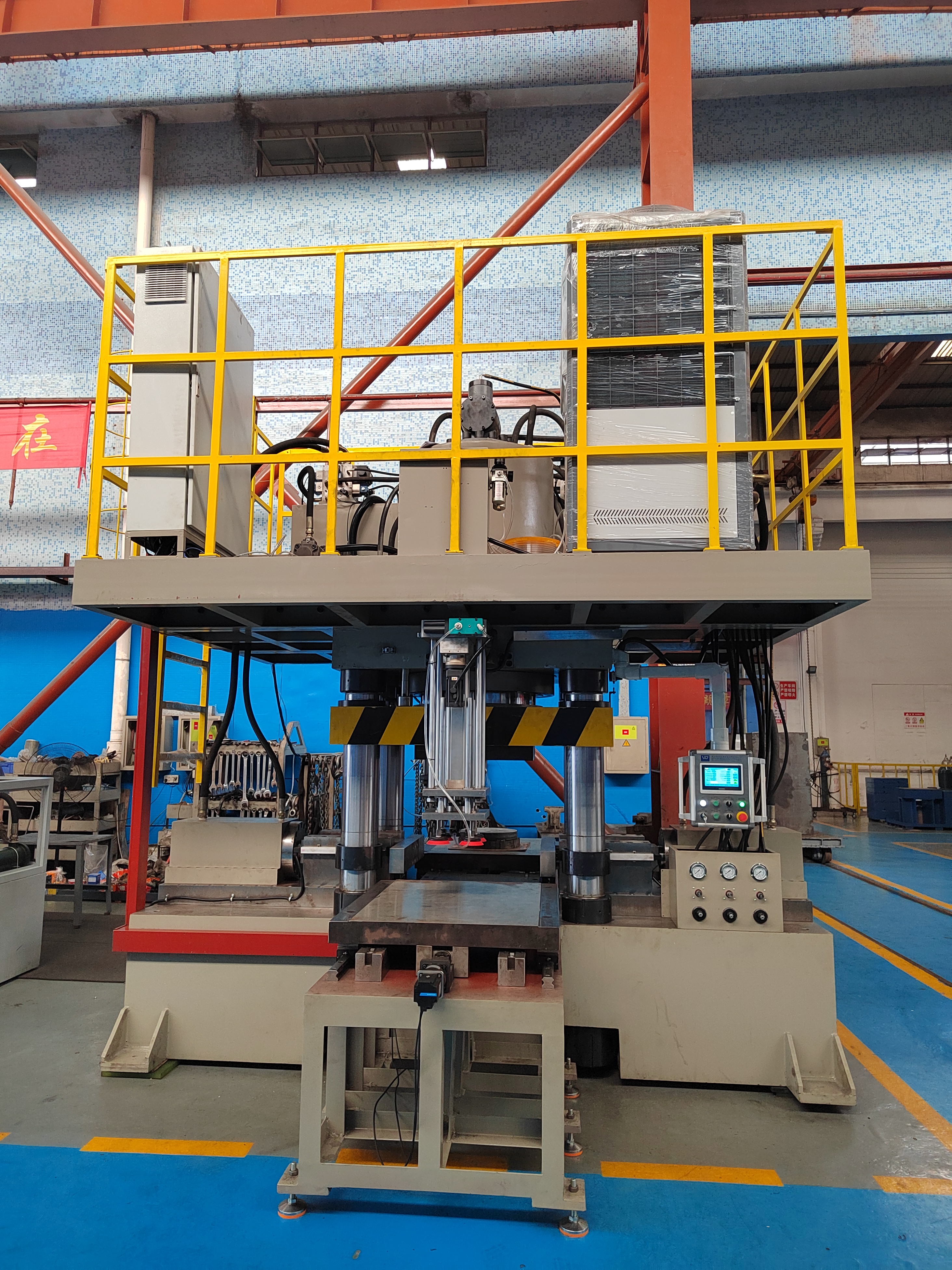

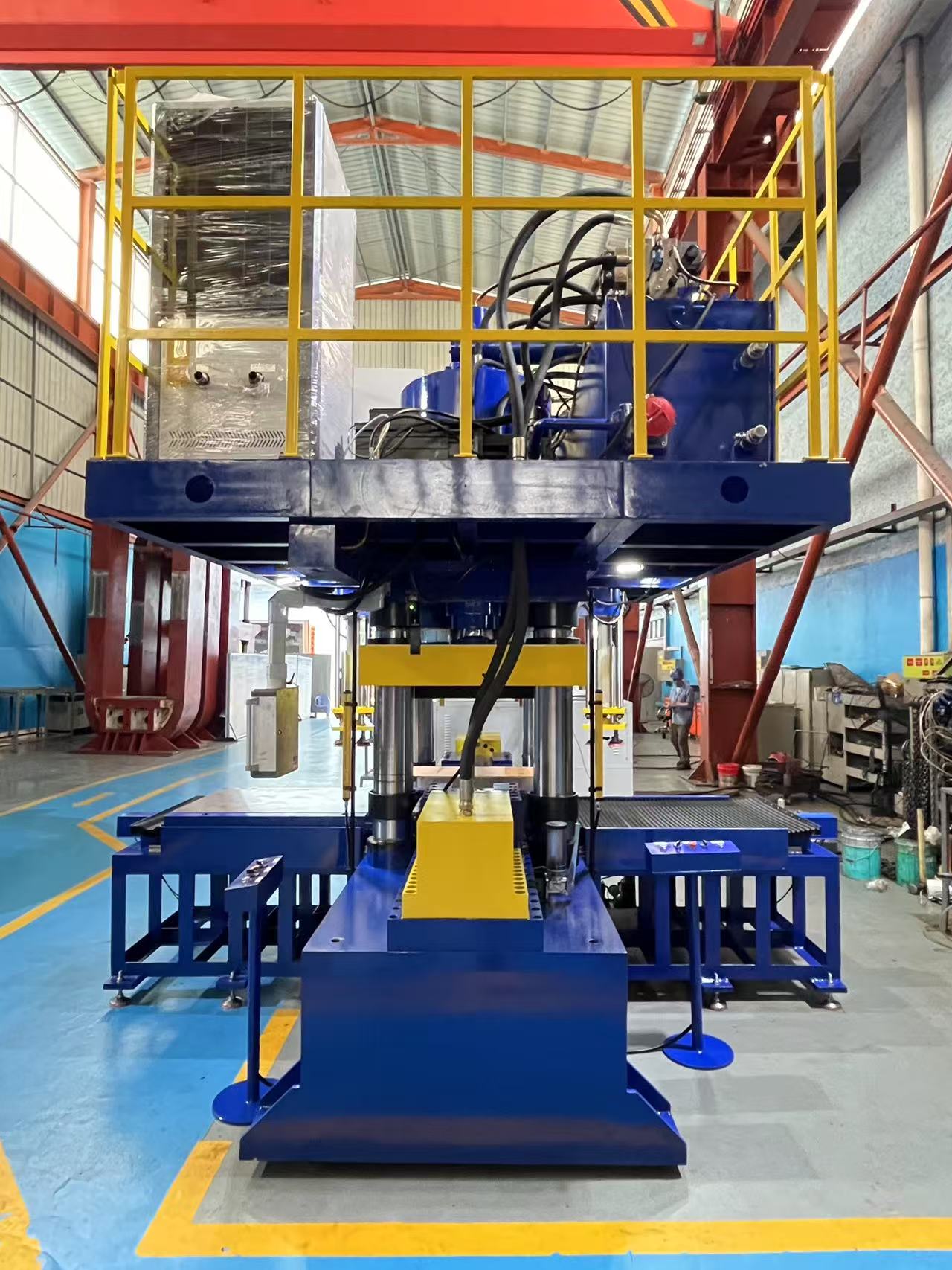

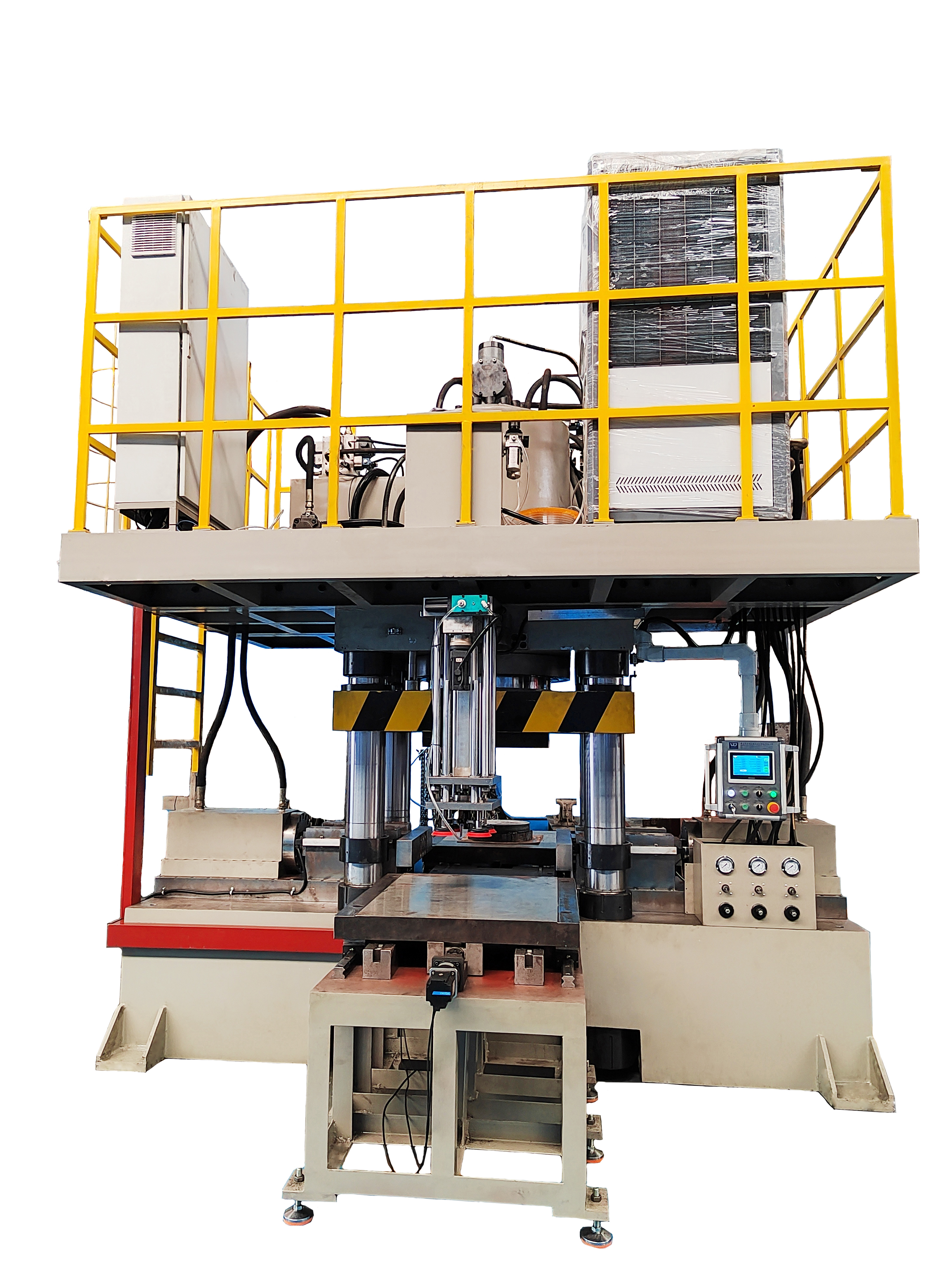

Equipment diagram:

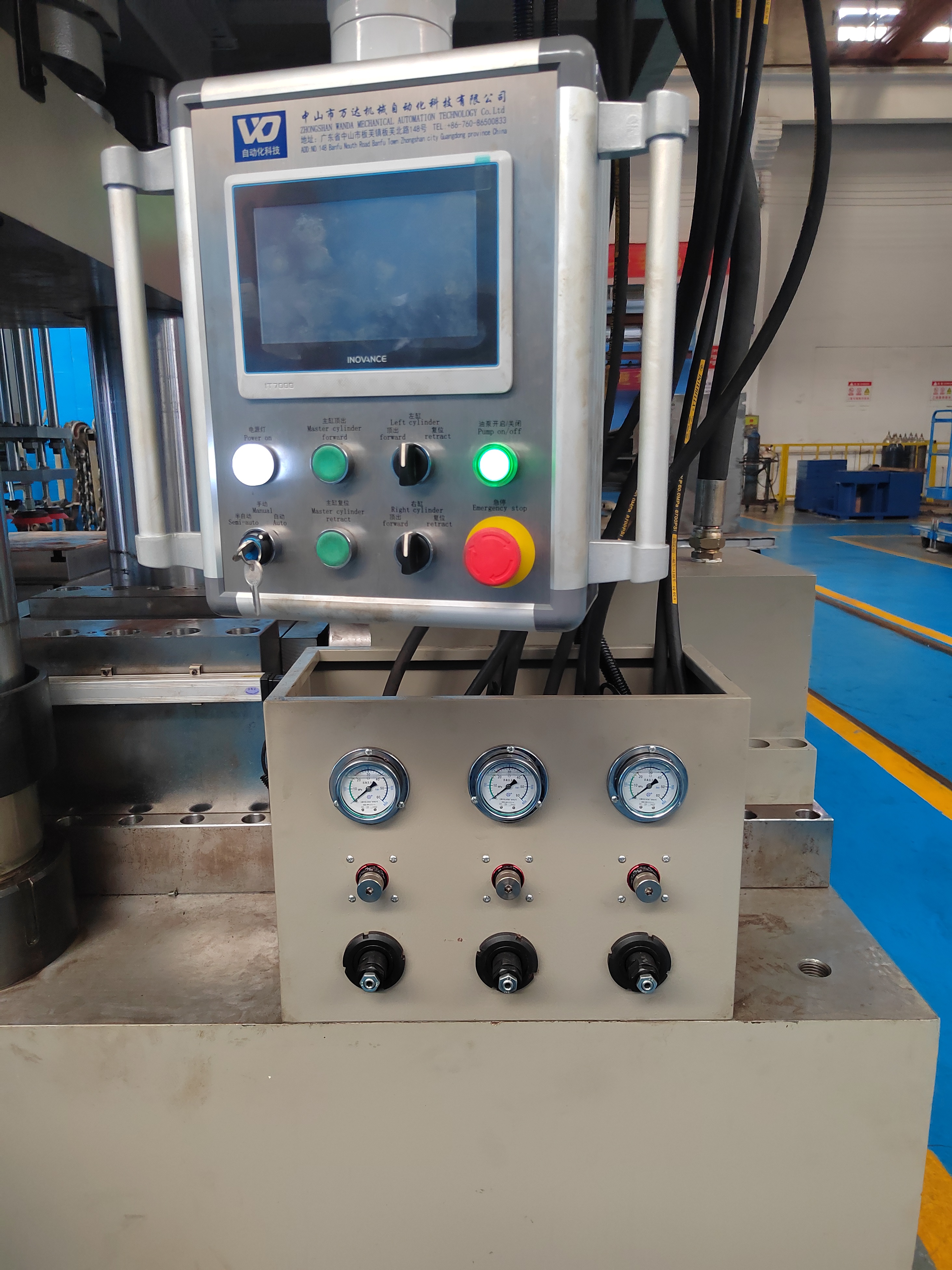

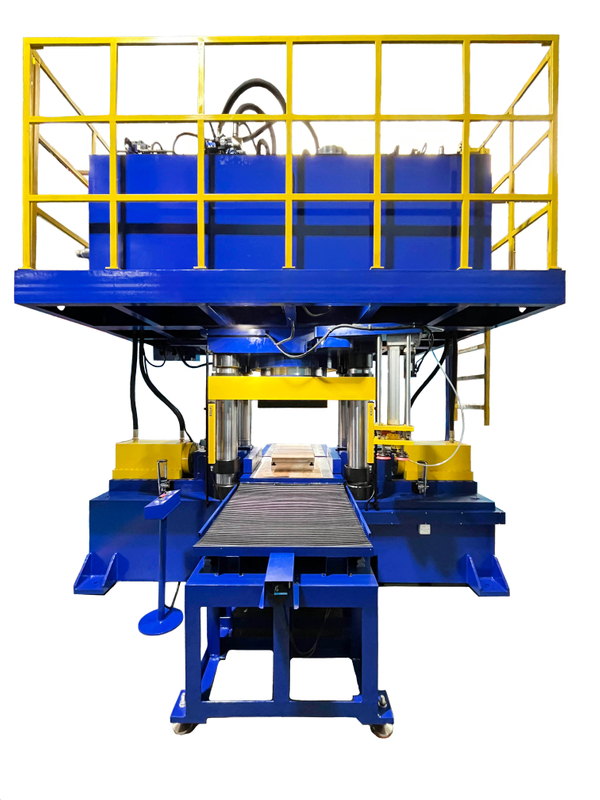

Details

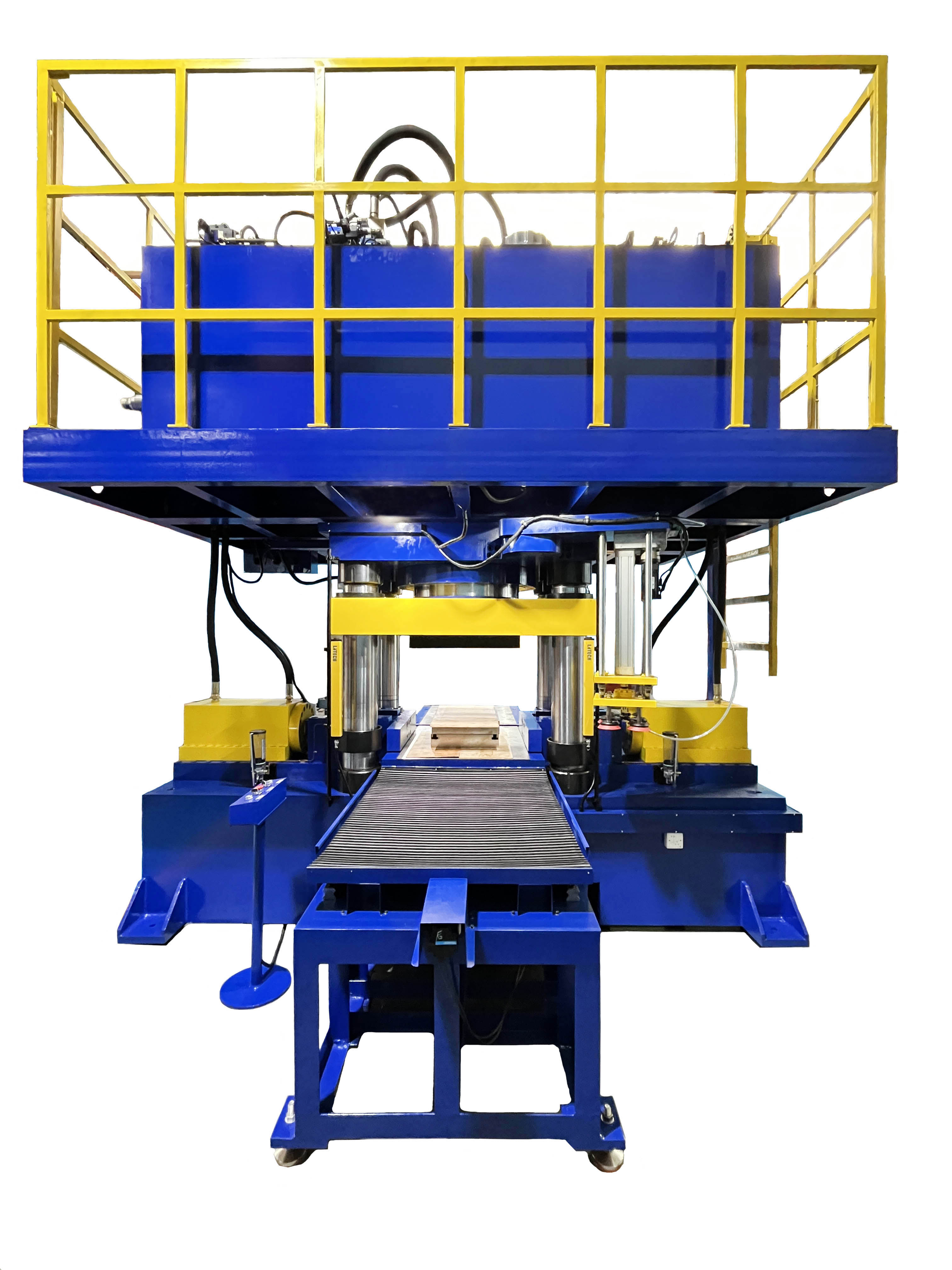

Details

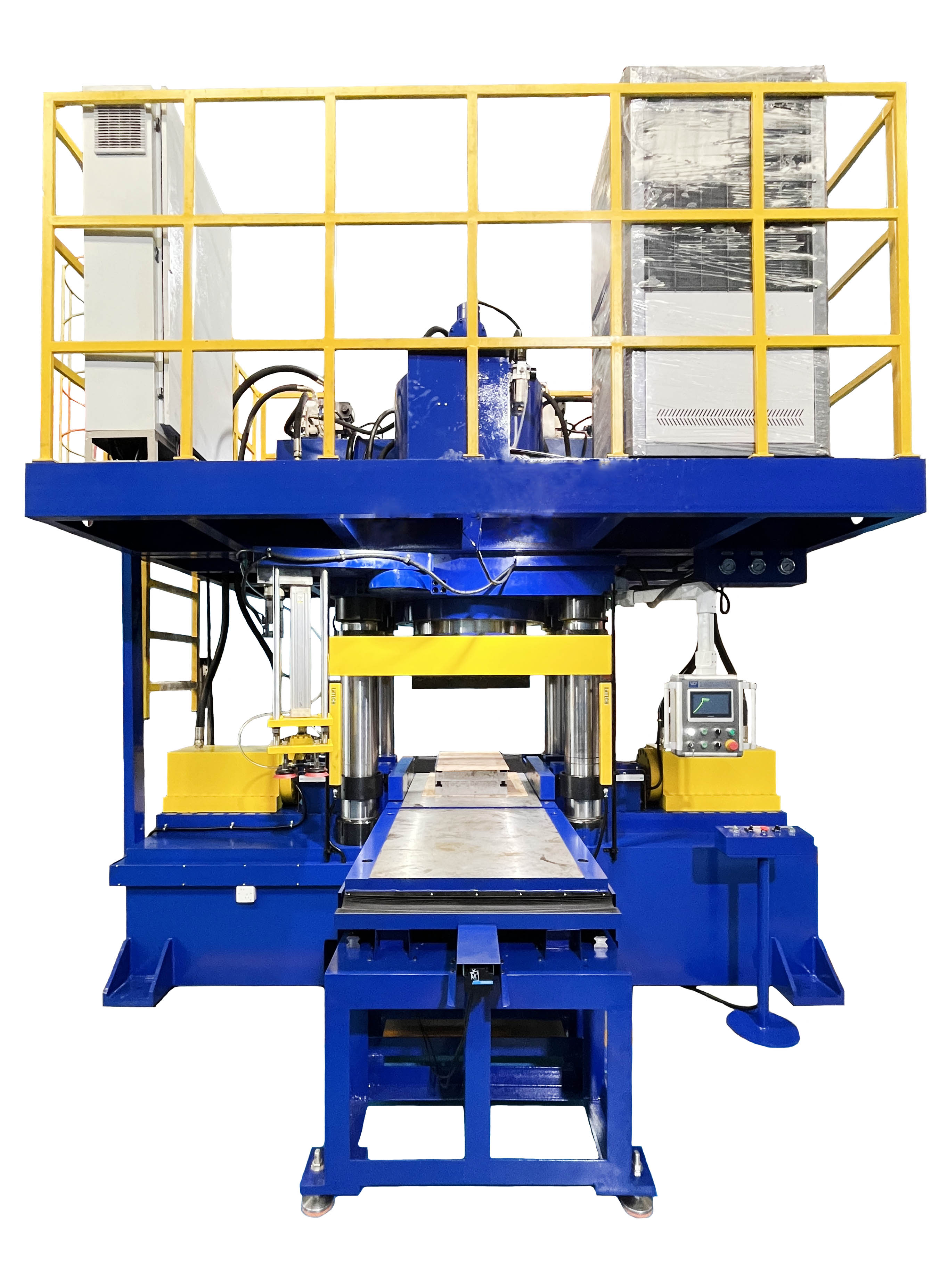

Details
