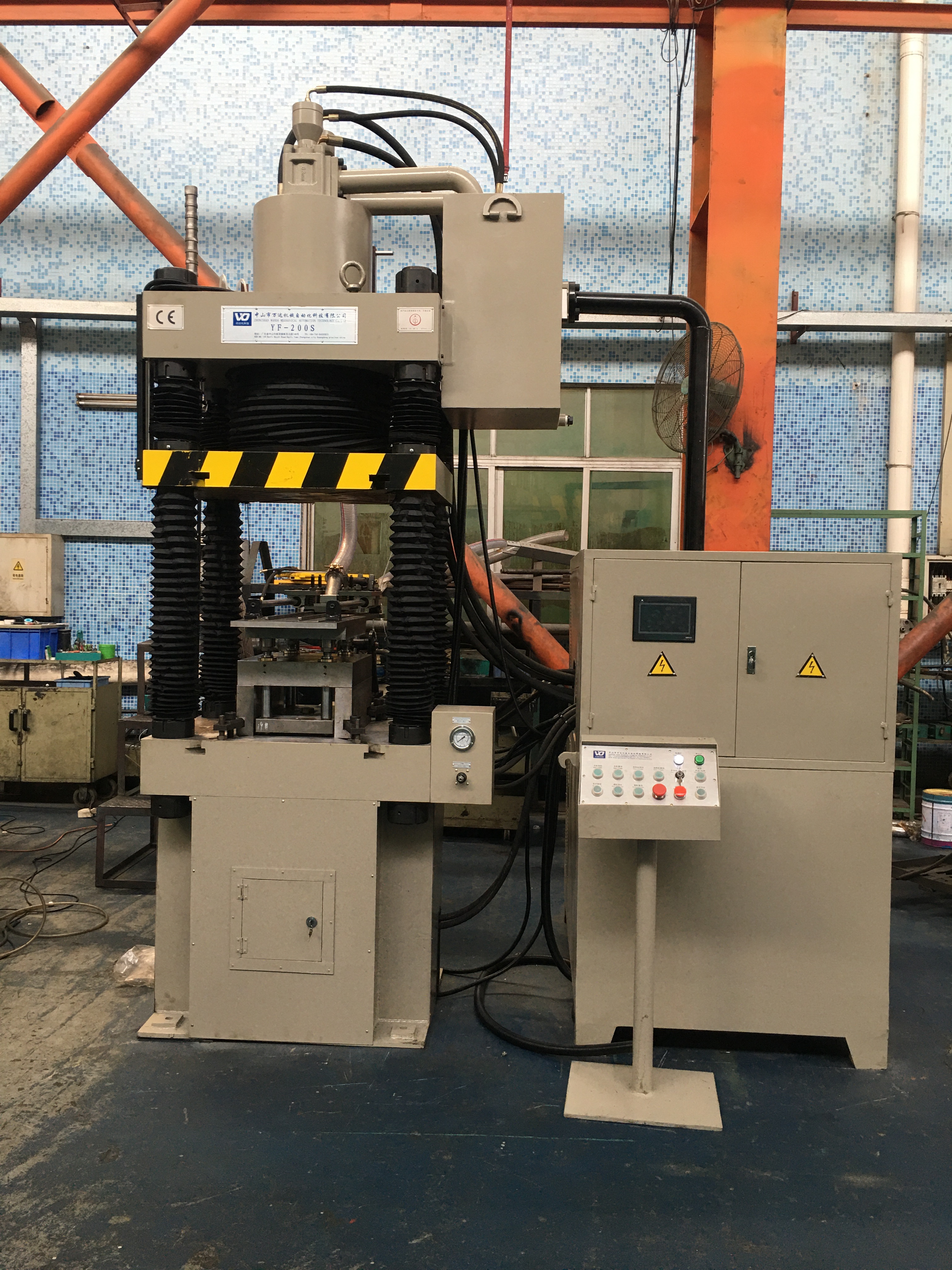

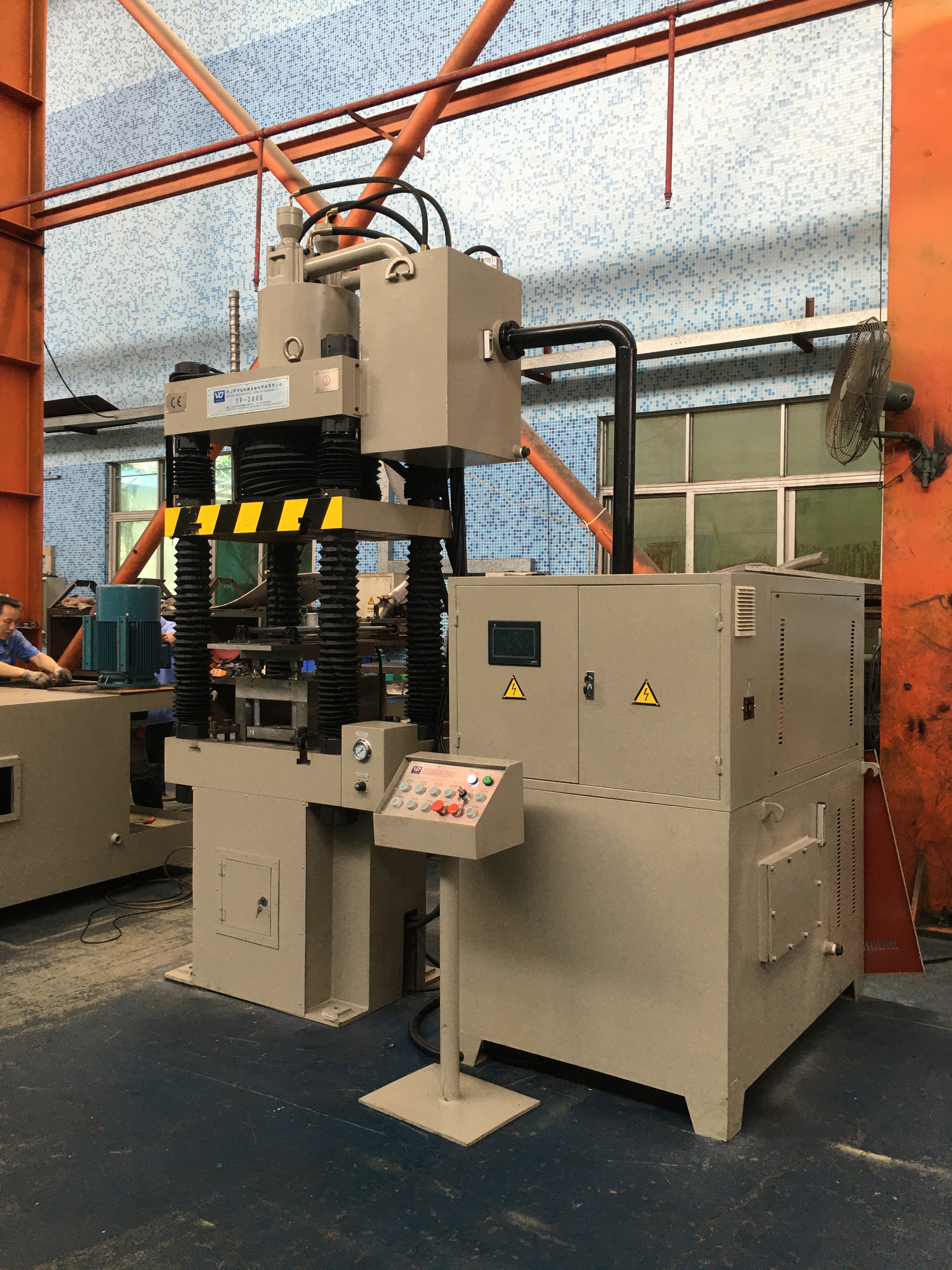

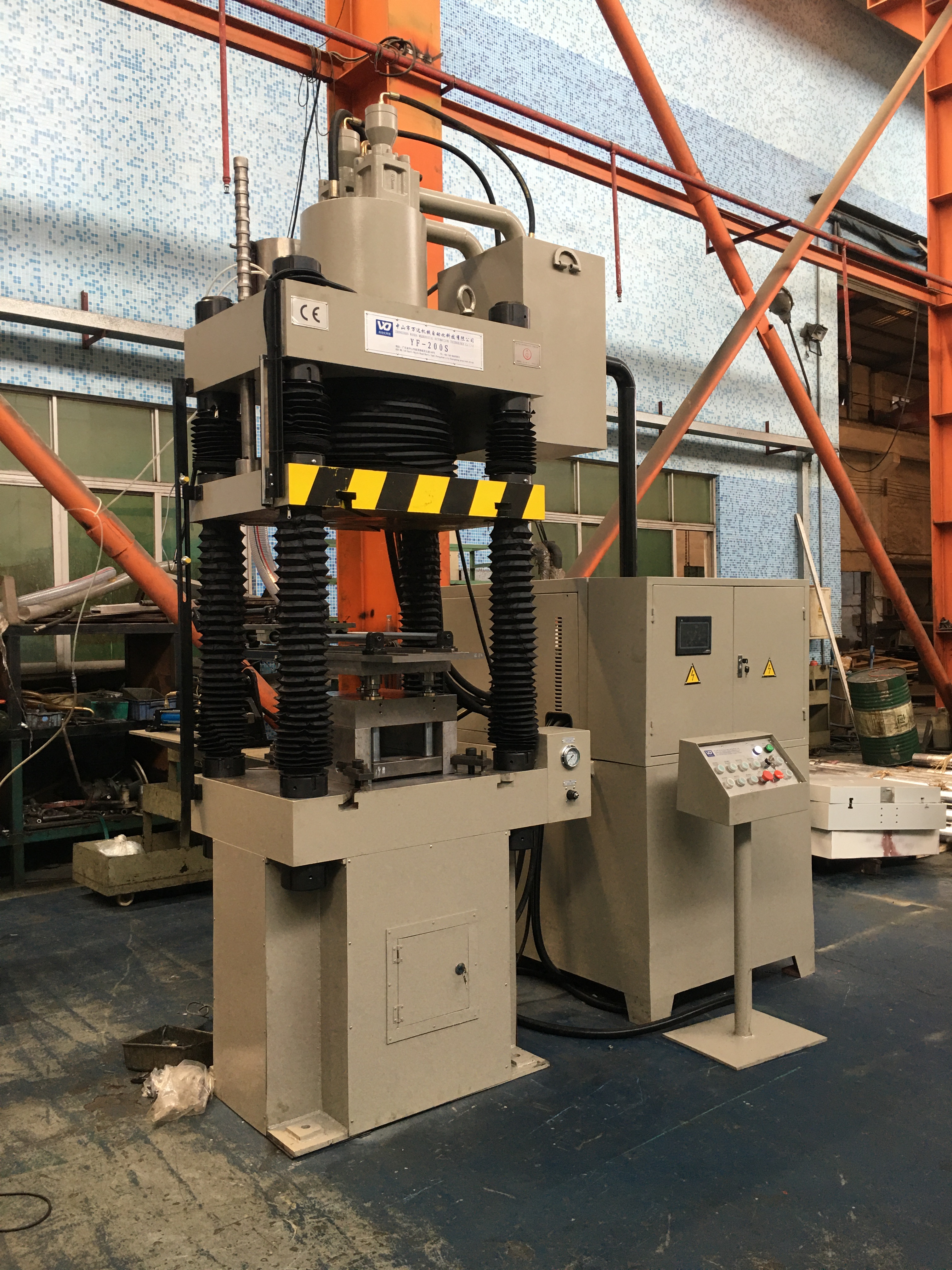

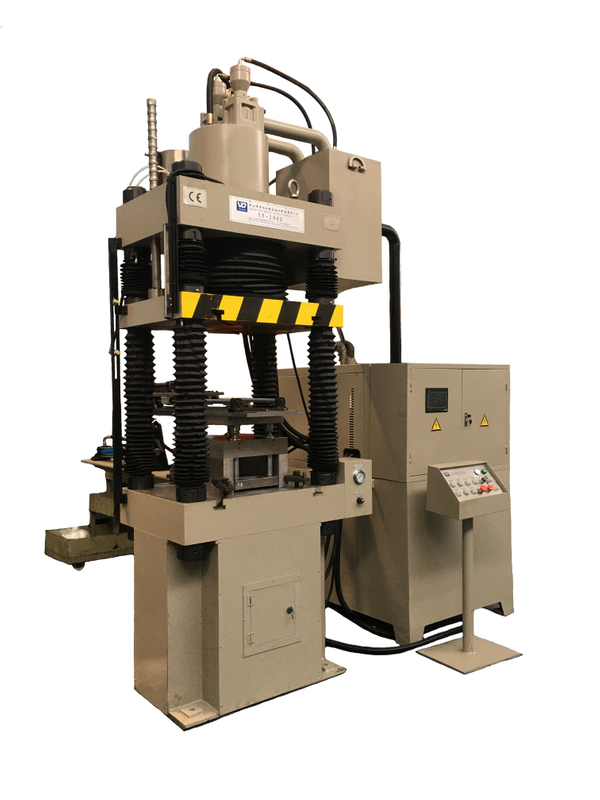

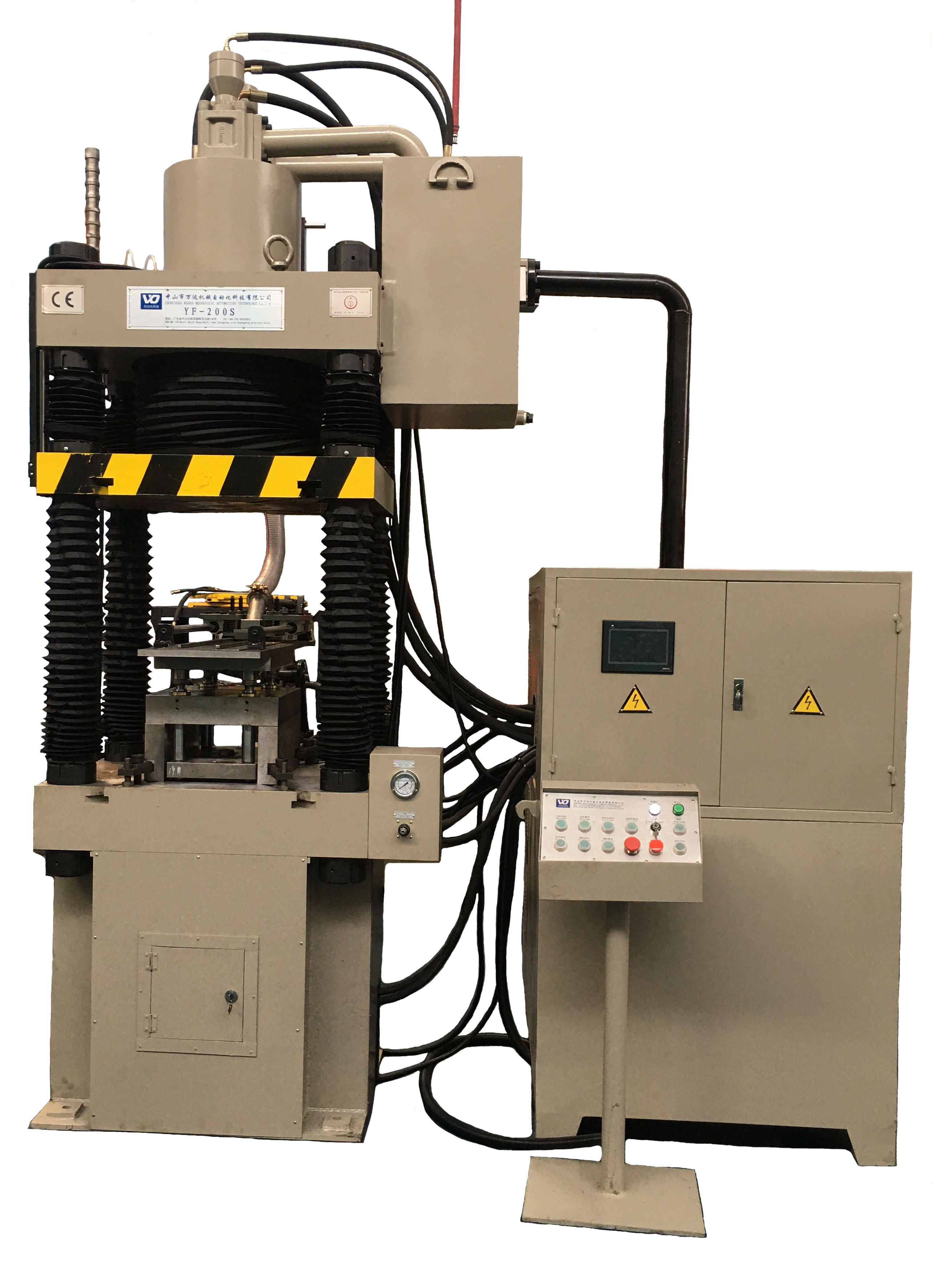

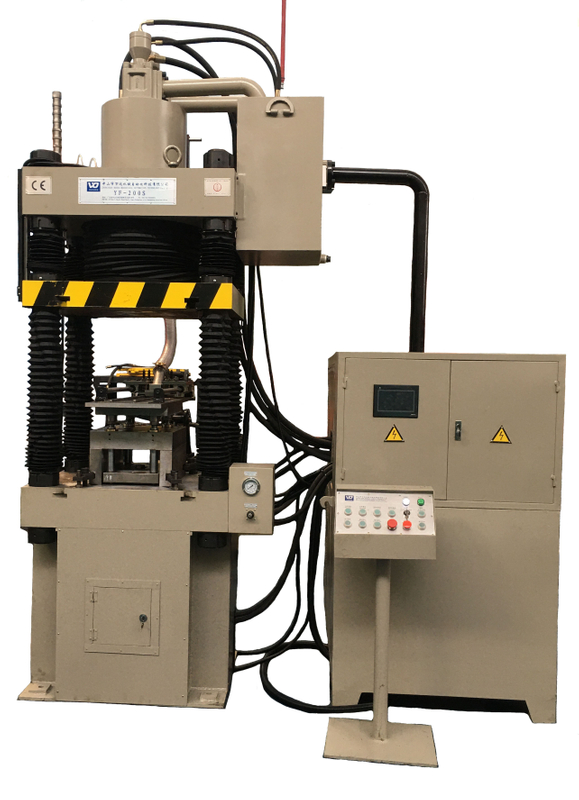

YF-200S
万达
Product Description
Main technical parameters of YF-200S:
Serial numberNO. | ItemItem | UnitUnit | YF-200S | |
1 | Master cylinder force Master cylinder force | KN | 2000 (adjustable) (adjustable) | |
2 | Master cylinder stroke Master cylinder stroke | mm | 300 (adjustable) (adjustable) | |
3 | Sump force Bottom cylinder force | KN | (adjustable) | |
4 | Sump stroke Bottom cylinder stroke | mm | 150 (adjustable) (adjustable) | |
5 | Opening height Opening height | mm | 860 | |
6 | master cylinder speed Master cylinder speed | fast forward Fast forward | mm/S | 140 (adjustable) (adjustable) |
Work progresses Work progress | mm/S | 8 (adjustable) (adjustable) | ||
Return trip returning | mm/S | 140 (adjustable) (adjustable) | ||
7 | Workbench size Table size | about Left-right | mm | 700 |
before and after Front-back | mm | 700 | ||
8 | Servo motor power | KW | 13.4 | |
9 | Liquid working pressure Maximum working pressure of liquid | master cylinder Master cylinder | MPa | 25 |
sump Bottom cylinder | MPa | 22 | ||
10 | Flatness of upper and lower worktables Flatness of upper and lower table | mm | 0.06 | |
11 | Parallelism between the upper worktable and the lower worktable Parallelism of upper workbench to lower workbench | mm | 0.17 | |
