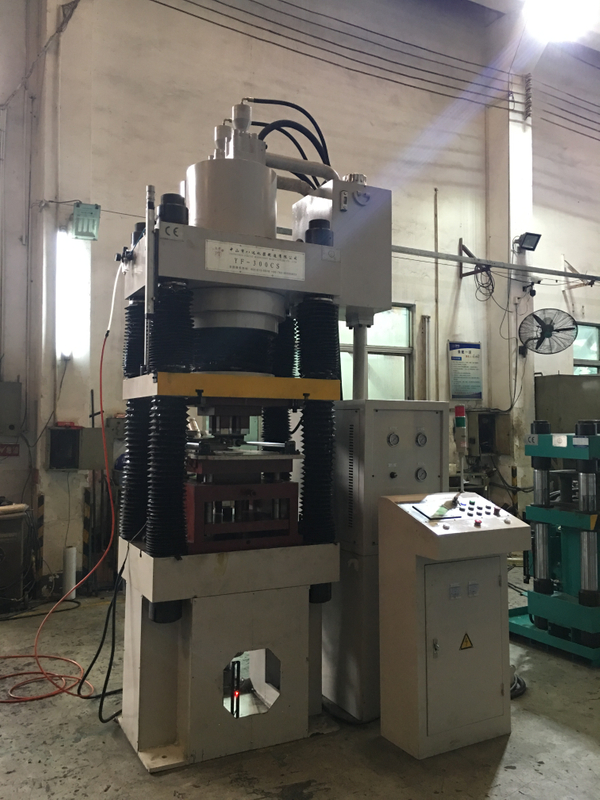

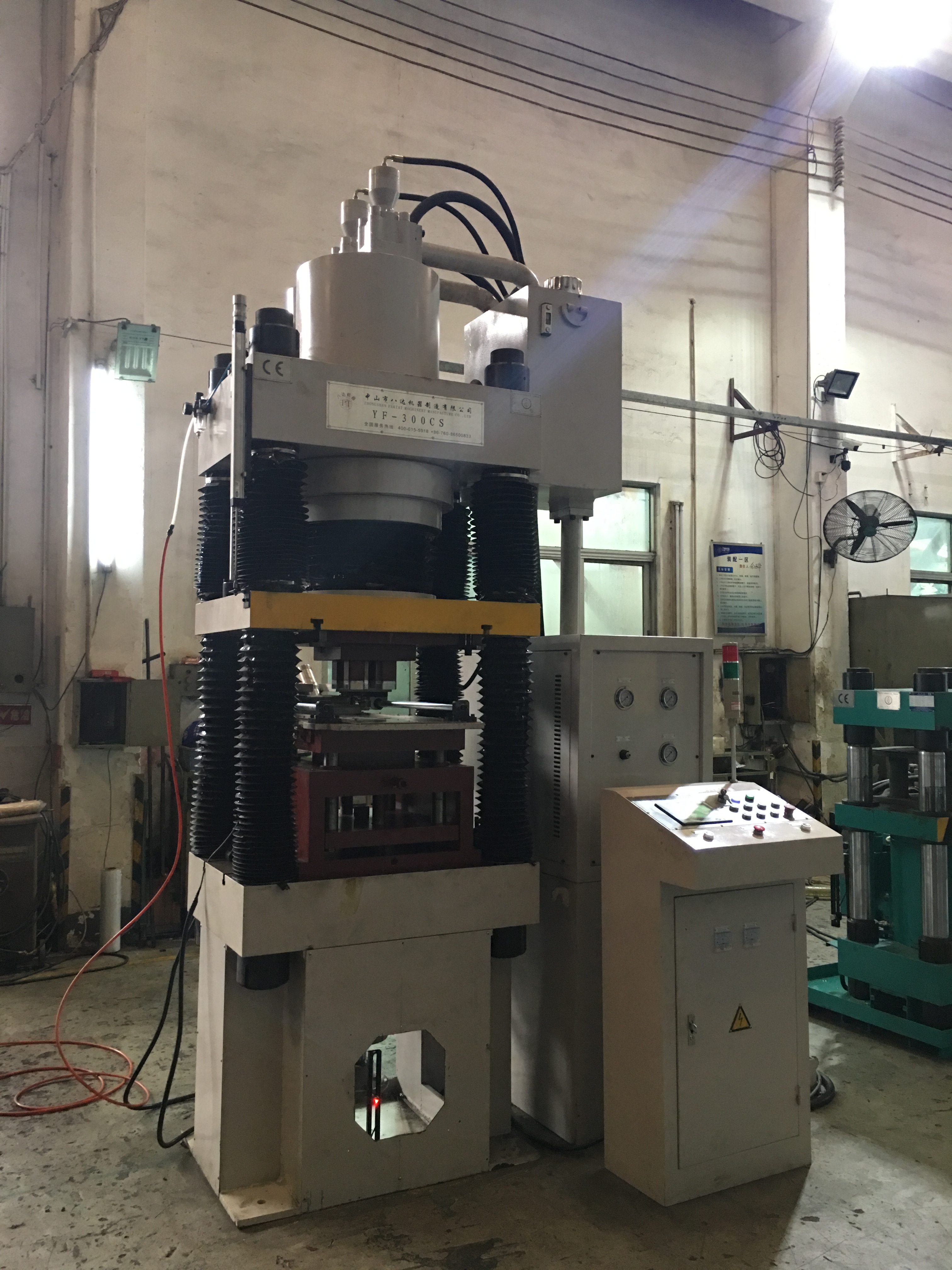

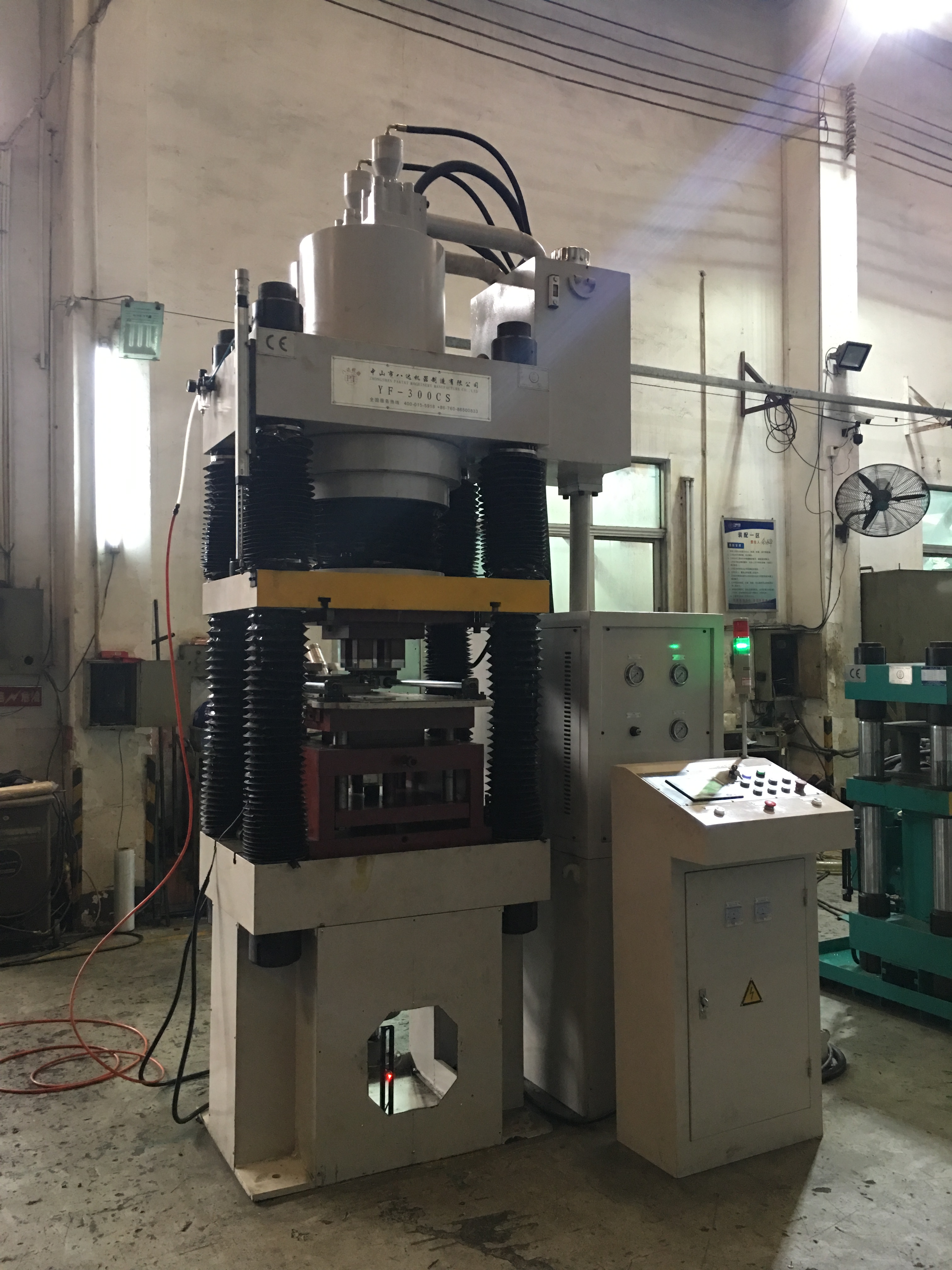

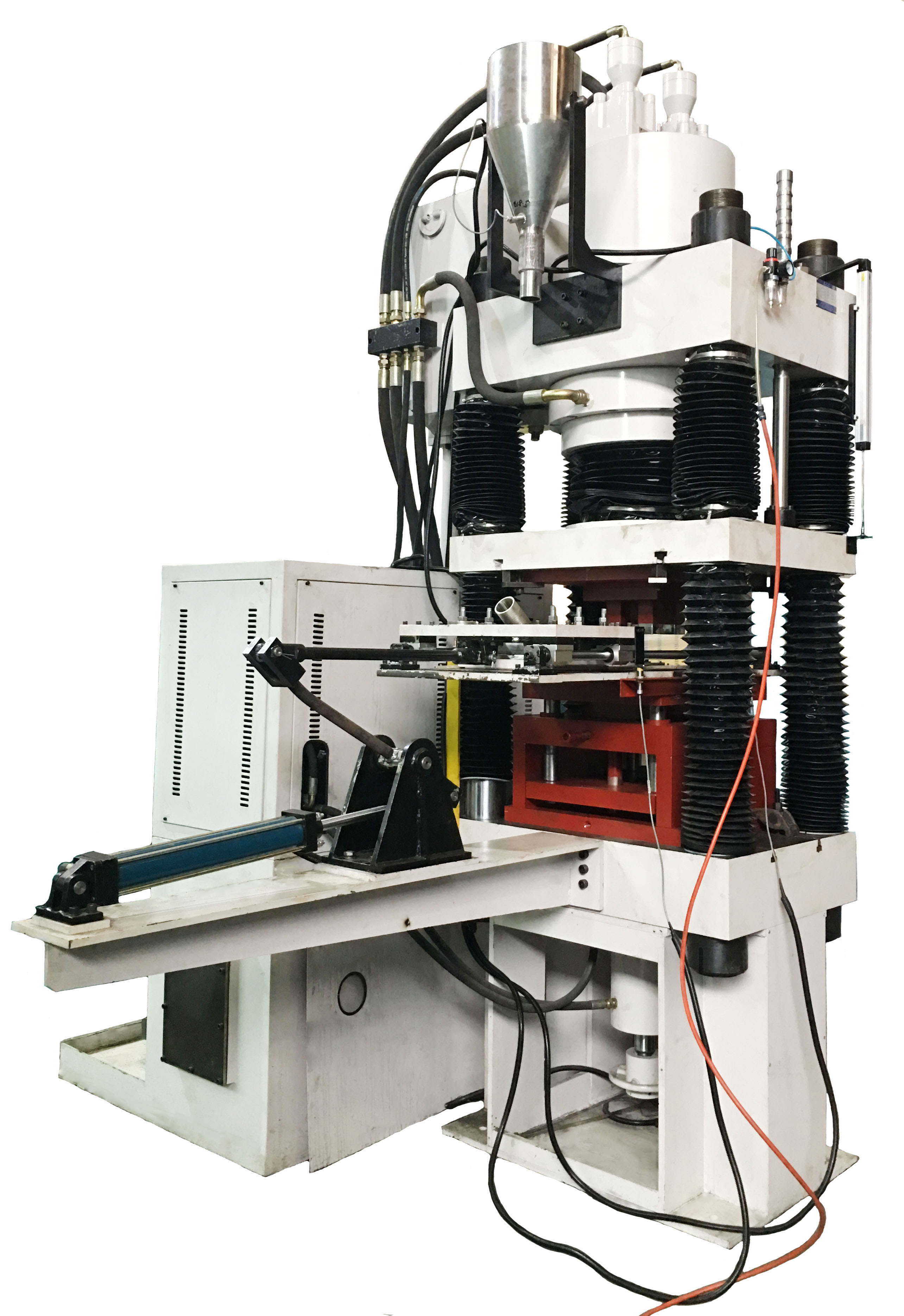

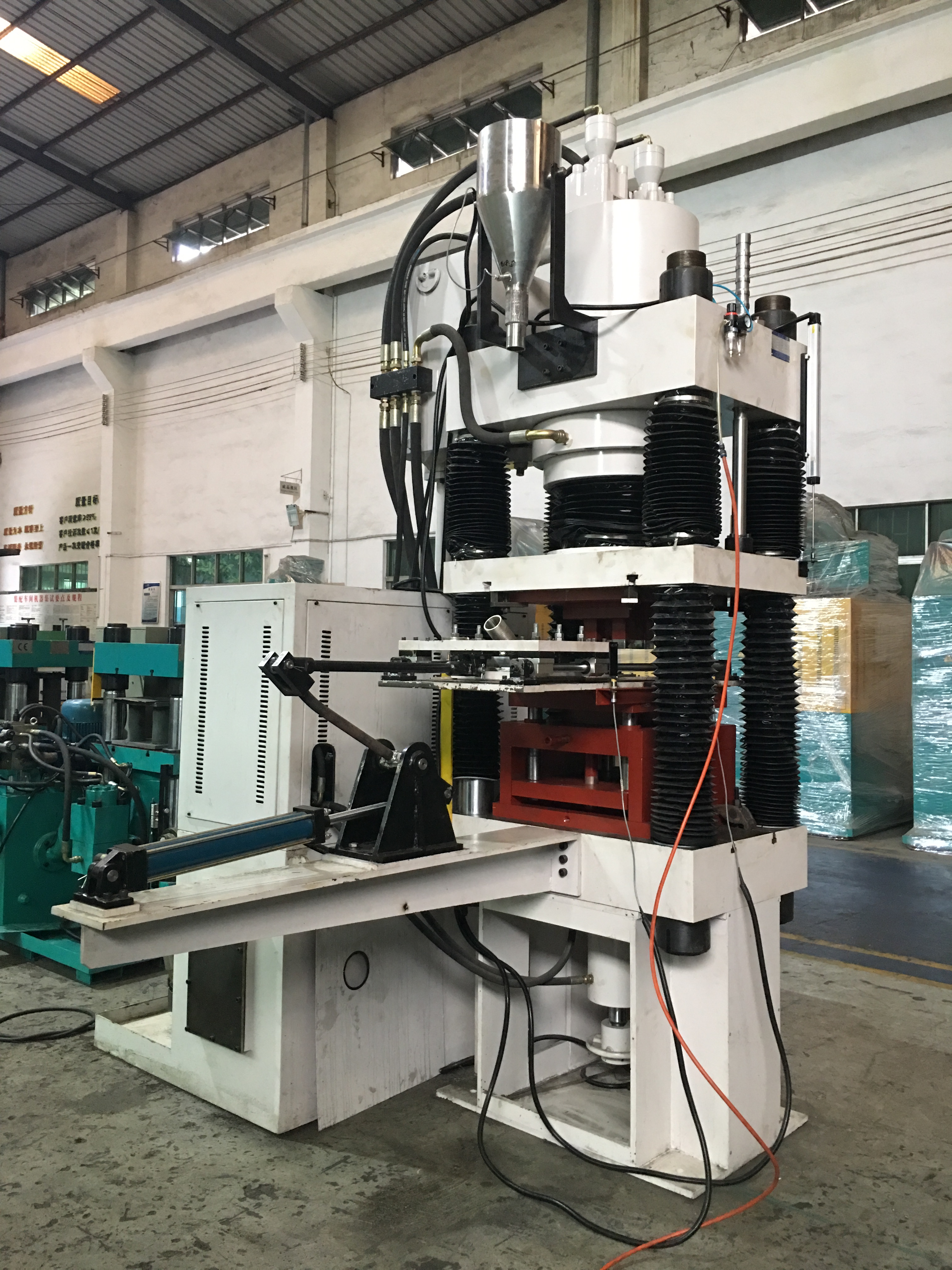

YF-300CL

YF series four column powder pressing hydraulic press
Function and Application: The YF series four column powder hydraulic press is suitable for various powder metallurgy and ceramic powder pressing and forming. This machine has a wide range of versatility and can press powder metallurgy parts with a height of less than 50 millimeters when fully automatic.
Product features:1. This series of powder machines adopts fully automatic feeding and returning, with fast pressing speed and high efficiency. 2. Advanced design, exquisite craftsmanship, compact structure, and easy maintenance
Availability:
Quantity:
YF-300CL
YF-300CL
YF-300CL
YF-300CL
  • YF-300CL

  • 万达

Product Description

Main technical parameters of YF-300CL:

 NO.

Item

Unit

YF-300CL

1

Master cylinder force

KN

3000(adjustable)

2

Master cylinder stroke

mm

450 (adjustable)

3

Bottom cylinder force

KN

300 (adjustable)

4

Bottom cylinder stroke

mm

150

5

Opening height

mm

1350

6

master cylinder speed


Fast forward

mm/S

150 (adjustable)

Work progresses

mm/S

4-8 (adjustable)

returning

mm/S

150 (adjustable)

7

Table size

Left-right(inside column)

mm

700

Front-back(edge)

mm

700

8

Motor powerMotor power

KW

11

9

Maximum working pressure of liquid

Master cylinder

MPa

25

Bottom cylinder

MPa

22

10

Flatness of upper and lower table

mm

0.06

11

Parallelism of upper workbench to lower workbench

mm

0.17
