YF-315A
八达
Product Description

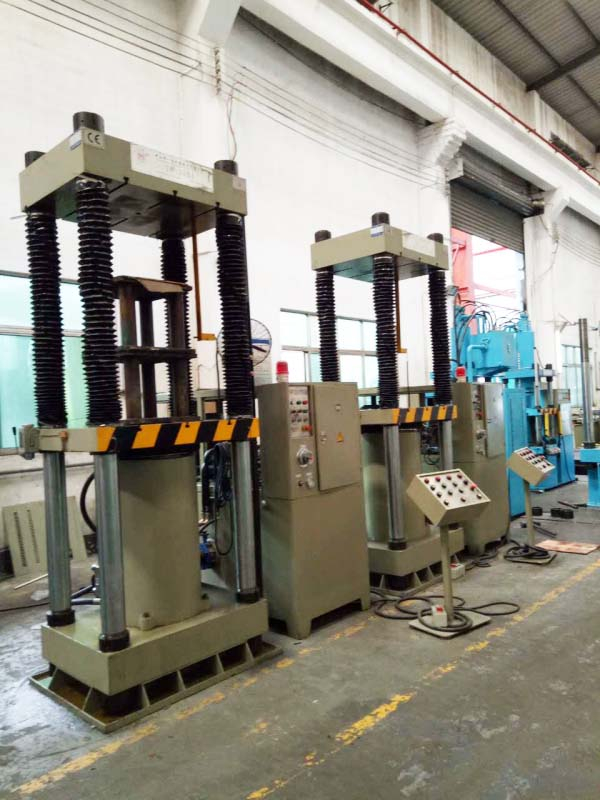

YF series four-column powder pressing hydraulic press
Functions and uses:
YF series four-column powder hydraulic press is suitable for various powder metallurgy and ceramic powder pressing molding
Features:
This series of powder machines adopts fully automatic feeding and returning, with fast pressing speed and high efficiency;
Advanced design, exquisite workmanship, compact structure and easy maintenance;
The system adopts imported Japanese PLC control, with smooth and reliable operation;
The main hydraulic components are selected from world-famous brands, and the system is stable and has a low failure rate.
| YF series four-column powder hydraulic press parameters YF Series Powder Compacting Hydraulic Press Technical Details | ||||||
| project Item | unit Units | Specification Specification | ||||
| YF-60 | YF-100 | YF-200 | YF-300 | |||
| Nominal pressure Nominal Force | KN | 600 | 1000 | 2000 | 3000 | |
| Maximum stroke of working slide Slider Stroke | mm | 180 | 180 | 250 | 280 | |
| Maximum opening height of work area Open Height | mm | 650 | 700 | 900 | 1000 | |
| Working slider speed Slider Speed | fast forward Fast Downward | mm/s | 170 | 170 | 140 | 120 |
| Work progresses Pressing | mm/s | 7 | 6 | 5 | 4 | |
| Return trip Return | mm/s | 150 | 150 | 135 | 120 | |
| Effective dimensions of work surface Worktable Size | about LR | mm | 450 | 450 | 550 | 580 |
| before and after FB | mm | 500 | 500 | 600 | 680 | |
| Maximum ejection force of return cylinder Ejector Force | KN | 200 | 200 | 200 | 200 | |
| Maximum ejection stroke of return cylinder Ejector Stroke | mm | 60 | 60 | 150 | 150 | |
| Hydraulic system pressure System Pressure | MPa | 20 | 20 | 21 | 22 | |
| Motor Power Motor Power | KW | 5.5 | 5.5 | 7.5 | 7.5 | |
| Machine dimensions Overall Dimension | about LR | mm | 1230 | 1230 | 1405 | 1435 |
| before and after FB | mm | 1280 | 1280 | 1380 | 1460 | |
| high Height | mm | 2500 | 2500 | 3100 | 3300 | |
| Machine weight Weight | Kg | 2000 | 2500 | 3500 | 5200 | |
