YKK-800C frame type precision servo CNC hydraulic press

1. Purpose: This machine is suitable for the cold extrusion process of aluminum profiles, and is also suitable for the precision punching, blanking, punching, bending, flanging, stretching forming of various metal materials and plastic materials, as well as the calibration of large structural parts, and the precision cold and hot extrusion forming process of automobile and motorcycle accessories.
2. Features: The machine has an independent hydraulic system and electrical system, and uses a touch screen to display precise displacement and product counting. The touch screen computer + PLC + electronic displacement ruler combination is convenient for setting and controlling the upper limit of the slider, fast rotation, lower limit, pressure holding time and other parameters. It can realize three working methods: manual adjustment and semi-automatic and automatic. Each working state can realize two types of pressing methods: accurate displacement range and servo proportion fixed pressure.
1. Use: This machine is suitable for cold extrusion process of aluminum profiles, also suitable for precision blanking, blanking, punching, bending, flanging, drawing and forming of various metal materials and plastic materials, correction of large structural parts, precision cold and hot extrusion molding process of auto and motorcycle parts.
2. Features: The machine has an independent hydroulic system and electric system, and uses the touch screen to display accurate distribution and product counting, touch screen computer +PLC+ electronic distribution ruler combination, easy to set and control the upper limit of the slider, fast slow, lower limit, pressure holding time and other parameters. Can achieve manual adjustment and semi-automatic and automatic three working modes. Each working state can achieve accurate displacement and servo proportional pressure two pressing methods.
Availability:
Quantity:
YKK-800C frame type precision servo CNC hydraulic press
YKK-800C frame type precision servo CNC hydraulic press
YKK-800C frame type precision servo CNC hydraulic press
YKK-800C frame type precision servo CNC hydraulic press
  • YKK-800C frame type precision servo CNC hydraulic press

  • 万达

Product Description

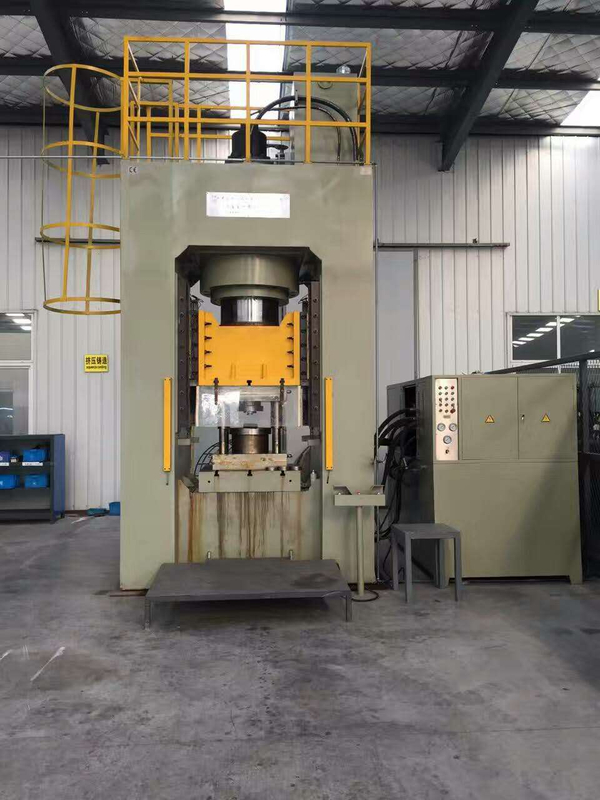

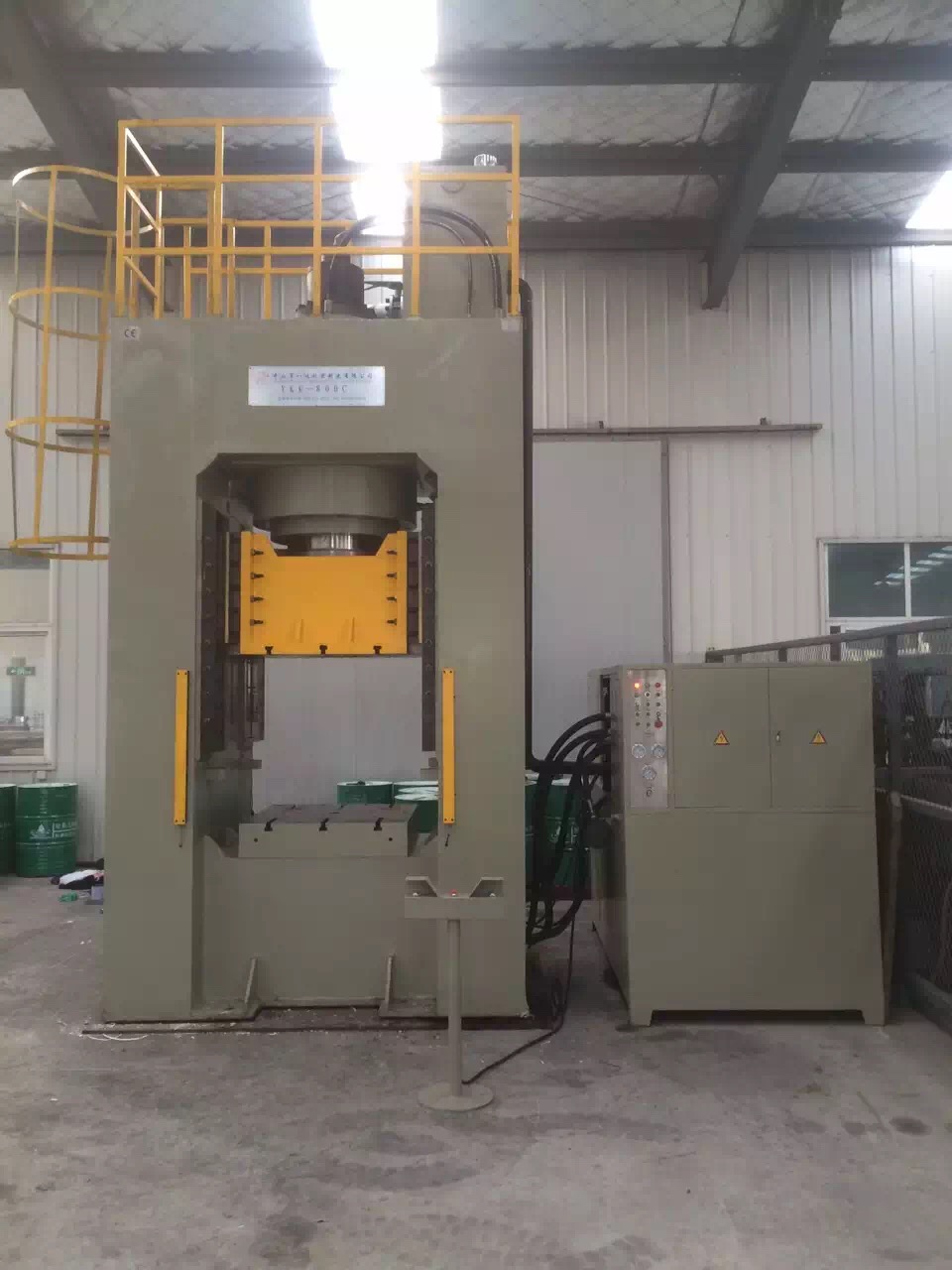

YKK-800C frame precision servo CNC hydraulic press site diagram:

YKK-800

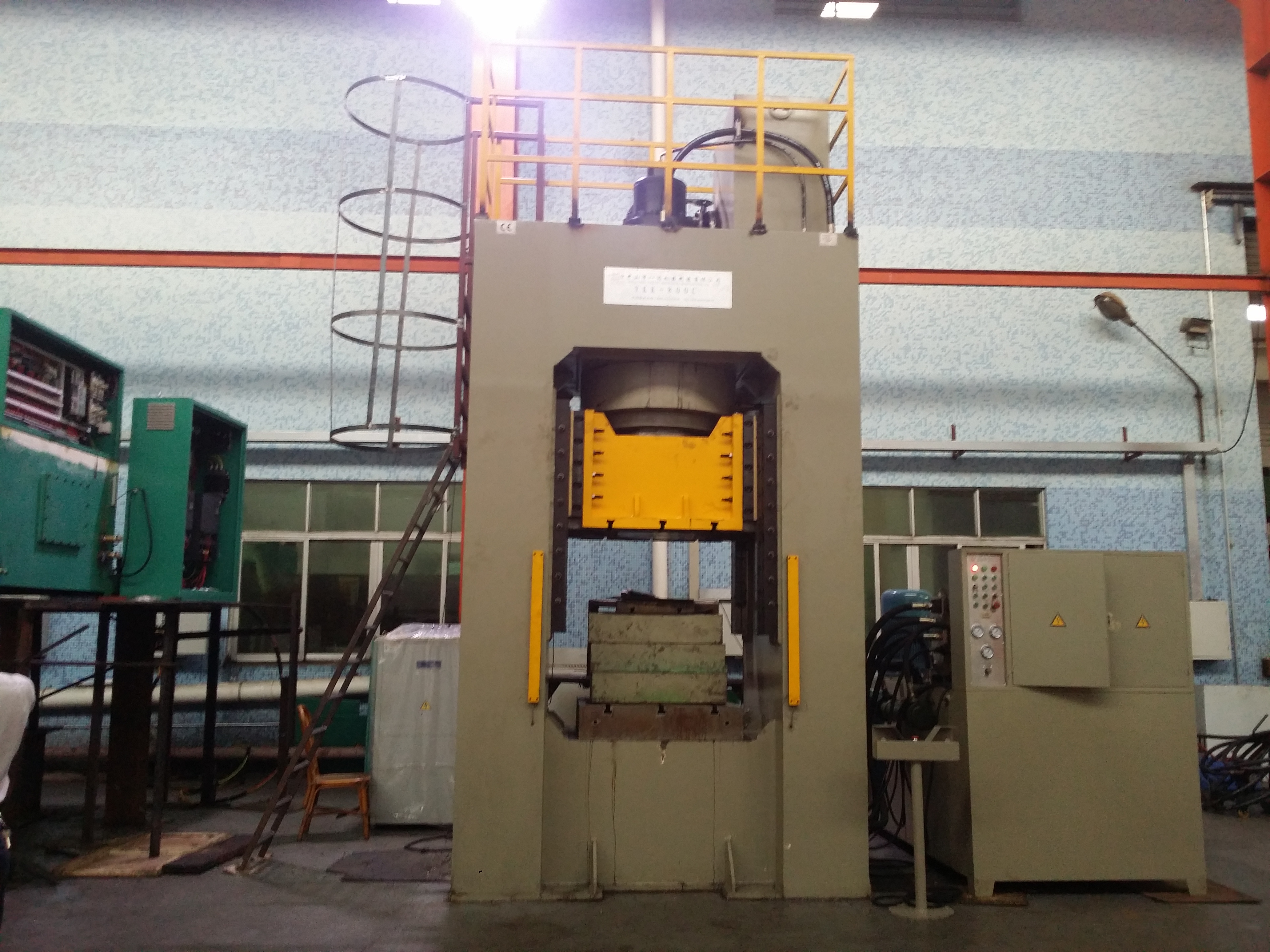

20160409_161301

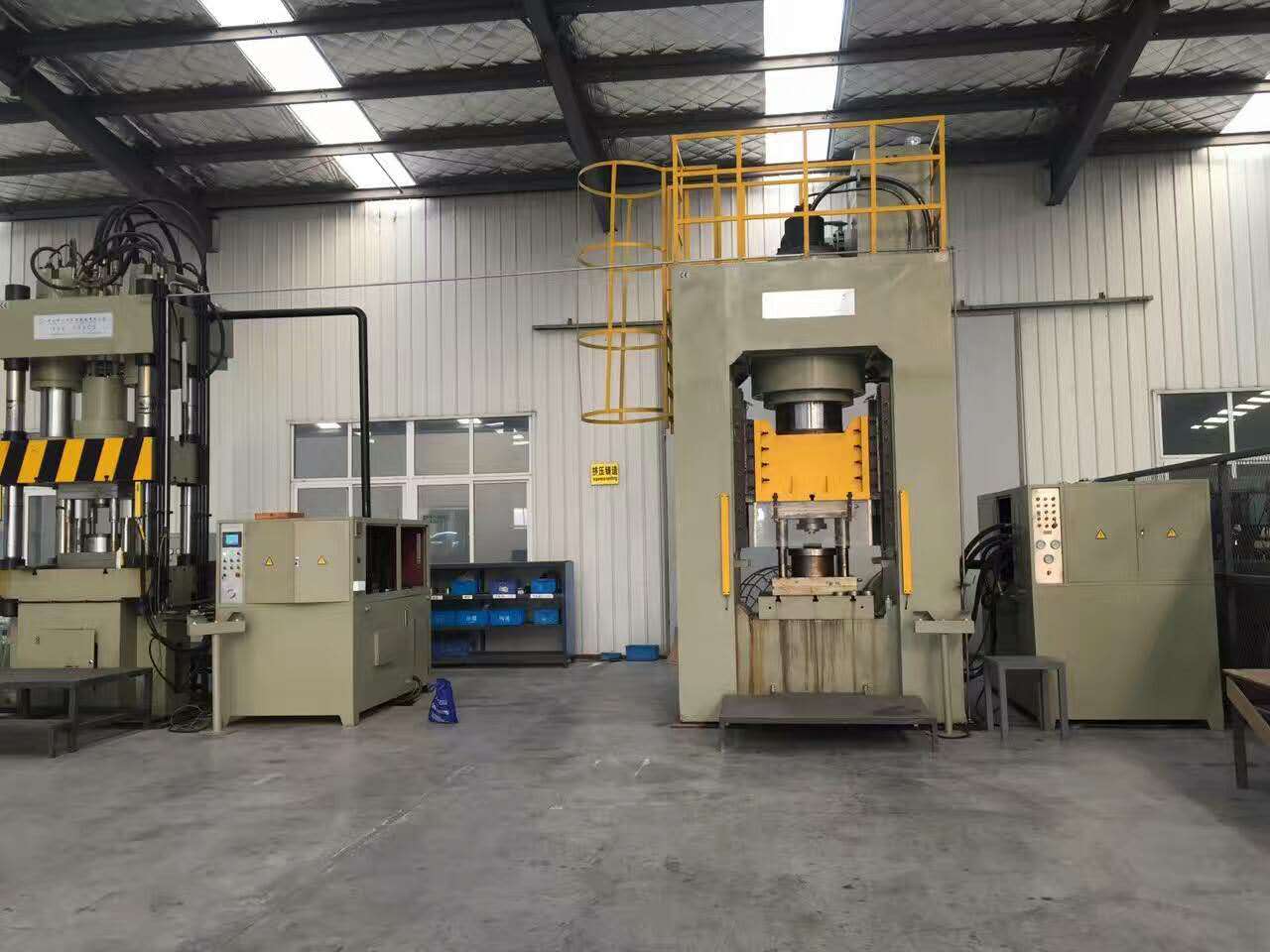

459112562709045796


YKK-800C frame type precision servo CNC hydraulic press technical parameters:


Serial number NO.

Project Item

Units

YKK-800C

1

Nominal Force

KN

8000

2

Main Cylinder Force

KN

8000

3

Slider Stroke

mm

500

4

Workspace opening height Opening Height

mm

1100

5

Bottom Cylinder Force

KN

600

6

Bottom Cylinder Stroke

mm

200

7

Working slider speed

Slider Speed

Fast Downward

mm/s

250

Slow down Pressing

mm/s

6-16

Return

mm/s

185

8

Effective size of work surface

Worktable Size

Left and right LR


mm

1000

Front and rear FB

mm

1000

9

Hydraulic System Pressure

MPa

25

10

Motor Power

KW

60
