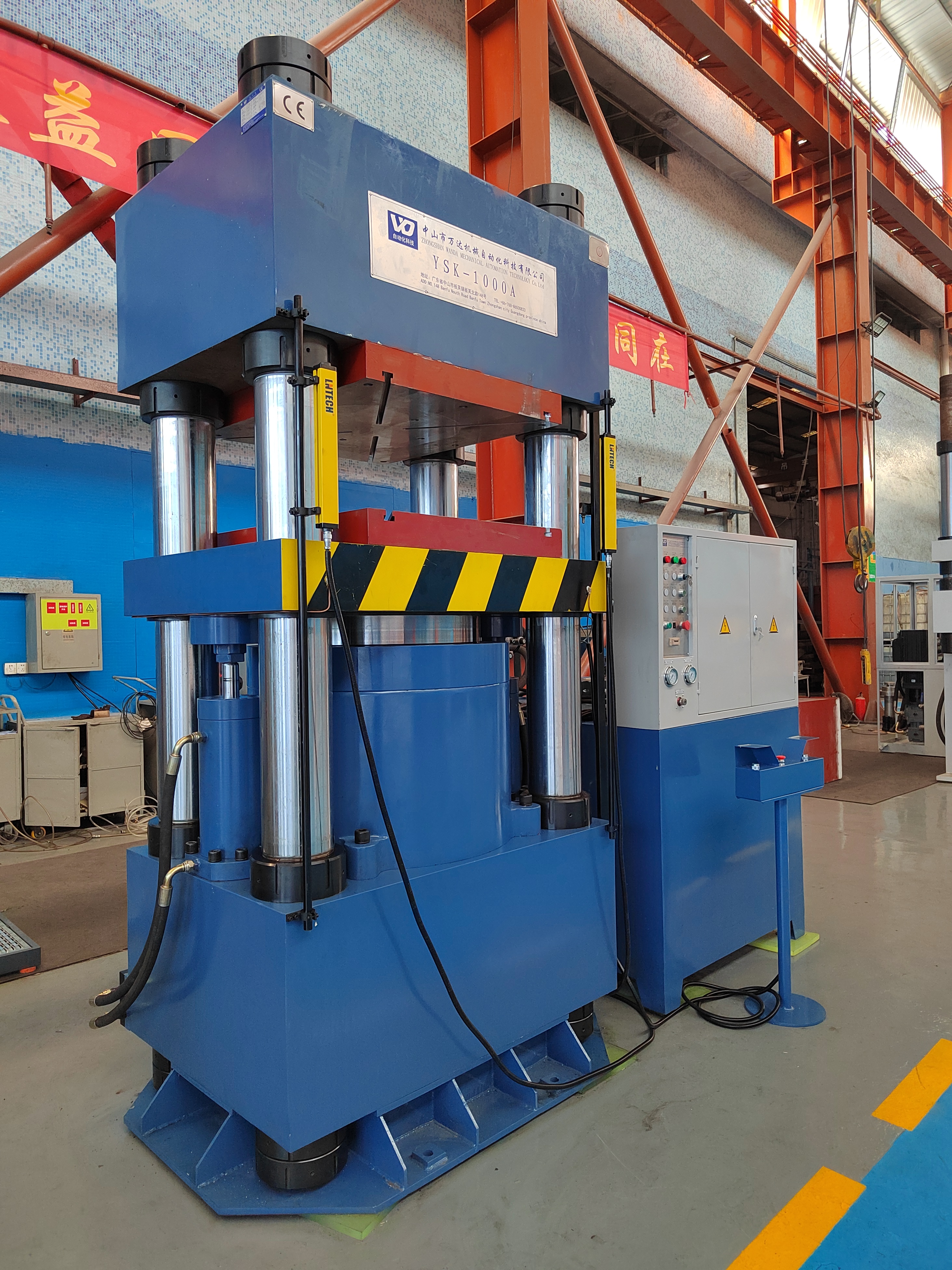

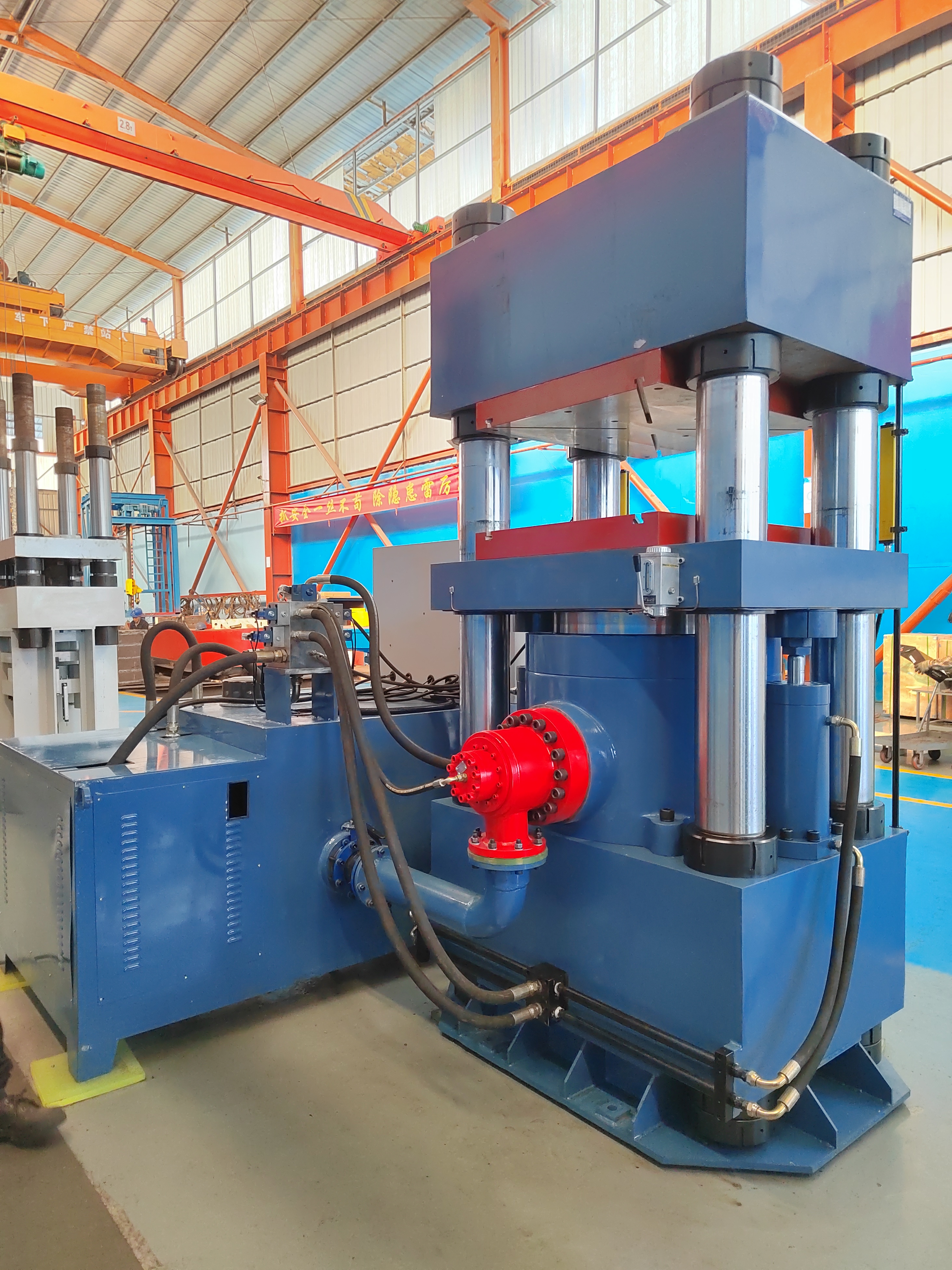

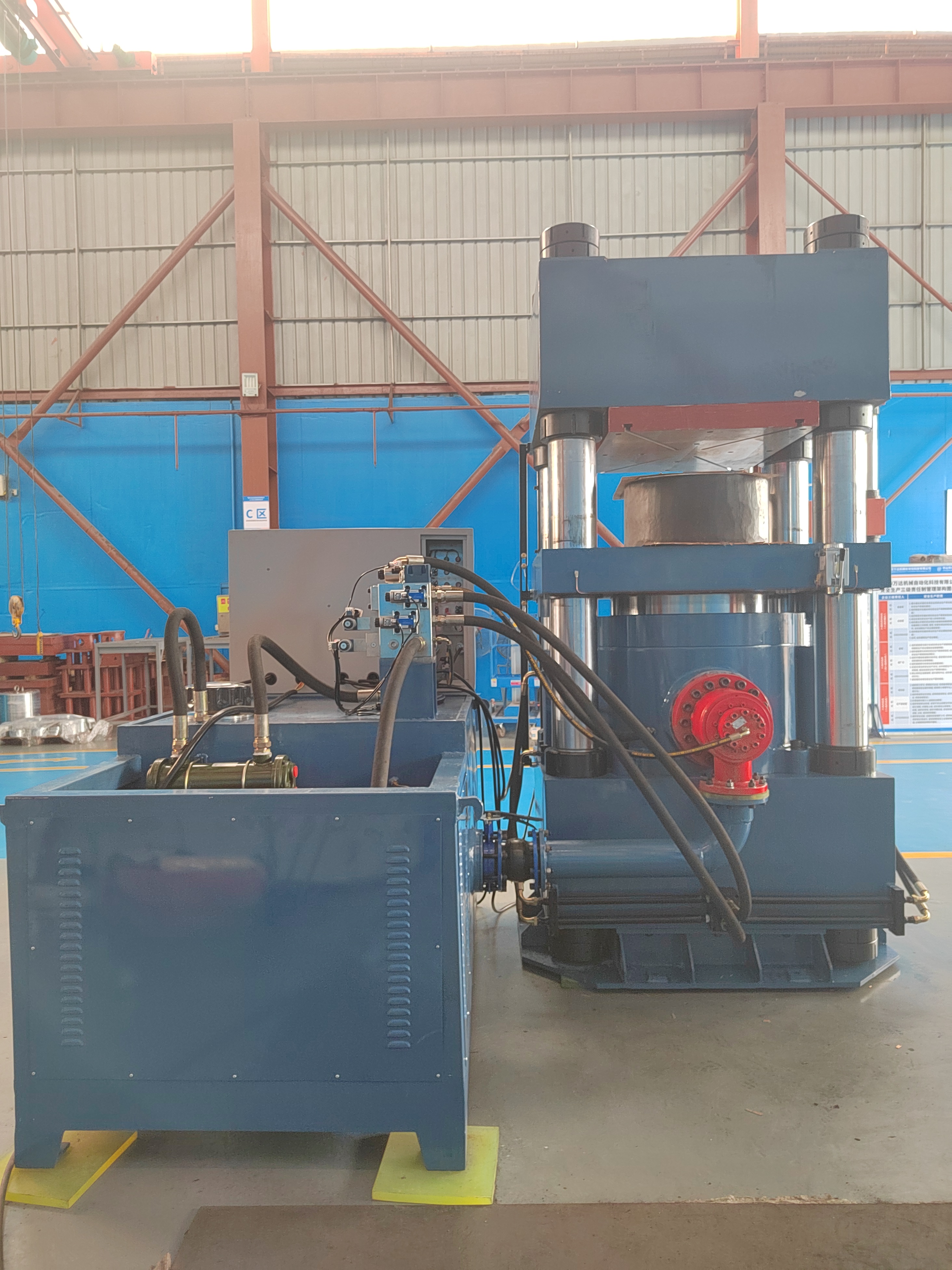

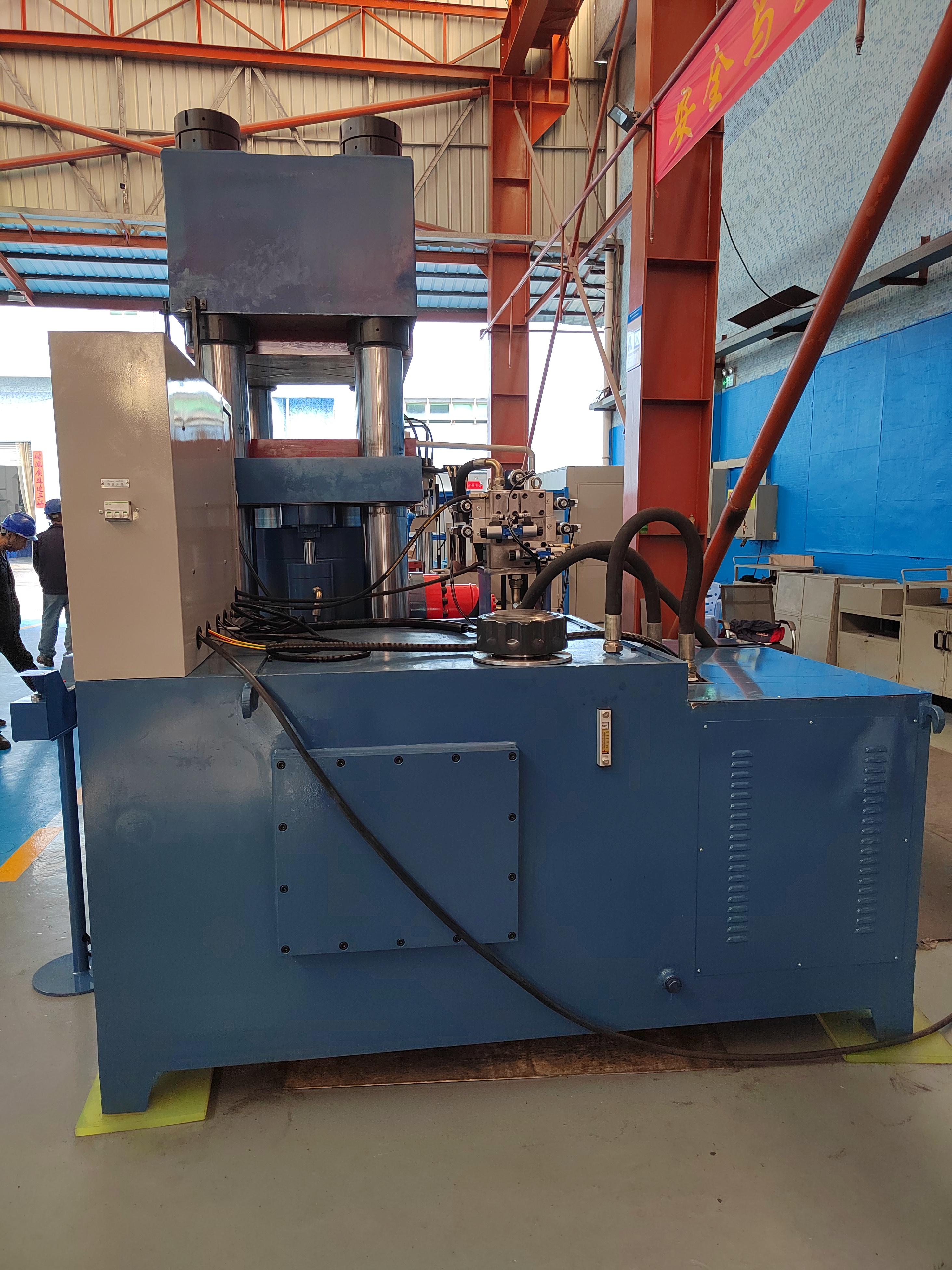

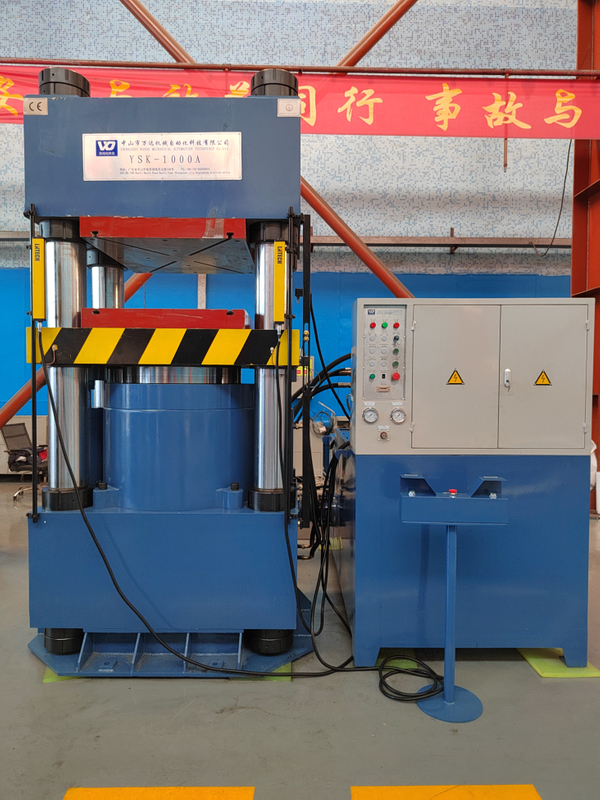

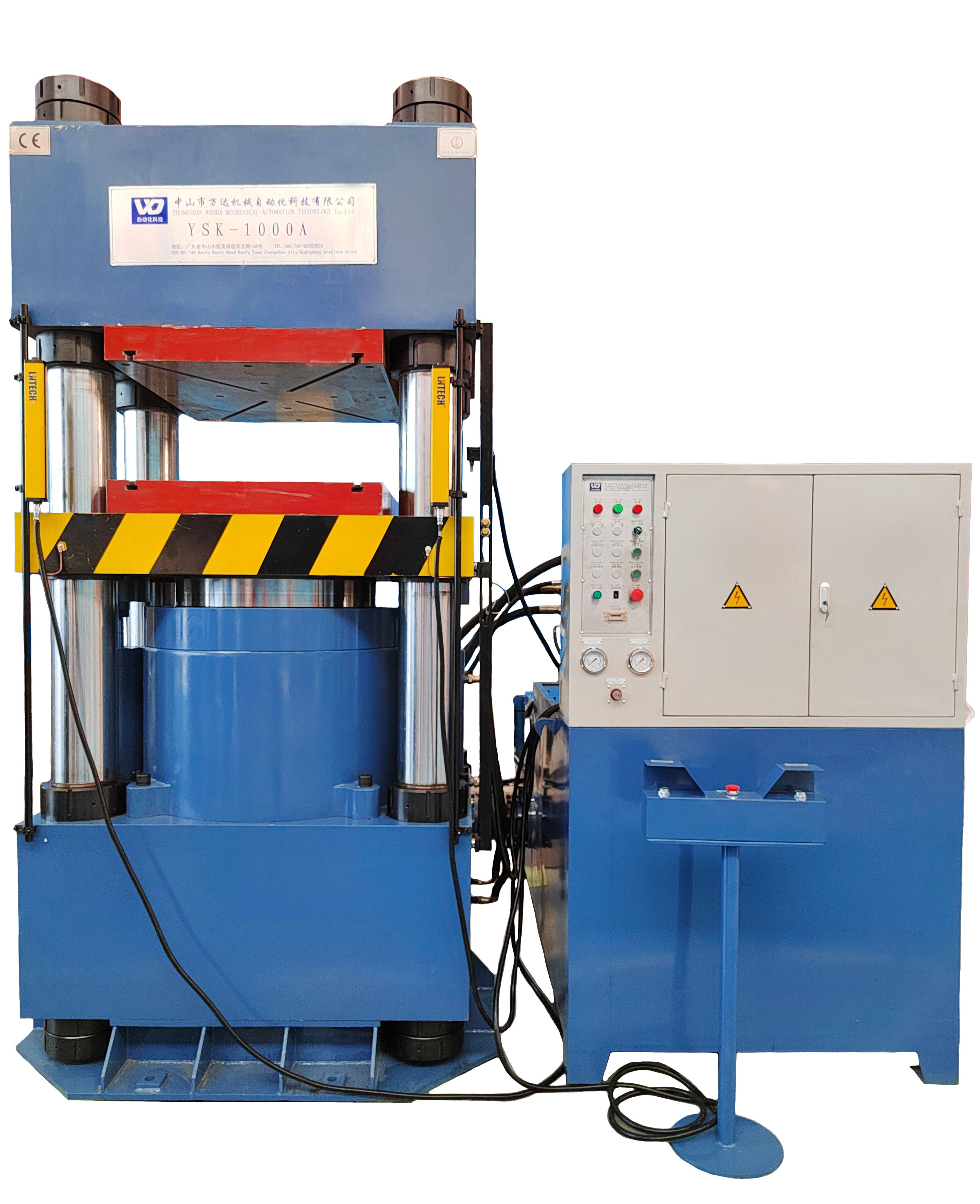

YSK-1000A four-column hydraulic press

YSK A/B series four models are suitable for the shallow stretching process of metal thin plate calendering, imprinting, forming and plastic sheets.
For example: the pressing of watch cases, watch bottom covers, straps, various gold and silver jewelry, badges, and gold coins, and is also suitable for the molding of various tableware and lighting and the correction and pressure installation of parts.
Availability:
Quantity:
Inquire Add to Basket

YSK-1000A four-column hydraulic press
YSK-1000A four-column hydraulic press
YSK-1000A four-column hydraulic press
YSK-1000A four-column hydraulic press
YSK-1000A four-column hydraulic press
YSK-1000A four-column hydraulic press

  • YSK-1000A

  • 万达

Product Description

Main technical parameters:


Serial number

project

unit

parameter

1

Master cylinder pressure

KN

10000

2

Work slider stroke

mm

200

3

Maximum opening height

mm

600

4

Slider speed

Get on

Mm/s

80

Working in

Mm/s

4

Return

Mm/s

80

5

Workbench size

Left and right (inside the column)

mm

900

Front and back (edge)

mm

960

6

Workbench pad size

about

mm

840

Before and after

mm

960

7

Maximum liquid pressure

MPa

25

8

Motor power

KW

22


4


1
9
