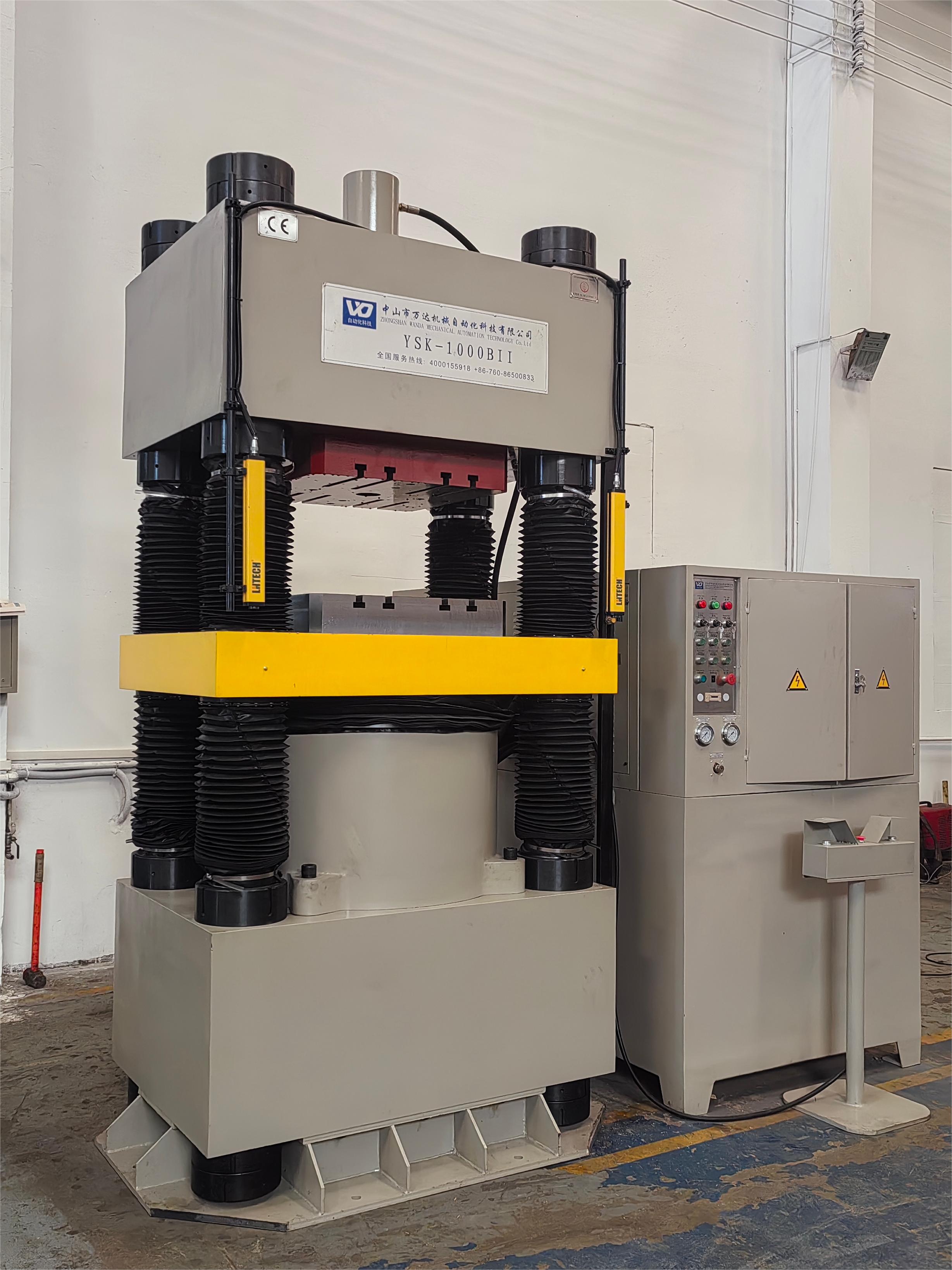

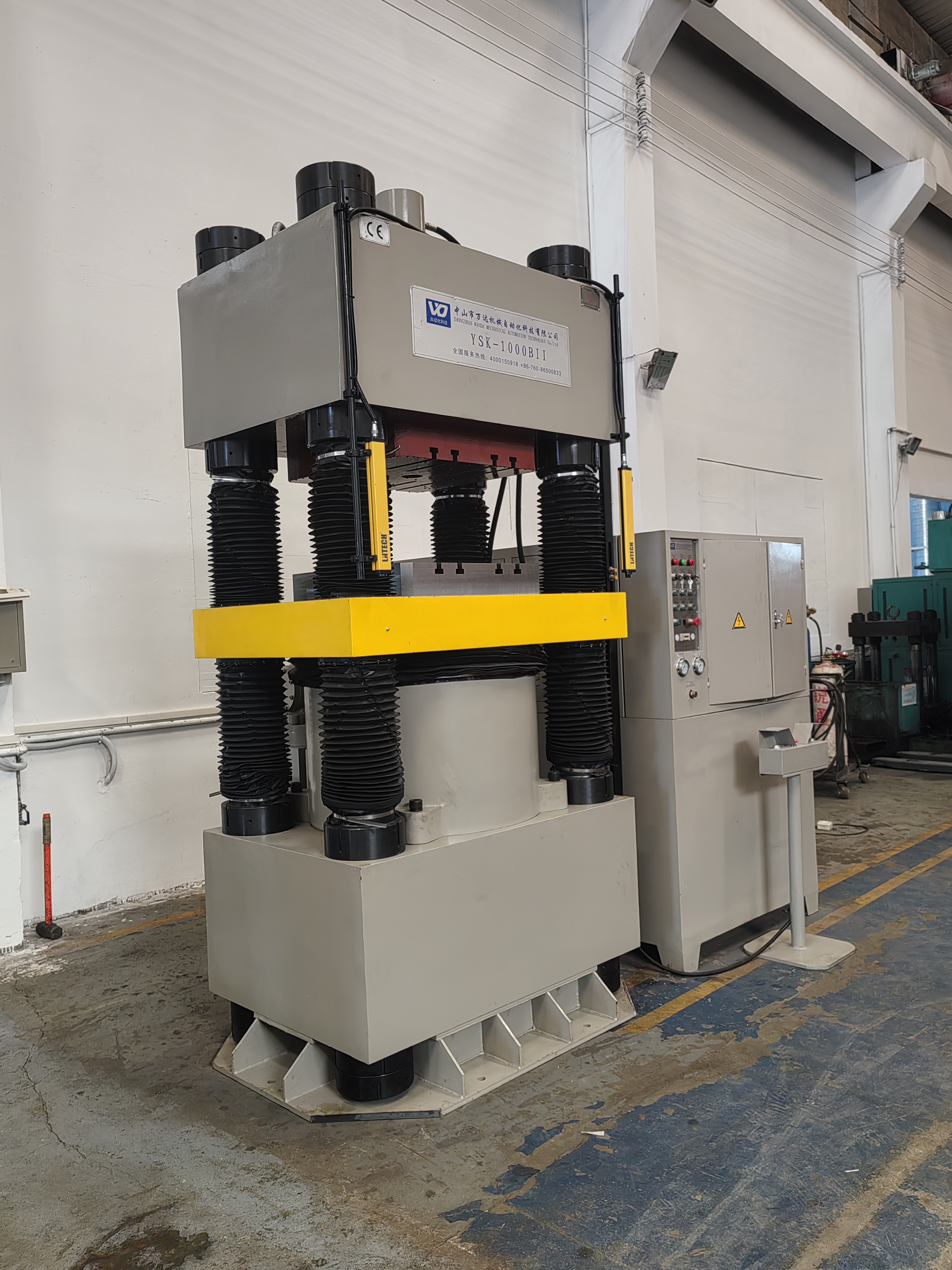

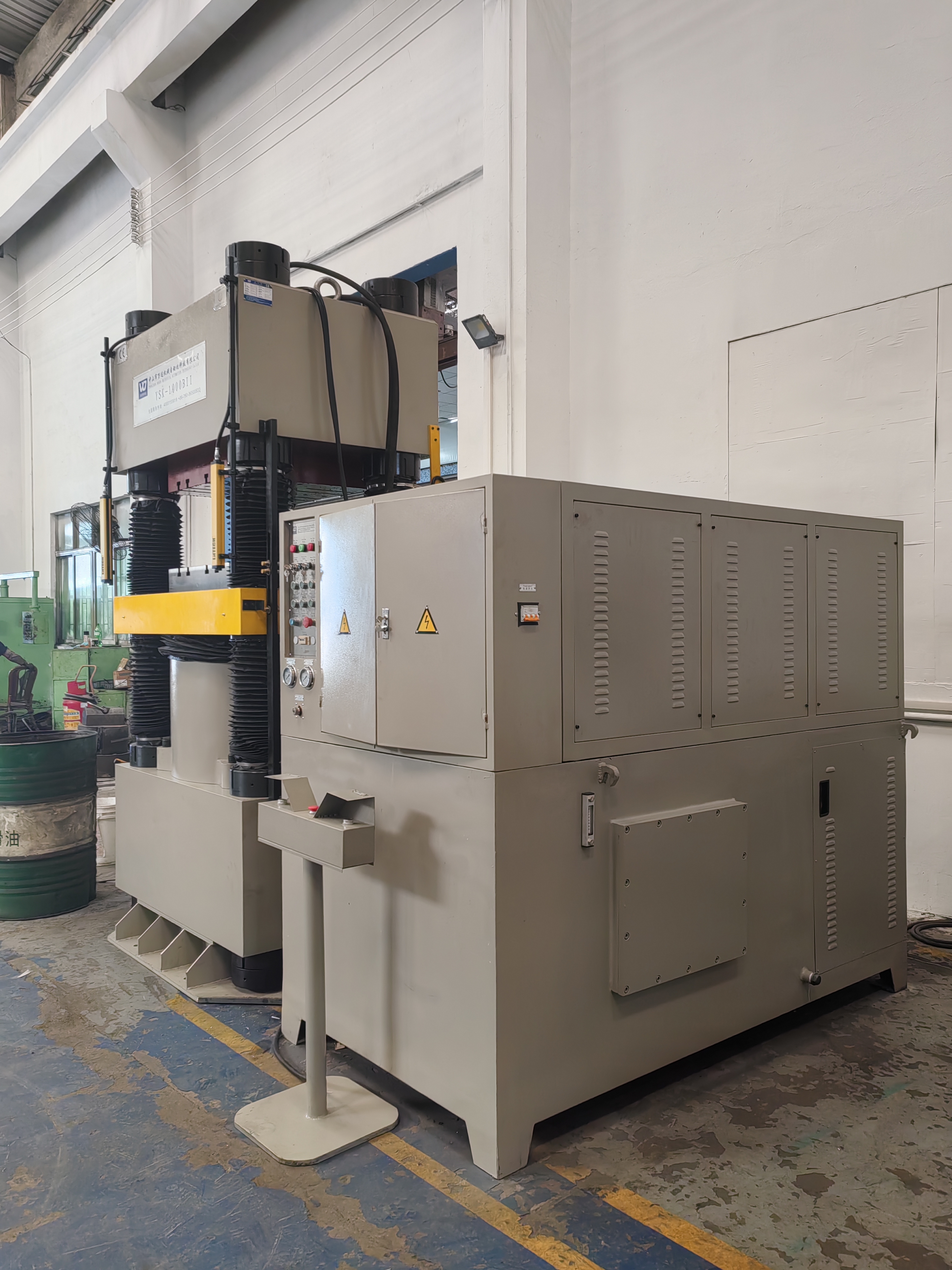

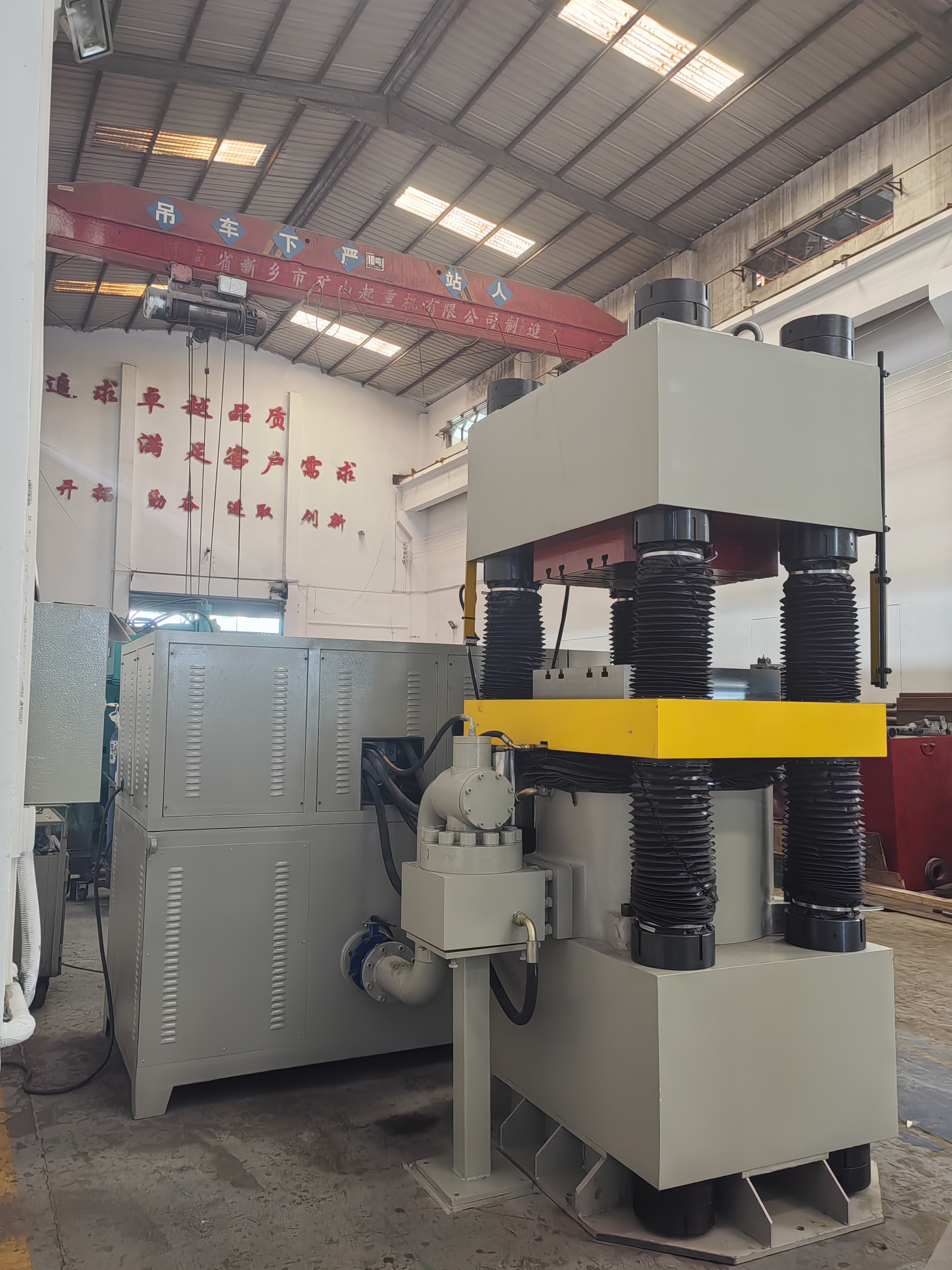

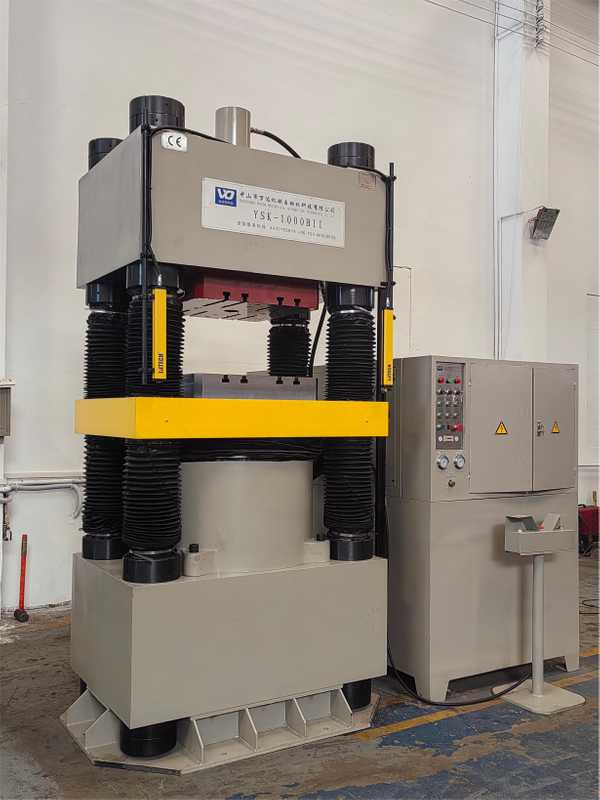

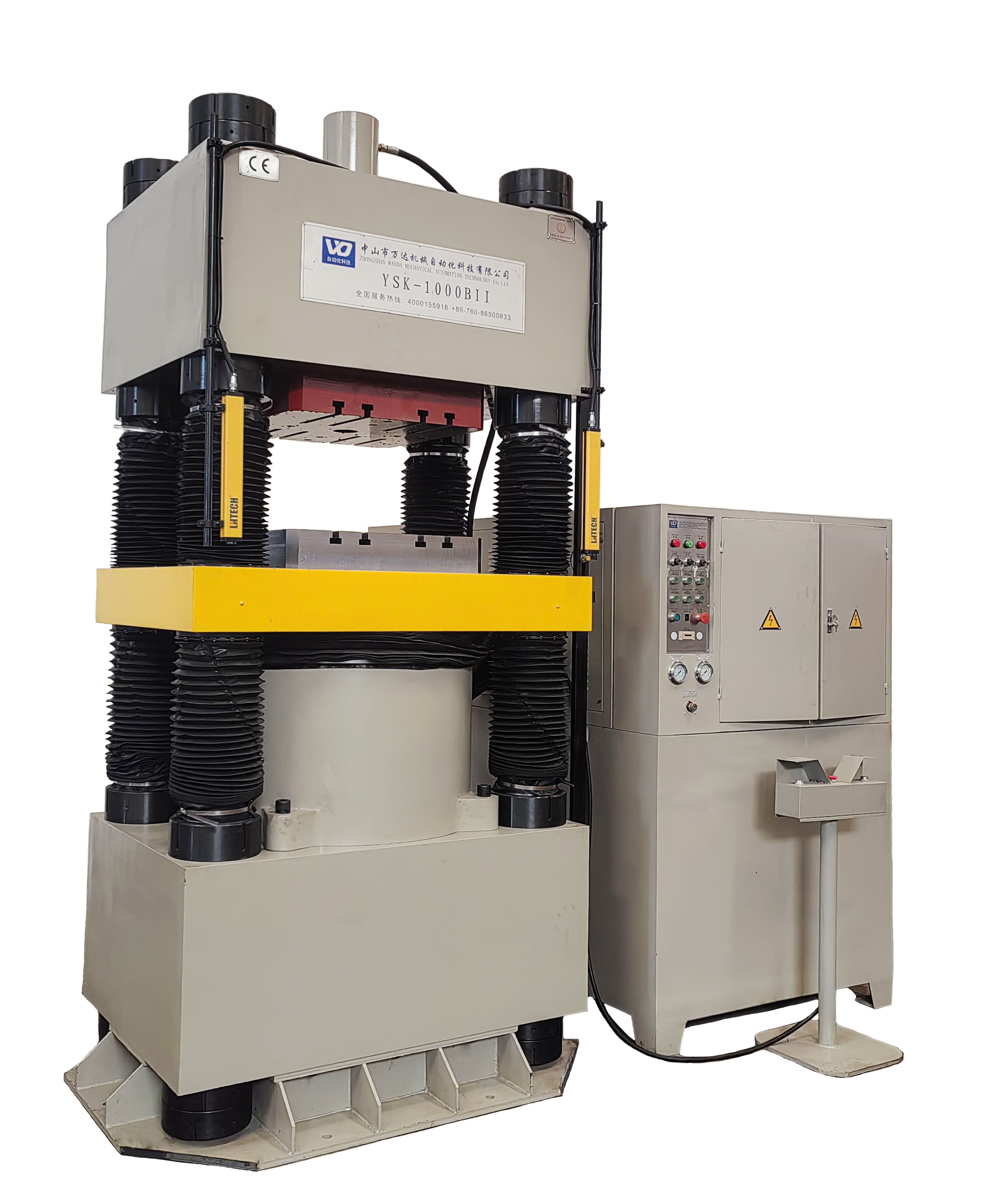

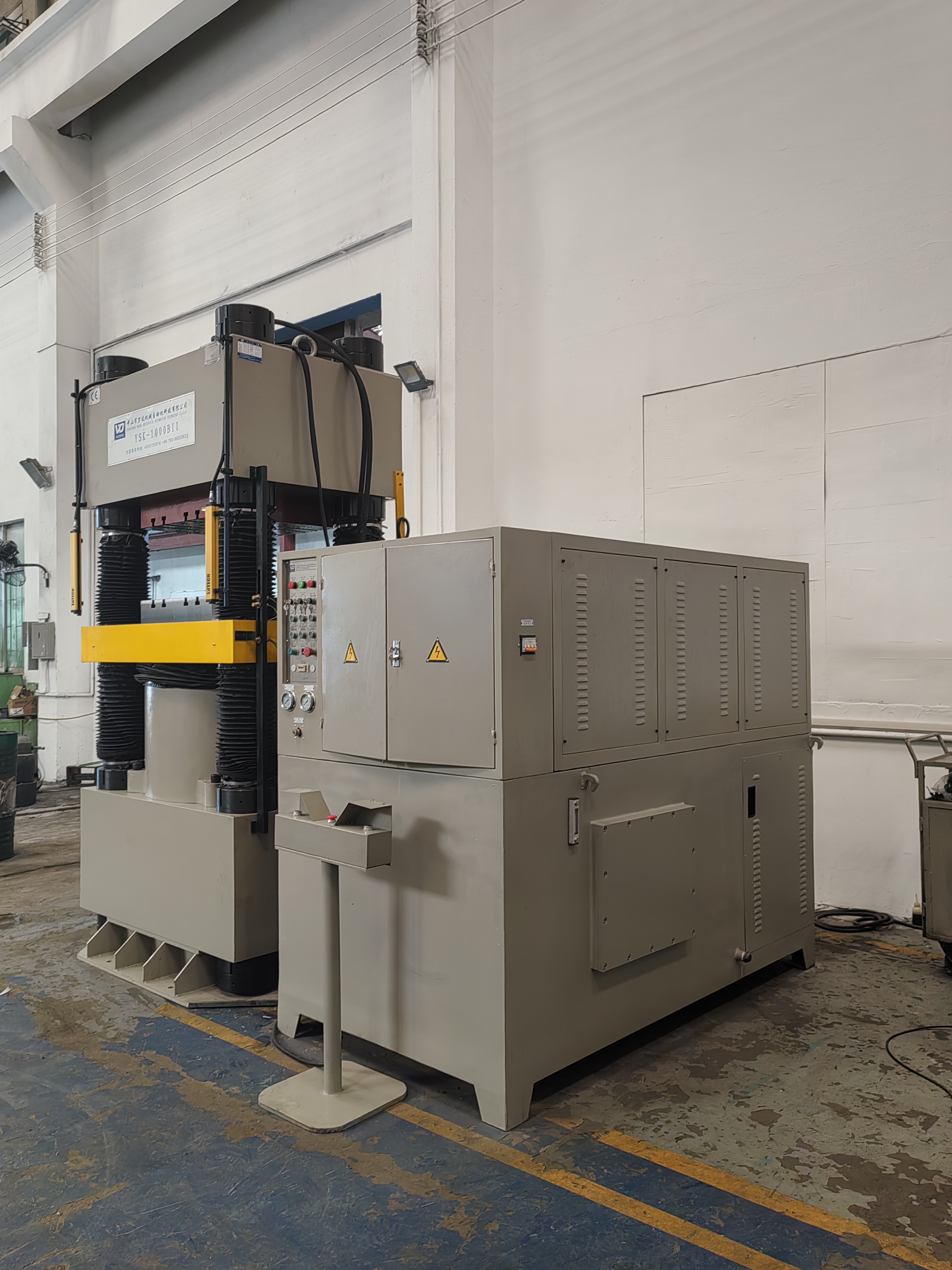

YSK-1000BII four-column hydraulic press with load and unloading cylinder, this equipment is used for precision cold forging and shaping of automobile and motorcycle accessories.
Technical parameters:
Serial number NO. | Project Item | Unit | Parameter Spec. |
1 | Master cylinder nominal force | KN | 10000 |
2 | Work slider stroke | mm | 200 |
3 | Maximum opening height | mm | 600 |
4 | Slider speed Slider speed | Get up fast up | Mm/s | 75 |
Suppressing pressing | Mm/s | 4 |
Return | mm/s | 80 |
5 | Workbench size table size | Left and left (inside column) LR (inside column) | mm | 900 |
Front and back (edge) FB (edge) | mm | 960 |
6 | Loading cylinder force | KN | 300 |
7 | Loading cylinder stroke | mm | 100 |
8 | Cylinder force | KN | 200 |
9 | Cylinder stroke | mm | 20 |
