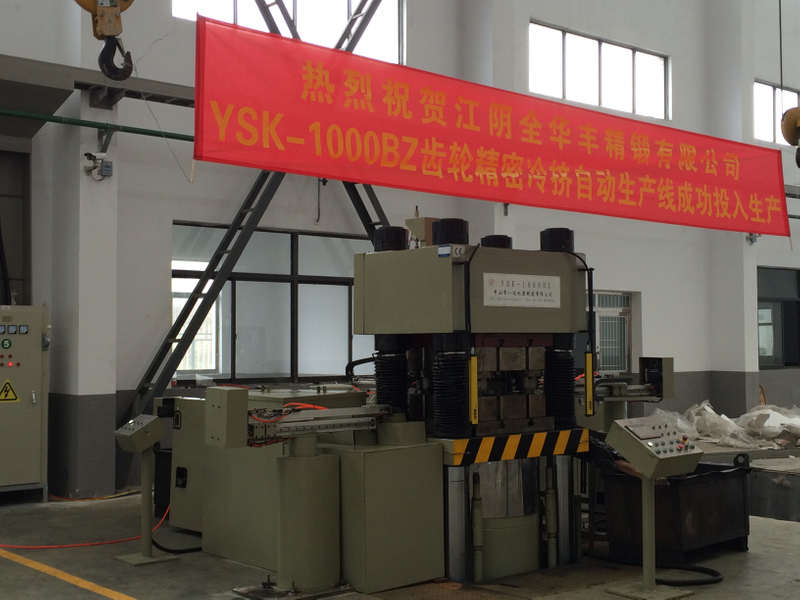

YSK-1000BZ gear precision cold extrusion fully automatic production line

一、 Application
This production line is suitable for automatic cold and hot extrusion molding of various metals, and is more suitable for automatic precision extrusion molding of automobile and motorcycle bevel gears, bearings and other products.It is also suitable for calendering, embossing, automatic forming and structural correction processes of steel and plastic materials.
二、 Features peculiarity
This production line has an independent central control system. The system can communicate with the office computer to achieve remote control. It uses a touch screen to display displacement and product count. The combination of touch screen + PLC + electronic displacement scale makes it easy to set and control the upper limit, fast and slow speed, and lower limit of the slider. Holding time, etc.Both manual adjustment and fully automatic working modes can be realized.Each working state can realize two pressing methods: constant pressure and fixed range.This line is equipped with fully automated loading and unloading devices to realize automatic clamping and unloading of raw materials.
1. Independent central control system, remote control.
2. Touch screen display displacement and count.
3. Easy to set and control with touch screen, PLC and electronic ruler.
4. Two modes available: manual and automatic.
5. Each working condition can realize setting pressure pressing mode or stroke pressing mode.
6. Equip with automatic feeding device and discharge device.

Availability:

Quantity:



Inquire Add to Basket

Model:
YSK-1000BZ gear precision cold extrusion fully automatic production line
Brand:
Wanda

Product Description

Product Description

YSK-1000BZ gear precision cold extrusion automatic production line pressing product picture:

Contain Devices as below

No.	Item	Quantity
1	YSK-1000BZ Servo CNC Four Column Hydraulic Press	1 set
2	PT Intelligent Two-Axis Robot	2 units
3	Raw Material Rotary and Lifting Device	1 set
4	Feeding and Discharge Device	1 set
5	Material Trimming and Taking Device	1 set

Main Technical Specification

No.	Parameter Specification			Unit	YSK-1000BZ
1	Nominal Force	Main Cylinder		KN	10000
1	Nominal Force	Upper and Lower Ejector		KN	500
2	Max Stroke	Main Cylinder		mm	350
2	Max Stroke	Upper and Lower Ejector		mm	50
3	Max Daylight Opening			mm	1000
4	Main Cylinder Speed		Fast Upward	mm/s	150
			Slow Pressing	mm/s	7.5-12.5
			Returning	mm/s	150
5	Effective size of worktable		Left-right (inside post)	mm	900
5	Effective size of worktable		Front-back(rim)	mm	960
6	Bolster Size		Left-right	mm	800
6	Bolster Size		Front-back	mm	800
7	Pump Servo Motor Power of			KW	22+22+22
8	Translation Servo Motor Power of loading and unloading machine			KW	0.75+0.75
9	Feeding Max. Translation Stroke of loader and unloader			mm	800
10	Translation Speed		Translation in (Adjustable)	mm/s	600 (adjustable)
10	Translation Speed		Translation out (Adjustable)	mm/s	600 (adjustable)
11	Lifting Servo Motor Power for loading and unloading machine			KW	0.75+0.75
12	Feeding Max. Lifting Stroke			mm	200
13	Lifting Speed		Lifting (Adjustable)	mm/s	450 (adjustable)
13	Lifting Speed		Decline (Adjustable)	mm/s	450 (adjustable)
14	Diameter of the Product			mm	￠30-￠50 Subject to actual testing
