YSK-1000BZ servo CNC precision four-column hydraulic press (gear precision cold extrusion fully automatic production line)

1. Application
This production line is suitable for automatic molding of various metals with cold and hot extrusion, and is more suitable for automatic fine molding of steam, motorcycle and umbrella gears, bearings and other products. It is also suitable for calendering, imprinting, automatic forming and structural correction processes of steel and plastic materials.
This production line suitable for cold and hot extrusion forming, widely used in, auto parts, bevel gears, bearings etc.
2. Characteristics of peculiarity
This production line has an independent central control system, which can communicate with office computers to achieve remote control, and uses a touch screen to display displacement and product counting, and a touch screen + PLC + electronic displacement ruler combination, which is convenient for setting and controlling the upper limit of the slider, fast rotation, lower limit and pressure holding time. It can realize two working methods: manual adjustment and fully automatic. Each working state can realize two types of pressing methods: fixed pressure and fixed stroke. This line is equipped with fully automatic loading and unloading devices to realize automatic clamping and unloading of raw materials.
1. Independent central control system, remote control.
2. Touch screen display display distribution and count.
3. Easy to set and control with touch screen, PLC and electronic ruler.
4. Two modes available: manual and automatic.
5. Each working condition can realize setting pressure pressing mode or stroke pressing mode.
6. Equip with automatic feeding device and discharge device.

Availability:

Quantity:



Inquire Add to Basket

Model:
YSK-1000BZ gear precision cold extrusion fully automatic production line
Brand:
万达

Product Description

Product Description

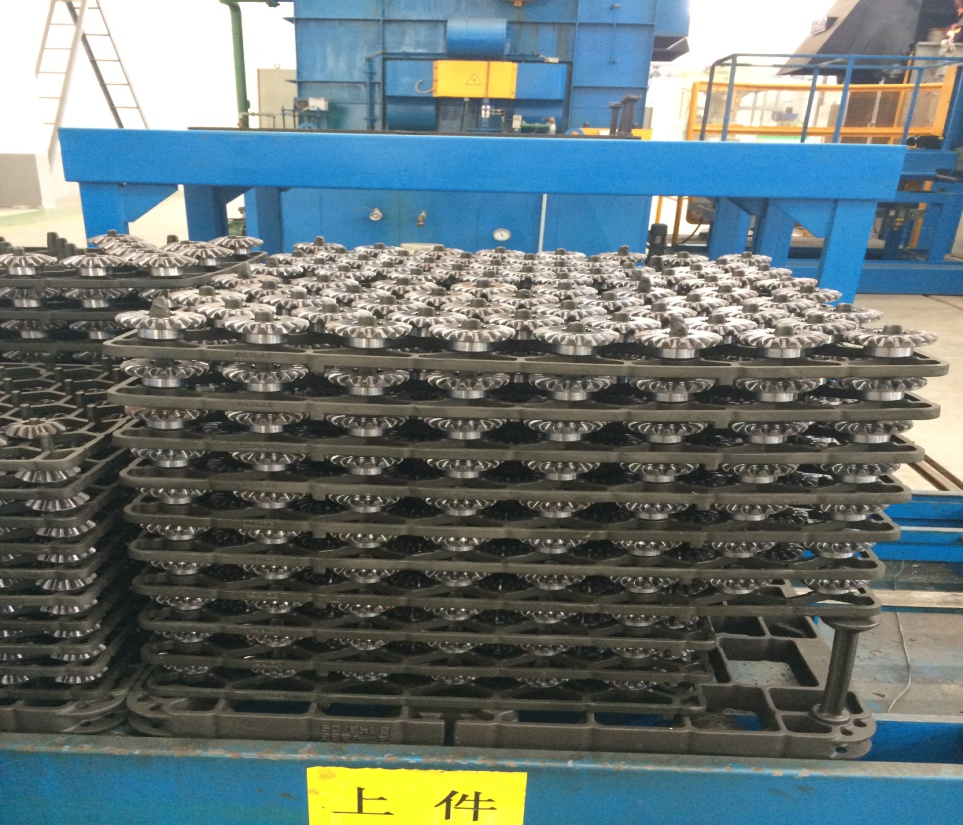

YSK-1000BZ gear precision cold extrusion automatic production line pressing product picture: YSK-1000BZ gear precision cold extrusion automatic production line pressing product picture

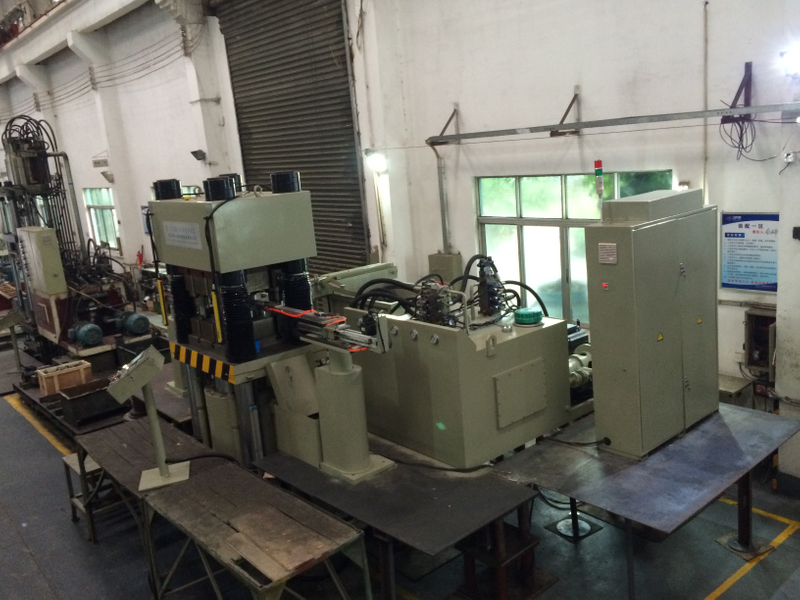

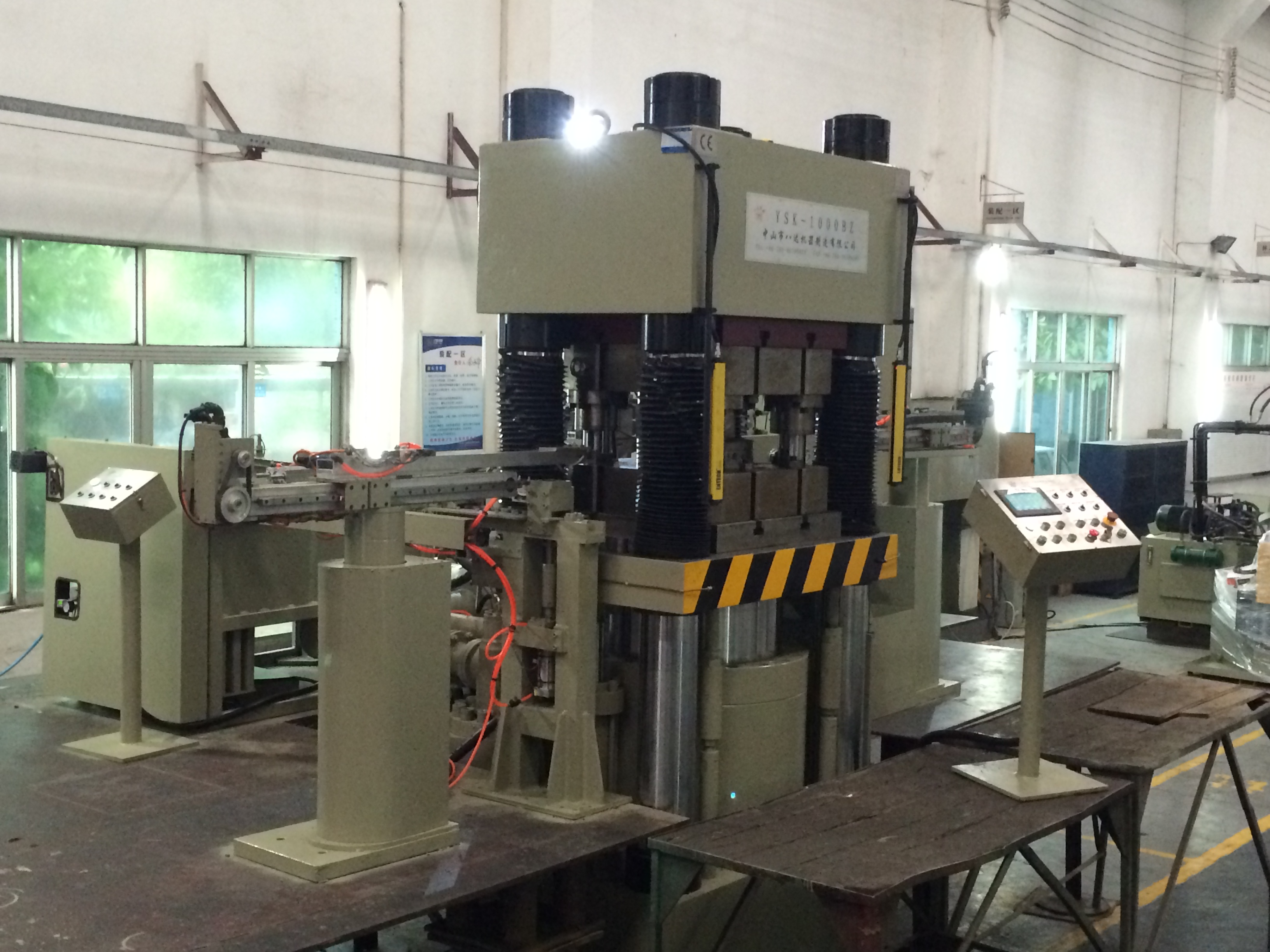

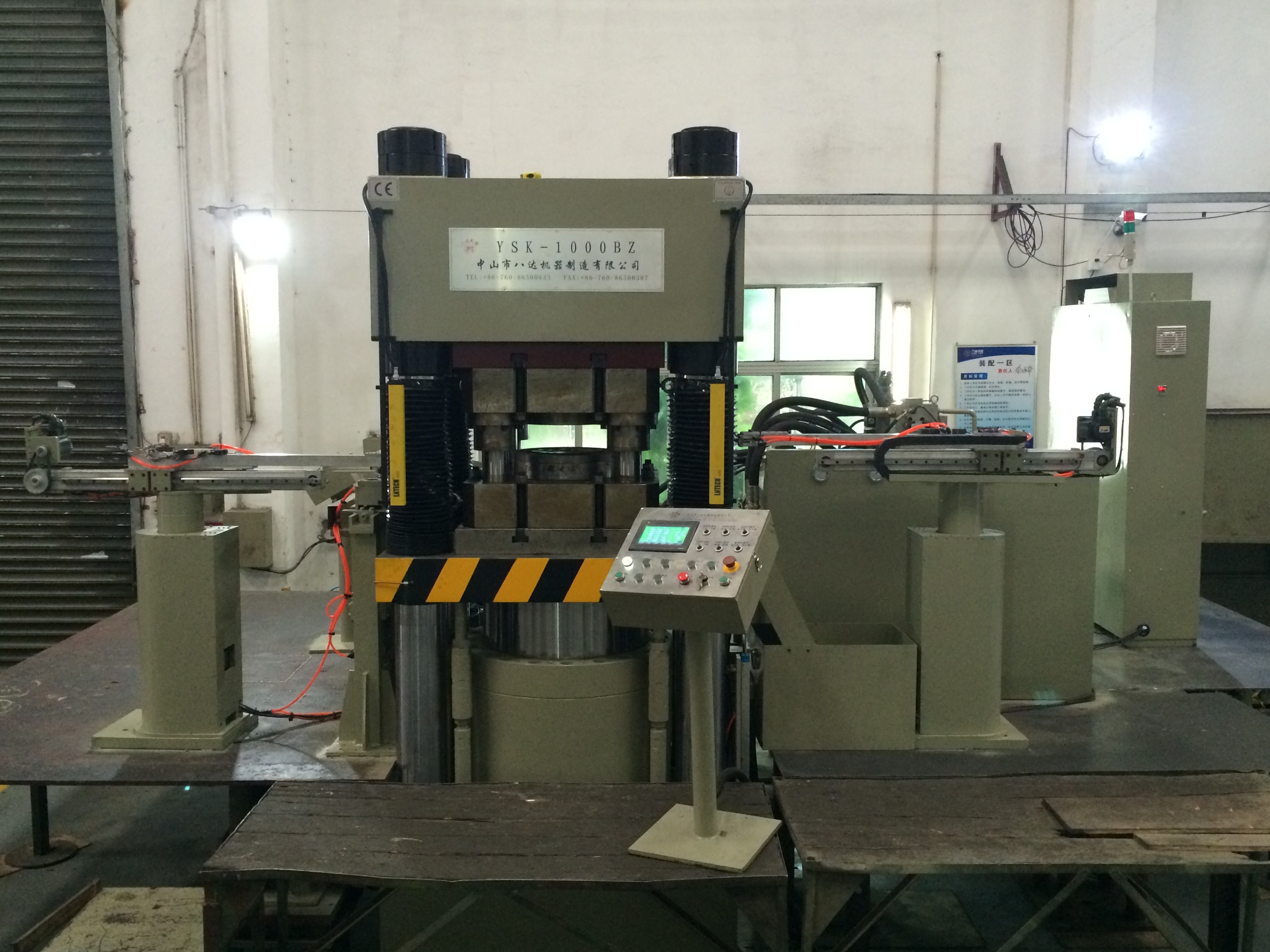

YSK-1000BZ picture December 18, 006

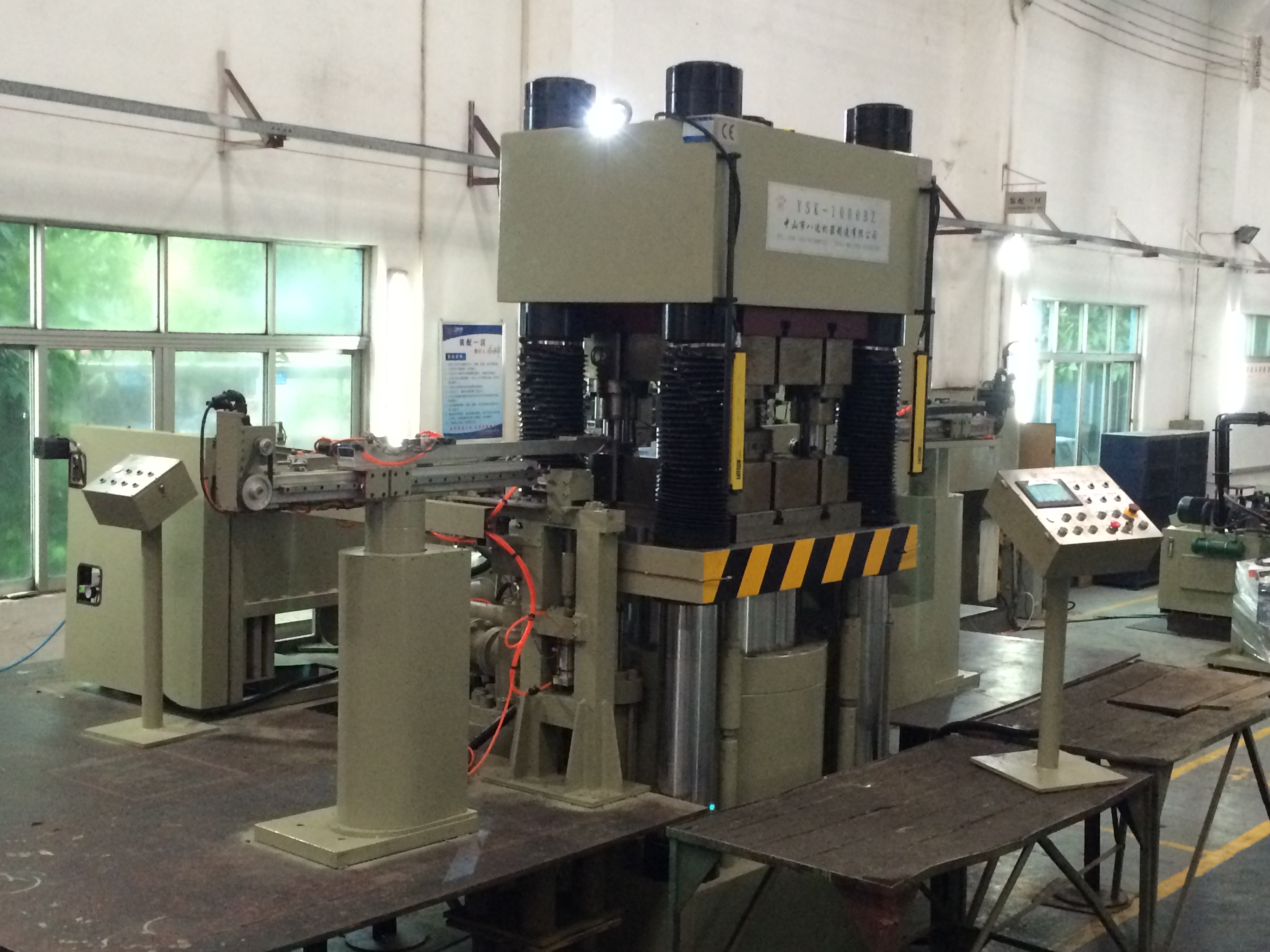

YSK-1000BZ picture December 18, 007

Contain Devices as below

Serial number No	Name Item	Quantity Qty
1	YSK-1000BZ Servo CNC Precision Four Column Hydraulic Press	1 unit
2	PT Intelligent Two-Axis Manipulator 2 Axles Robot Arm	2 units
3	Raw Material Rotary and Lifting Device	1 set
4	Feeding and Discharge Device	1 set
5	Material Trimming and Taking Device	1 set

Main Technical Specification

Serial number No	Parameter Specification			Unit	YSK-1000BZ
1	Nominal Force	Main Cylinder		KN	10000
1	Nominal Force	Upper and Lower Ejector		KN	500
2	Itinerary Max Stroke	Main Cylinder		mm	350
2	Itinerary Max Stroke	Upper and Lower Ejector		mm	50
3	Opening Height Max Daylight Opening			mm	1000
4	Main Cylinder Speed		Fast Upward	mm/s	150
			Slow Pressing	mm/s	7.5-12.5
			Returning	mm/s	150
5	Worktable Size		Left-right (inside post)	mm	900
5	Worktable Size		Front-back(rim)	mm	960
6	Backing board size Bolster Size		Left-right	mm	800
6	Backing board size Bolster Size		Front-back	mm	800
7	Oil pump motor power Pump Servo Motor Power of			KW	22+22+22
8	Translation Servo Motor Power			KW	0.75+0.75
9	Feeding Max. Translation Stroke			mm	800
10	Translation Speed		Move into Translation in (Adjustable)	mm/s	600 (adjustable)
10	Translation Speed		Translation out (Adjustable)	mm/s	600 (adjustable)
11	Lifting Servo Motor Power			KW	0.75+0.75
12	Feeding Max. Lifting Stroke			mm	200
13	Lifting Speed		Rising Lifting (Adjustable)	mm/s	450 (adjustable)
13	Lifting Speed		Decline (Adjustable)	mm/s	450 (adjustable)
14	Diameter of the Product			mm	￠30-￠50 Actual test shall prevail
