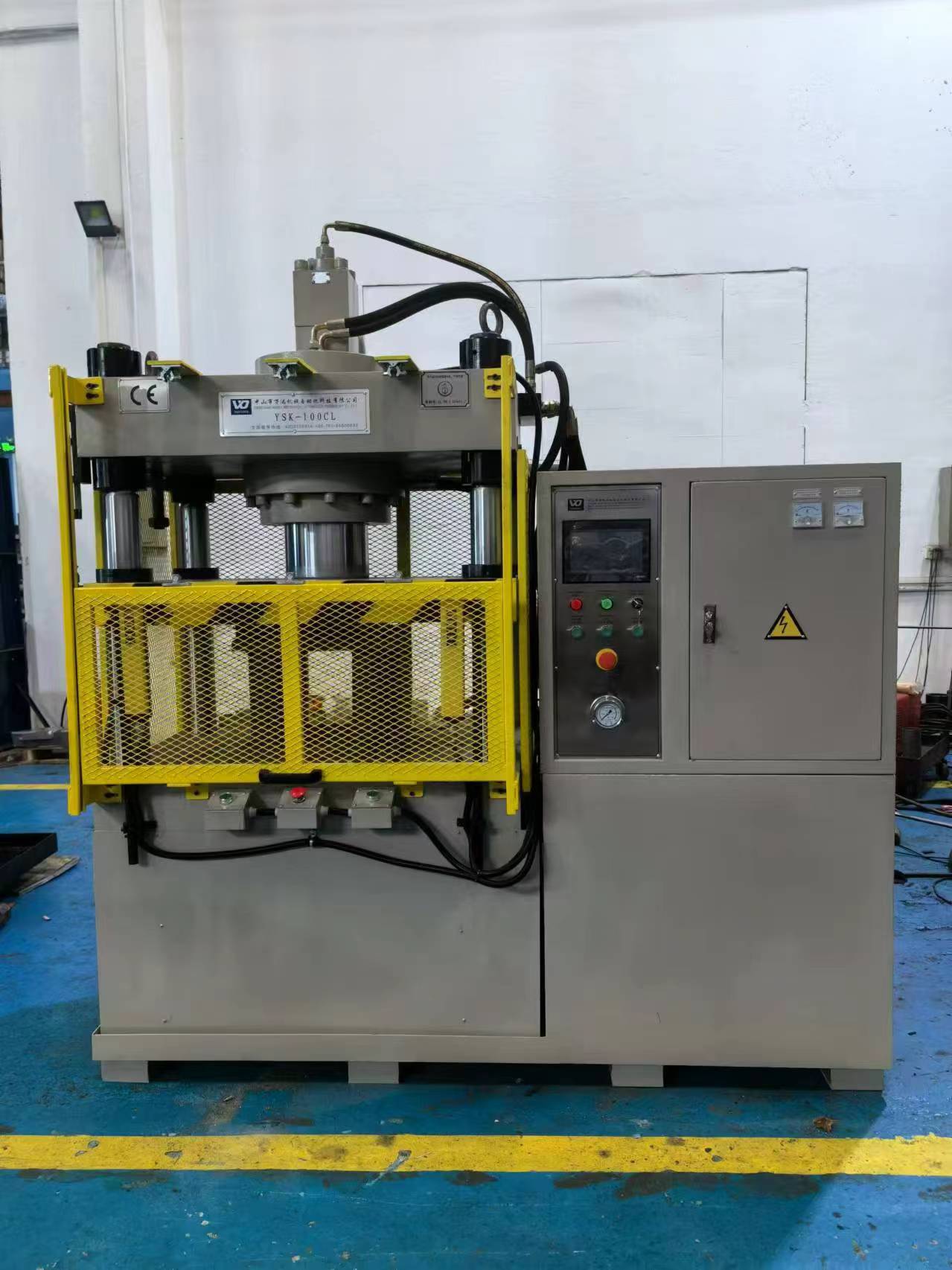

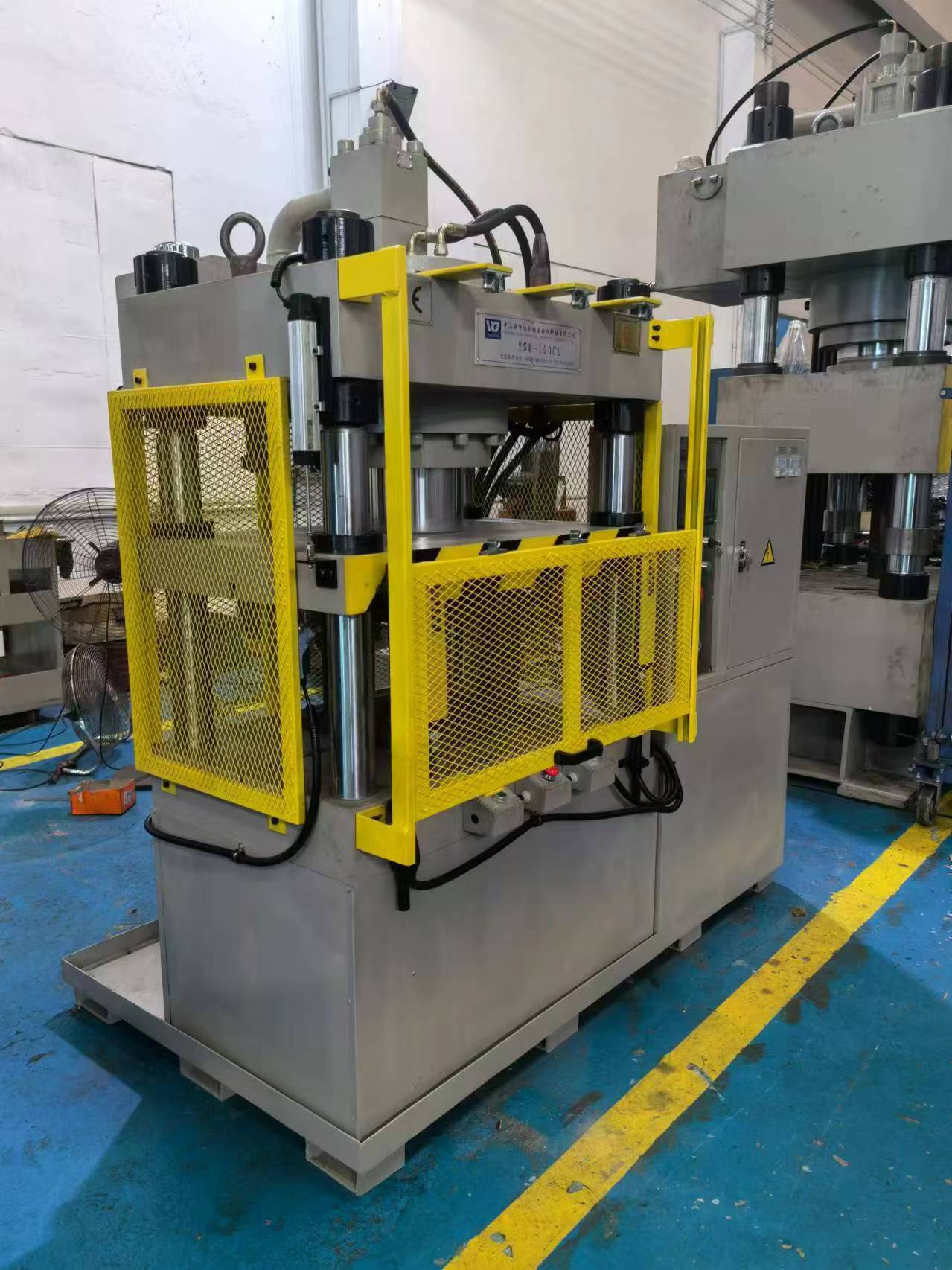

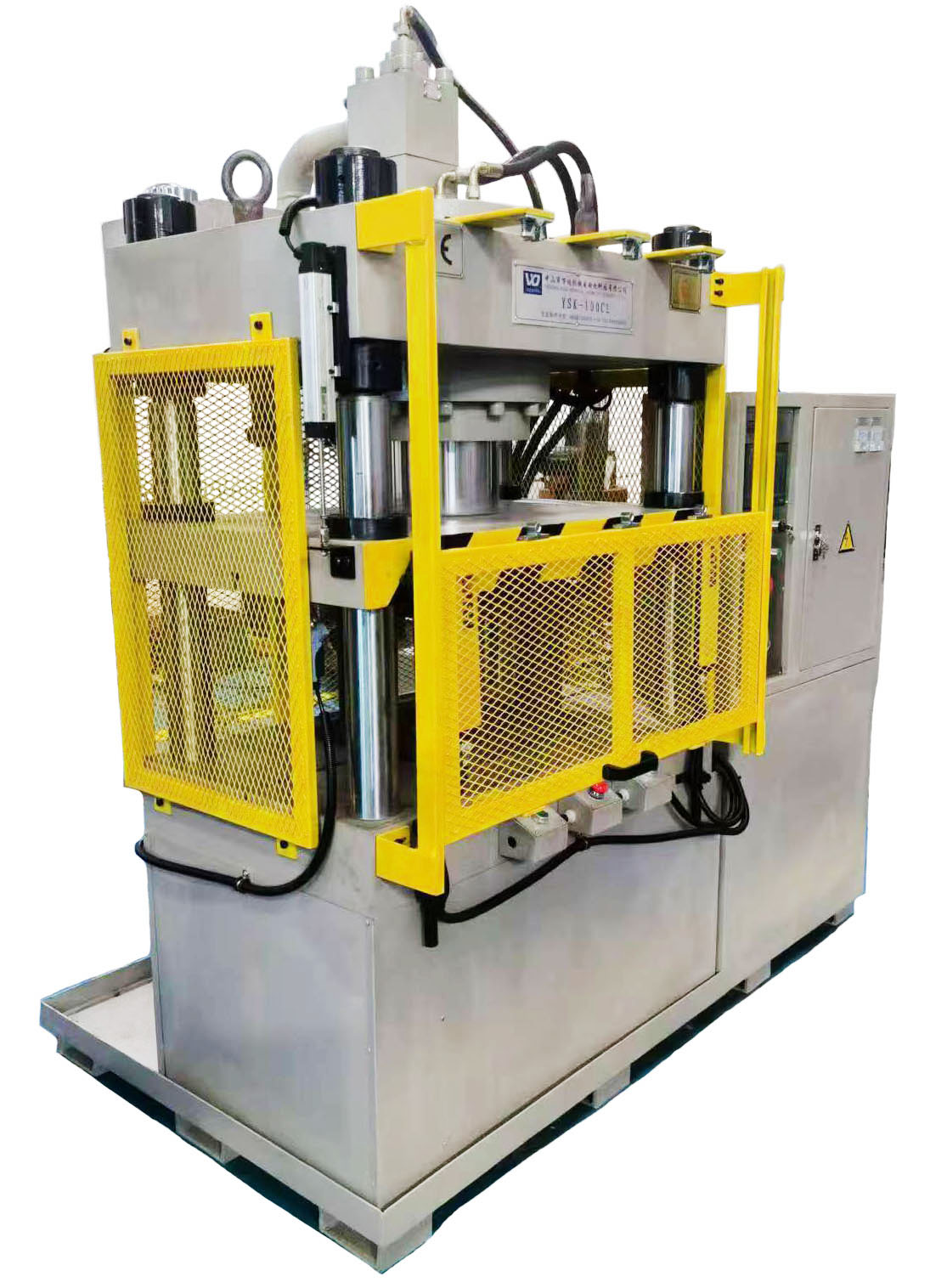

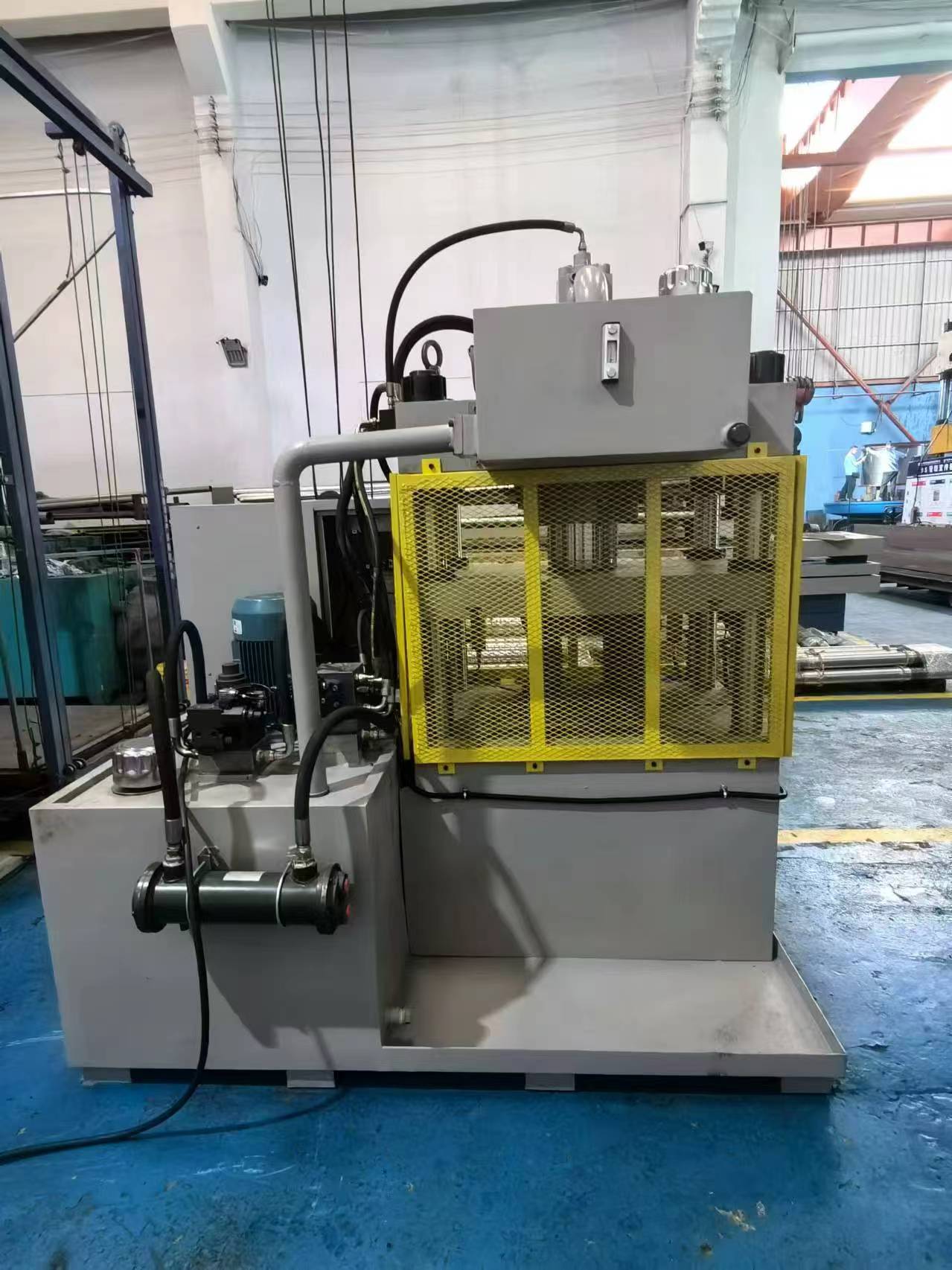

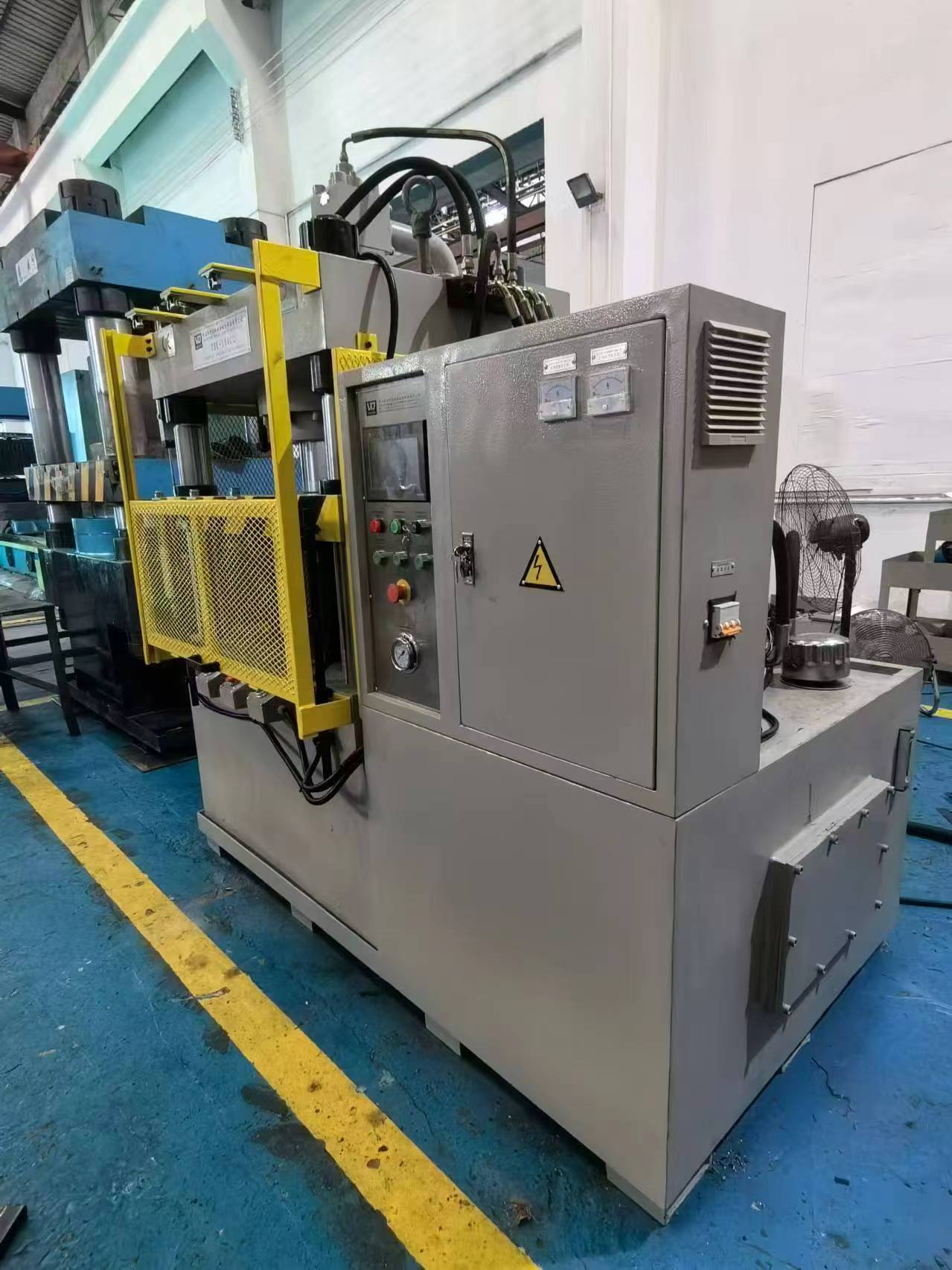

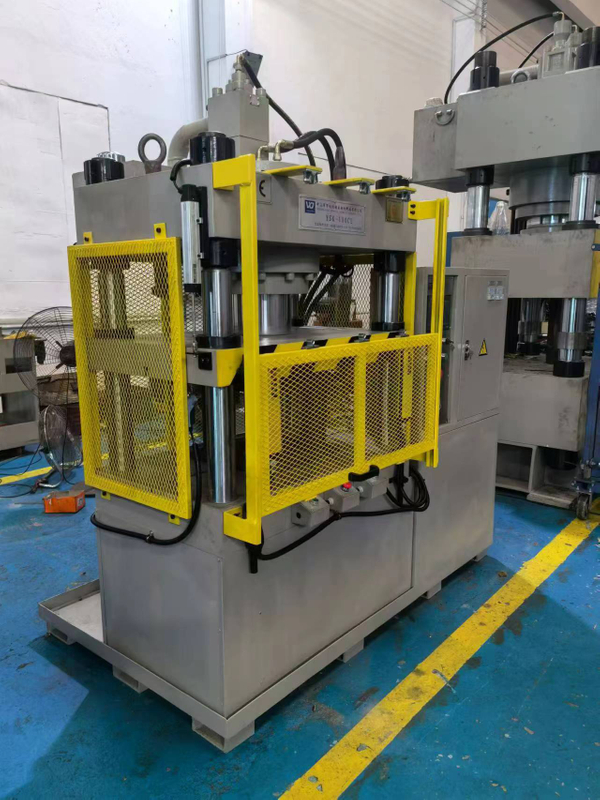

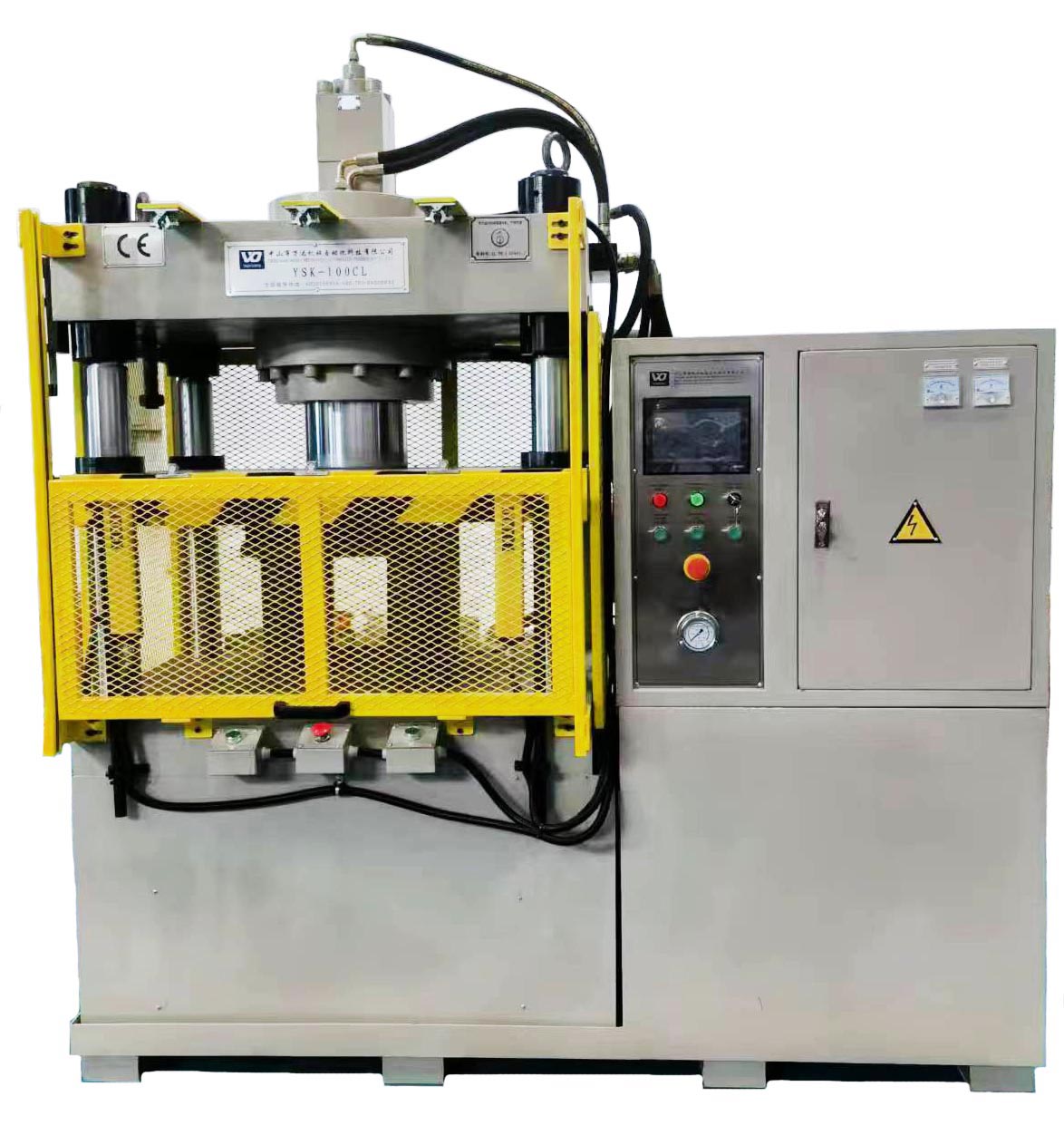

YSK-100CL

It is suitable for the calendering, imprinting, forming and shallow stretching processes of plastic sheets of metal, such as: watch case, watch bottom cover, watch strap, various gold and silver jewelry, badges, and gold coins.
Suitable for the rolling, stamping, forming, and shallow stretching process of metal sheets, such as the pressing of watch cases, watch covers, watch straps, various gold and silver jewelry, badges, and gold coins.
Availability:
Quantity:
Inquire Add to Basket

YSK-100CL
YSK-100CL
YSK-100CL
YSK-100CL
YSK-100CL
YSK-100CL

  • YSK-100CL

  • 万达

Product Description

Technical parametersMain technical

Serial number NO.

Project Item

Unit

Parameter value Spec.

1

Master cylinder nominal force

KN

1000 (adjustable)

2

Work slider stroke

mm

110 (adjustable)

3

Height of workspace opening

mm

460

4

Working slider speed

Work slider speed

Fast forward Fast forward

Mm/s

175 (adjustable)

Work progress

Mm/s

7 (adjustable)

Return

Mm/s

175 (adjustable)

5

Workbench effective size

Effective size of workbench

Left and right (inside the column)

LR(inside the column)

mm

800

Front and back (edge) FB(edge)

mm

650

6

Max. pressure of hydraulic system

MPa

25

7

Motor Power

KW

7.5
2


3


4


5
