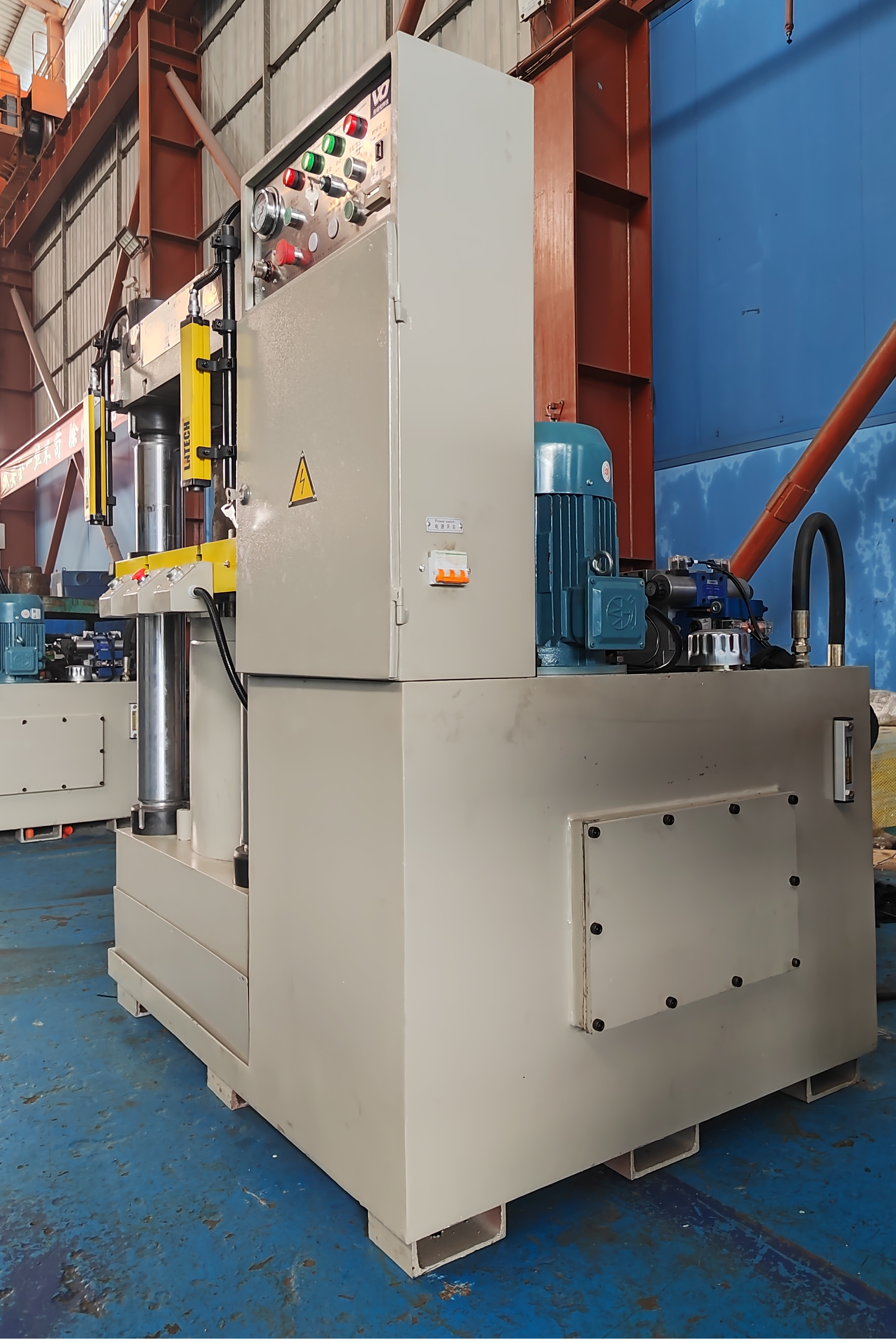

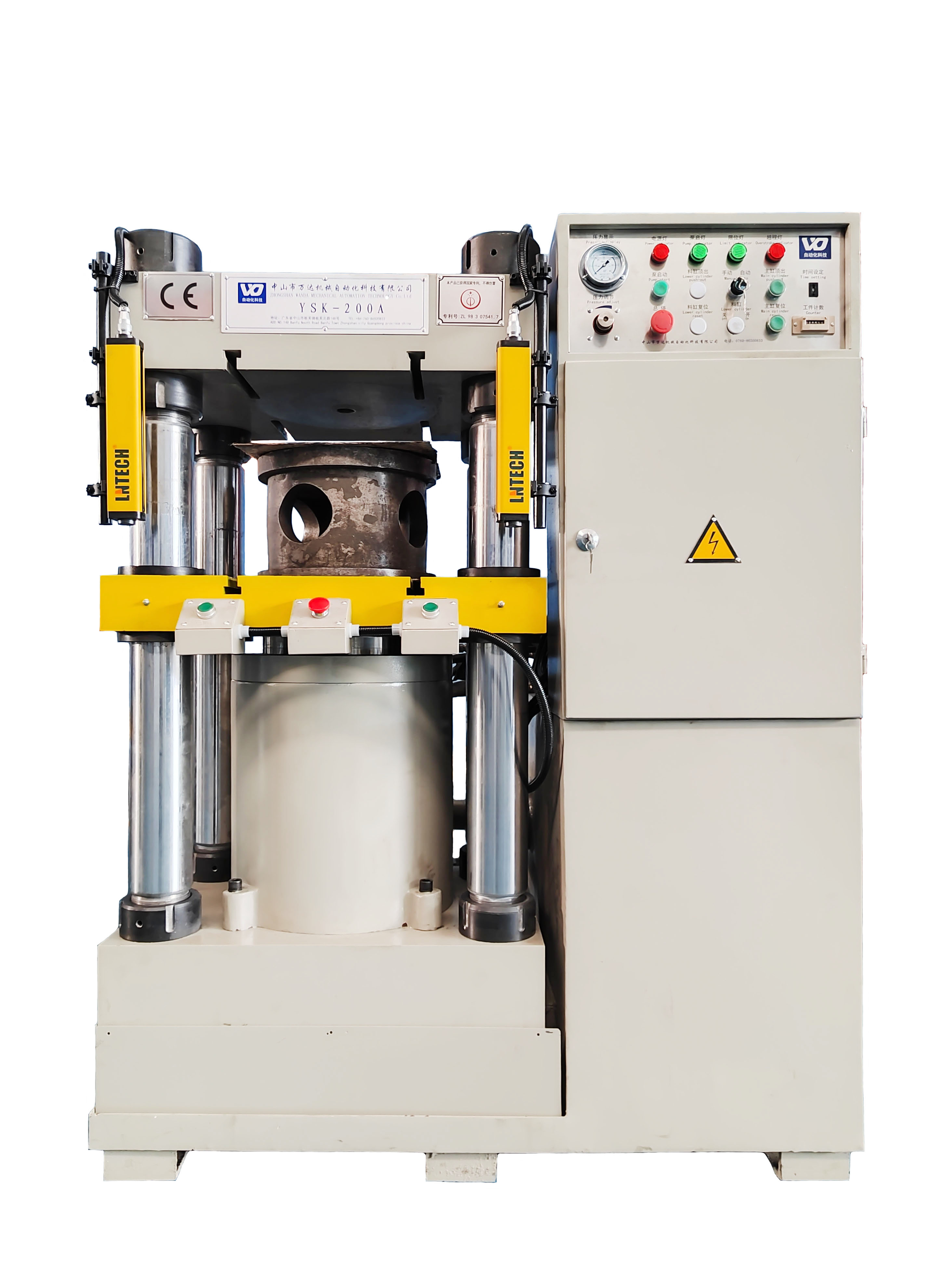

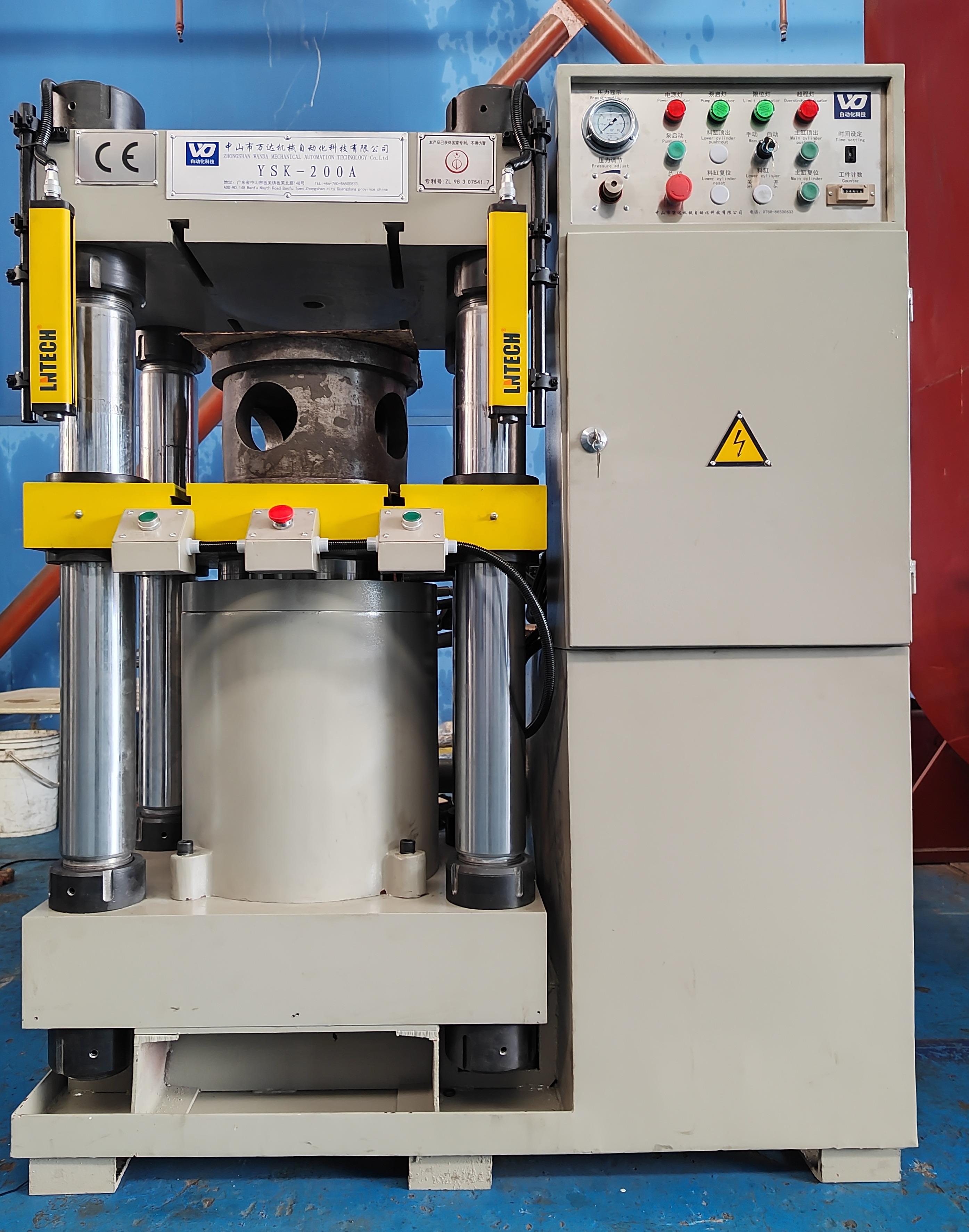

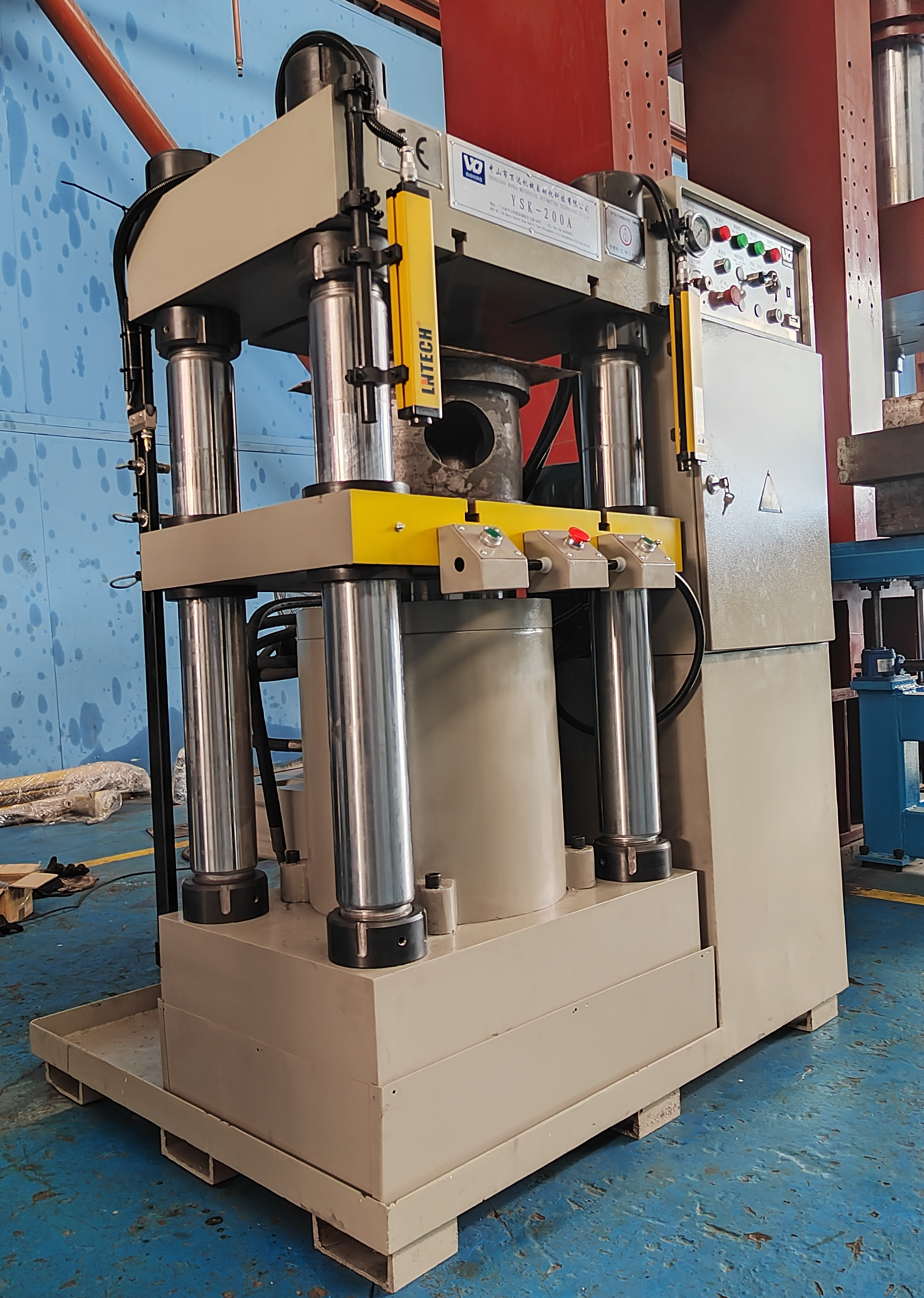

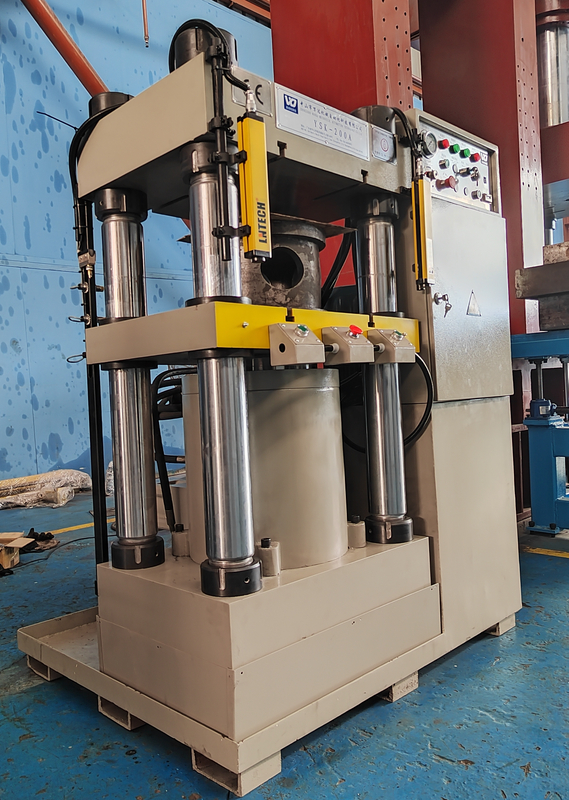

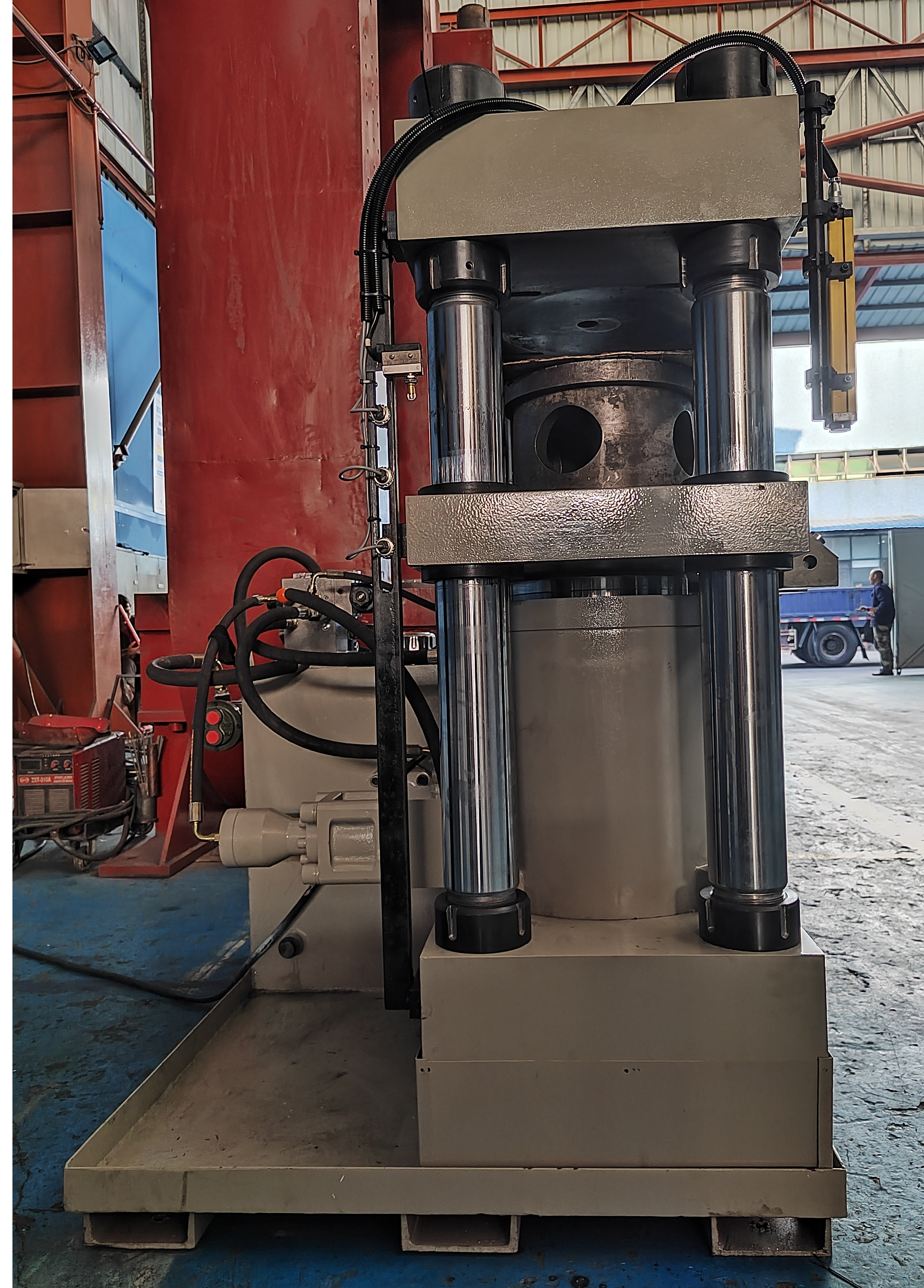

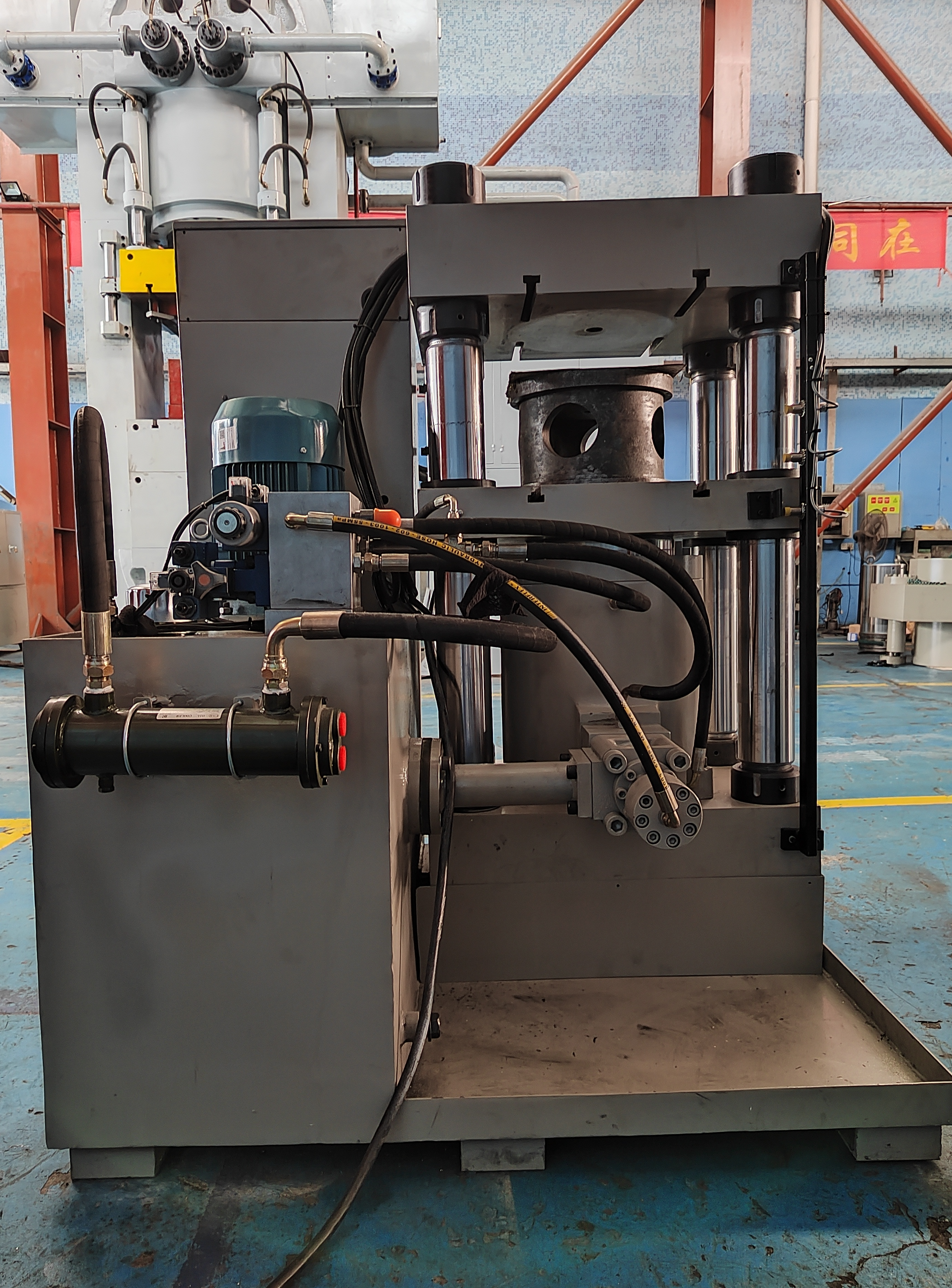

YSK-200A

200 tons metal forming hydraulic press, YSK A/B series four models are suitable for the shallow stretching process of metal thin plate calendering, imprinting, molding and plastic sheets.
For example: the pressing of watch cases, watch bottom covers, straps, various gold and silver jewelry, badges, and gold coins, and is also suitable for the molding of various tableware and lighting and the correction and pressure installation of parts.

Availability:

Quantity:



Inquire Add to Basket

Model:
YSK-200A
Brand:
万达

Product Description

Product Description

Main technical parameters:

YSK A/B series four-column hydraulic press YSK A/B Series Four Column Hydraulic Press Technical Parameters (Bottom Type)
project Item		Units	Specification
project Item		Units	YSK-60	YSK-100	YSK-150	YSK-200	YSK-300	YSK-500	YSK-600	YSK-800	YSK-1000	YSK-1500	YSK-2000	YSK-2500
Nominal pressure Nominal Force		Tonf	60	100	150	200	300	500	600	800	1000	1500	2000	2500
Work slider stroke Slider Stroke		mm	90	120	150	150	150	160	160	200	200	200	200	200
Workspace opening height Opening Height		mm	280	350	360	360	400	500	600	600	600	800	800	800
Working Slider Speed	fast forward Fast Upward	mm/s	120	120	100	120	120	100	110	85	75	80	200	60
Working Slider Speed	Return Return	mm/s	180	150	120	120	110	80	110	85	80	80	140	50
Worktable Size	Left and right LR	mm	280	340	400	440	580	685	750	880	900	1060	1270	1460
Worktable Size	Front and rear FB	mm	400	435	500	540	600	700	750	880	960	1300	1300	1510
Worktable Height from Ground		mm	770	880	920	920	920	1210	1320	1660	1720	1190	1880	1930
Ejector Force		kg/f	2	5	5	5	5	10	10	20	20	20	20	20
Refund cylinder head trip Ejector Stroke		mm	15	20	20	20	20	20	20	20	20	20	20	20
Hydraulic System Pressure		Mpa	20	20	20	21	22	23	23	23	23	23	23	23
Motor Power		KW	5.5	5.5	7.5	7.5	7.5	11	22	22	22	22	334	45.5
Machine dimensions Overall Dimension	Left and right LR	mm	1110	1150	1150	1310	1450	1510	1768	1915	1976	3940		4178
Machine dimensions Overall Dimension	Front and rear FB	mm	960	960	960	1100	1060	1500	1350	1495	1680	1880		2710
	Height	mm	1340	1340	1450	1490	1620	2100	2120	2095	3080	2650		2815
Machine Weight		KG	1400	1800	2800	3700	5000	10000	12000	16500	18000	46000	59000	70000
