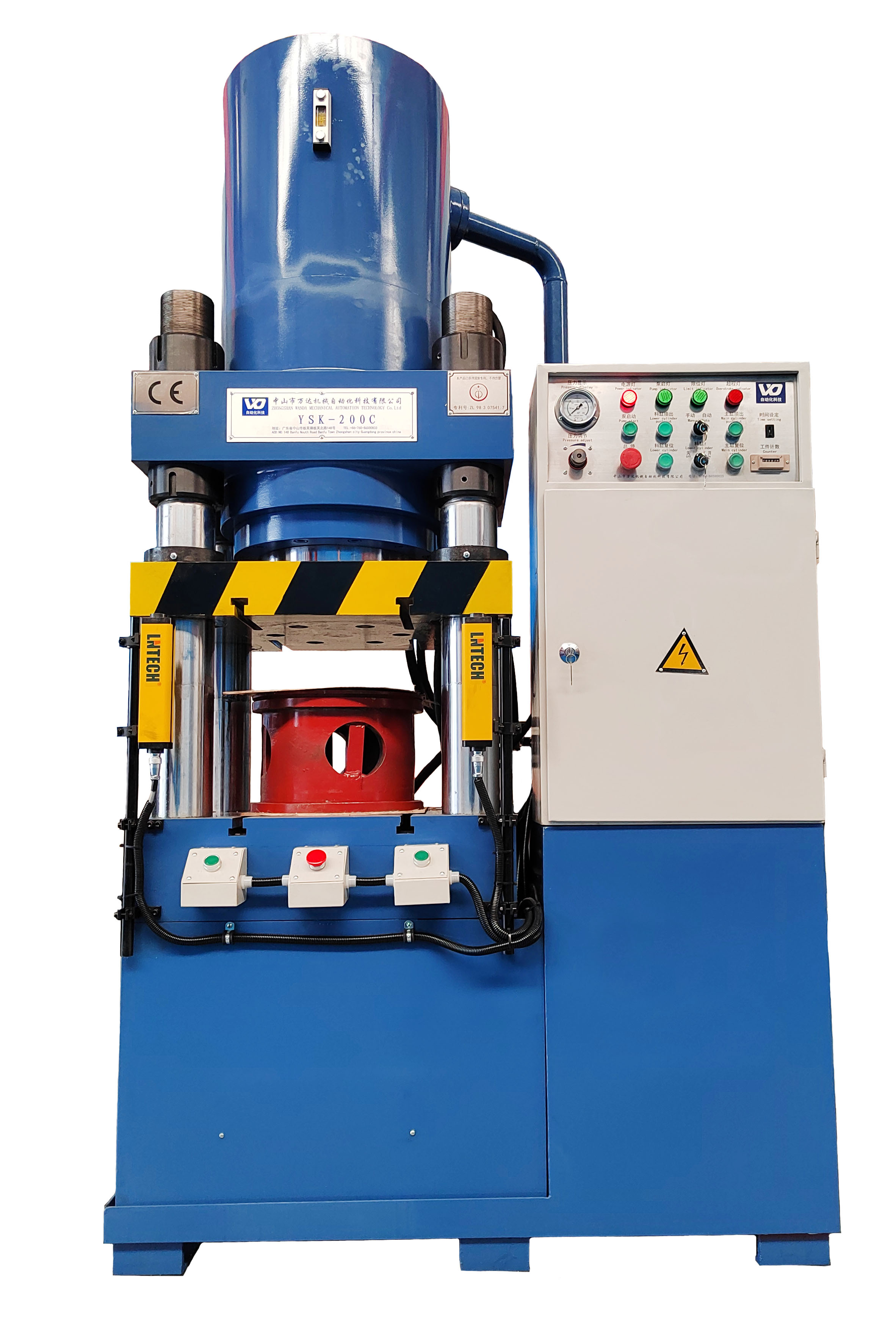

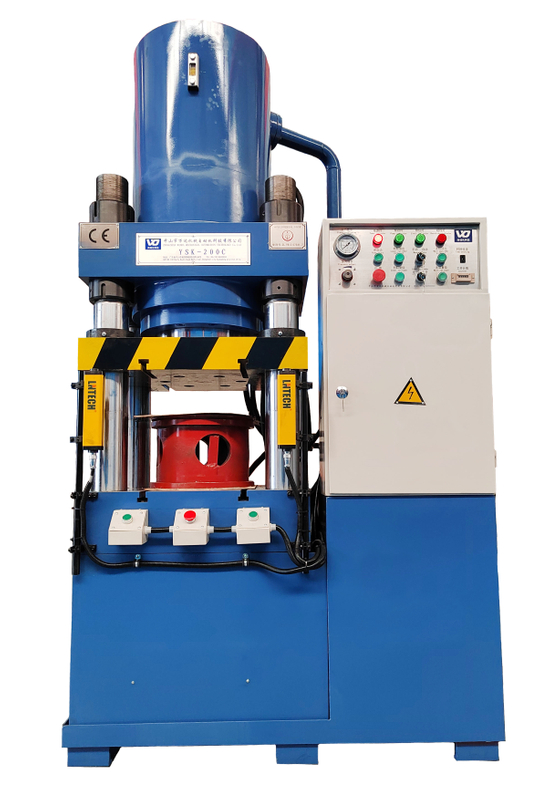

YSK-200C
万达
Product Description
Main technical parameters:
YSK-C Series (Upper cylinder type) YSK-C Series (Upper cylinder type) | |||||||||
Project Item | Unit | YSK-60C | YSK-100C | YSK-200C | YSK-300C | YSK-500C | YSK-800C | YSK-1000C | |
Nominal pressure Nominal pressure | KN | 600 | 1000 | 2000 | 3000 | 5000 | 8000 | 10000 | |
Maximum travel of working slider Maximum stroke of working slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 350 | |
Height of workbench from floor | mm | 750 | 750 | 750 | 750 | 1000 | 1200 | 700 | |
Workspace opening height Working area opening height | mm | 300 | 350 | 400 | 500 | 800 | 800 | 960 | |
Working slider speed Working slider speed | Fast forward | mm/s | 140 | 150 | 120 | 120 | 130 | 120 | 100 |
Returning | mm/s | 140 | 150 | 120 | 100 | 150 | 100 | 100 | |
Effective size of work surface | Left and right LR | mm | 300 | 340 | 420 | 560 | 1000 | 1080 | 1200 |
Front and rear FB | mm | 400 | 440 | 500 | 680 | 1000 | 1250 | 1300 | |
Maximum top output of return cylinder | KN | 100 | 100 | 100 | 100 | 200 | 200 | 200 | |
Maximum ejection stroke of return cylinder | mm | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
Hydraulic system pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
Motor power | KW | 5.5 | 7.5 | 7.5 | 7.5 | 22 | 30 | 30 | |
Machine dimensions | Left and right LR | mm | 1110 | 1150 | 1250 | 1500 | 2055 | 2710 | 2890 |
Front and rear FB | mm | 960 | 960 | 960 | 1060 | 1850 | 1680 | 1920 | |
Height | mm | 1800 | 1930 | 2000 | 2800 | 3585 | 3850 | 3550 | |
Machine weight | KG | 1700 | 2000 | 4300 | 4800 | 15000 | 20000 | 25000 | |
